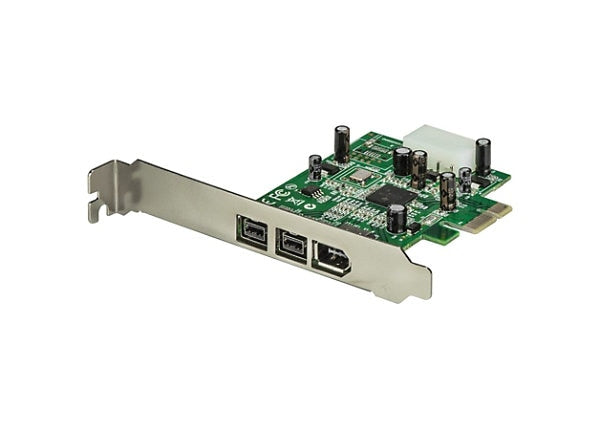

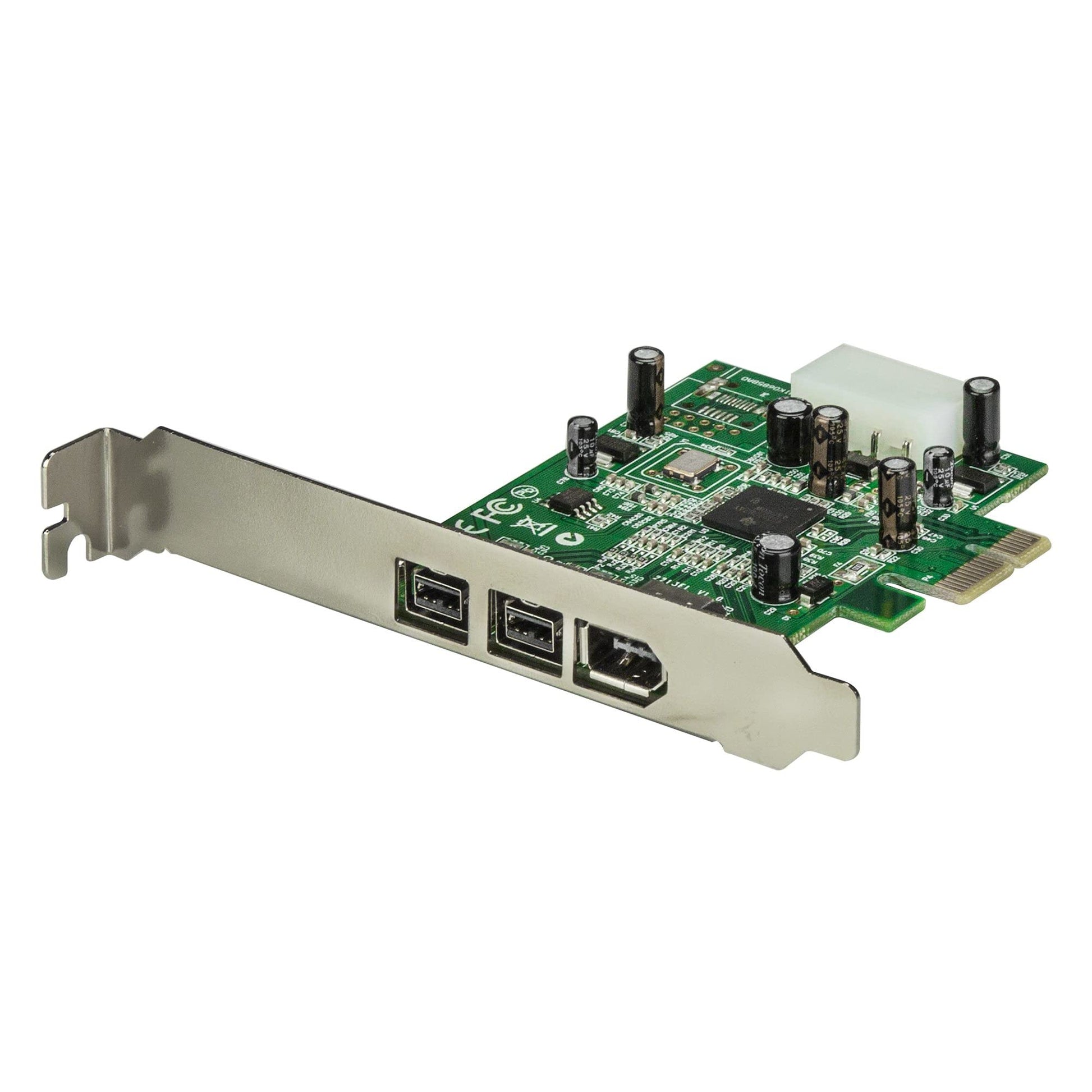

StarTech 3-Port PCIe FireWire 800/400 Card (PEX1394B3)

VENDOR: STARTECH Mfg Part#: PEX1394B3 UPC#: 065030825139
1 5
Photo is for illustration purposes only. Actual product may be different.
$66.07
$66.07
Sale Sold out
MSRP: $70.99
Shipping calculated at checkout.
  • Two FireWire 800 (IEEE 1394b) ports and one FireWire 400 (IEEE 1394a) port
  • Up to 800 Mbps data transfer rates
  • PCI Express interface with external card adapter form factor
  • RoHS and TAA compliant; manufactured in Taiwan
  • Includes lifetime service and support from StarTech

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Expand your system with both FireWire 800 and 400 connectivity for legacy and high-speed devices.
  • Professional-grade reliability reinforced by lifetime service and support.
  • Compliance with RoHS and TAA standards makes it suitable for secure, regulated environments.

Product Overview

Add 2 native FireWire 800 ports to your computer through a PCI Express expansion slot - pci express firewire card - pci express 1394a - pcie firewire card - pcie 1394 - 4 port firewire 400 card

Specifications

Product Overview
Product Type Card Adapter
Form Factor Plug-in card
Interface Type PCI Express x1
Chipset LSI/Agere FW643
Bus Type PCIe 1.0a
Power Requirements 12V from PCIe slot or SATA power connector
Low Profile Bracket Included Yes
Bracket Type Full and low-profile
LED Indicators

Physical & Environmental
Width 0.7 in (1.8 cm)
Depth 3.3 in (8.4 cm)
Height 4.7 in (11.9 cm)
Weight 61 g (2.2 oz)
Color Green with metal bracket
Operating Temperature 0°C to 85°C (32°F to 185°F)
Storage Temperature -20°C to 100°C (-4°F to 212°F)
Humidity 20% - 80% RH

Cloud Management & Licensing
Cloud Management
Licensing Requirements No license required
Driver Support Windows, macOS, Linux

Interfaces
Number of Ports 3
FireWire 800 Ports (9-pin) 2
FireWire 400 Ports (6-pin) 1
External Interfaces 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394a
Host Interface PCI Express x1
Data Transfer Rate Up to 800 Mbps
Additional Power Connector SATA power connector for high-power devices

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Yes
Certifications CE, FCC
Country of Origin Taiwan
