StarTech 4-Port Low Profile PCIe USB 2.0 Expansion Card

VENDOR: STARTECH Mfg Part#: PEXUSB4DP UPC#: 065030836661
1 5

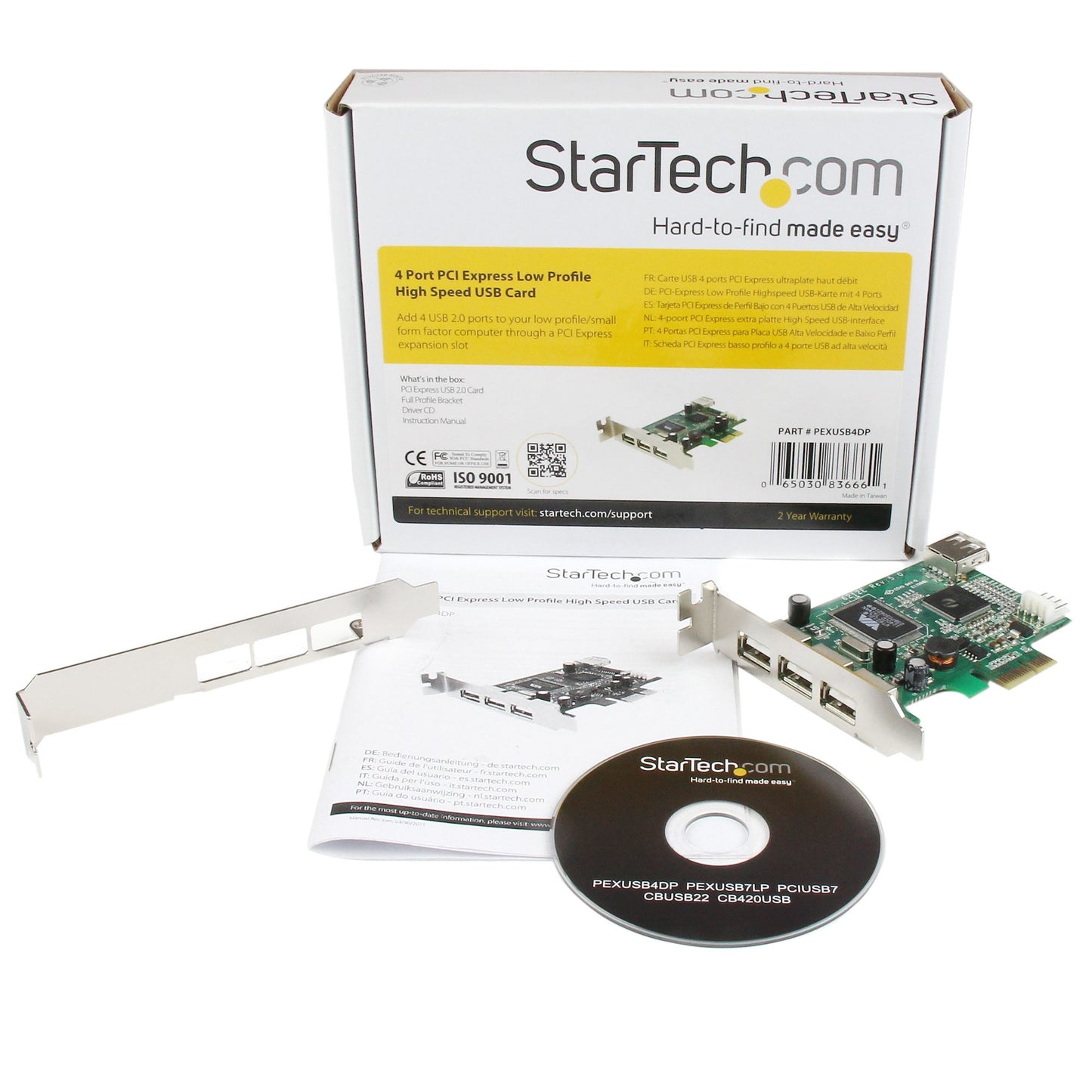

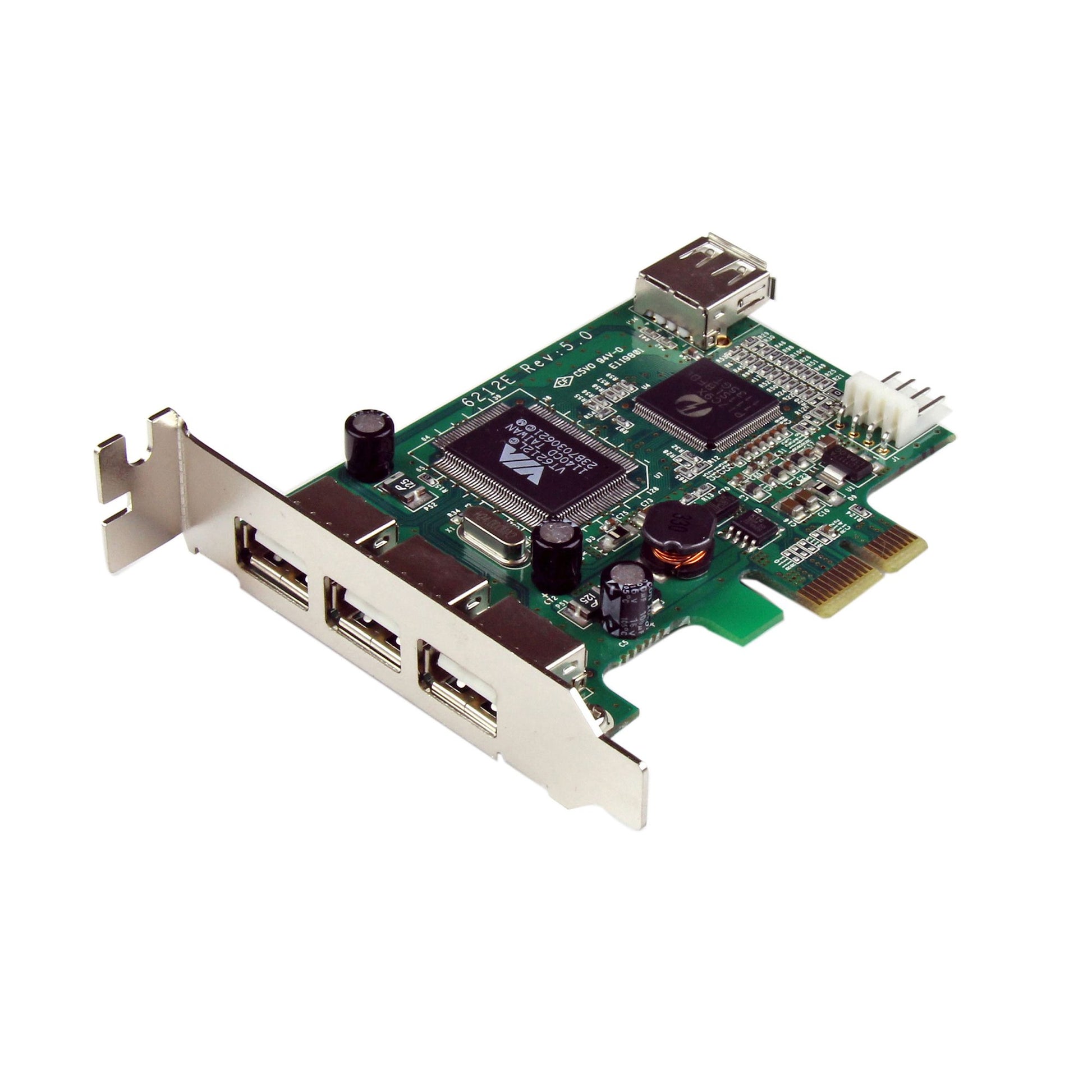

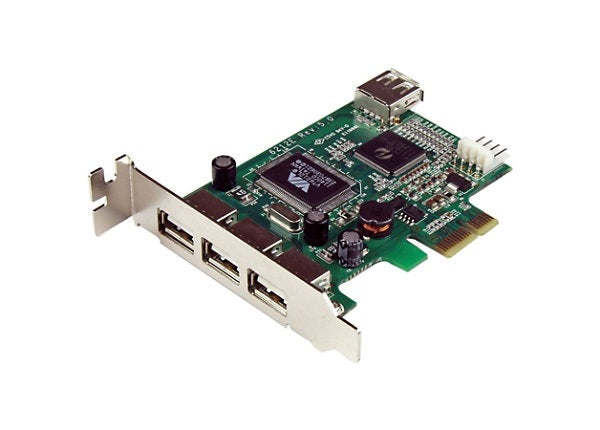

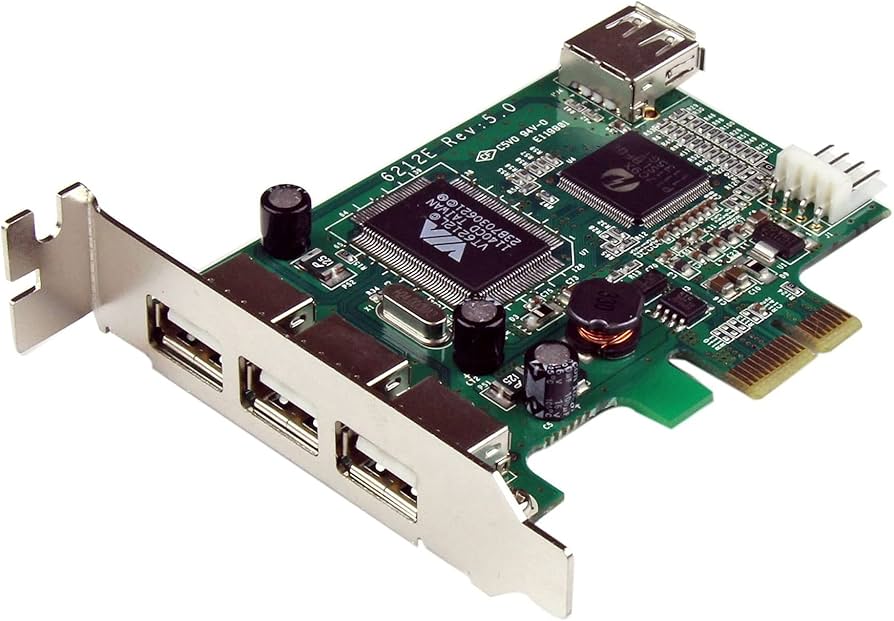

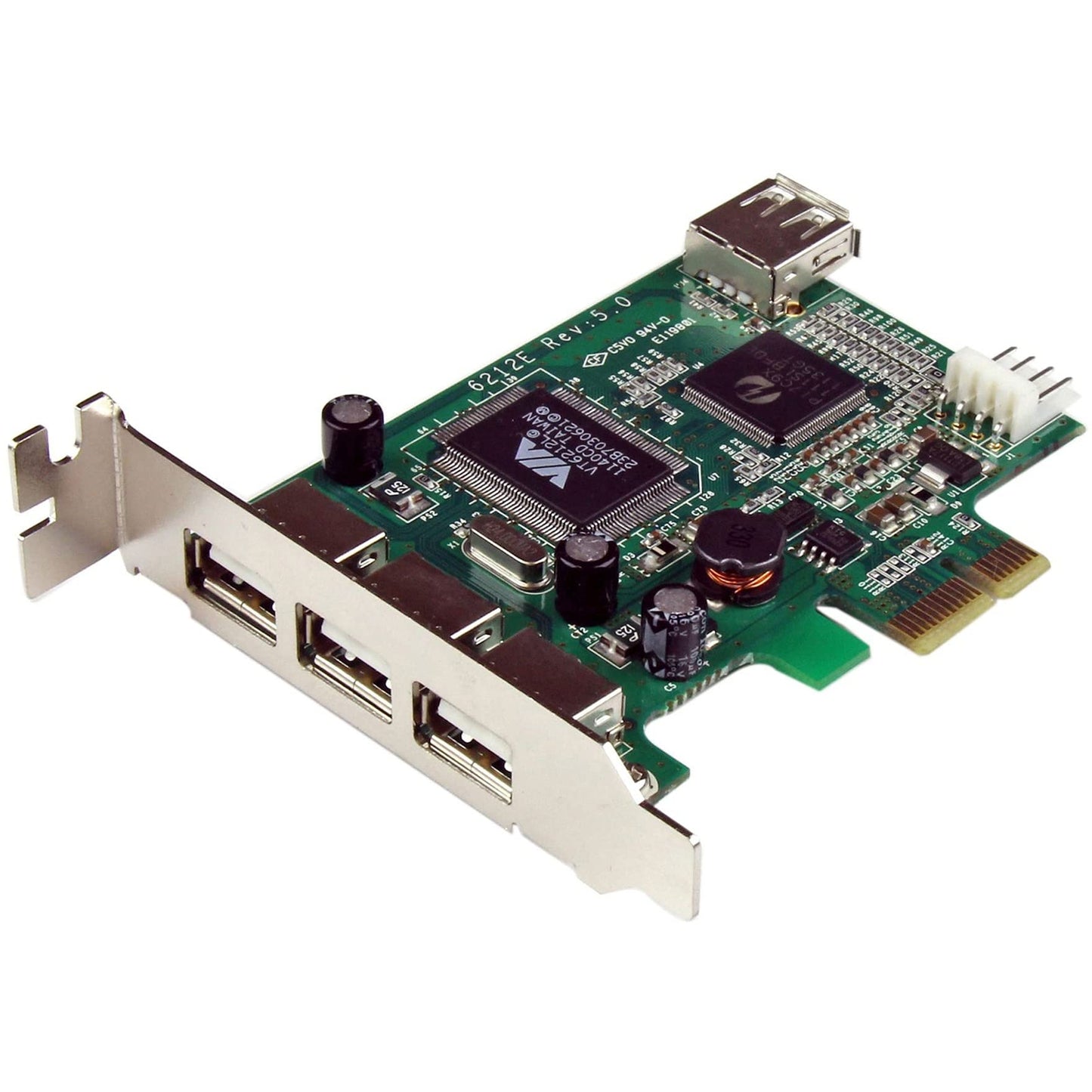

Photo is for illustration purposes only. Actual product may be different.
$45.68
$45.68
Sale Sold out
MSRP: $48.99
Shipping calculated at checkout.
  • Adds 4 USB 2.0 ports via PCI Express expansion
  • Supports data transfer rates up to 480 Mbps
  • Designed for low-profile and small form factor systems
  • Three USB 2.0 Type-A (4-pin) physical ports
  • RoHS compliant and TAA-certified
  • 2-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for small form factor systems requiring expanded USB connectivity through PCIe.
  • TAA compliance makes it suitable for government and institutional IT environments.
  • Backed by a 2-year support warranty for reliable deployment in business settings.

Product Overview

Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot - pci express usb 2.0 card - pci-e usb 2.0 card - pcie usb 2.0 card

Specifications

Product Overview
Product Type Network Adapter
Form Factor Low Profile
Card Type PCI Express USB Expansion Card
Mounting Type Internal
Power Requirements PCI Express bus-powered (no external power required)
Chipset VIA VT6212LN
Enclosure Color Green
Service & Support Type 2 Years Manufacturer Warranty

Wireless Features
Wireless Capability

Compliance & Origin
RoHS Compliance Yes
TAA Compliant Yes
Country of Origin Taiwan
Certifications CE, FCC, RoHS
Environmental Standards Lead-free (Pb-free)

Advanced Security Features
Hardware Encryption
Firewall Support

Interfaces
Interface Type PCI Express x1
Ports Provided 4 x USB 2.0 Type-A Female
Port Type USB 2.0
Number of USB Ports 4
Data Transfer Rate 480 Mbps (USB 2.0)
Host Interface PCIe x1
Internal Connectors 1 x LP4 Power Connector (optional for high-powered USB devices)
USB Compatibility Compliant with EHCI and OHCI specifications

Physical & Environmental
Width 3.1 in (79 mm)
Depth 3.5 in (90 mm)
Height 0.8 in (20 mm)
Weight 47 g (1.7 oz)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 85°C (14°F to 185°F)
Operating Humidity 15% to 90% RH (Non-Condensing)
Storage Humidity 15% to 90% RH
Low Profile Bracket Included Yes

Cloud Management & Licensing
Cloud Management
Licensing Requirements None
