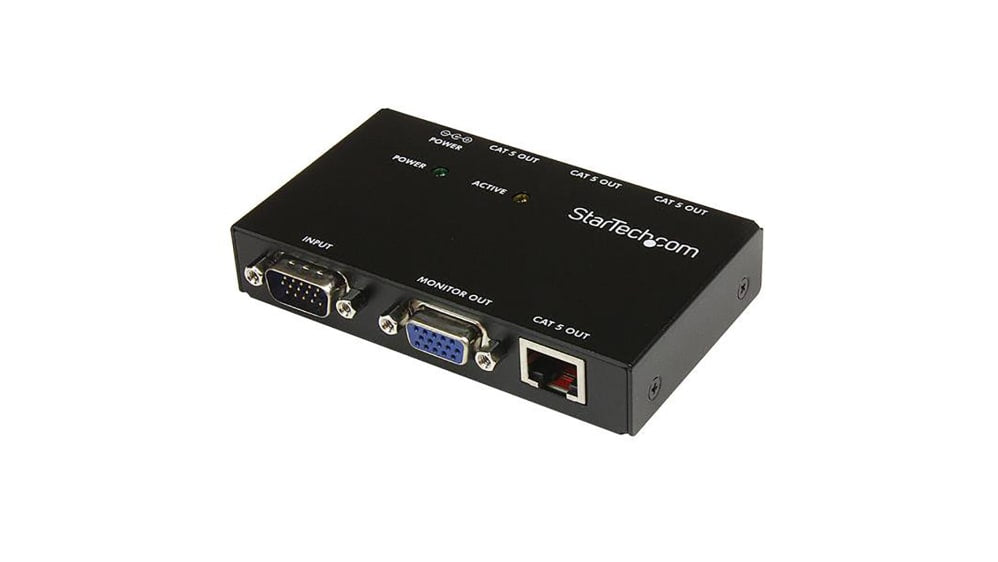

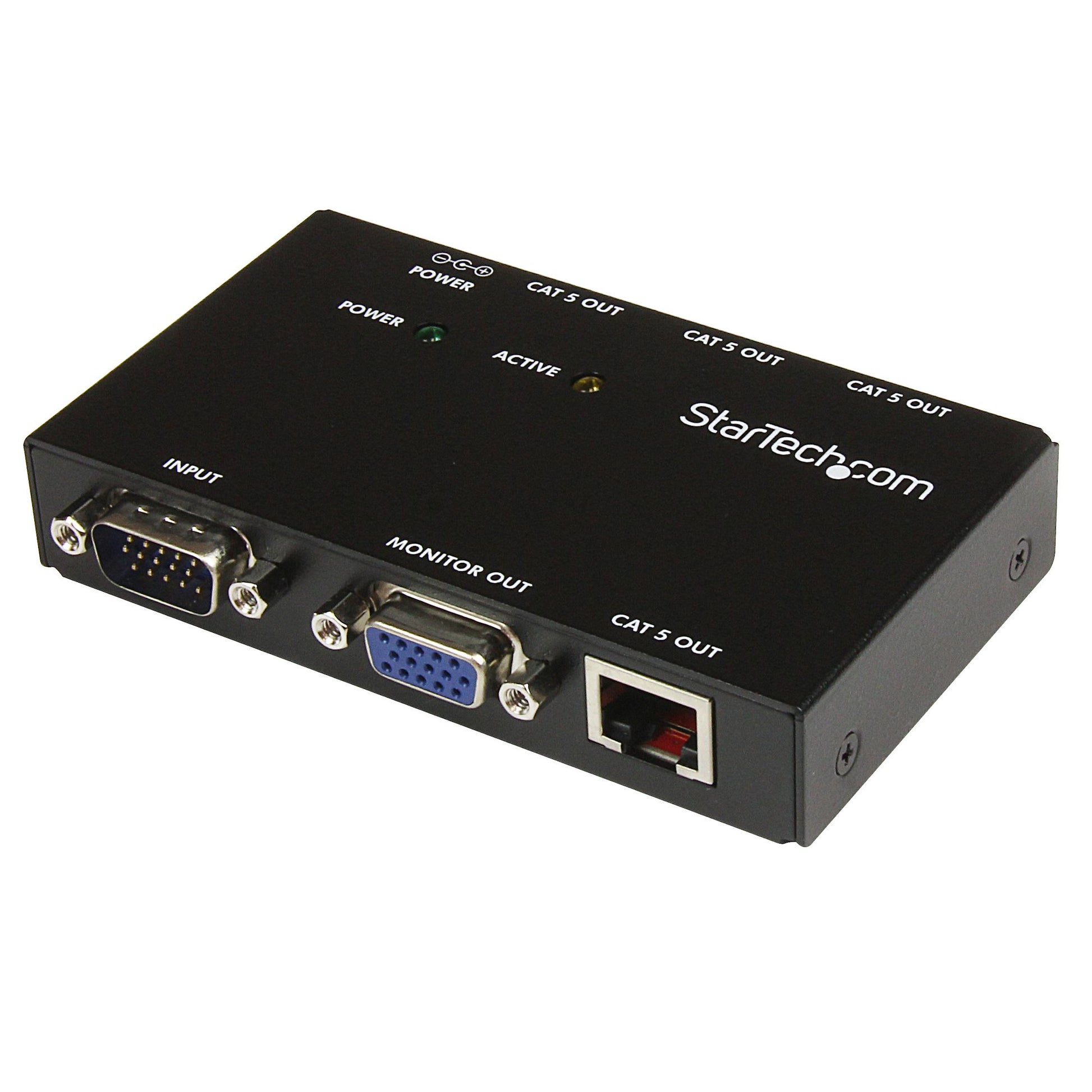

StarTech 4-Port VGA Extender over Cat5, 1600x1200, 150m, ST1214T

VENDOR: STARTECH Mfg Part#: ST1214T UPC#: 065030824446
1 4
Photo is for illustration purposes only. Actual product may be different.
$158.01
$158.01
Sale Sold out
MSRP: $158.99
Shipping calculated at checkout.
  • Supports maximum resolution of 1600x1200 at up to 150m distance
  • Equipped with four RJ-45 output ports for multiple displays
  • Wired connectivity ensures stable signal transmission
  • Compliant with CAT5 cabling standards
  • TAA compliant and made in Taiwan
  • Compact black enclosure with 2.5" x 4.1" x 0.8" dimensions

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-resolution VGA video (1600x1200) across distances up to 150m for versatile installation.
  • Connects a single VGA source to up to four displays, simplifying multi-screen AV setups.
  • TAA compliance and Taiwan origin align with commercial and government procurement standards.

Product Overview

Extend and distribute a VGA signal to up to 4 displays over Cat5 cable - vga over cat5 extender - vga extender over cat5 - vga over cat 5 extender - vga extender over cat 5 - VGA to Cat5 Extender

Specifications

Product Overview
Product Type 4-Port VGA Video Extender over Cat5
Form Factor Standalone
Enclosure Color Black
Weight 204 g
Power Requirements 9V DC, 600mA

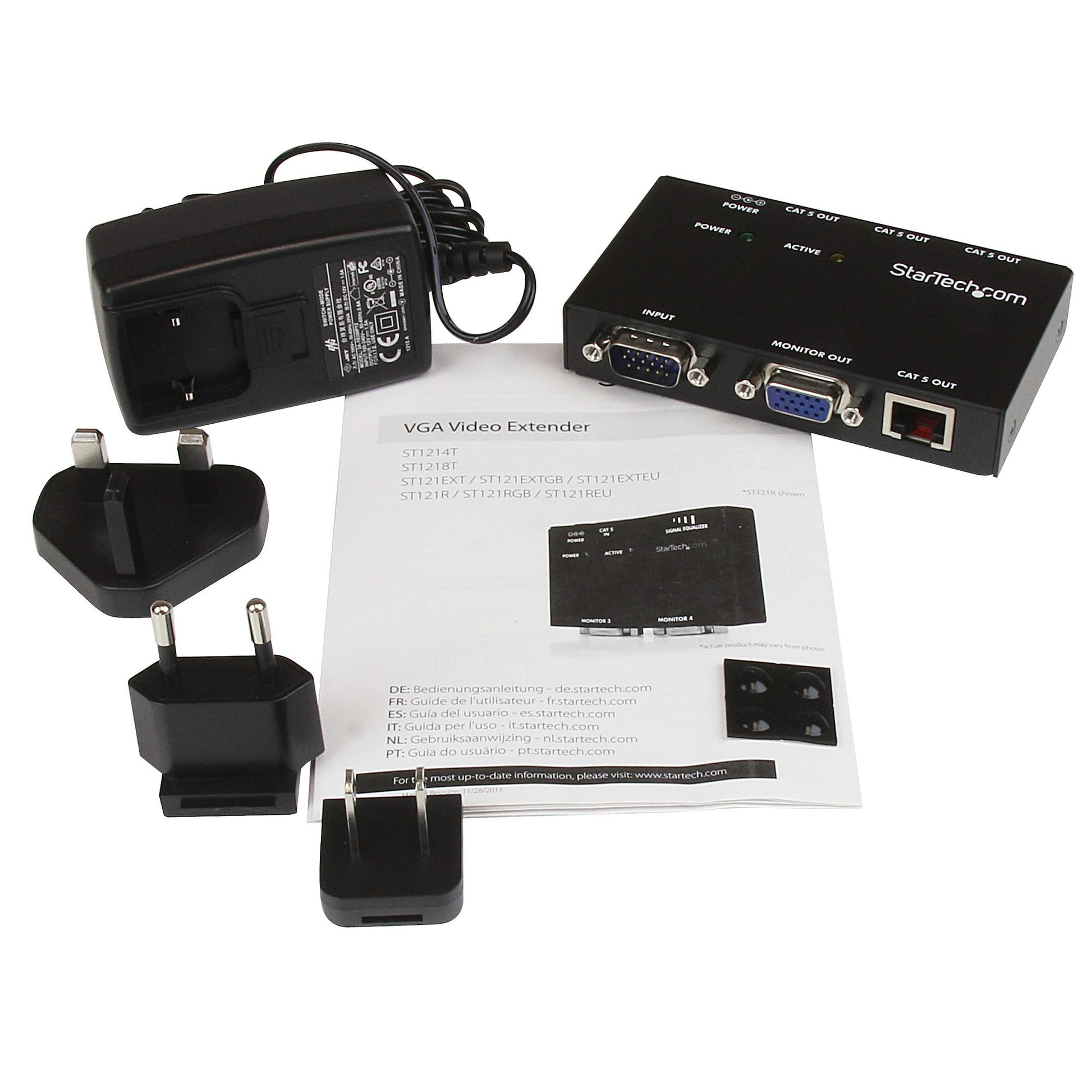

Power Adapter Included Yes
Power Consumption (Max) 5.4 W

Physical & Environmental
Width 63 mm (2.5 inches)
Depth 104 mm (4.1 inches)
Height 20 mm (0.8 inches)
Product Weight 0.204 kg (0.45 lb)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Relative Humidity 0% to 80% RH (non-condensing)
Housing Material Steel
Mounting Type Wall-mountable (brackets not included)

Cloud Management & Licensing
Remote Management No
Cloud Management Interface

Interfaces
Input Connector Type 1 x VGA (HD-15) Female
Output Connector Type 4 x RJ-45 Female
Max Distance Supported 150 meters (492 feet)
Compatible Cabling Cat5, Cat5e, or Cat6 UTP
Supported Resolutions 1600x1200 @ 50m, 1024x768 @ 150m
Video Bandwidth 350 MHz
Daisy Chain Support Yes, cascading supported with receivers (ST1214SR)
Signal Extension Type Analog VGA Video

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC
Warranty 2 Years
UPC 065030824446

Advanced Security Features
Encryption
Signal Security Unencrypted analog signal
Content Protection Not supported (analog VGA only)
