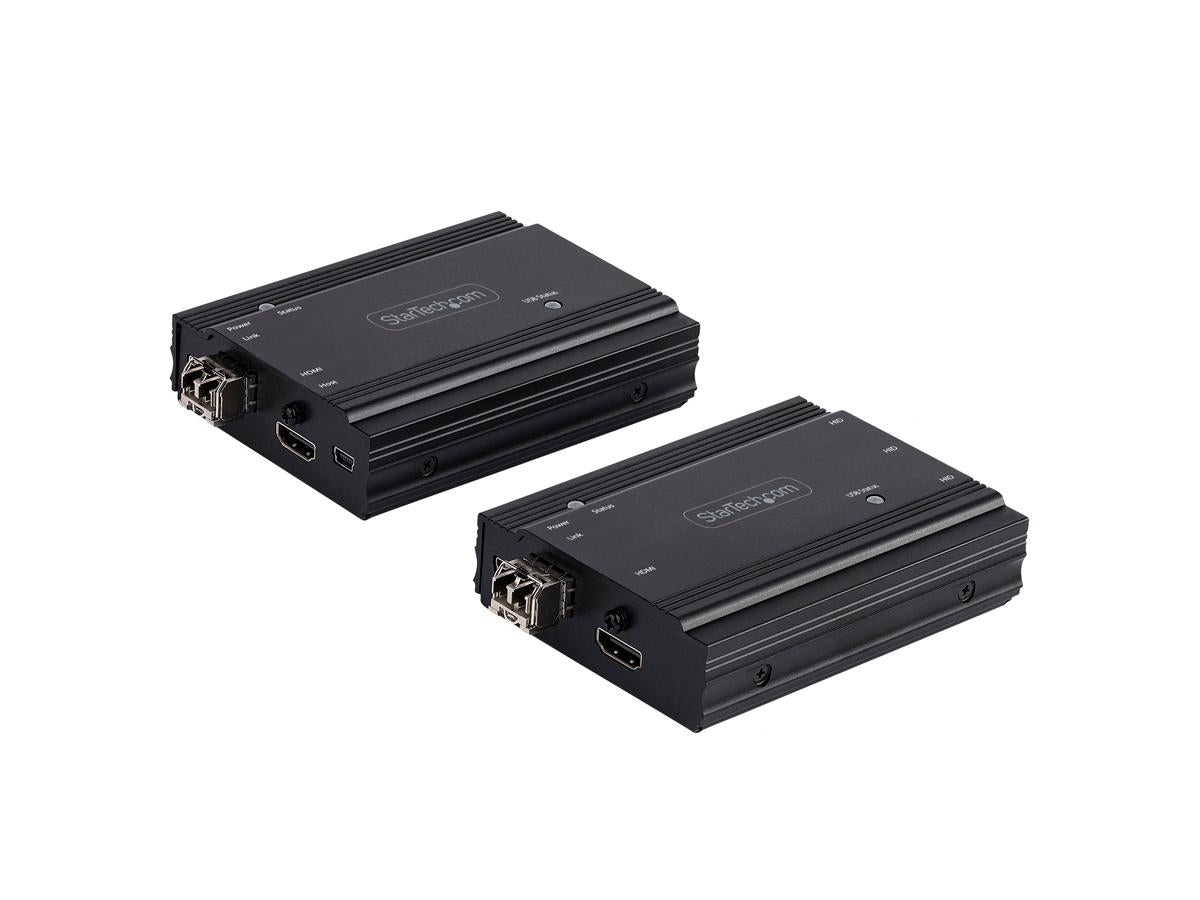

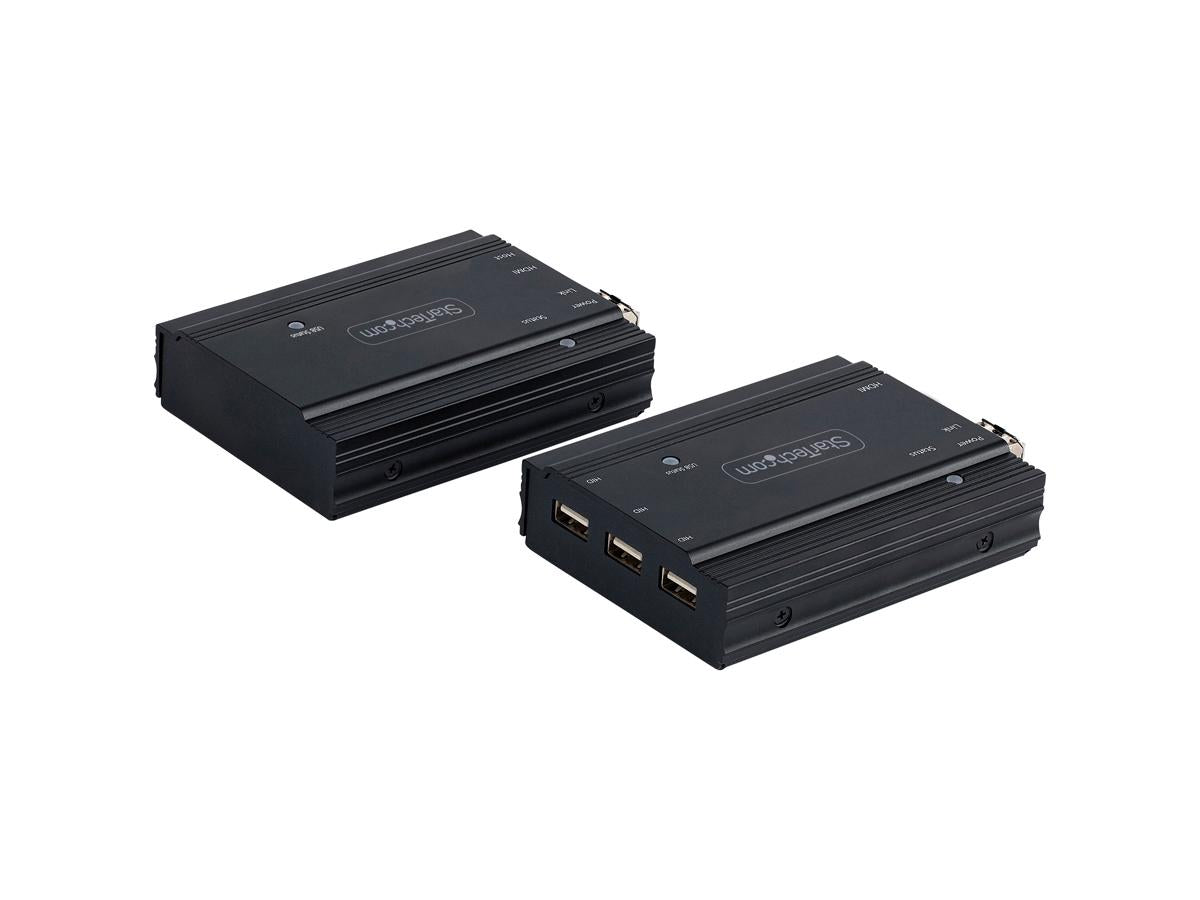

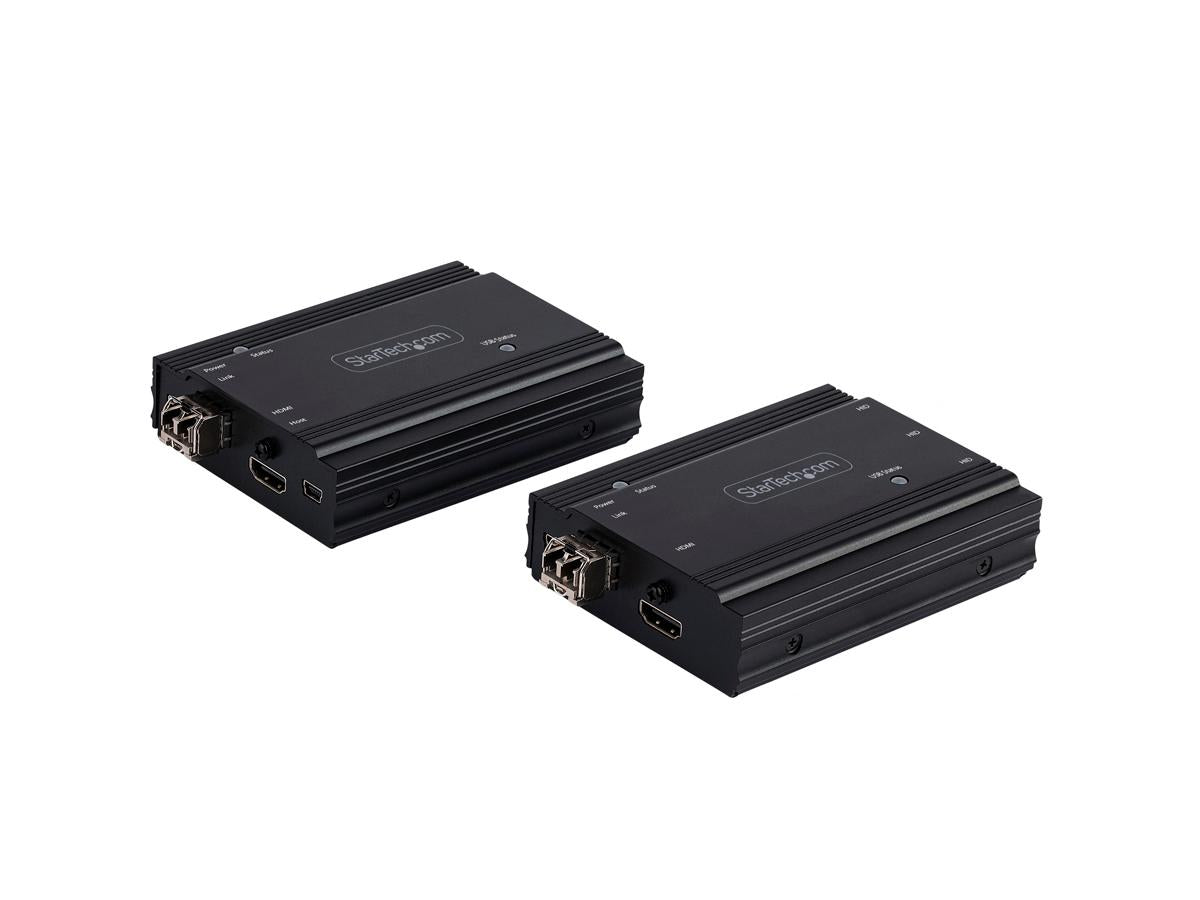

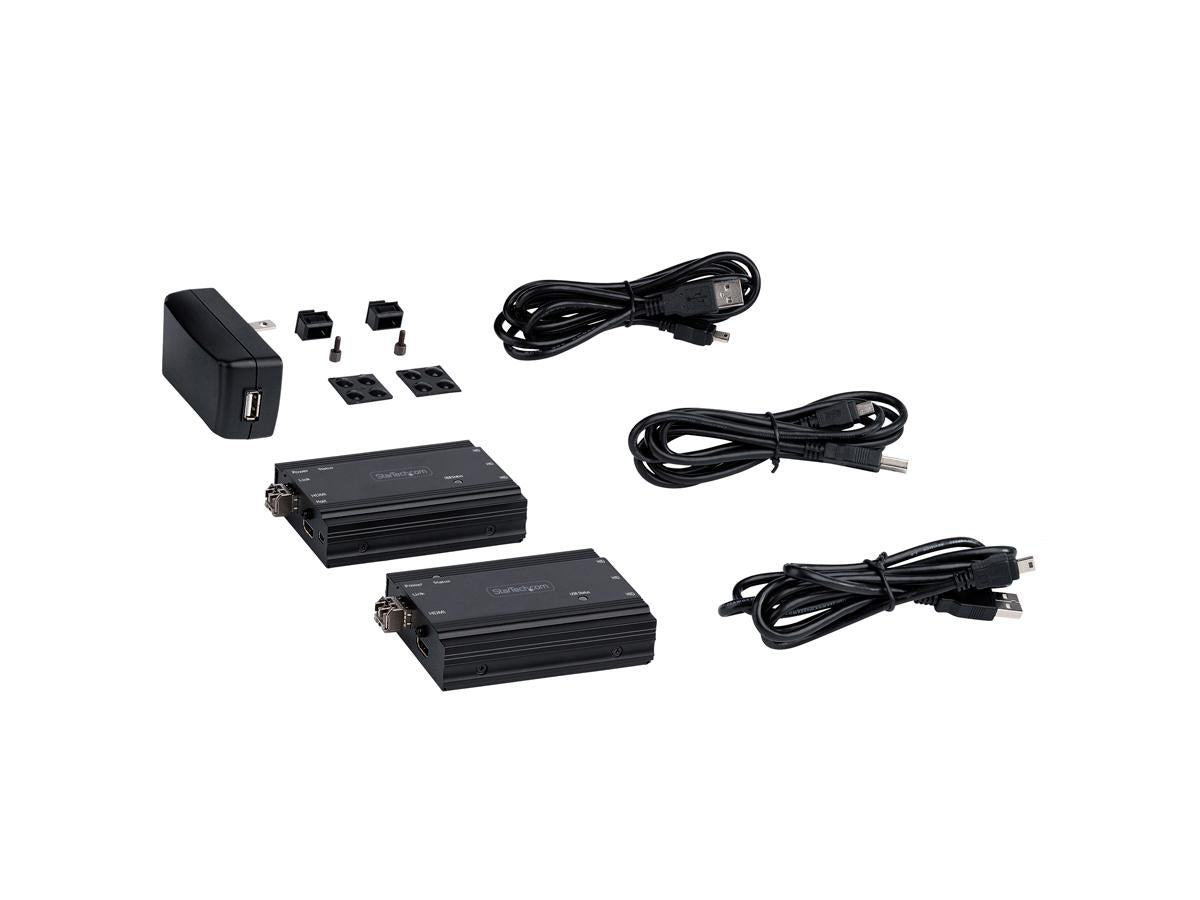

StarTech 4K HDMI & USB KVM Extender over Fiber, 984ft Range, 10G MMF SFP+

VENDOR: STARTECH Mfg Part#: SV565FXHD4KU UPC#: 065030887694
1 5
Photo is for illustration purposes only. Actual product may be different.
$690.99
$690.99
Sale Sold out
Shipping calculated at checkout.
  • Supports 4K 60Hz UHD HDMI video with HDCP 2.2 compliance
  • Extends HDMI and USB signals up to 984ft (300m) via multimode fiber
  • Includes 2x 10G LC multimode SFP+ modules, supports open SFP+ slots
  • USB 2.0 HID device support with EDID passthrough for display compatibility
  • Compact design (3.0" x 3.9" x 1.1") for flexible installations
  • TAA compliant and backed by a 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for high-performance AV and IT applications needing secure 4K video over long distances
  • Swappable SFP+ slots offer flexible deployment for existing multimode or single-mode infrastructure
  • Meets government procurement standards with TAA compliance and a 2-year support warranty

Product Overview

HDMI and USB KVM extender kit controls a KVM switch/console or PC using fiber optic cable up to 984ft (multimode) or 1640ft (single mode) - 4K 60Hz UHD/3x USB 2.0 HID/EDID Passthrough/HDCP 2.2/Digital 7.1 Audio/Open SFP+ Slots/2x 10G MM SFP+/LC

Specifications

Product Overview
Product Type KVM Extender Kit
Form Factor Standalone
KVM Type HDMI & USB over Fiber
Maximum Transmission Distance (Multimode Fiber) 984 ft (300 m)
Maximum Transmission Distance (Single-mode Fiber) 1640 ft (500 m)
Video Resolutions Supported Up to 4K 60Hz UHD (3840 x 2160)
HDCP Support HDCP 2.2
EDID Pass-Through Yes
Audio Support 7.1 Channel Digital Audio
Power Source External AC Adapter
Input Voltage 100–240V AC
Power Consumption Up to 9.5W per unit
Weight 1.1 lb (0.5 kg) per unit

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, RoHS, REACH
Warranty 2 Years

Advanced Security Features

Interfaces
Video Input (Local Unit) 1 x HDMI Female
Video Output (Remote Unit) 1 x HDMI Female
USB Ports 3 x USB Type-A (USB 2.0 HID)
Fiber Interface 2 x 10G SFP+ Slots
Connector Type LC Duplex (via SFP+ Module)
Included Modules 2 x 10G MMF SFP+ LC Modules
Data Transfer Rate (Fiber) 10 Gbps
KVM Console Ports 1 x HDMI, 3 x USB Type-A
Host Computer Interface 1 x HDMI, 1 x USB-B

Physical & Environmental
Width 3.0 in (76.2 mm)
Depth 3.9 in (99.1 mm)
Height 1.1 in (27.9 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 20% to 80% RH, non-condensing
Housing Material Aluminum
Cooling Type Passive
