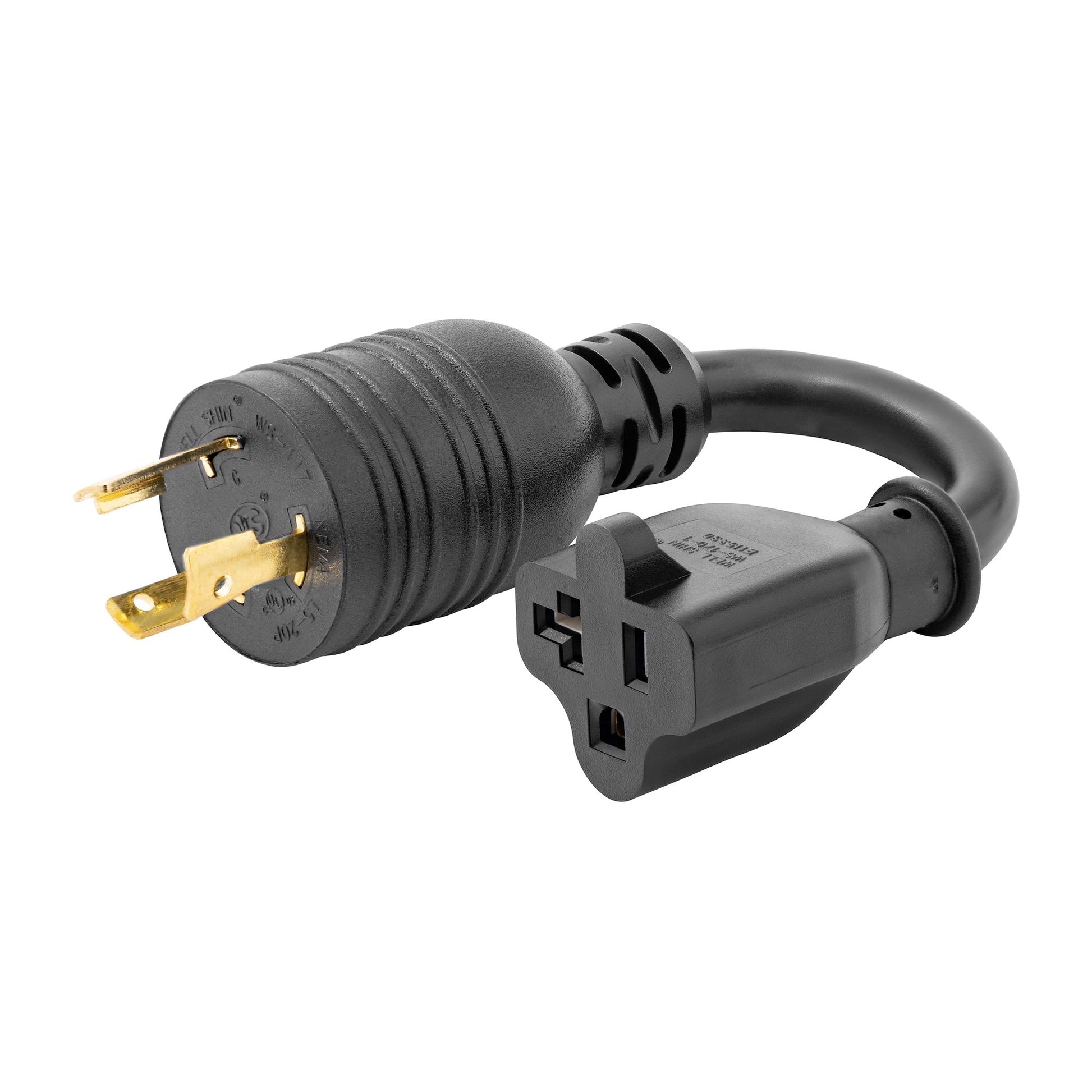

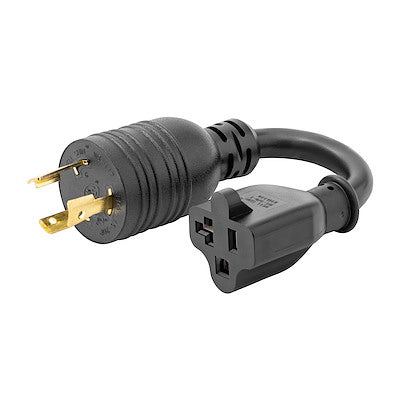

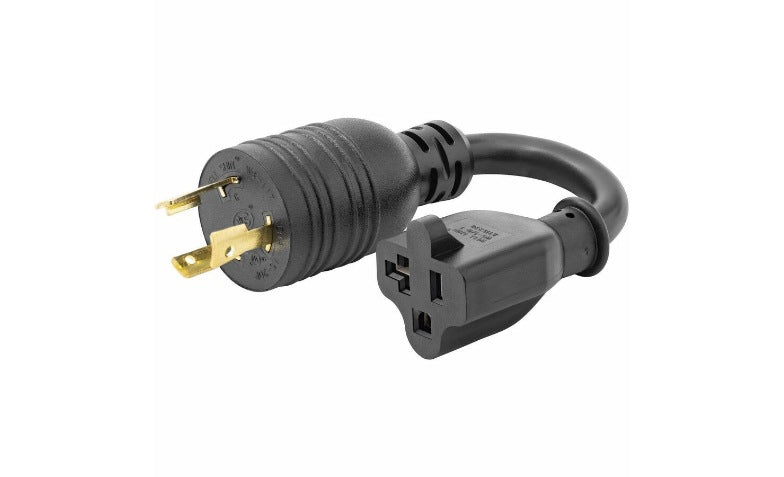

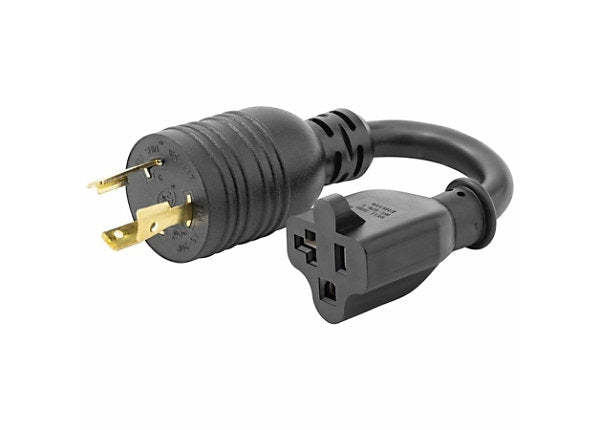

StarTech 6in Heavy Duty Power Cord, NEMA L5-20P to 5-20R, 20A 125V, 12AWG

VENDOR: STARTECH Mfg Part#: K31D-2U00-POWER-CORD UPC#: 065030900829
1 5
Photo is for illustration purposes only. Actual product may be different.
$18.60
$18.60
Sale Sold out
MSRP: $23.99
Shipping calculated at checkout.
  • 6-inch heavy duty power cord with NEMA L5-20P to NEMA 5-20R connectors
  • Supports up to 20A at 125V using 12AWG 100% copper wiring
  • UL Listed and TAA compliant for use in regulated environments
  • VW-1 fire-rated SJT jacket for enhanced safety
  • Temperature range of -4°F to 221°F for versatile deployment
  • Cable O.D. of 0.44 inches for a compact, flexible design

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-current capacity safely with 20A/125V rating and 12AWG copper conductors
  • Ideal for regulated environments with UL Listing and TAA compliance for federal procurement
  • Durable and safe for varied settings with VW-1 fire rating and broad temperature tolerance

Product Overview

6in heavy duty power cord with NEMA L5-20P to NEMA 5-20R connectors; 250V at 20A; UL Listed; Wire: 100% Copper; Fire Rating: VW-1; 12AWG; Jacket Rating: SJT; Temp Range: -4 to 221°F; Cable O.D.: 0.44in; TAA Compliant

Specifications

Product Overview
Product Type Heavy Duty Power Cord
Form Factor Cable
Length 6 in (15 cm)
Cable Type SJT
Conductor Material 100% Copper
Wire Gauge 12 AWG
Amp Rating 20 Amps
Voltage Rating 125 Volts AC
Fire Rating VW-1
Cable Outer Diameter 0.44 in (11.18 mm)
Jacket Material PVC
Plug Type NEMA L5-20P (Locking)
Receptacle Type NEMA 5-20R
UL Listed Yes
Cable Construction Heavy-duty

Physical & Environmental
Operating Temperature Range -20 to 105 °C (-4 to 221 °F)
Storage Temperature Range -20 to 105 °C (-4 to 221 °F)
Humidity Tolerance Non-condensing
Jacket Color Black
Flexibility High Flex PVC Jacket
Insulation Type PVC Insulation

Cloud Management & Licensing
Cloud Management
Licensing Requirements
Included Cloud Features

Interfaces
Input Connector NEMA L5-20P
Output Connector NEMA 5-20R
Number of Conductors 3
Connector Gender Male to Female

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
UL Certification Yes
RoHS Compliant Yes
Certifications UL Listed, TAA Compliant, RoHS
Environmental Compliance RoHS
