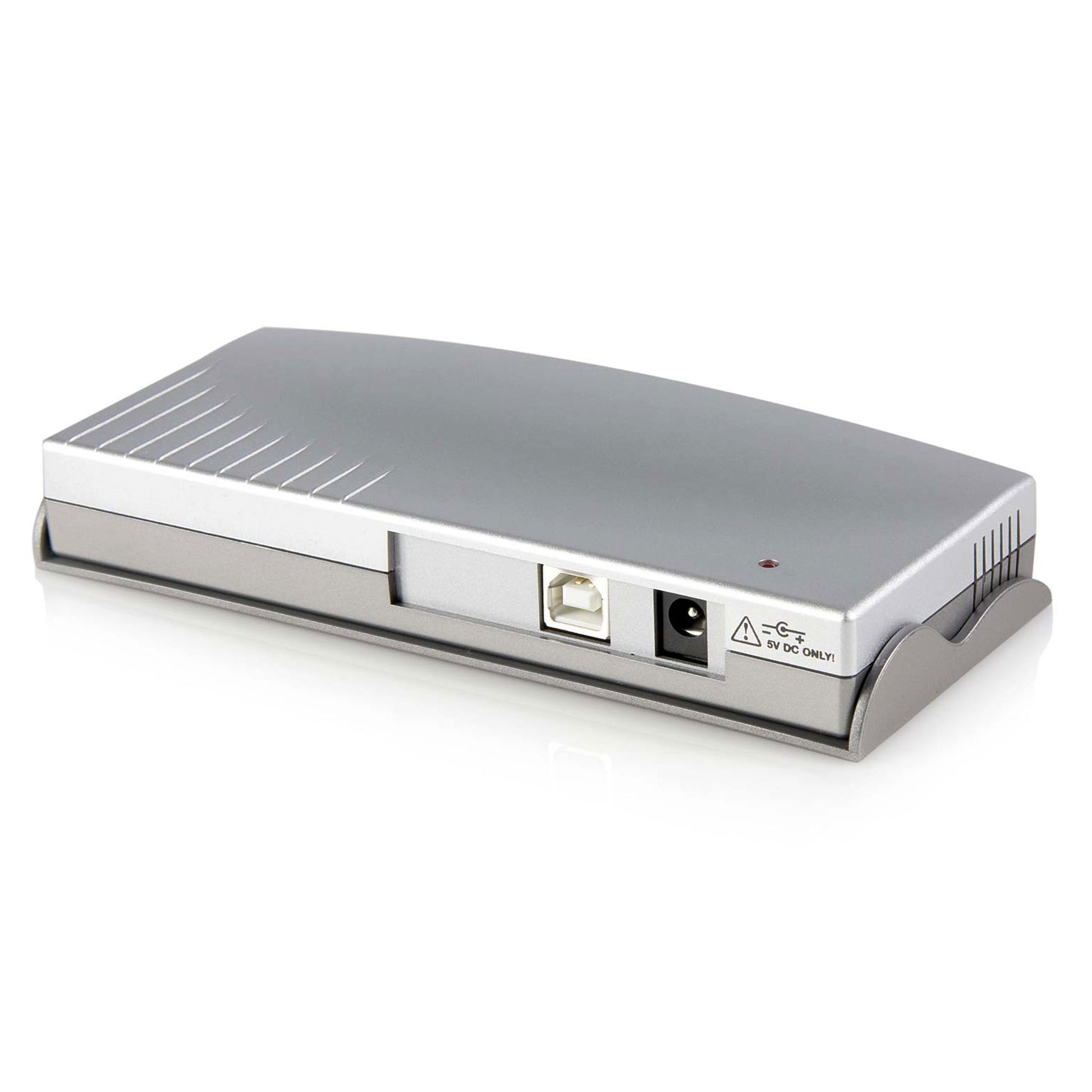

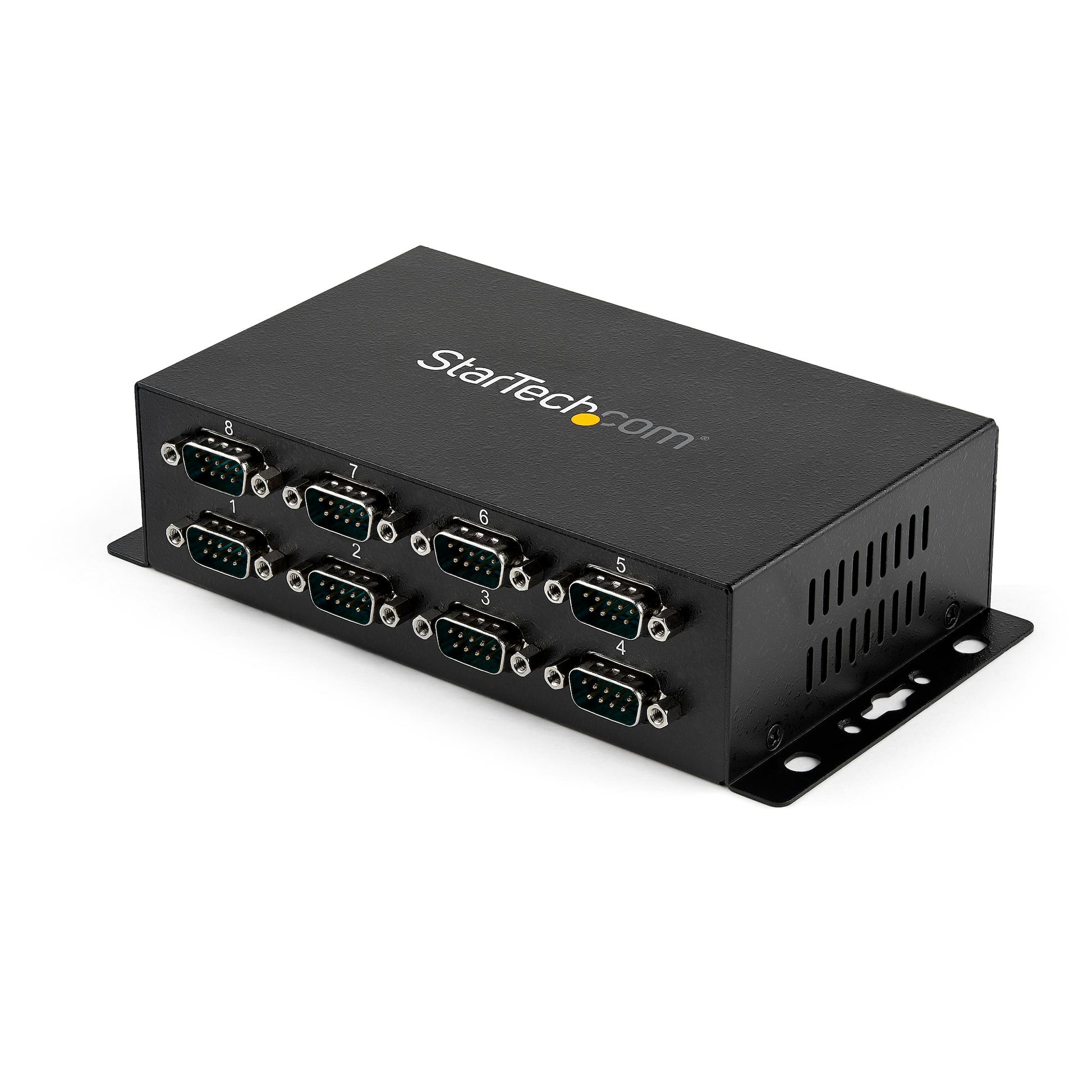

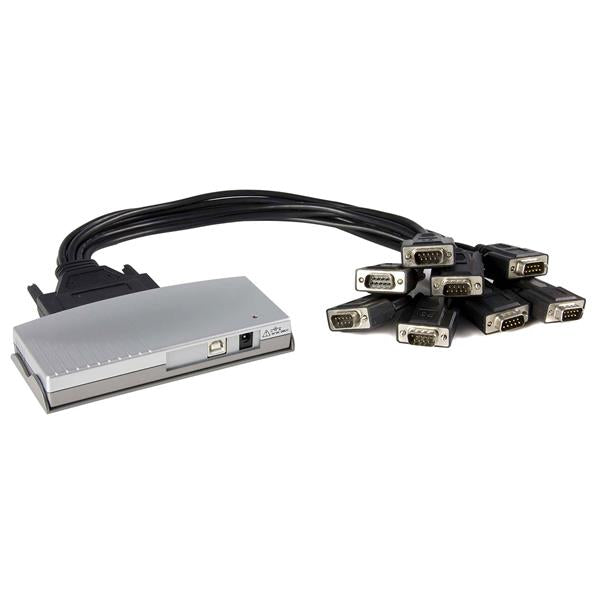

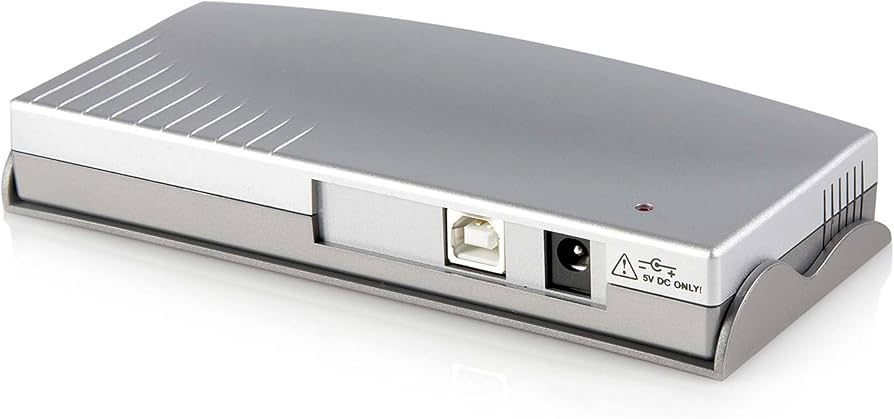

StarTech 8-Port USB to RS232 Serial Adapter Hub - ICUSB2328

VENDOR: STARTECH Mfg Part#: ICUSB2328 UPC#: 065030825825
1 5
Photo is for illustration purposes only. Actual product may be different.
$247.02
$247.02
Sale Sold out
MSRP: $248.99
Shipping calculated at checkout.
  • Provides 8 RS-232 serial ports via USB connection
  • Supports data transfer rate up to 921 Kbps
  • External form factor with compact dimensions (2.6" x 5.9" x 1")
  • Includes 8 DB-9 (9-pin, D-Sub) port interfaces
  • TAA compliant and RoHS certified
  • Backed by StarTech's Lifetime Service & Support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables legacy serial connectivity on USB-only laptops and desktops
  • Industrial-grade design with TAA compliance ensures suitability for government and commercial sectors
  • Lifetime support and RoHS compliance provide long-term reliability and peace of mind

Product Overview

Add eight RS232 serial ports to any notebook or desktop computer using a single USB port - USB to Serial - USB to RS232 - USB to DB9 - USB to serial Adapter - USB to serial port

Specifications

Product Overview
Product Type Adapter Hub
Form Factor External
Product Series StarTech ICUSB2328
Power Source USB-powered or optional external power adapter
Chipset FTDI FT232RL + ZT3243
Enclosure Type Plastic
Indicator LEDs Power, Tx/Rx per port
Weight (Approximate) 360 g

Wireless Features
Wireless Capabilities

Compliance & Origin
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC, RoHS
Country of Origin Taiwan

Advanced Security Features
Surge Protection 15KV ESD protection on serial ports

Interfaces
Host Interface USB Type-B (USB 2.0)
Number of Serial Ports 8
Connector Type DB-9 (9-pin D-Sub)
Connector Gender Male
Serial Protocol RS-232
Data Transfer Rate Up to 921.6 Kbps
Flow Control None, Xon/Xoff, RTS/CTS, DSR/DTR
FIFO 256 byte transmit/receive
Baud Rate 50bps to 921.6Kbps

Physical & Environmental
Width 2.6 in (66 mm)
Depth 5.9 in (150 mm)
Height 1 in (25.5 mm)
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Humidity 5% ~ 95% RH

Cloud Management & Licensing
Cloud Management No
Licensing Required No
