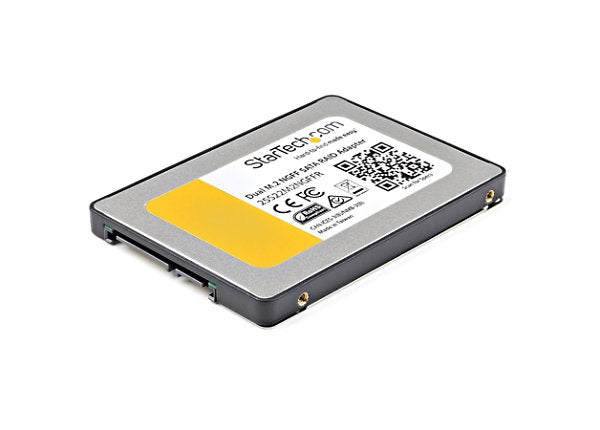

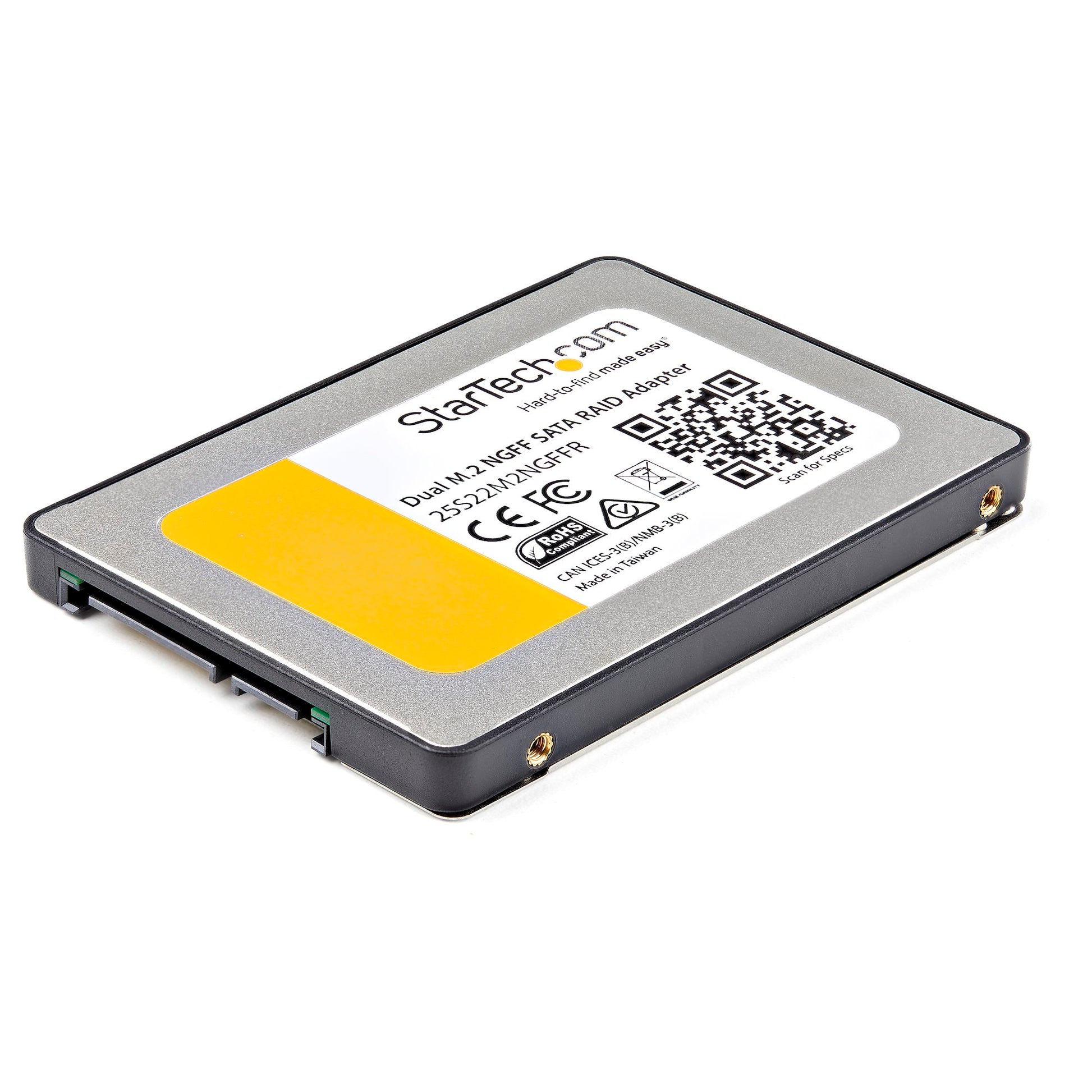

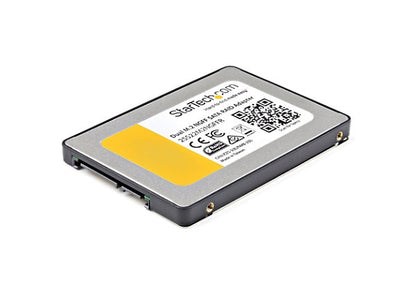

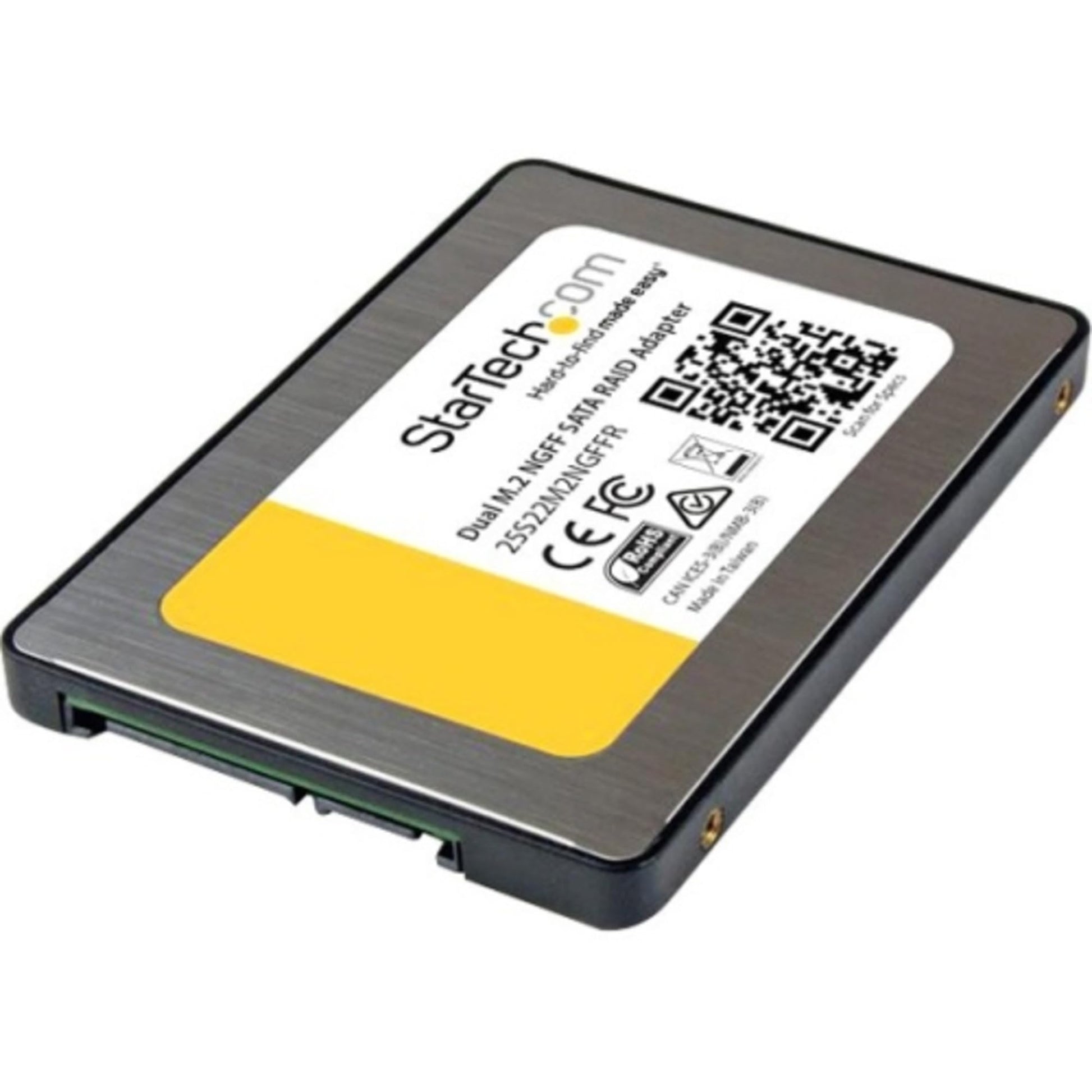

StarTech Dual M.2 SATA SSD to 2.5" RAID Adapter - 25S22M2NGFFR

VENDOR: STARTECH Mfg Part#: 25S22M2NGFFR UPC#: 065030863315
1 5
Photo is for illustration purposes only. Actual product may be different.
$36.62
$36.62
Sale Sold out
MSRP: $45.99
Shipping calculated at checkout.
  • Supports installation of two M.2 NGFF SATA SSDs into a 2.5-inch bay
  • Offers multiple RAID configurations: RAID 0, RAID 1, Spanning, and JBOD
  • Compatible with SATA M.2 SSD sizes 2230, 2242, 2260, and 2280
  • Steel and plastic construction in black and silver finish for durability
  • Fits into standard 2.5-inch SATA drive bays with SATA 6Gbps interface
  • TAA compliant and includes a 2-year support warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables high-performance RAID setup using compact M.2 SATA SSDs for enhanced speed or data protection
  • Multiple RAID modes in one adapter allow flexible deployment across various storage strategies
  • Professional-grade materials and government TAA compliance make it ideal for business or institutional use

Product Overview

Install two M.2 SSDs into a 2.5 in bay to create high-performance storage with RAID - Dual M.2 SATA adapter - 2x M.2 SSDs to 2.5in SATA (6Gbps) RAID adapter converter with TRIM - Dual M.2 SSD adapter enclosure with RAID 0, RAID 1, Spanning JBOD

Specifications

Product Overview
Product Type Dual M.2 SATA Adapter
Form Factor 2.5-inch drive bay adapter
Compatible Drive Types M.2 SATA SSDs (NGFF)
Drive Size Compatibility 2230, 2242, 2260, 2280
Number of Drives Supported 2
Drive Interface SATA III (6 Gbps)
RAID Modes Supported RAID 0, RAID 1, JBOD, SPAN
Material Steel and Plastic
Enclosure Type Internal adapter
Power Source Powered via SATA interface
Weight 100 g

Physical & Environmental
Width 2.8 inch (70 mm)
Depth 3.9 inch (100 mm)
Height 0.3 inch (7 mm)
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% ~ 90% RH (non-condensing)

Cloud Management & Licensing
Management Software Included No
OS Compatibility Independent of OS (hardware-level RAID controller)

Interfaces
Interface to Host 7-pin SATA data and 15-pin SATA power
Connector A SATA Data and Power Combo (7+15 pin) Receptacle
Connector B 2 x M.2 SATA (NGFF) Slot – B-Key
Data Transfer Rate Up to 6 Gbps (SATA III)
TRIM Support Yes
UASP Support Yes
Hot Swap Support No

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
CE Certified Yes
FCC Compliance Yes
WEEE Yes
REACH Yes

Advanced Security Features
Encryption Support No onboard hardware encryption
Password Protection No
