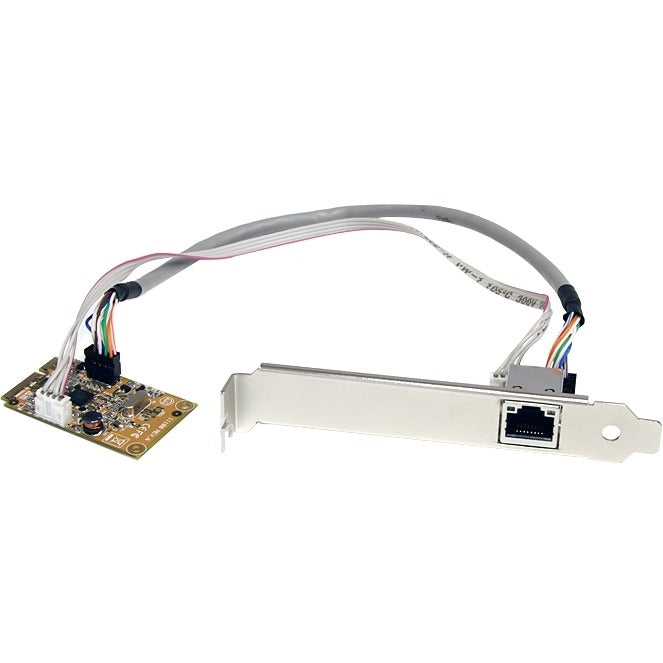

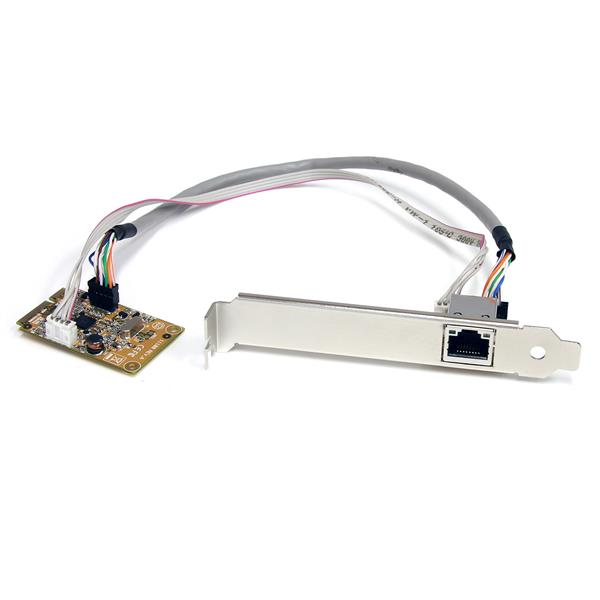

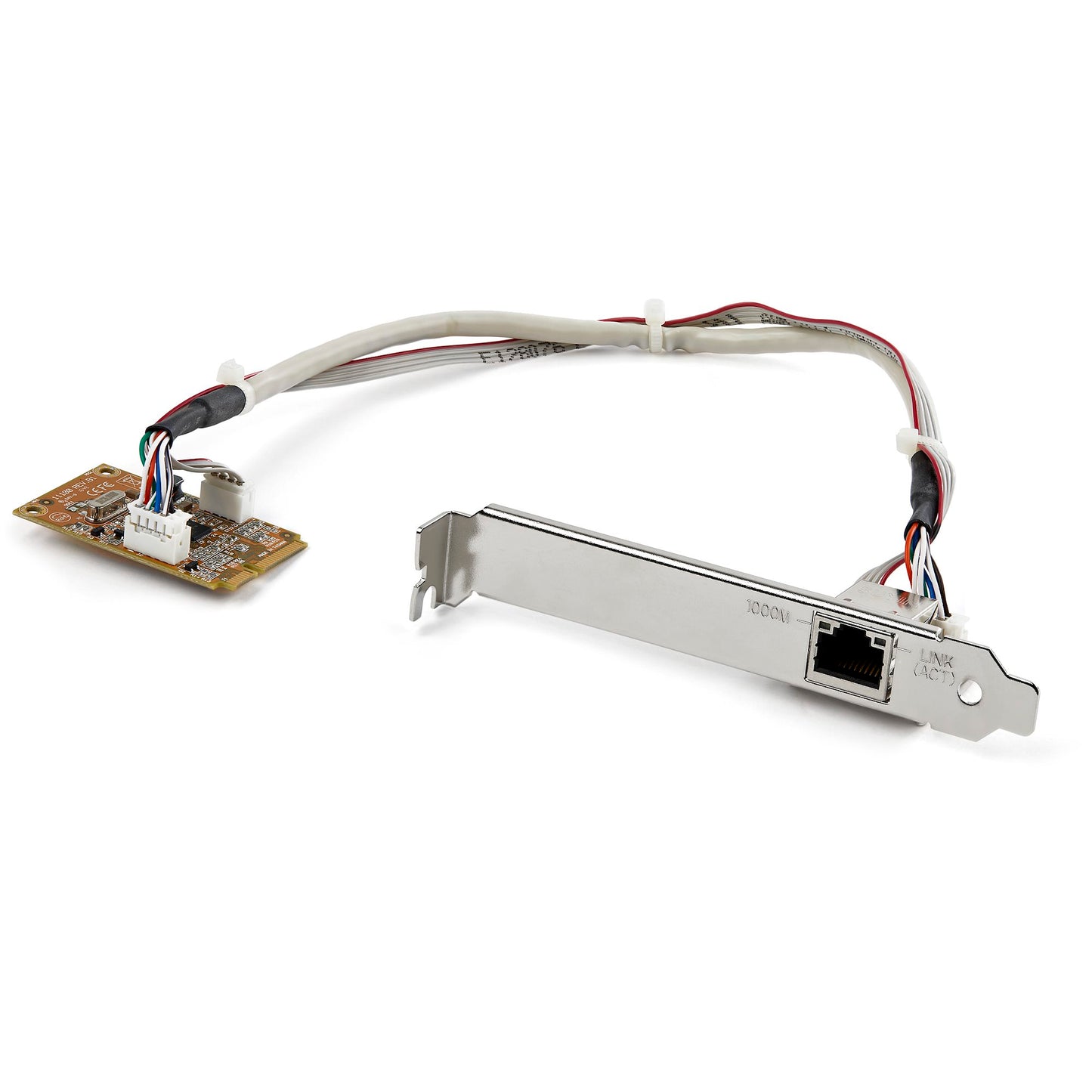

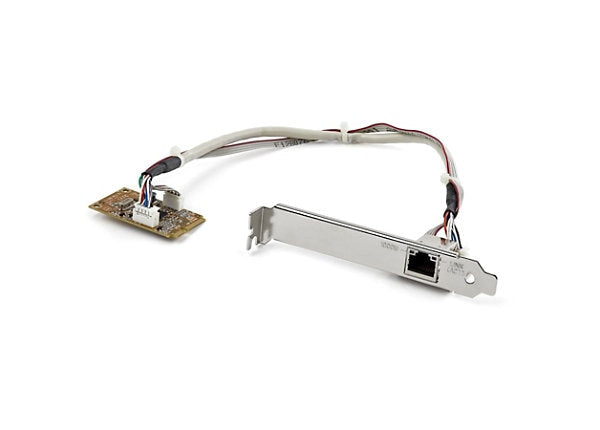

StarTech MINI PCIe Gigabit RJ45 Network Adapter Card

VENDOR: STARTECH Mfg Part#: ST1000SMPEX UPC#: 065030846554
1 5
Photo is for illustration purposes only. Actual product may be different.
$63.19
$63.19
Sale Sold out
MSRP: $66.99
Shipping calculated at checkout.
  • Mini PCI Express interface with 1 x RJ-45 Ethernet port
  • Supports Gigabit Ethernet with 1000 Mbps data transfer rate
  • Compliant with IEEE 802.3, 802.3u, and 802.3ab standards
  • Compact external form factor: 0.3" W x 2" D x 1.2" H
  • Wired connectivity technology for reliable networking
  • RoHS and TAA compliant with a 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal upgrade for embedded or compact systems requiring wired networking via Mini PCIe slot
  • Delivers high network speeds of up to 1000 Mbps with Gigabit Ethernet support
  • TAA compliance and RoHS certification ensure suitability for commercial and government installations

Product Overview

Add a Gigabit RJ45 port through a Mini PCI Express slot - mini pci express gigabit - mini pcie gigabit - mini pci express nic - gigabit ethernet adapter - gigabit ethernet card

Specifications

Product Overview
Product Type Network Adapter
Manufacturer Part Number ST1000SMPEX
UPC 065030846554
Form Factor Mini PCI Express Card
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Enclosure Color Yellow
Power Consumption Max 1.5W
Chipset Realtek RTL8111G
Weight 10 g

Physical & Environmental
Width 0.3 inch
Depth 2 inch
Height 1.2 inch
Product Weight 0.35 oz (10 g)
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Operating Humidity 10% to 90% Non-Condensing
Storage Humidity 5% to 95% Non-Condensing

Cloud Management & Licensing
Management Interface
License Included No

Interfaces
Network / Interface Type Mini PCI Express
Networking / Ports Qty 1
Port Type RJ-45 (10/100/1000Base-T)
Interfaces & Connections 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
Data Transfer Rate 1000 Mbps
Full Duplex Support Yes
Auto-Negotiation Yes
Wake-on-LAN Yes
Jumbo Frame Support Yes

Compliance & Origin
RoHS Yes
TAA Yes
TAA Compliance Yes
Country of Origin Taiwan
Certifications CE, FCC, REACH
Environmental Standards RoHS Compliant

Advanced Security Features
PXE Boot Support Yes
Checksum Offload IPv4, IPv6, TCP, UDP
VLAN Tagging (802.1Q) Yes
MAC Address Filtering Yes
