STARTECH MSA Uncoded SFP 1GbE 1000BASE-SX Transceiver Module

VENDOR: STARTECH Mfg Part#: SFPSXMM UPC#: 065030834940
1 5

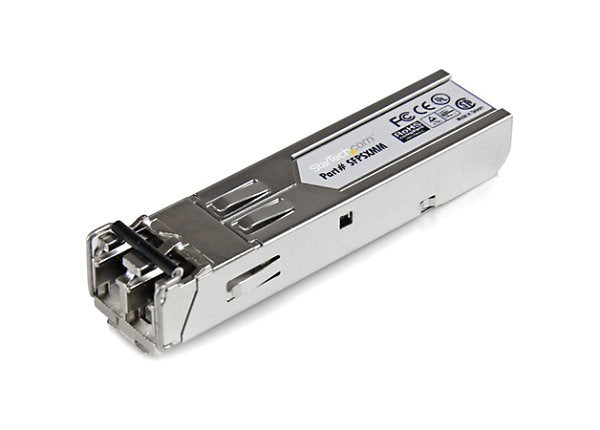

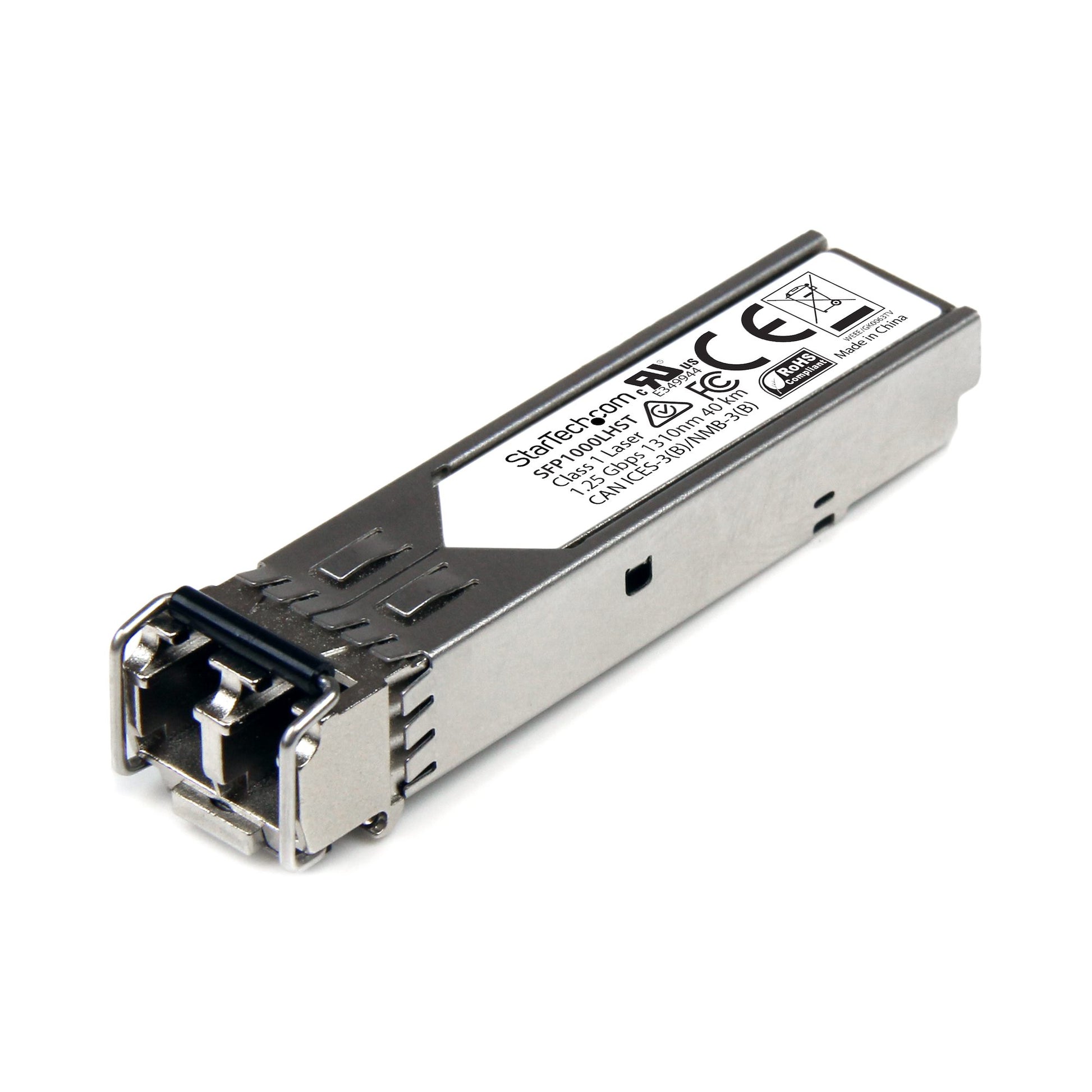

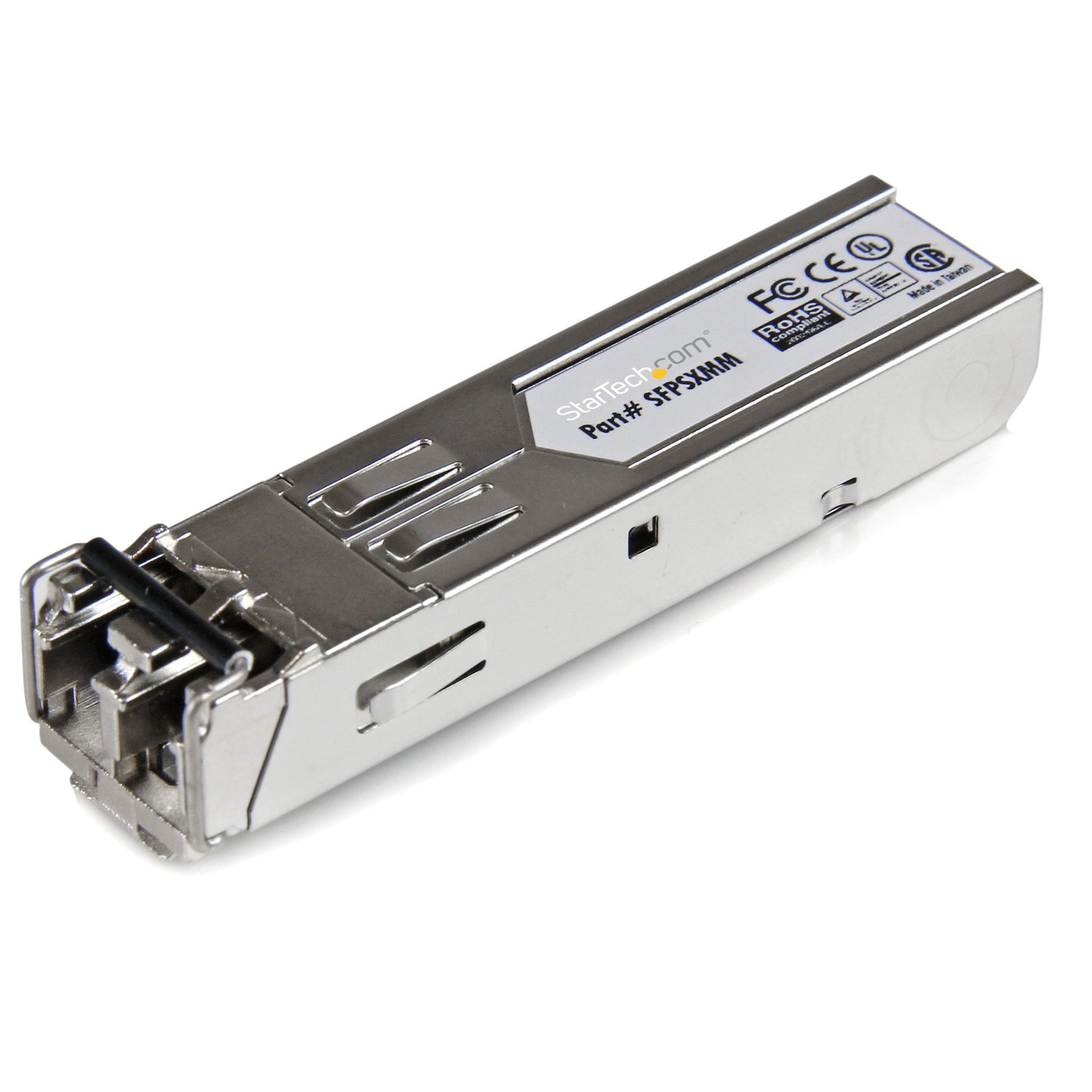

Photo is for illustration purposes only. Actual product may be different.
$44.76
$44.76
Sale Sold out
MSRP: $55.99
Shipping calculated at checkout.
  • 1Gbps data transfer rate compliant with IEEE 802.3z 1000BASE-SX
  • Supports multi-mode fiber (MMF) over distances up to 550 meters
  • LC connector interface with 850nm wavelength for optical transmission
  • SFP hot-swappable form factor for simplified installation and upgrades
  • Digital Diagnostics Monitoring (DDM) support for enhanced network diagnostics
  • Manufactured in Taiwan, TAA compliant, and includes a lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Hot-swappable SFP form factor allows hassle-free installation without network downtime.
  • Lifetime warranty and TAA compliance ensure long-term reliability for government and enterprise use.
  • DDM support provides real-time monitoring for proactive network maintenance and reduced outages.

Product Overview

MSA Uncoded SFP - 1000BASE-SX 1Gbps - 1GbE Module - 1GE Gigabit Ethernet SFP 850nm Multi Mode (MMF) Transceiver - 550m (1804ft) - LC Connector DDM - Hot-Swappable & MSA Compliant - Lifetime Warranty

Specifications

Product Overview
Type SFP Transceiver Module
Form Factor SFP
Weight 20 g
Power Requirements 3.3V DC
Power Consumption ≤1W
Hot-Swappable Yes

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications MSA Compliant, CE, FCC
Network Standards IEEE 802.3z
Warranty Lifetime

Advanced Security Features

Interfaces
Interface Type LC Duplex Connector
Cabling Type 850nm Multi-Mode Fiber (MMF)
Data Transfer Rate 1 Gbps
Data Link Protocol 1000BASE-SX Ethernet
Connector Type LC

Physical & Environmental
Dimensions (W x D x H) 13.7 mm x 56.5 mm x 8.5 mm
Width 2.2 inch
Depth 0.5 inch
Height 0.4 inch
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 95% RH, non-condensing
Max Transfer Distance 550 m (1804 ft)
