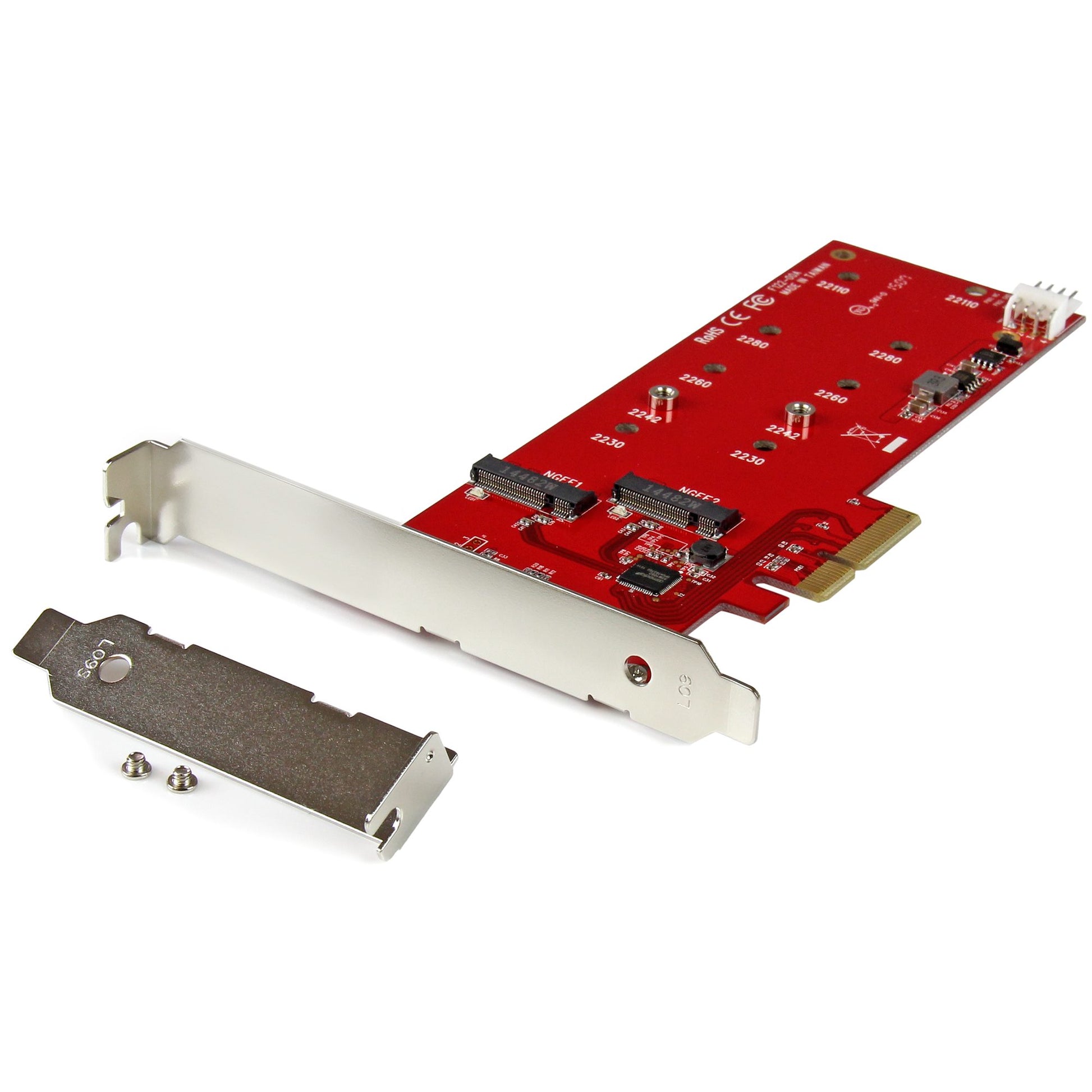

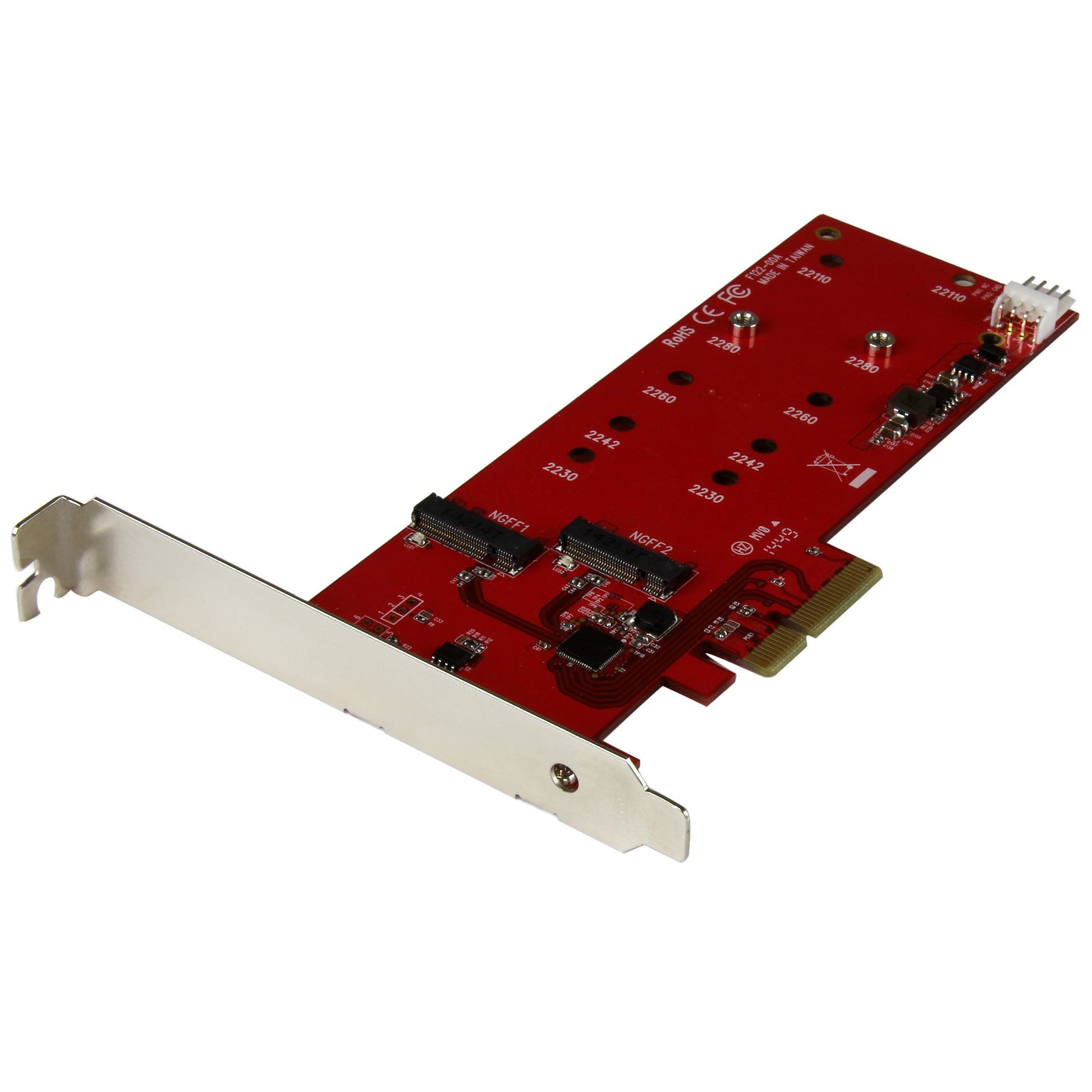

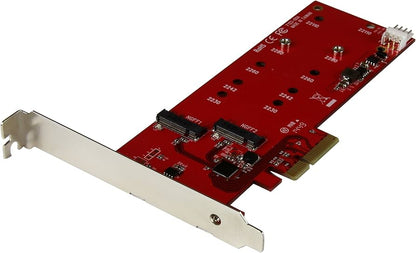

STARTECH PCIe 2x M.2 SATA SSD Controller Card (PEX2M2)

VENDOR: STARTECH Mfg Part#: PEX2M2 UPC#: 065030863049
1 5
Photo is for illustration purposes only. Actual product may be different.
$61.57
$61.57
Sale Sold out
MSRP: $76.99
Shipping calculated at checkout.
  • Supports two M.2 B-Key SATA III SSDs up to 6 Gbps each
  • Compatible with multiple NGFF sizes (2230, 2242, 2260, 2280, 22110)
  • Native Command Queuing (NCQ) for optimized drive performance
  • Offers bus-powered operation or via a 4-pin floppy power connector
  • Constructed from durable steel with a compact red design
  • TAA-compliant for use in regulated or government procurement

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Allows seamless integration of two NGFF SATA SSDs into existing systems via PCIe slot
  • Improves data efficiency and multitasking with 6 Gbps throughput and NCQ support
  • Ideal for government or enterprise upgrades due to TAA compliance and 2-year warranty

Product Overview

Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to a computer through PCIe - 2x M.2 SATA SSD Controller Card - PCI Express M.2 SATA III Controller - NGFF Card Adapter - Two Slot SATA 6Gbps M.2 Host Controller - Wide M.2 Drive Compatibility

Specifications

Product Overview
Type PCIe M.2 SATA SSD Controller Card
Form Factor Plug-in card – Half-height (low profile) and full-height bracket included
Weight 59 g
Power Requirements Bus-powered or via 4-pin floppy power connector
Product Material Steel
Color Red
Warranty 2 Years Limited Warranty
Included Brackets Full-profile and low-profile brackets
Drive Compatibility M.2 SATA (NGFF) B/B+M key SSDs

Physical & Environmental
Width 0.8 inches (2.1 cm)
Height 4.7 inches (12 cm)
Depth 7.1 inches (18.1 cm)
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Operating Humidity 15%–90% RH (non-condensing)
Storage Humidity 15%–90% RH

Cloud Management & Licensing
Management Interface
Software Included
Licensing Required

Interfaces
Host Interface PCI Express 2.0 x2
Drive Interface 2 x M.2 SATA (NGFF)
Maximum Data Transfer Rate 6 Gbps per drive
Supported M.2 Drive Sizes 2230, 2242, 2260, 2280, 22110
Interface Bandwidth Up to 10 Gbps (PCIe 2.0 x2 limit)
Port Count 2 M.2 SATA ports
Hot Swap Support No
Bus Type PCI Express

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS, REACH
Environmental Standards RoHS Compliant

Advanced Security Features
Hardware Encryption No
Secure Boot Support
RAID Support No
