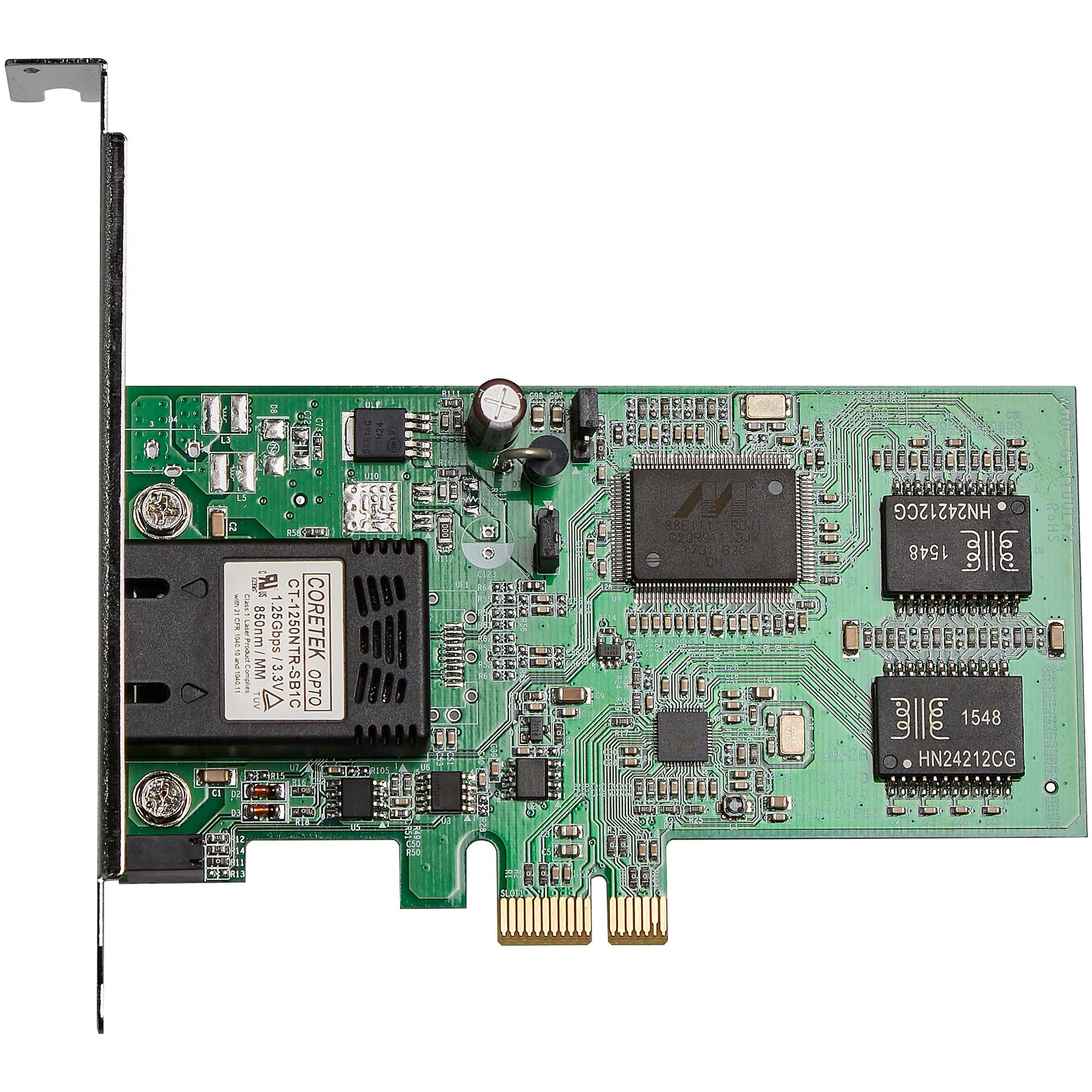

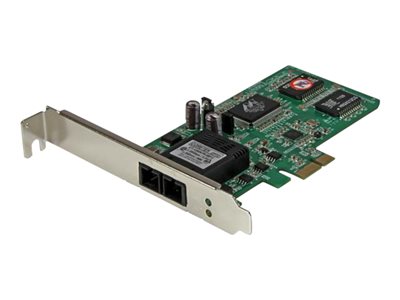

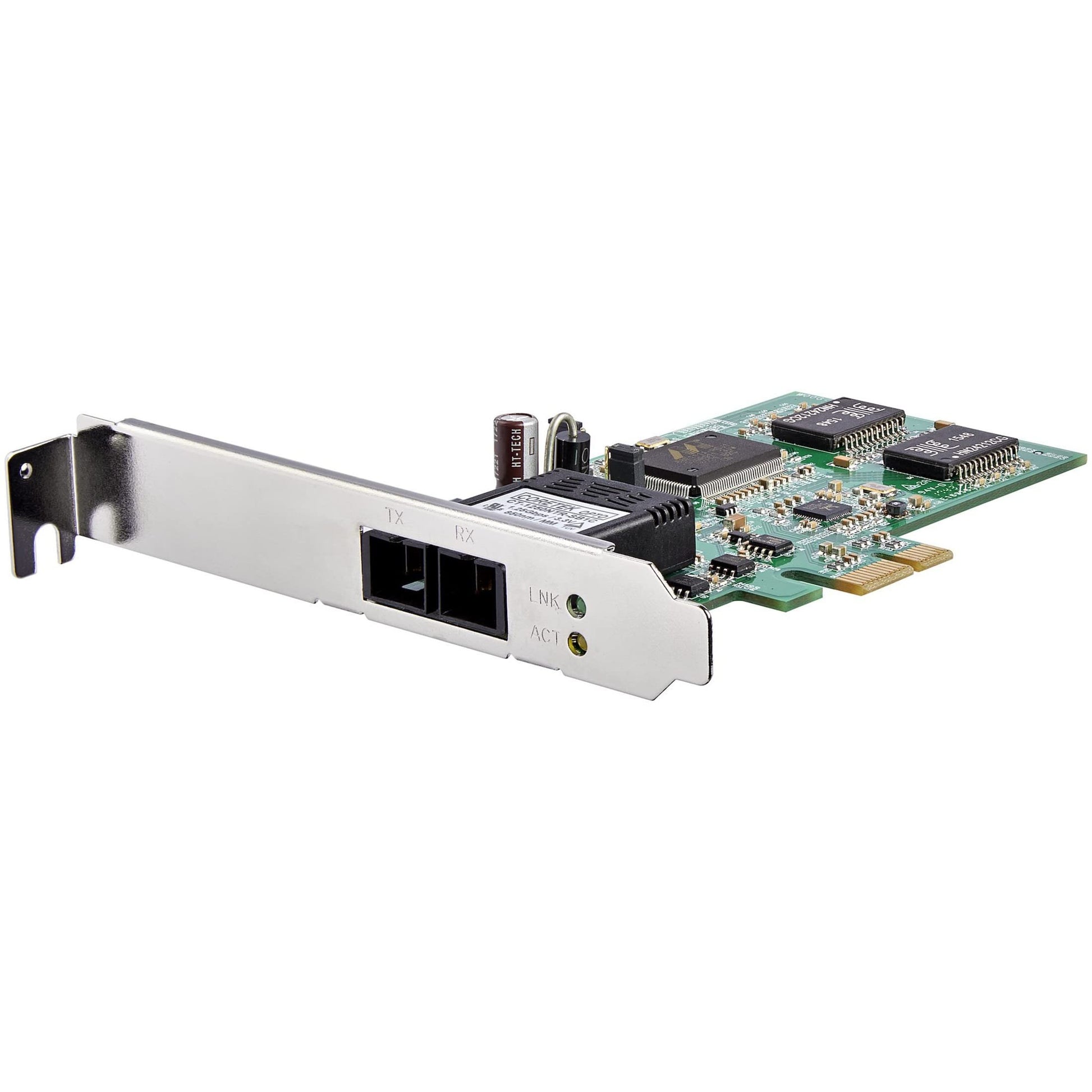

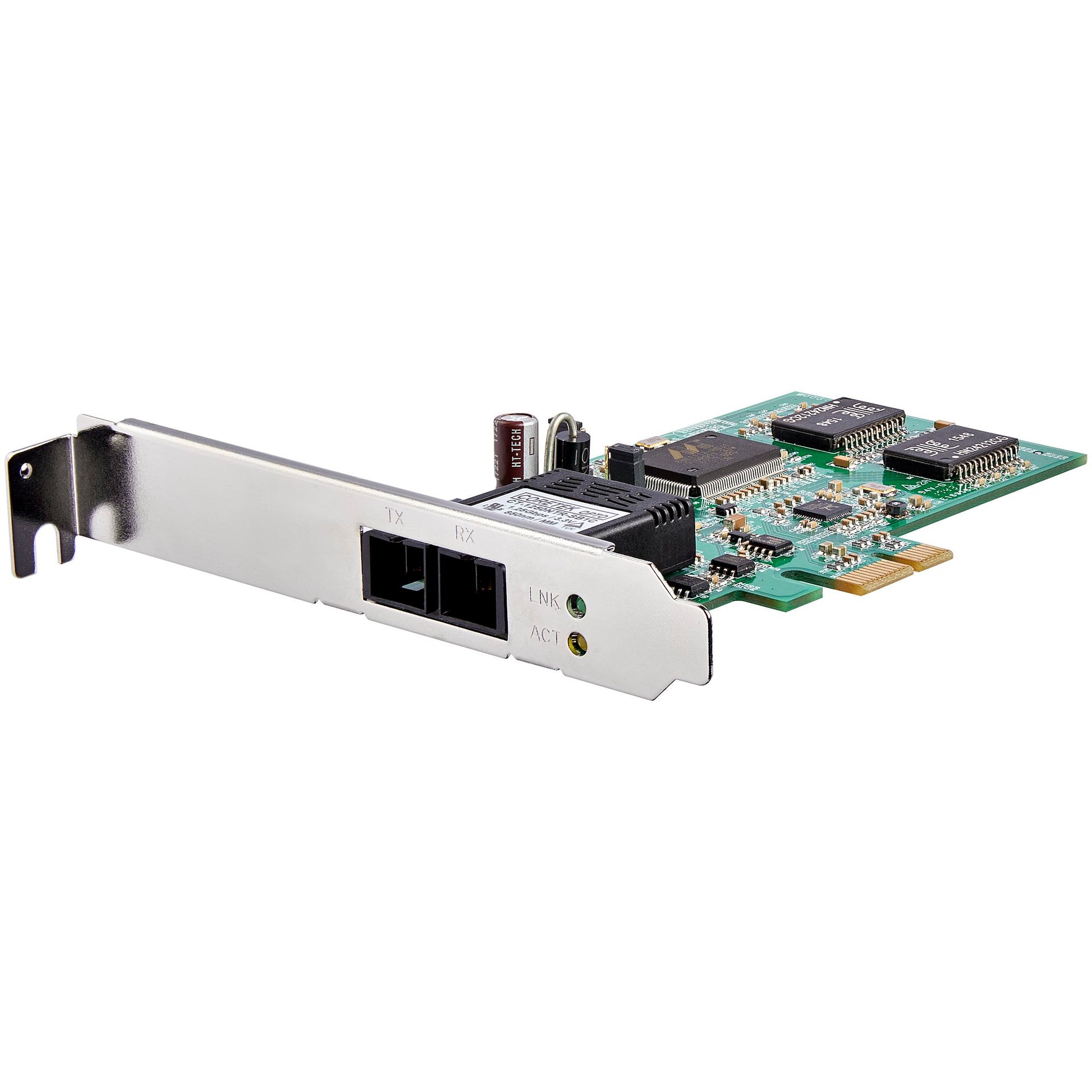

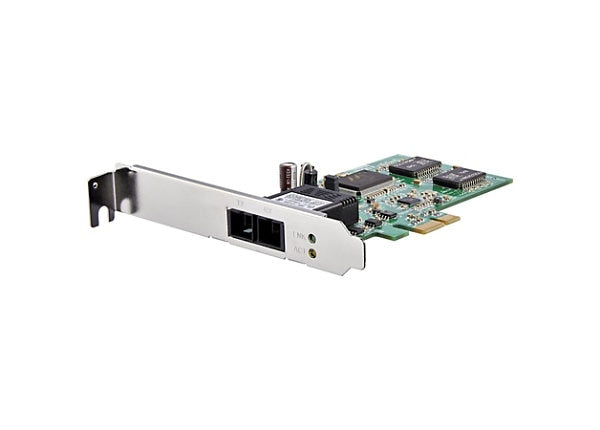

StarTech PCIe Gigabit SC Fiber Network Adapter - PEX1000MMSC2

VENDOR: STARTECH Mfg Part#: PEX1000MMSC2 UPC#: 065030857703
1 5
Photo is for illustration purposes only. Actual product may be different.
$198.60
$198.60
Sale Sold out
MSRP: $199.99
Shipping calculated at checkout.
  • PCIe interface supporting Gigabit Ethernet connection
  • SC Duplex multimode fiber port with up to 1 Gbps data rate
  • Compliant with IEEE802.3z for fiber Ethernet standards
  • Supports wired connectivity for interference-resilient networking
  • Compact external form factor: 0.7" (W) x 4.6" (D) x 4.7" (H)
  • TAA compliant and RoHS certified for regulatory assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers interference-resistant gigabit networking via SC fiber for secure, high-EMI environments
  • Easy integration with PCI Express systems ensures compatibility with modern desktops and servers
  • Backed by a 2-year manufacturer warranty and standards compliance (TAA, RoHS) for installation confidence

Product Overview

Connect a PCIe based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network - PCI Express Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC - 550m - PCIe GbE Fiber Optic Network Card - SC Fiber Gigabit Ethernet Card

Specifications

Product Overview
Product Type Network Card Adapter
Form Factor Plug-in card
Bus Type PCI Express x1
Chipset Realtek RTL8161
Card Profile Standard and Low Profile Brackets included
Power Consumption 2.5 W (typical)
Bracket Type Full-height and low-profile (included)
Enclosure Color Green
Weight 67 g

Physical & Environmental
Width 1.8 cm
Depth 11.7 cm
Height 12 cm
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Operating Humidity 20% to 80% RH
Storage Humidity 20% to 90% RH

Cloud Management & Licensing
Management Interface

Wireless Features

Interfaces
Interface Type PCI Express 2.0 x1
Ports Qty 1
Connector Type SC Duplex Multimode Fiber
Cabling Type Ethernet 1000Base-SX
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Connectivity Technology Wired
Fiber Mode Supported Multimode
Fiber Core/Cladding Diameter 62.5/125 µm, 50/125 µm
Transmission Distance 550 m

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Yes
Certifications CE, FCC, REACH
Country of Origin Taiwan

Advanced Security Features
OS Compatibility Windows 11, 10, 8, 7; Linux Kernel 2.4.x or later
Jumbo Frame Support Yes
Full Duplex Support Yes
Wake-on-LAN Support Yes
