STARTECH PCIe to U.2 NVMe 2.5in SSD Adapter – PEX4SFF8643

VENDOR: STARTECH Mfg Part#: PEX4SFF8643 UPC#: 065030865050
1 3

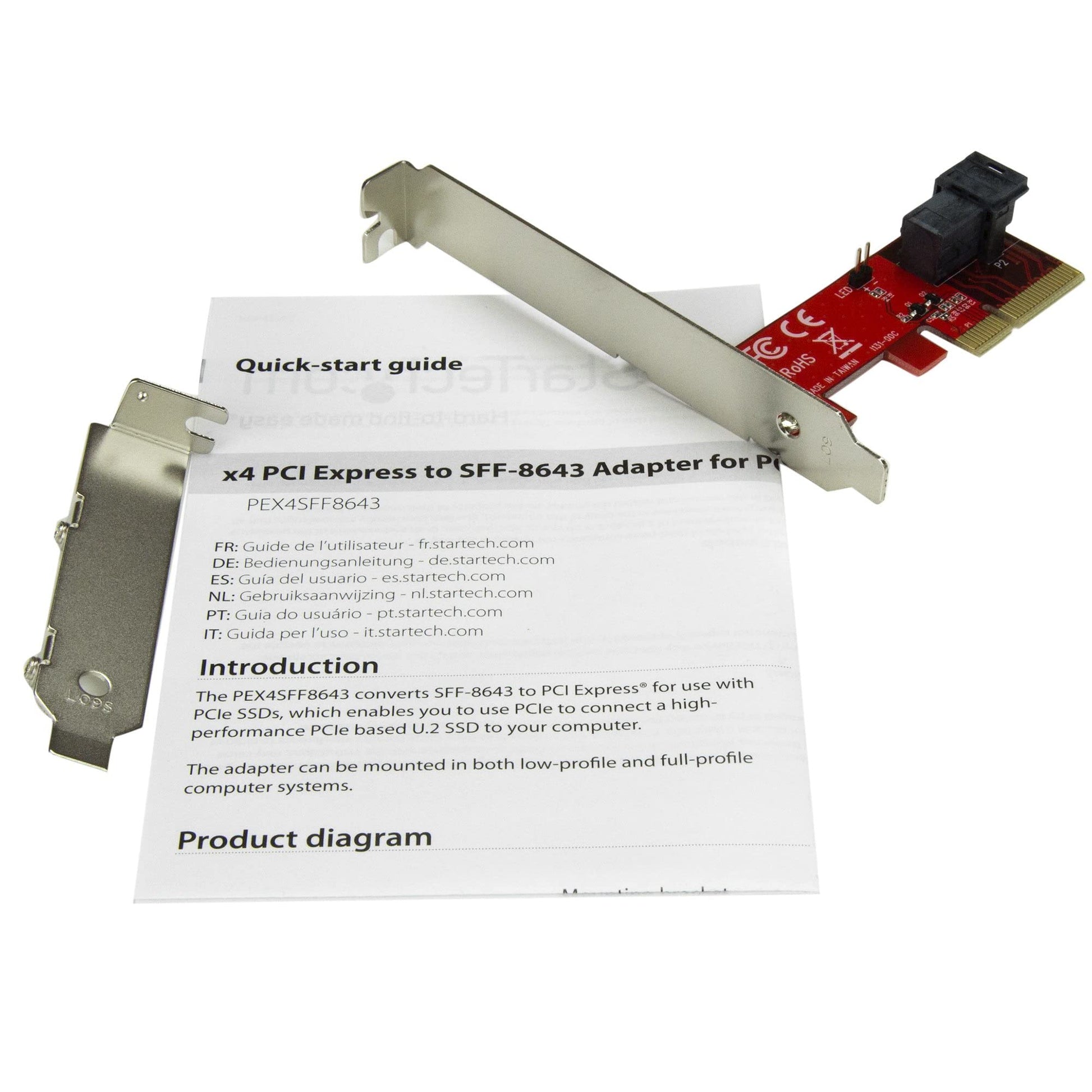

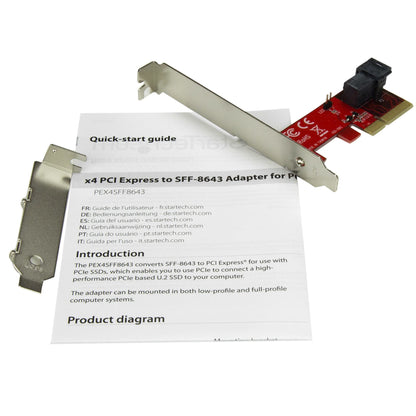

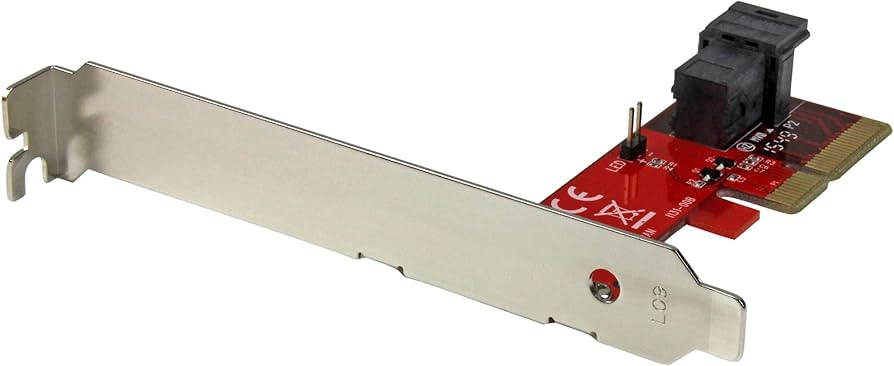

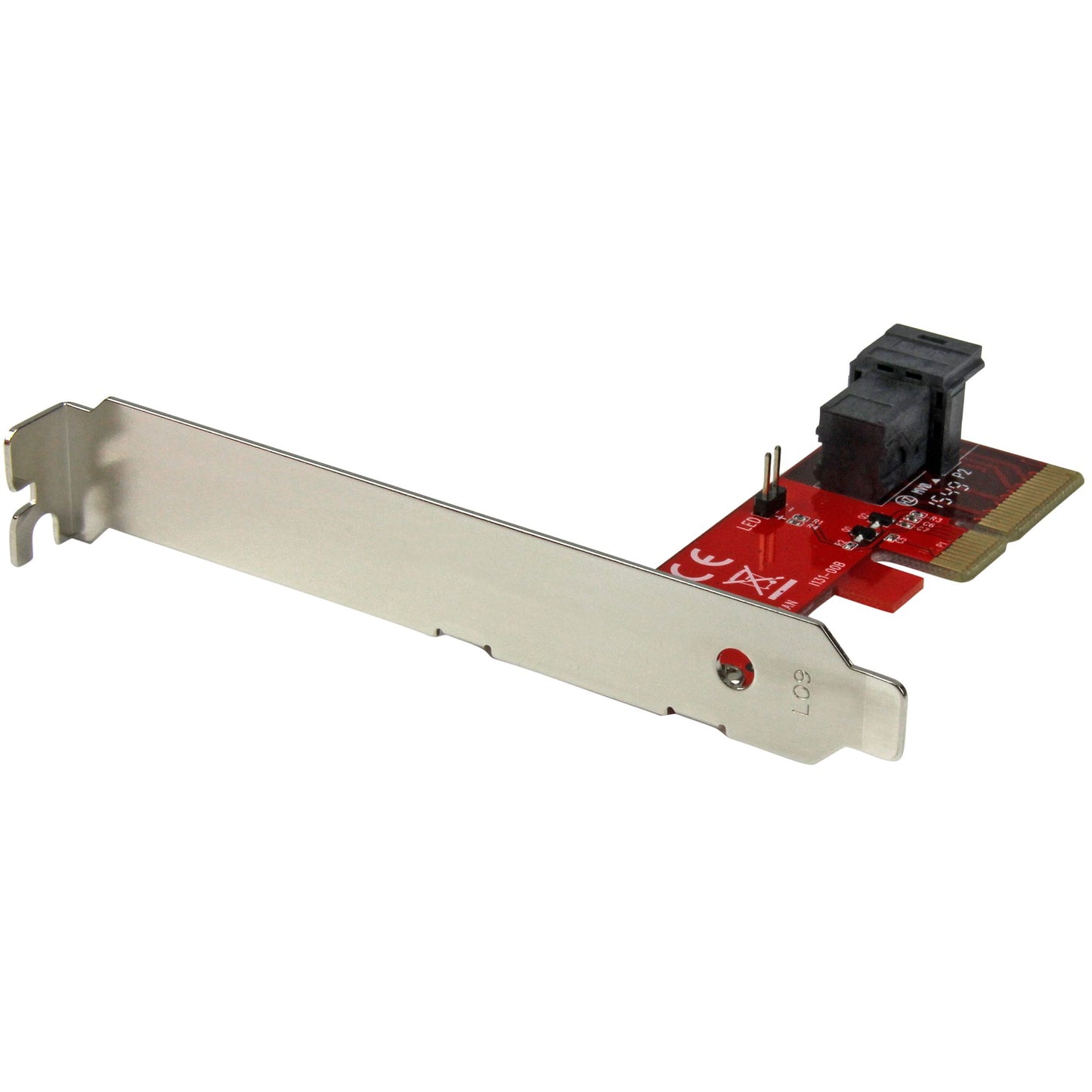

Photo is for illustration purposes only. Actual product may be different.
$27.35
$27.35
Sale Sold out
MSRP: $33.99
Shipping calculated at checkout.
  • Supports 2.5" U.2 NVMe SSDs via PCIe
  • x4 PCIe to SFF-8643 interface for high-speed connection
  • Constructed from durable steel with red finish
  • Compact design: 3.2" Depth, 0.7" Width, 1.7" Height
  • TAA compliant and backed by 2-year warranty
  • Designed for simple installation and enterprise use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports enterprise-level NVMe storage expansion via x4 PCIe interface, ideal for boosting performance.
  • Constructed from durable steel and designed for easy installation, offering long-term reliability.
  • TAA compliance ensures suitability for government and federally regulated commercial deployments.

Product Overview

Add high-performance enterprise-class storage to your PC or server - Connect a 2.5 PCIe U.2 SSD like Intel SSD 750 series through a 4-lane PCI Express expansion card - x4 PCIe to SFF-8643 adapter for PCIe NVMe U.2 SSD -PCIe 2.5inch NVMe SSD Adapter

Specifications

Product Overview
Product Type Drive Converters
Form Factor Plug-in card
Interface Bus PCI Express 3.0 x4
Compatible Drive Type 2.5" U.2 NVMe SSD
Chipset N/A (pass-through adapter)
Product Material Steel
Color Red
Power Requirements Draws power from PCIe slot
Mounting Bracket Full-height bracket (low-profile available)
Warranty 2 Years
Features Versatile functionality; Cost-effective solution; Increased productivity; Simple installation

Physical & Environmental
Width 0.7 inch (18 mm)
Depth 3.2 inch (81 mm)
Height 1.7 inch (43 mm)
Weight 60 g (approx.)
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Relative Humidity 15% ~ 90% (non-condensing)
Enclosure Type Metal

Cloud Management & Licensing
Management Interface
Cloud-Based Management
Software Licensing Required No

Interfaces
Host Interface PCI Express x4 (PCIe 3.0)
Drive Connector 1 x SFF-8643 (internal mini-SAS HD)
Ports 1 x U.2 (via SFF-8643)
Data Transfer Rate Up to 32Gbps
PCI Express Version 3.0
Connector Type SFF-8643 Internal Mini-SAS HD
Compatible Devices Intel 750 Series and other U.2 NVMe SSDs

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
CE Certified Yes
FCC Certified Yes
REACH Compliant Yes

Advanced Security Features
Hardware Encryption
Secure Boot Support
Power Loss Protection
