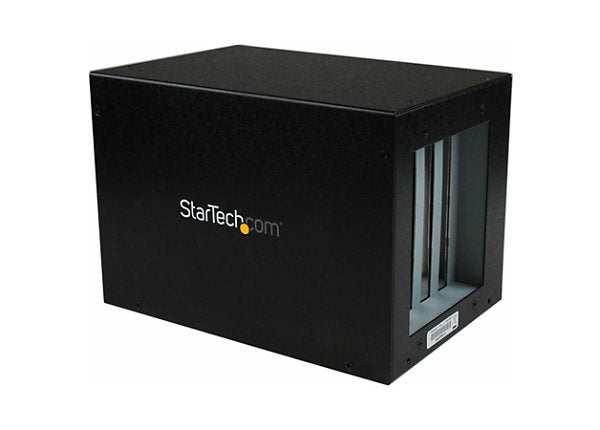

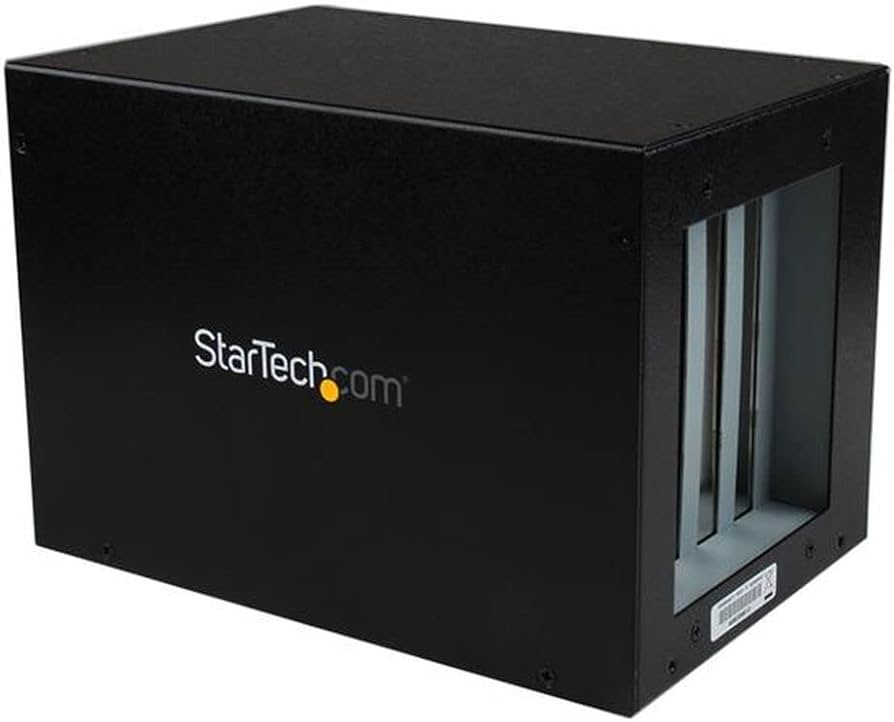

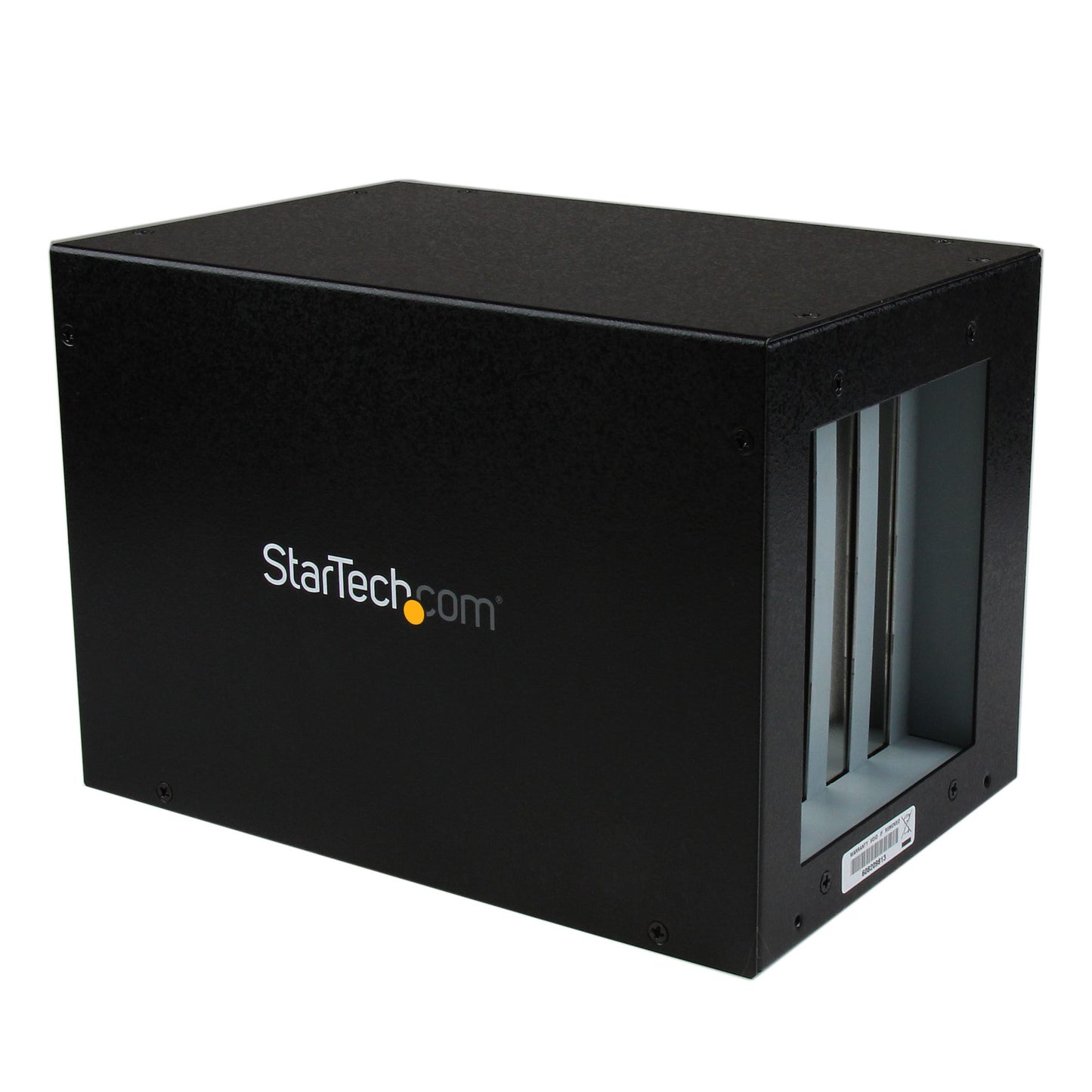

StarTech PEX2PCI4 PCIe to 4-Slot PCI Expansion Chassis

VENDOR: STARTECH Mfg Part#: PEX2PCI4 UPC#: 065030825184
1 5
Photo is for illustration purposes only. Actual product may be different.
$469.99
$469.99
Sale Sold out
Shipping calculated at checkout.
  • Connects via PCI Express x1 interface for broad compatibility
  • Provides 4 external full-size PCI / PCI-X slots (32-bit, 3.3V & 5V)
  • Supports AC input voltage from 100 to 240V and regulated 12V DC output
  • Maximum 36W power consumption suitable for multiple legacy cards
  • Form factor optimized for desktop and laptop use with wired connectivity
  • TAA compliant and backed by a 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for extending legacy PCI hardware into modern systems using PCIe
  • Compact external chassis simplifies installation without opening host device
  • TAA and RoHS compliance makes it suitable for government and enterprise procurement

Product Overview

Add four external PCI expansion card slots to a desktop or laptop computer system - pci expansion chassis - external pci slot - pci express to pci expansion box

Specifications

Product Overview
Product Type Expansion System
Form Factor PCIe
Weight 2.7 lb (1.2 kg)
Power Device Type AC Adapter
Power Consumption (Max) 36 Watt
Input Voltage 100 – 240 V AC
Output Voltage 12V DC
Included Accessories External Expansion Box, PCIe Host Card, Cable, Power Adapter
Enclosure Type Aluminum
Mount Type Desktop

Physical & Environmental
Width 5.4 inch (137 mm)
Depth 8 inch (203 mm)
Height 5.6 inch (142 mm)
Enclosure Color Silver
Product Weight 2.7 lb (1.2 kg)
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Humidity Range Operating 15% to 85% (non-condensing)

Cloud Management & Licensing
Managed Interface
License Included
Cloud Features

Interfaces
PCIe Host Card Interface PCI Express x1
Expansion Slots 4 x PCI / PCI-X (Universal 3.3V & 5V, 32-bit, 33/66 MHz)
Bus Type PCI Express (host) to PCI (expansion)
Data Transfer Rate 2.5 Gbps (PCIe Gen 1)
Cable Type VHDCI to PCIe proprietary cable
VHDCI Port 1 x External VHDCI connector

Compliance & Origin
Compliance Standards RoHS, CE
TAA Compliant Yes
Country of Origin Taiwan
Warranty 2 Years
