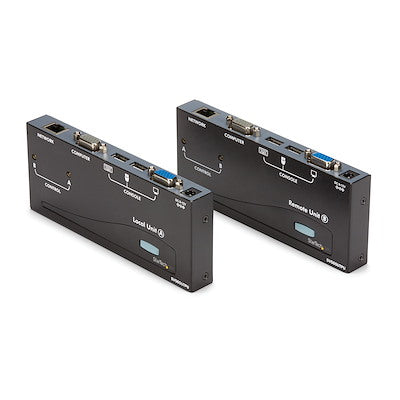

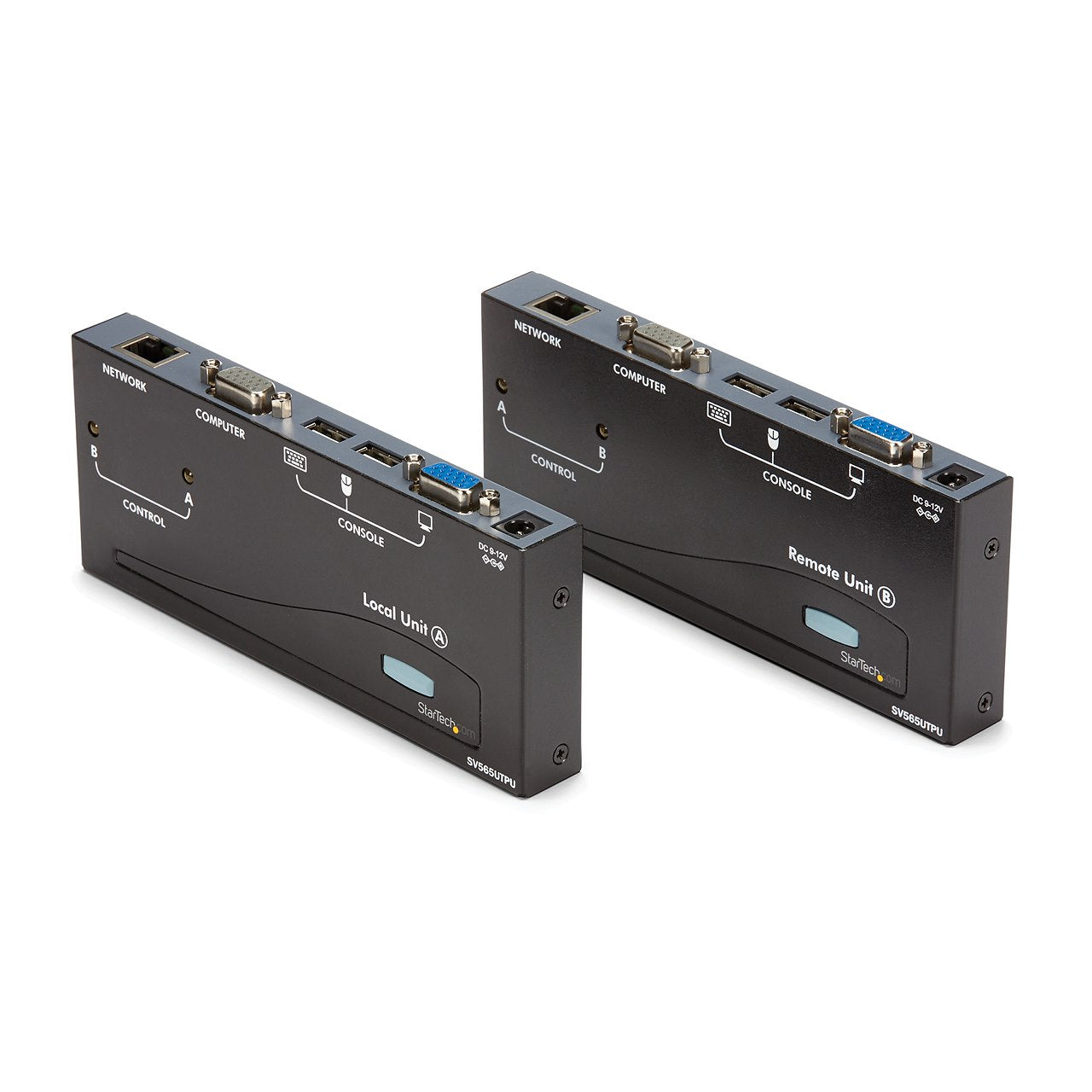

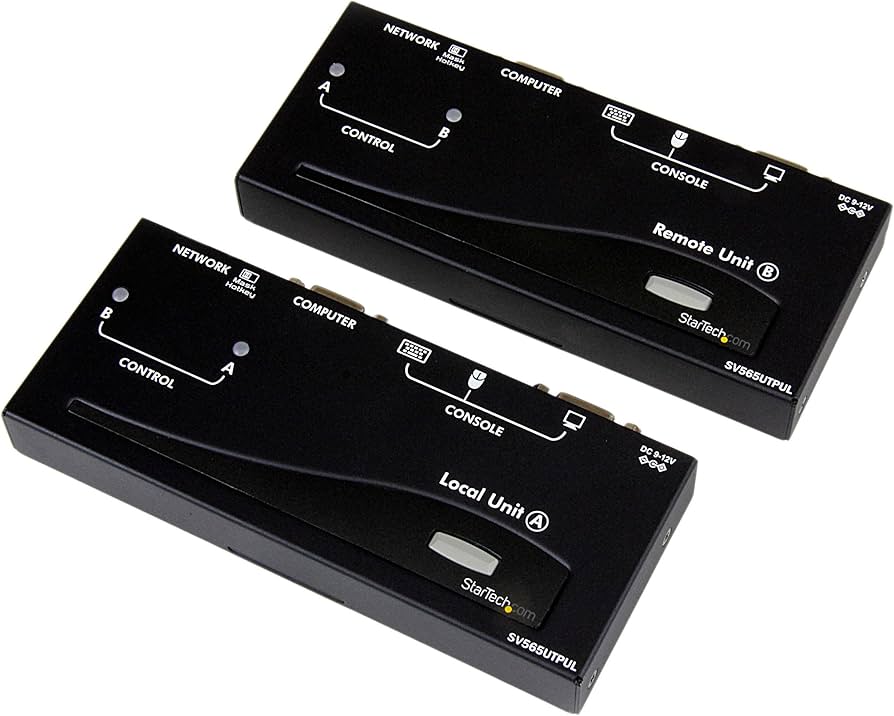

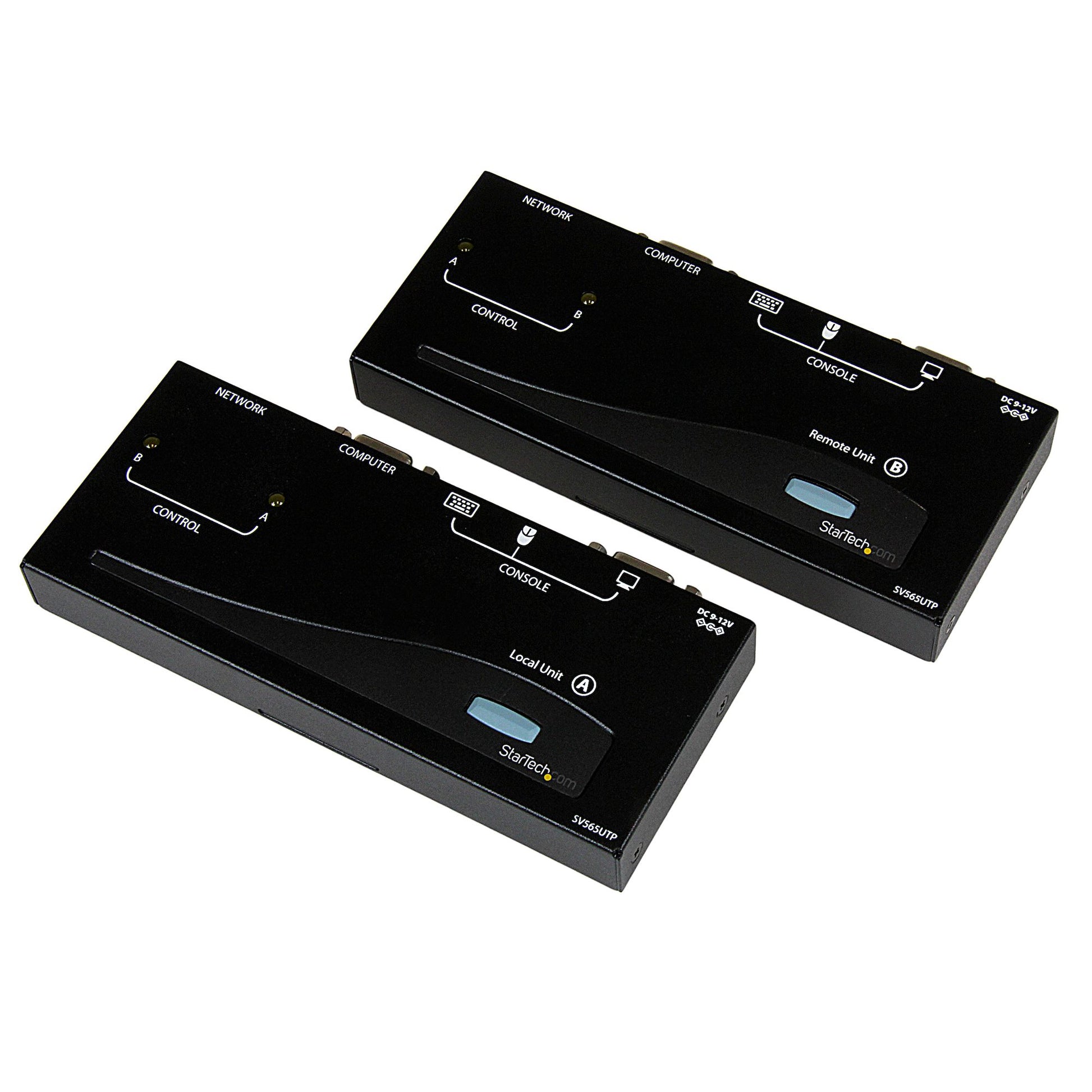

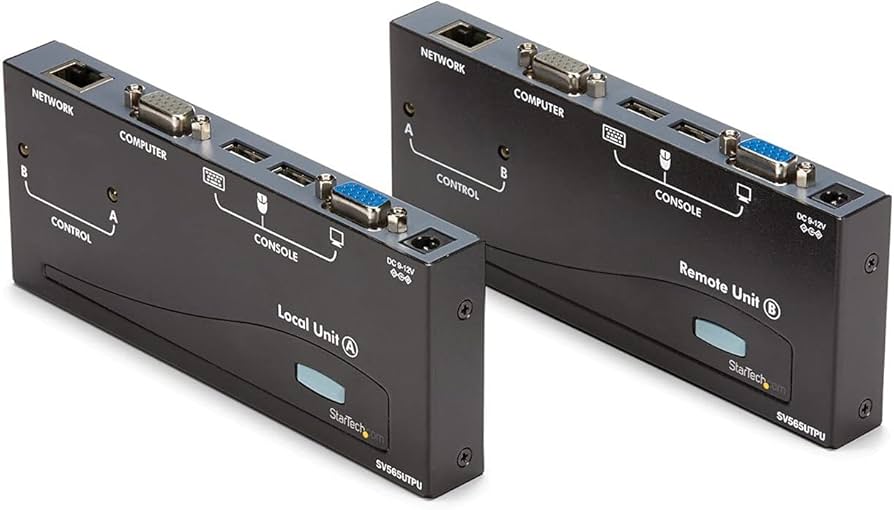

STARTECH USB VGA KVM Console Extender over CAT5, 150m Range

VENDOR: STARTECH Mfg Part#: SV565UTPU UPC#: 065030832625
1 5
Photo is for illustration purposes only. Actual product may be different.
$254.74
$254.74
Sale Sold out
MSRP: $256.99
Shipping calculated at checkout.
  • Supports long-distance console extension up to 150 meters (500 feet) over CAT5
  • Delivers VGA video with resolutions up to 1280 x 1024 @ 100 meters (300 feet)
  • Wired connectivity with Ethernet protocol ensures stable transmission
  • Compact enclosure size: 6.1" wide x 3" deep x 0.8" high
  • TAA compliant and manufactured in Taiwan
  • Includes 2-year service and support from the manufacturer

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Extends USB and VGA signals up to 150 meters, ideal for secure and centralized computing environments
  • Supports high-resolution video (1280 x 1024), ensuring no loss in display quality across long distances
  • TAA compliance and 2-year warranty make it fit for enterprise and government procurement standards

Product Overview

Operate a USB & VGA KVM or PC up to 500ft away as if it were right in front of you - kvm extender - KVM Extender CAT5 - Console extender

Specifications

Product Overview
Device Type KVM Extender
Form Factor External
Power Requirements Input: 100-240V AC, Output: 9V DC 600mA
Max Transfer Distance 150 m
Max Resolution 1280 x 1024 @ 100m (CAT5e)
Enclosure Color Black
Service & Support Type 2 Years

Wireless Features
Wireless Technology

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC

Advanced Security Features
Signal Encryption No
Authentication No
User Access Control No

Interfaces
Console Ports 1 x VGA, 2 x USB Type-A
Host Ports 1 x VGA, 1 x USB Type-A (keyboard), 1 x USB Type-A (mouse)
RJ-45 Ports 1 x CAT5/5e/6 Ethernet
Supported Video Interfaces VGA
Peripheral Interfaces USB for keyboard and mouse
KVM Technology USB

Physical & Environmental
Unit Dimensions (Receiver) 15.5 x 7.6 x 2.1 cm
Unit Dimensions (Transmitter) 15.5 x 7.6 x 2.1 cm
Width 6.1 inch
Depth 3 inch
Height 0.8 inch
Unit Weight (Transmitter) 320 g
Unit Weight (Receiver) 330 g
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
Humidity 0% to 80% RH (non-condensing)

Cloud Management & Licensing
Remote Management Capabilities No
Software Included No software required
Licensing Required No
