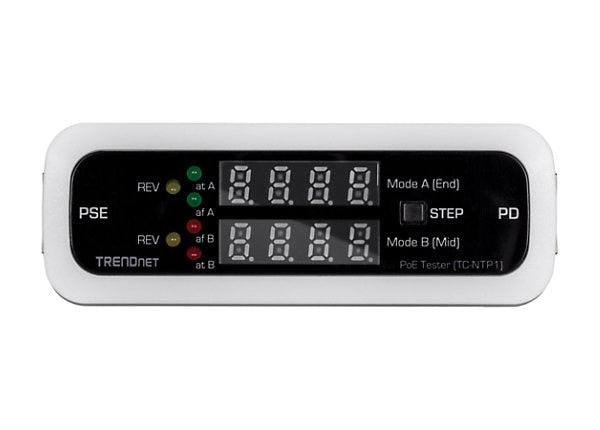

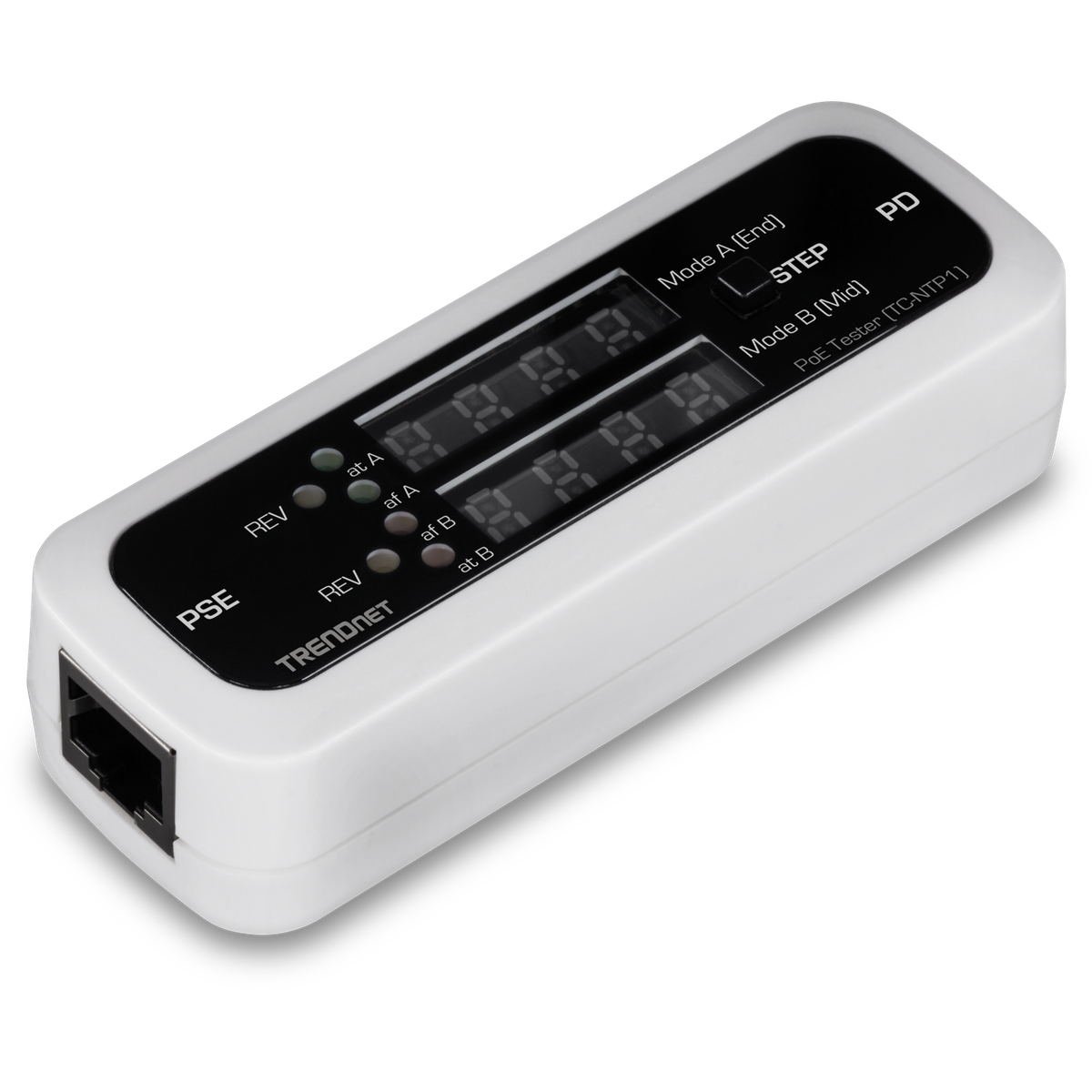

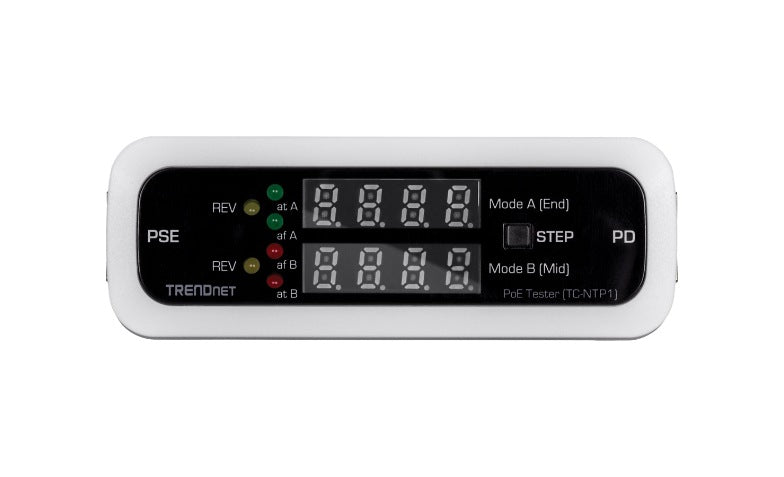

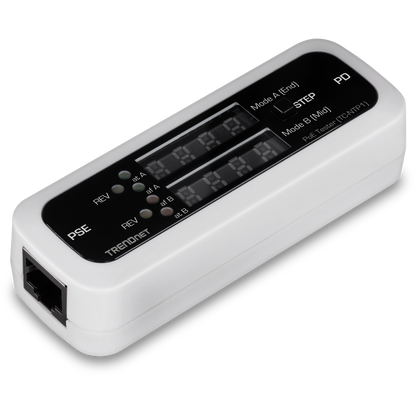

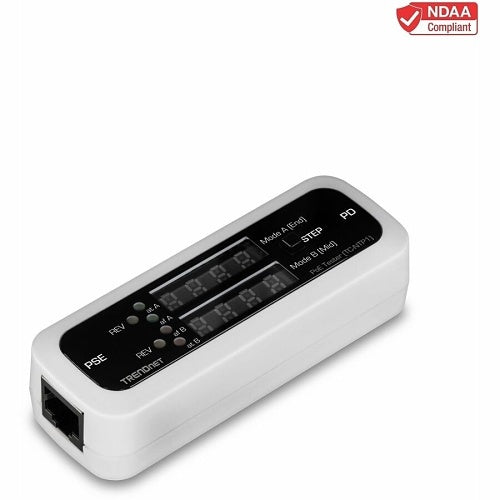

TRENDnet TC-NTP1 Inline PoE Tester, Gigabit Ethernet, TAA Compliant

VENDOR: TRENDNET Mfg Part#: TC-NTP1 UPC#: 710931401653
1 4
Photo is for illustration purposes only. Actual product may be different.
$72.89
$72.89
Sale Sold out
MSRP: $74.99
Shipping calculated at checkout.
  • Supports Gigabit Ethernet for high-speed data testing
  • Includes 2 ports for inline PoE testing functionality
  • Compact design: 3.9" width, 1.4" depth, and 1" height
  • TAA-compliant for government and enterprise use
  • Manufactured in Taiwan with professional-grade components
  • Includes 2-year service and support coverage

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for verifying Power over Ethernet capabilities without disrupting network traffic
  • TAA compliance ensures suitability for federal government and enterprise procurement
  • Compact and portable design is perfect for onsite diagnostics and rapid deployments

Product Overview

The TRENDnet TC-NTP1 Inline PoE Tester is a compact diagnostic tool supporting Gigabit Ethernet protocols. It features 2 ports for inline testing and offers TAA compliance, making it suitable for federal and enterprise applications. With its portable dimensions and a 2-year service plan, this tester is ideal for technicians managing PoE-enabled infrastructure. The TC-NTP1 helps reduce installation issues by validating PoE presence and voltage in real time, improving reliability in complex network setups.

Specifications

Product Overview
Product Type Inline PoE Tester
Form Factor Compact
Power Requirements Powered via inline connection
Service & Support 2-Year Limited Warranty

Wireless Features
Wireless Support

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Certifications FCC, CE
RoHS Compliant Yes

Advanced Security Features
Integrated Firewall
Intrusion Detection / Prevention
Packet Sniffing Capabilities No
PoE Fault Detection Yes
PoE Type Detection 802.3af/at Classification Display
Short Circuit Protection Yes

Interfaces
Networking Type Ethernet
Data Link Protocol Gigabit Ethernet
Port Count 2
Maximum Data Transfer Rate 1 Gbps
Connector Type RJ-45
Supported Ethernet Standards IEEE 802.3af, IEEE 802.3at
Inline Power Monitoring Yes
Voltage Measurement Range 3.5V - 56V
Current Measurement Range 0 – 600mA
Power Measurement Accuracy ±5%

Physical & Environmental
Width 3.9 in
Depth 1.4 in
Height 1 in
Weight 0.11 lb (50.8 g)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity Max 90% (non-condensing)
Enclosure Material Plastic
Mount Type Portable/Handheld
Color Blue and Black

Cloud Management & Licensing
Cloud Management No
Remote Monitoring No
Licensing Requirements None
