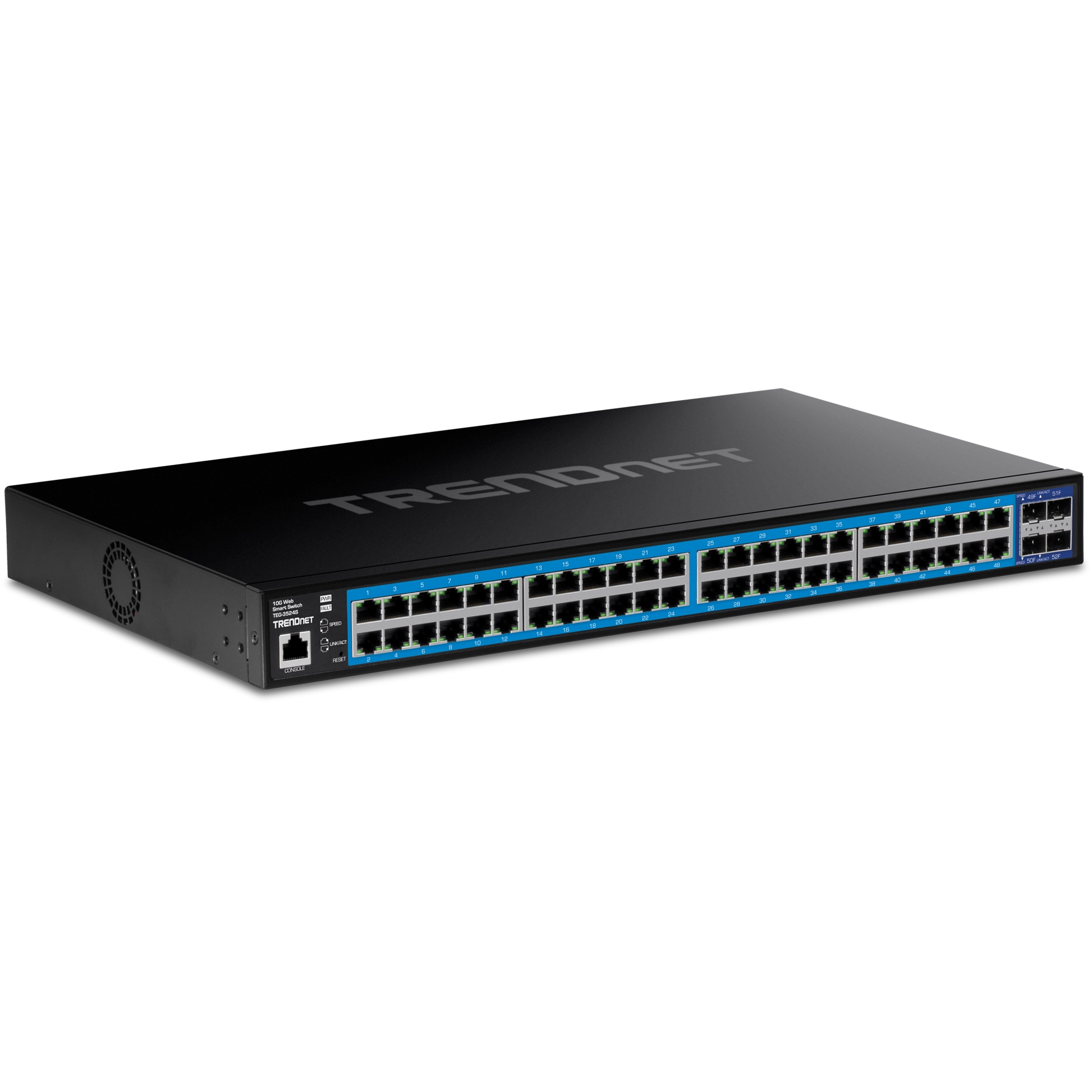

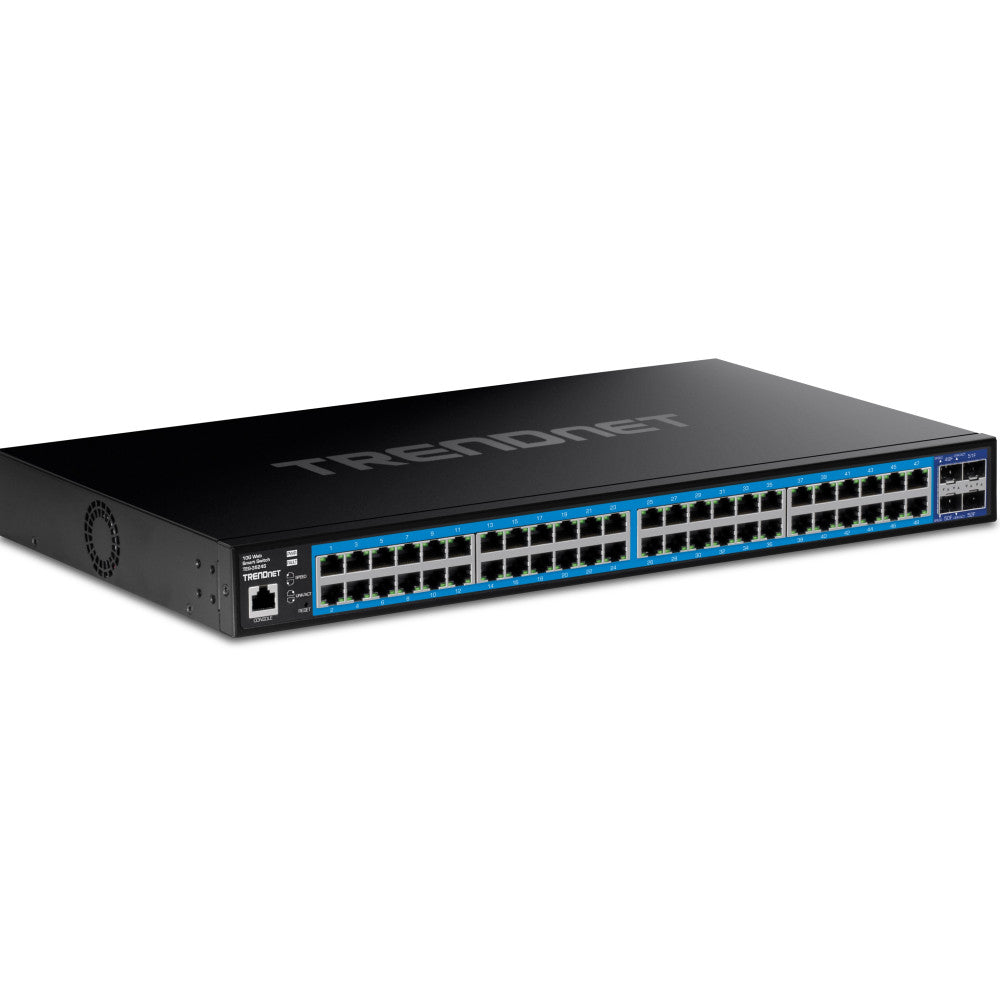

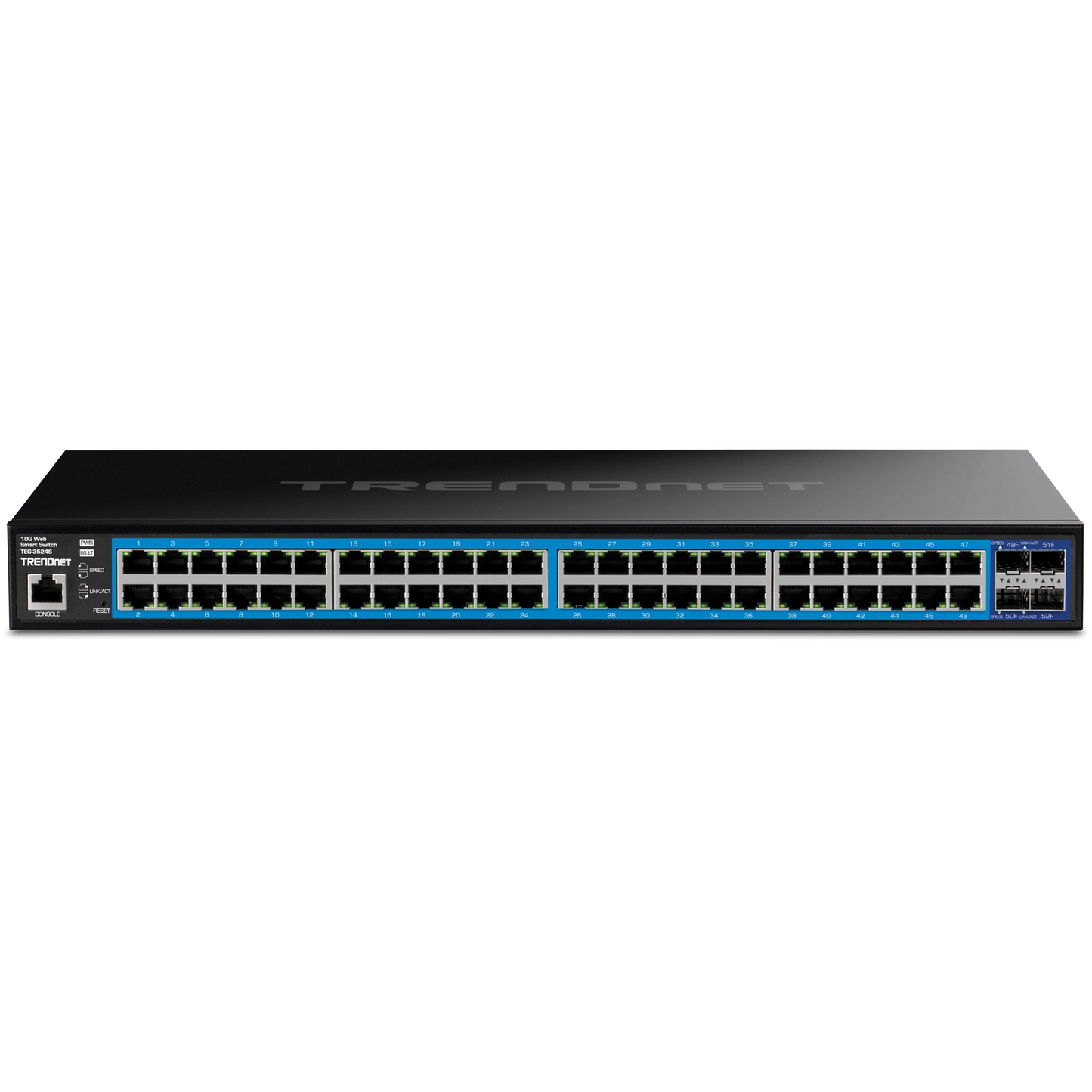

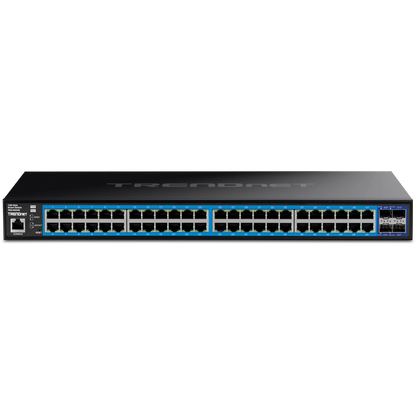

TRENDnet TEG-3524S 52-Port Gigabit Smart Switch with 10G SFP+

VENDOR: TRENDNET Mfg Part#: TEG-3524S UPC#: 710931140934
1 5
Photo is for illustration purposes only. Actual product may be different.
$459.76
$459.76
Sale Sold out
MSRP: $469.99
Shipping calculated at checkout.
  • 48 x Gigabit PoE+ ports and 4 x 10G SFP+ uplink slots
  • Supports IEEE 802.3ae standard and 802.1Q Tagged VLAN
  • Data transfer rate up to 10 Gbps with jumbo frame support (up to 10KB)
  • MAC address table supports up to 32K entries
  • IPv4/IPv6 static routing capability
  • LED status indicators and SNMP manageability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports 52 total ports, including 10G SFP+ slots, ideal for scalable high-speed networks
  • Static routing with VLAN support enables secure, segmented networking for enterprise applications
  • Backed by a lifetime warranty and high MTBF of 252,000 hours, ensuring long-term reliability

Product Overview

52-port Gigabit Web Smart Switch with 10G SFP+ Slots

Specifications

Product Overview
Product Type Web Smart Switch
Model TEG-3524S
Form Factor Rack-mountable
Dimensions (W x D x H) 17.32 x 10.04 x 1.73 in
Weight 27.51 lbs.
Power Source Internal Power Supply
Power Requirements 100 - 240V AC, 50/60Hz
Max Power Consumption 20.85 Watt
MTBF 252000 hours
Included Accessories TEG-3524S Switch

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
IEEE Standards Supported 802.1Q, 802.1p, 802.3, 802.3ab, 802.3z, 802.3x, 802.3ae
Certifications CE, FCC

Advanced Security Features
Access Control Lists (ACLs) Supported
Static Routing Support IPv4/IPv6 Static Routing
Storm Control Supported
802.1X Authentication Supported
VLAN Tagging 802.1Q VLAN Support
MAC Address Table Size 32K entries
Quality of Service (QoS) 802.1p Priority Queueing
Broadcast Storm Control Yes
Loop Detection Yes
Port Security Yes

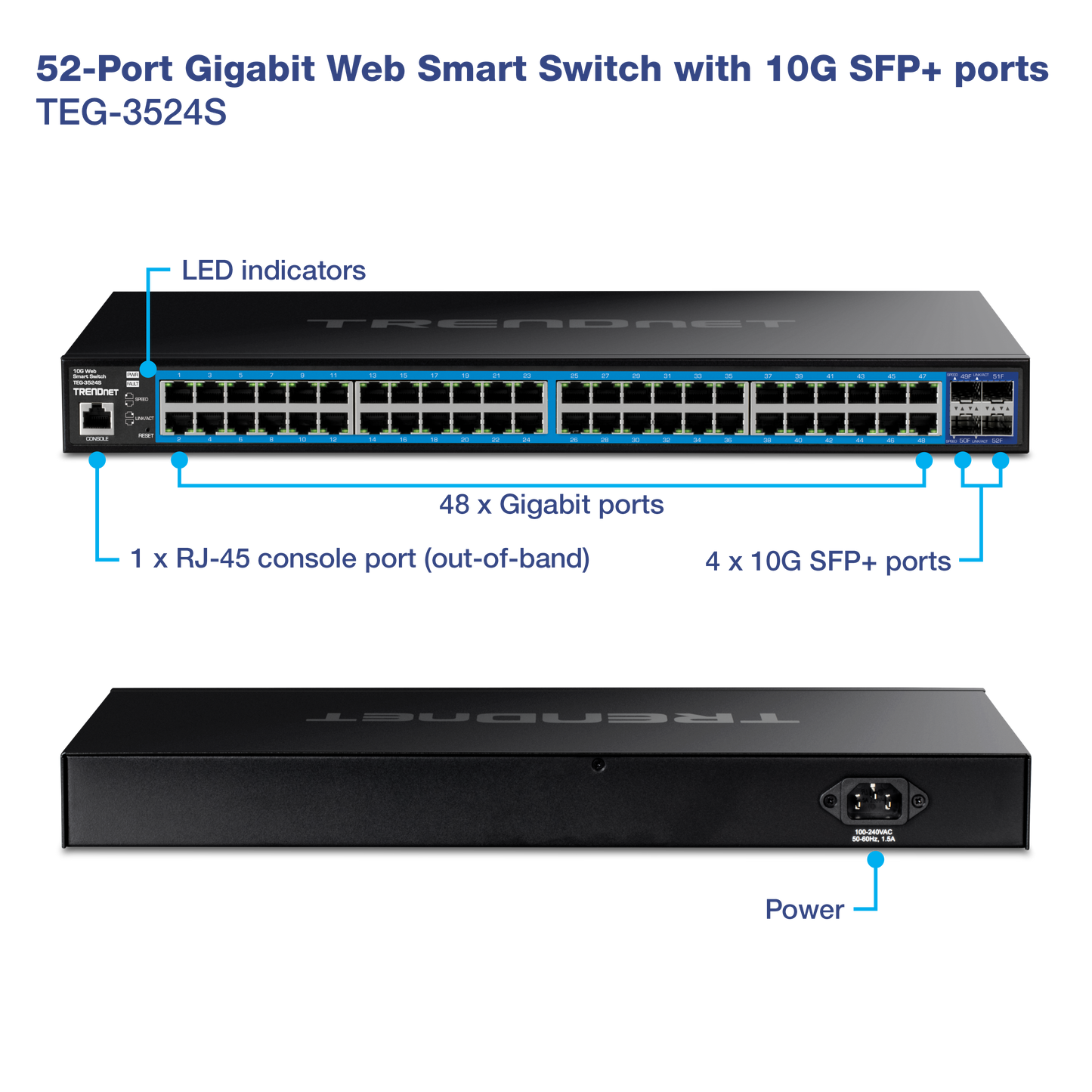

Interfaces
Total Ports 52
10/100/1000 Mbps Ports 48 x Gigabit Ethernet ports
SFP+ Ports 4 x 10G SFP+
Uplink Port Speed 10 Gbps
Port Status Indicators LED indicators for link/activity
Interface Standard Compliance IEEE 802.3u, 802.3ab, 802.3z, 802.3ae
Jumbo Frame Support Up to 10 KB

Physical & Environmental
Width 17.32 in
Depth 10.04 in
Height 1.73 in
Operating Temperature (Min) 0 °C
Operating Temperature (Max) 50 °C
Humidity (Operating) 10% to 90% (non-condensing)

Cloud Management & Licensing
Management Type Web-based Smart Management
Cloud-Based Management No
Licensing Requirements None (included features)
