TRENDnet TEG-MGBS20 Mini-GBIC Single-Mode LC Module (10KM)

VENDOR: TRENDNET Mfg Part#: TEG-MGBS20 UPC#: 710931140620
1 5

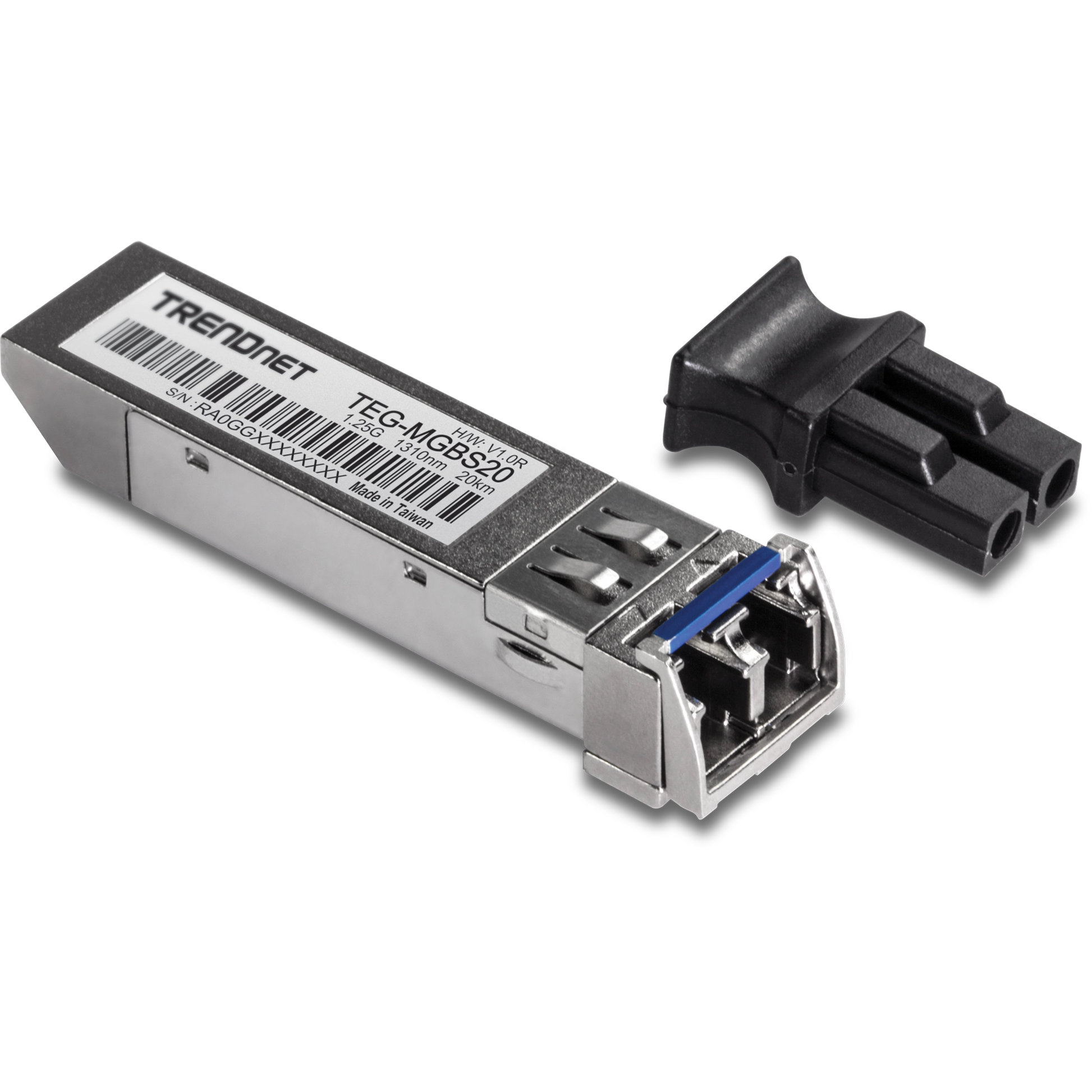

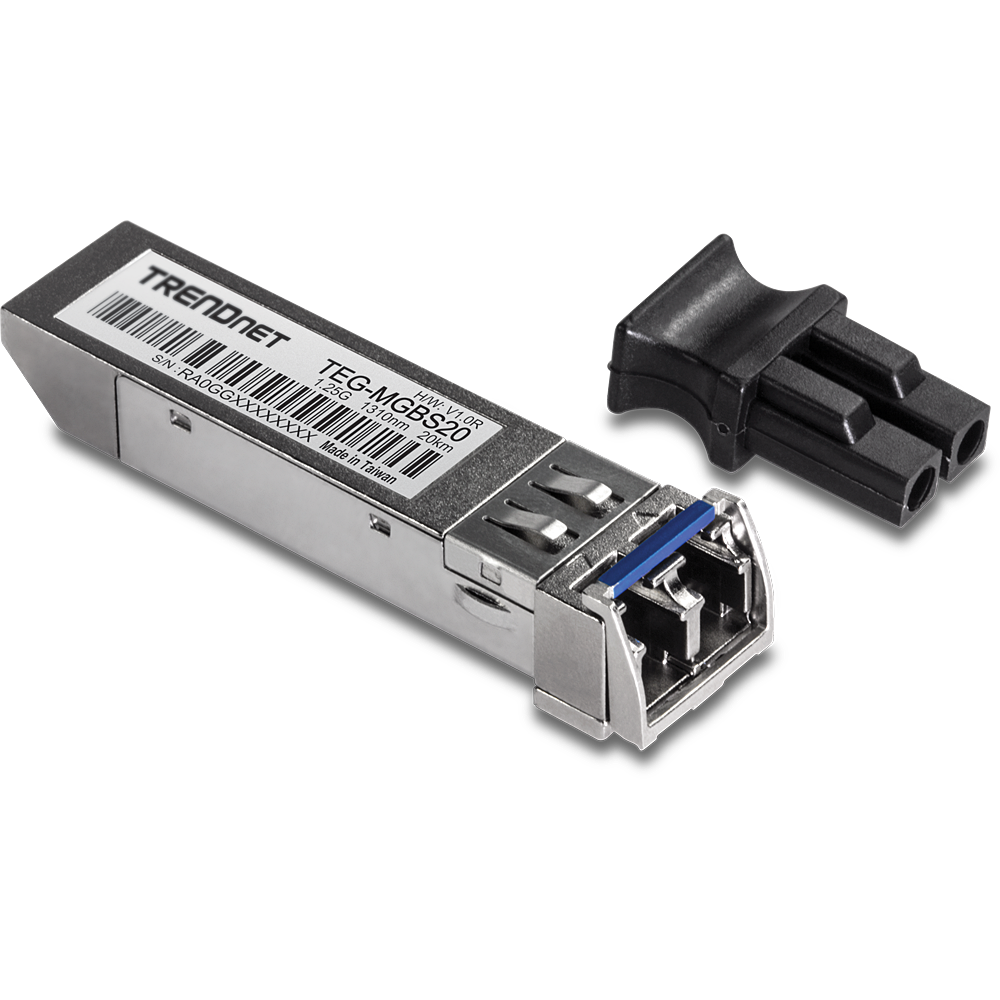

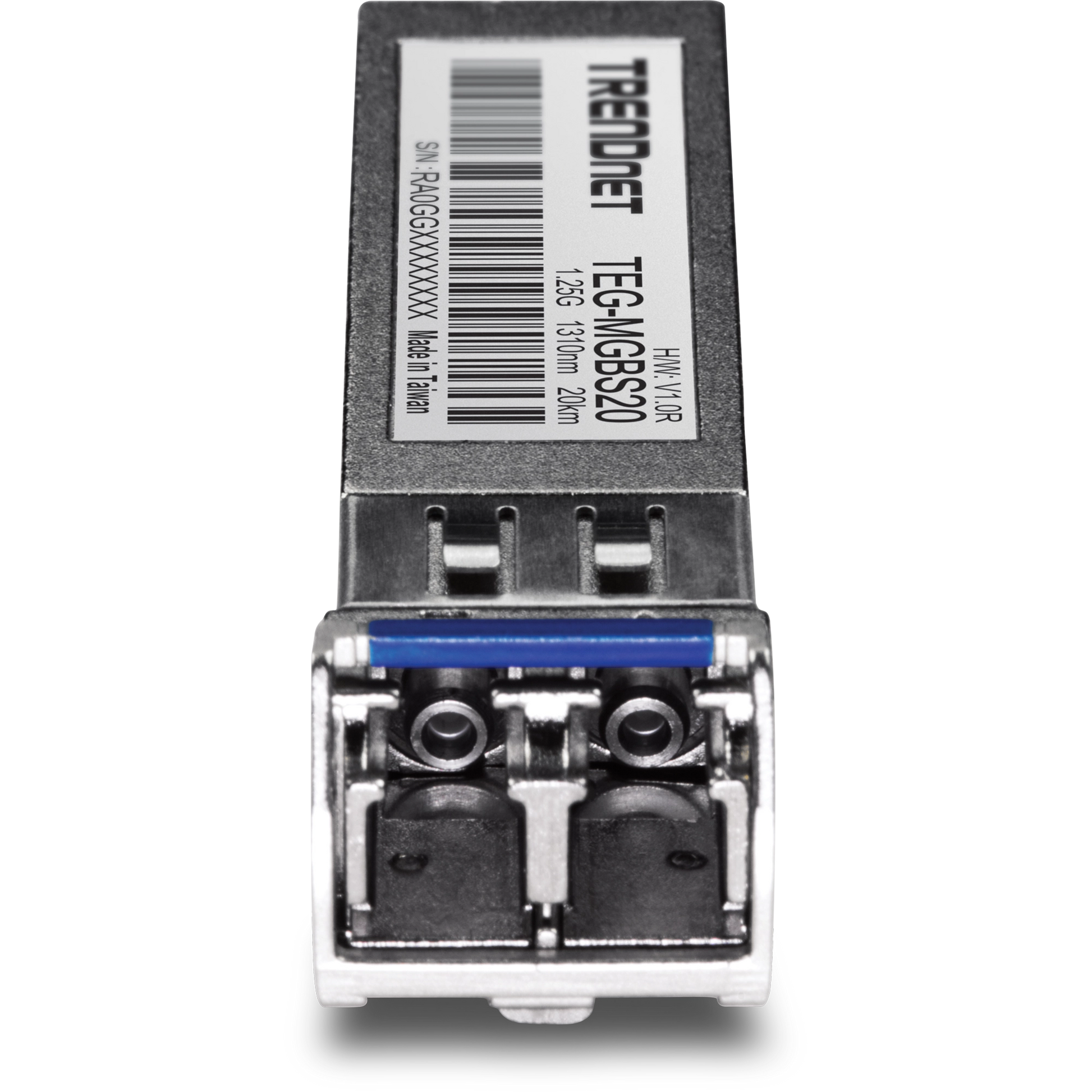

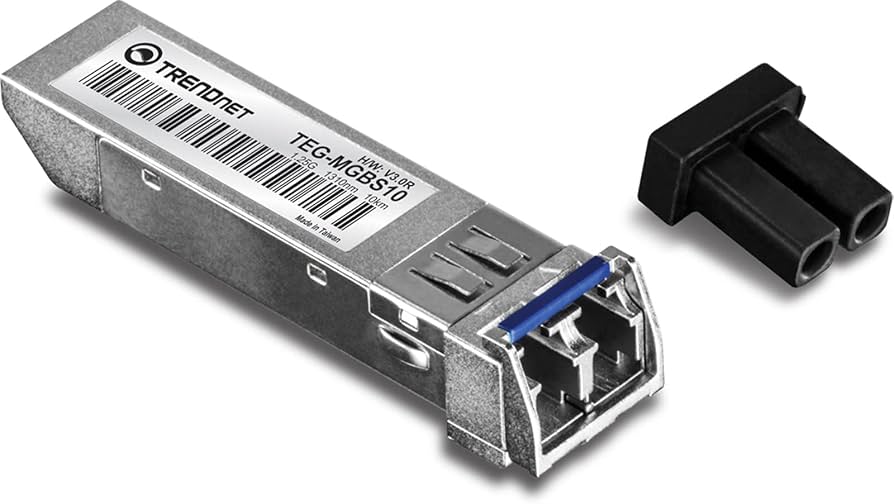

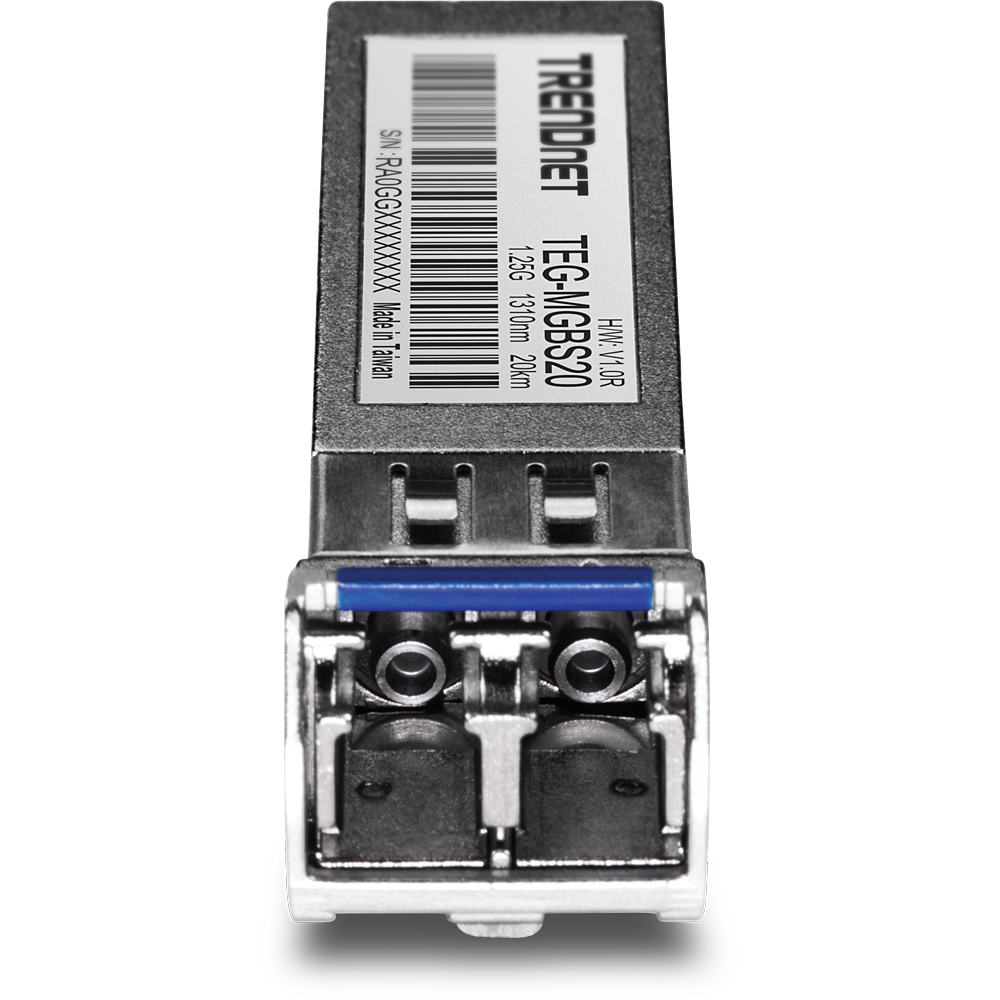

Photo is for illustration purposes only. Actual product may be different.
$26.91
$26.91
Sale Sold out
MSRP: $27.99
Shipping calculated at checkout.
  • Single-mode LC connectors with male-to-male configuration
  • Supports transmission up to 10 kilometers
  • Mini-GBIC form factor for flexible switch/router integration
  • TAA-compliant for government use
  • Manufactured in Taiwan
  • Includes 3-year warranty for extended support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports long-distance fiber transmissions up to 10KM, making it ideal for large-scale infrastructure.
  • TAA compliance allows deployment in regulated environments including government and education sectors.
  • LC connector compatibility with standard Mini-GBIC/SFP slots ensures easy integration with existing hardware.

Product Overview

The TRENDnet TEG-MGBS20 is a Mini-GBIC single-mode LC module engineered to deliver high-performance connectivity over distances up to 10 kilometers. Designed for integration with Mini-GBIC/SFP slot-enabled devices, it offers a cost-effective and scalable fiber optic solution. With LC male connectors and TAA compliance, it is well-suited for government and enterprise applications. Backed by a 3-year warranty and manufactured in Taiwan, it ensures reliability and longevity in extended network deployments.

Specifications

Product Overview
Product Type Mini-GBIC SFP Transceiver Module
Transceiver Form Factor SFP (Small Form-factor Pluggable)
Transceiver Type Single-Mode Fiber (SMF)
Application Fiber Optic Networking
Wavelength 1310 nm
Maximum Data Transfer Rate 1.25 Gbps
Max Transmission Distance 10 km
Connector Type LC Duplex
Power Consumption Less than 1.0 W
Hot Swappable Yes

Physical & Environmental
Housing Material Metal
Dimensions (L x W x H) 57 x 13.4 x 11.2 mm
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 95% RH non-condensing
Weight 20 g

Cloud Management & Licensing
Cloud Management No
Management Interface Not Managed (passive module)
License Required No

Service & Support
Warranty 3-Year Limited Warranty
Technical Support Lifetime Toll-Free Tech Support

Interfaces
Interface 1000BASE-LX
Connector Gender Male to Male
Left Connector Type LC
Right Connector Type LC
Compatibility MSA Compliant SFP Slots
Transmission Medium Single-mode fiber

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE
RoHS Compliant Yes
MTBF Over 3,000,000 hours

Advanced Security Features
Security Features Not applicable to passive transceiver modules
