| Manufacturer | TRENDnet |
| Product Name | TRENDnet TEG-S3160 16-Port Unmanaged 2.5G Switch Rack-Mountable |
| Model Number | TEG-S3160 |
| Type | Unmanaged Switch |
| Form Factor | Rack-Mountable / Desktop |
| Enclosure Type | Metal |
| Fanless Design | Yes |
| Power Requirements | Input: 90 - 264V AC, 47/63 Hz |
| Power Adapter Output | 12V DC, 3A |
| Power Consumption | 7.26 W (max) |
| MTBF | 530,531 hours |
| Weight | 16 ounces |
| UPC | 710931141160 |

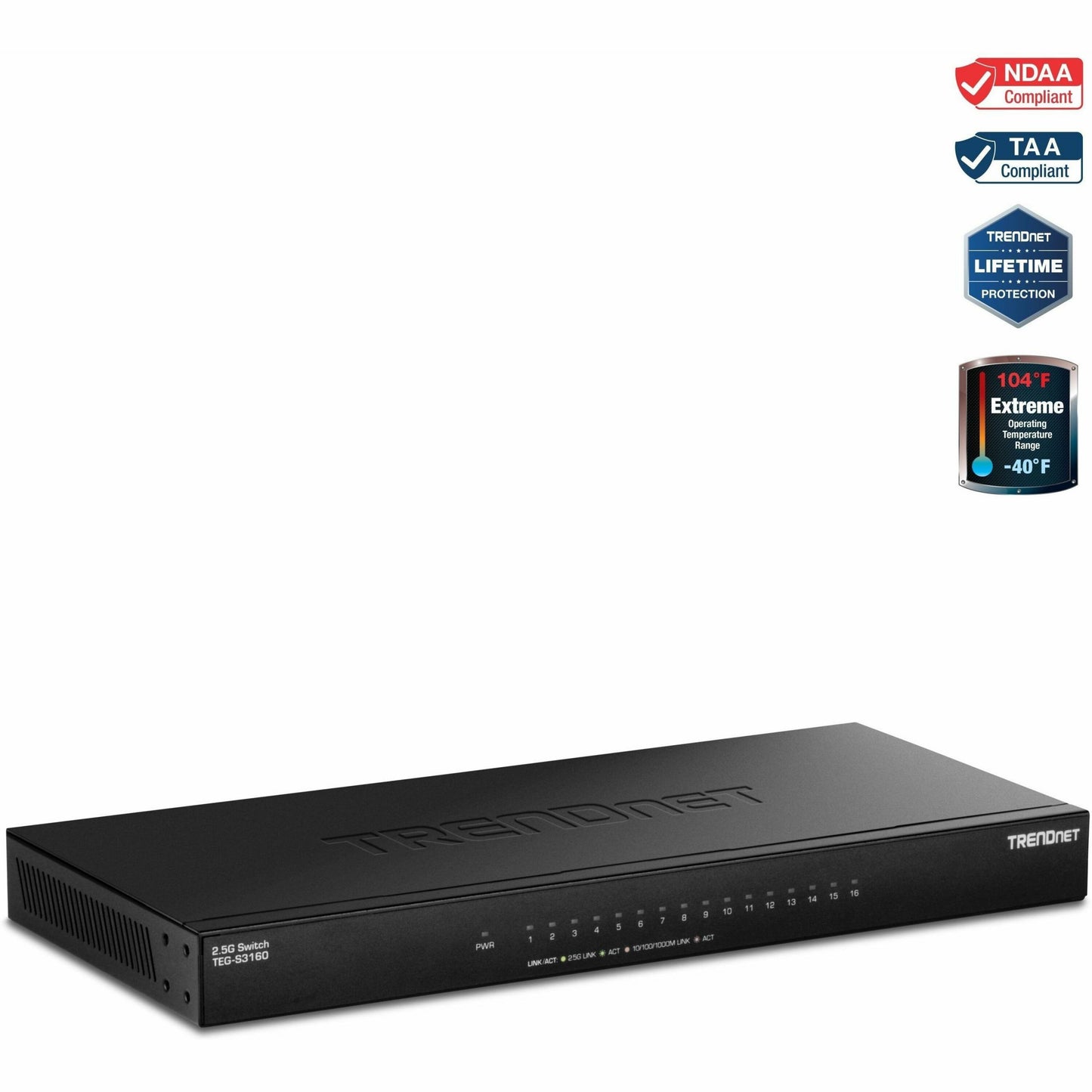

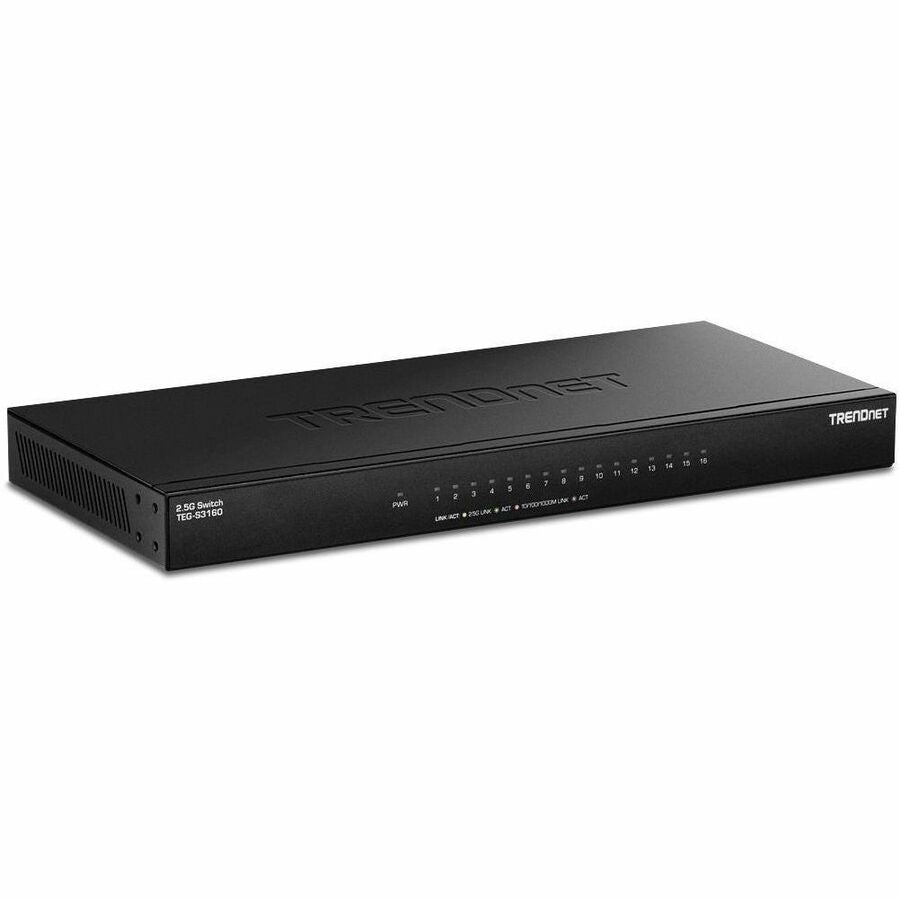

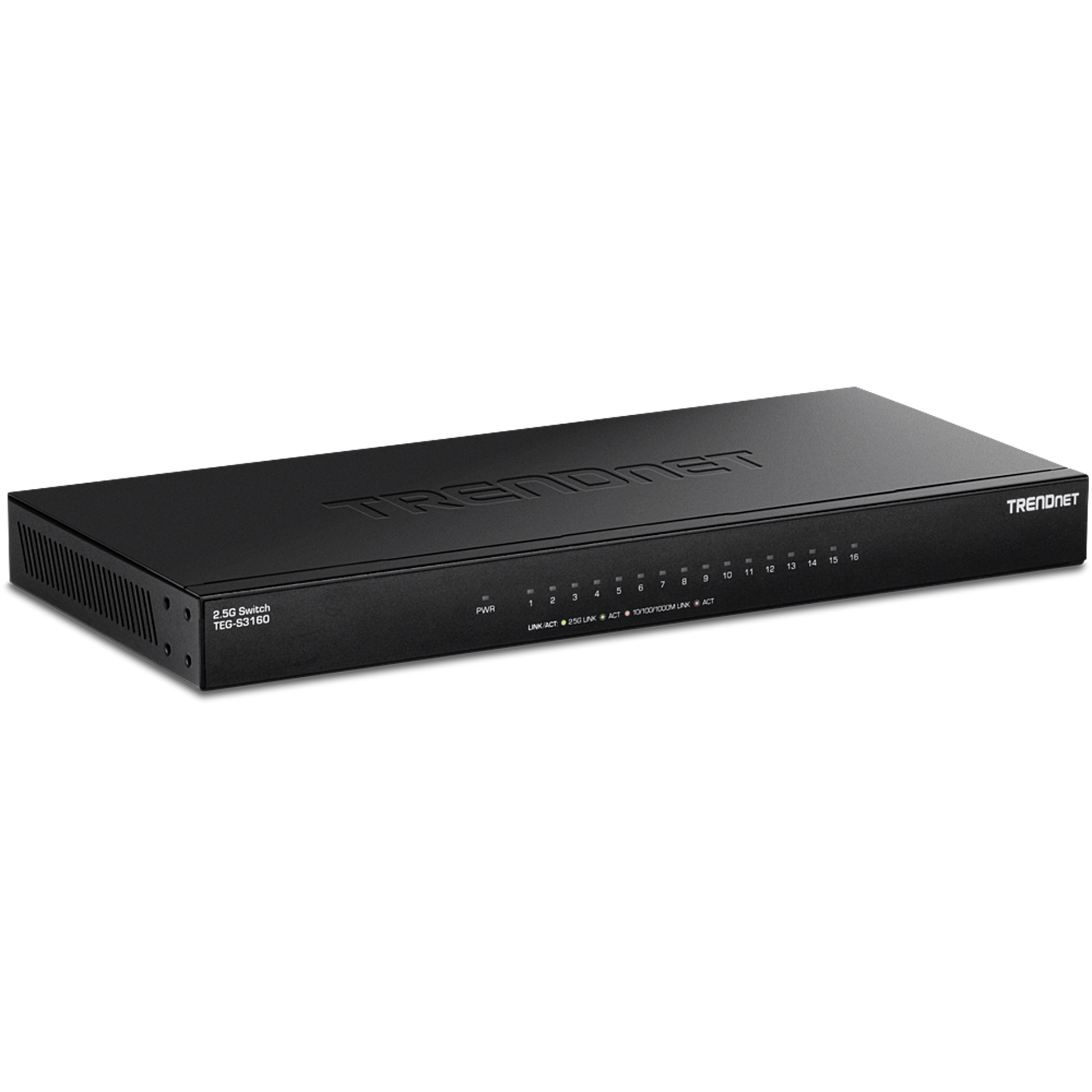

TRENDnet TEG-S3160 16-Port Unmanaged 2.5G Switch Rack-Mountable
Photo is for illustration purposes only. Actual product may be different.
Regular price
$325.20
Regular price
Sale price
$325.20
Unit price
per
MSRP: $329.99
Shipping calculated at checkout.
Couldn't load pickup availability
- 16 x 2.5G RJ-45 ports with backward compatibility (100Mbps/1Gbps)
- Supports jumbo frames up to 12KB for efficient large data transfers
- Fanless, rack-mountable design for silent and flexible installations
- Power efficient with maximum consumption of 7.26W
- Large 16K MAC address table for high-volume traffic handling
- MTBF of 530,531 hours and lifetime warranty for long-term reliability
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Ensures seamless high-speed upgrades without re-cabling by supporting legacy and 2.5G devices on the same ports
- Silent fanless operation and compact rack-mountable form factor make it ideal for noise-sensitive or space-constrained environments
- Long MTBF and lifetime warranty provide excellent ROI and minimize network downtime risk
Product Overview
The TRENDnet TEG-S3160 16-Port 2.5G Switch delivers high-speed, unmanaged connectivity through 16 x 2.5G RJ-45 ports, supporting 100Mbps to 2.5Gbps. Designed for quiet spaces, it features a fanless, rack-mountable enclosure. With jumbo frame (12KB) support and a 16K MAC table, it suits high-traffic and data-intensive applications. The switch consumes just 7.26W and includes a lifetime warranty, boasting an MTBF over 530,000 hours. Ideal for business networks, surveillance deployments, or bandwidth-heavy setups.
Specifications
Product Overview
Physical & Environmental
| Width | 5.02 in (127.5 mm) |
| Depth | 11.25 in (286 mm) |
| Height | 1.06 in (27 mm) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Humidity | Max 90% non-condensing |

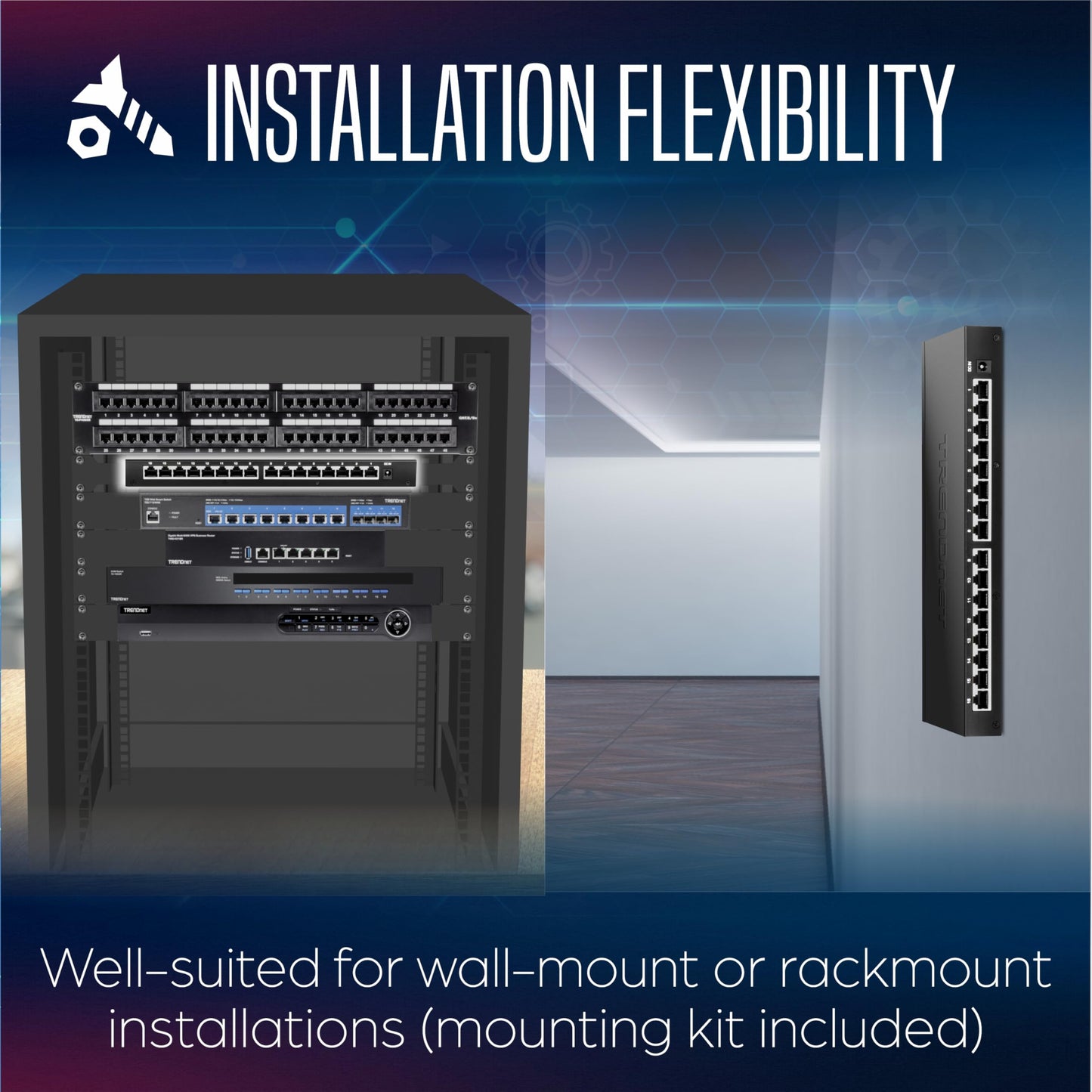

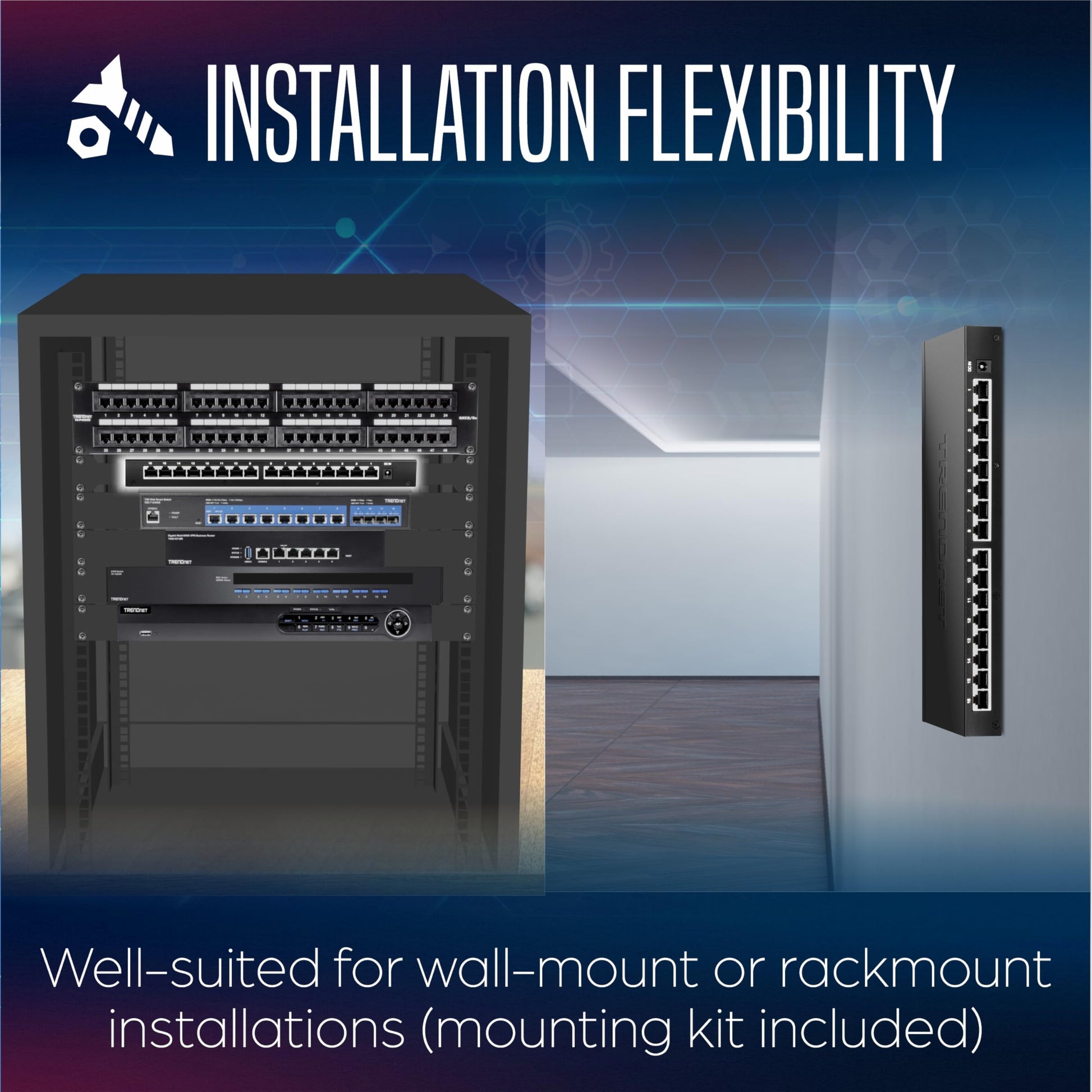

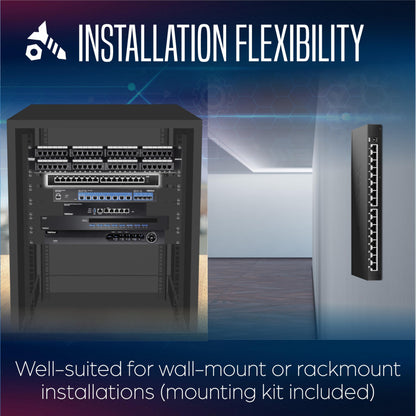

| Mounting Options | Rack-mountable, Wall-mountable, Desktop |
| Cooling | Passive (Fanless) |
Cloud Management & Licensing
| Management | Unmanaged (No UI or cloud interface) |
Interfaces
| Port Count | 16 |
| Interface Type | 2.5G RJ-45 Ethernet |
| Supported Speeds | 100Mbps, 1Gbps, 2.5Gbps |
| Switching Capacity | 80 Gbps |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Auto-MDIX Support | Yes |
| Full Duplex Support | Yes |
| Packet Buffer Memory | 2 Mbits |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | CE, FCC |
| RoHS Compliant | Yes |
Advanced Security Features
| Security Features | Broadcast storm control, ESD protection (6kV contact, 8kV air) |
