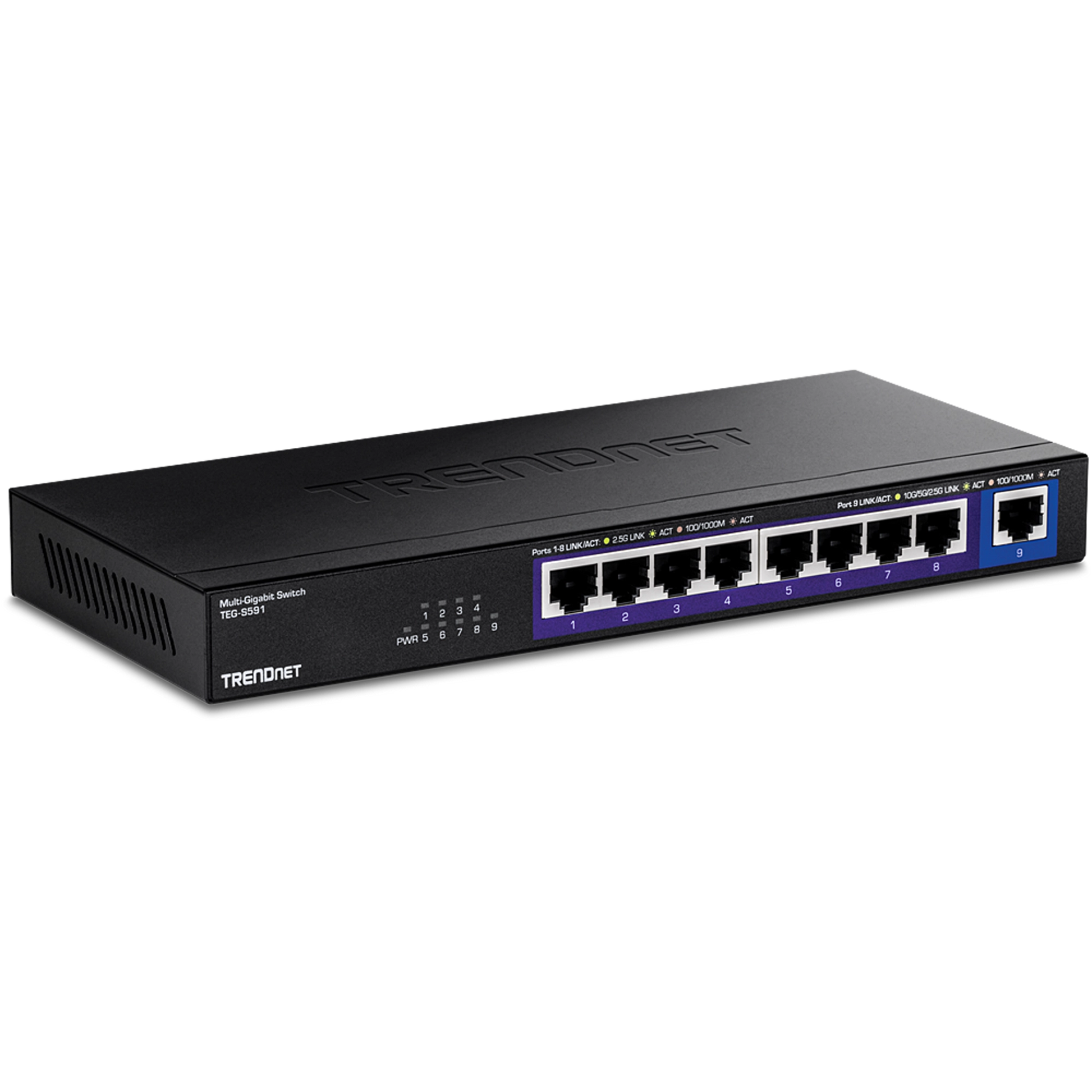

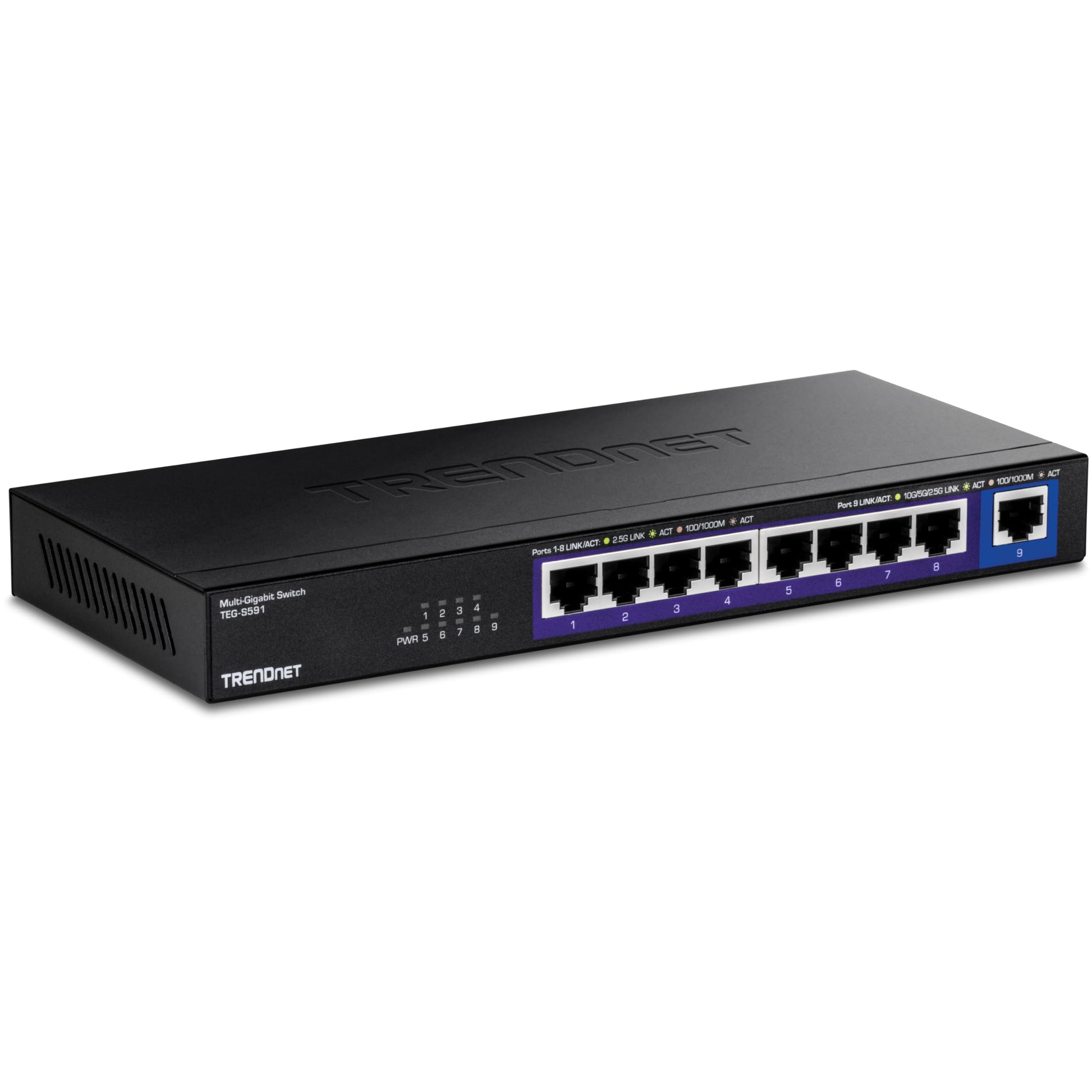

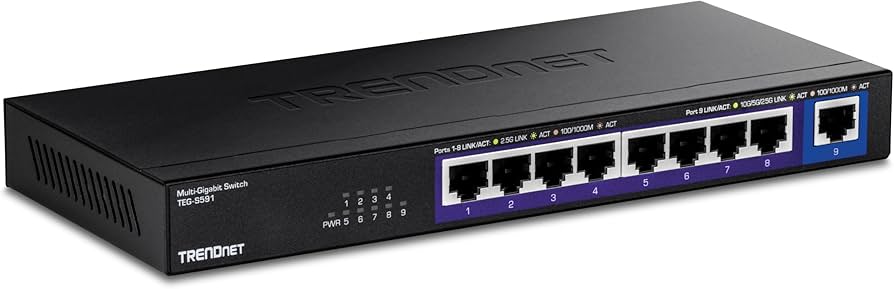

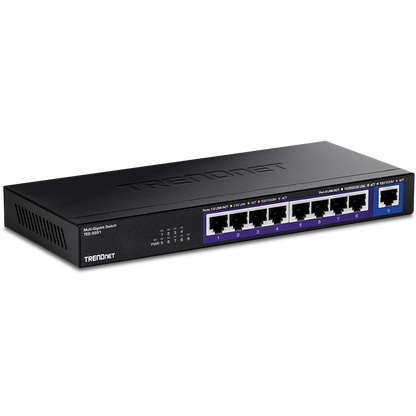

TRENDnet TEG-S591 9-Port Multi-Gig Ethernet Switch

VENDOR: TRENDNET Mfg Part#: TEG-S591 UPC#: 710931141085
1 5
Photo is for illustration purposes only. Actual product may be different.
$134.57
$134.57
Sale Sold out
MSRP: $139.99
Shipping calculated at checkout.

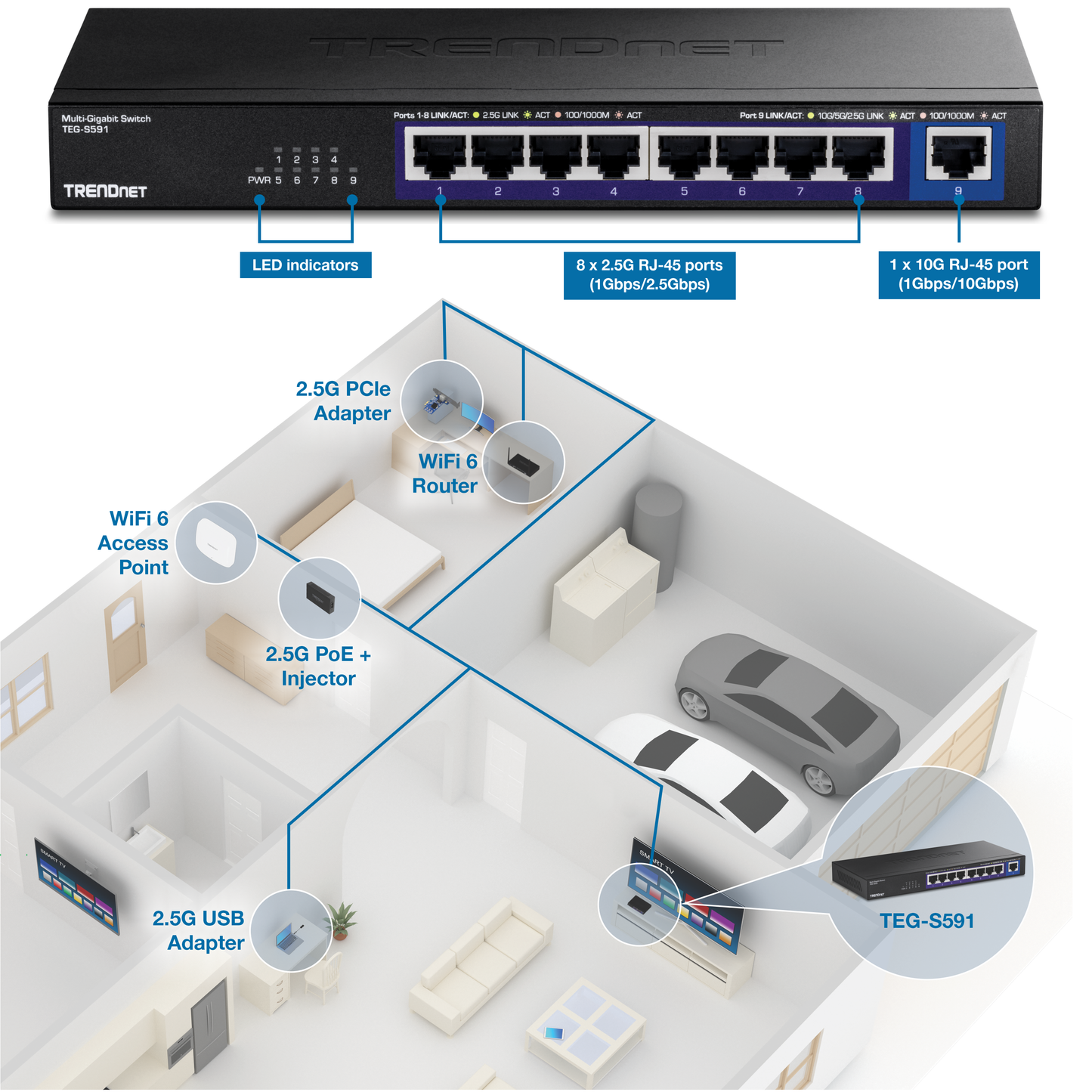

  • 9 RJ-45 ports with 2.5G and 10G Ethernet connectivity
  • Supports a MAC address table with 4K entries
  • Jumbo frame support up to 12KB for efficient packet handling
  • Maximum data transfer rate of 10 Gbps with wired connectivity
  • Low power consumption with a max draw of 11.9 Watts
  • Wall-mountable design with LED status indicators

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports multi-gig speeds (up to 10 Gbps) ideal for high-throughput professional or enterprise environments
  • Compact wall-mount form factor with low power consumption (11.9W) makes it ideal for space and energy-conscious deployments
  • Backed by a lifetime warranty and a high MTBF of over 518,000 hours for long-term reliability

Product Overview

The TRENDnet TEG-S591 is a 9-Port Multi-Gigabit Ethernet switch that provides scalable high-speed network connectivity with 2.5G and 10G RJ-45 support. Designed for wall-mount installation and low power usage, it features a 12KB jumbo frame capability, 4K MAC address table, and LED indicators for monitoring. The switch operates efficiently within 0 to 40°C and is backed by a lifetime warranty. With TAA compliance and reliable performance rooted in an MTBF of over 518,000 hours, it's a fit for professional and government networks alike.

Specifications

Product Overview
Product Type Unmanaged Ethernet Switch
Model TEG-S591
Form Factor Wall-mountable
Mounting Option Wall-mount or desktop
Weight 1.6 lbs.
Power Supply Type External AC adapter
Power Consumption (Max) 11.9 Watts
Voltage Range 90 – 264V AC
Frequency Range 47 – 63 Hz
Mean Time Between Failures (MTBF) 518151 hours

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
Environmentally Friendly Yes (RoHS Compliant)

Advanced Security Features
Security Features None (Unmanaged switch)

Interfaces
Total Number of Ports 9
Port Types 8 × 2.5G RJ-45, 1 × 10G RJ-45
Ethernet Standards IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3an, 802.3x
Switching Capacity 92 Gbps
Forwarding Rate 68.45 Mpps
MAC Address Table Size 4K entries
Jumbo Frame Support 12 KB
Flow Control Support IEEE 802.3x
QoS Support Yes (IEEE 802.1p)
Buffer Memory 128KB

Physical & Environmental
Width 9.45 in
Depth 4.1 in
Height 1 in
Operating Temperature Range 0 to 40 °C (32 to 104 °F)
Storage Temperature Range -40 to 70 °C (-40 to 158 °F)
Operating Humidity Max. 90% RH, non-condensing
Storage Humidity Max. 95% RH, non-condensing

Cloud Management & Licensing
Cloud Managed No
Management Interface Unmanaged – Plug-and-play
License Requirements No licensing required

Additional Information
Status LEDs Power, Link/Activity, Speed
Warranty Lifetime Limited Warranty
