TRENDnet TEG-S750 5-Port 10G Ethernet Switch

VENDOR: TRENDNET Mfg Part#: TEG-S750 UPC#: 710931140705
1 5
Photo is for illustration purposes only. Actual product may be different.
$291.56
$291.56
Sale Sold out
MSRP: $299.99
Shipping calculated at checkout.
  • Five 10G RJ-45 ports supporting high-speed wired connectivity
  • Supports data transfer rates up to 10 Gbps
  • MAC address table supports up to 16,000 entries
  • Jumbo frame support up to 12KB for optimized throughput
  • Max power consumption of only 22.75W

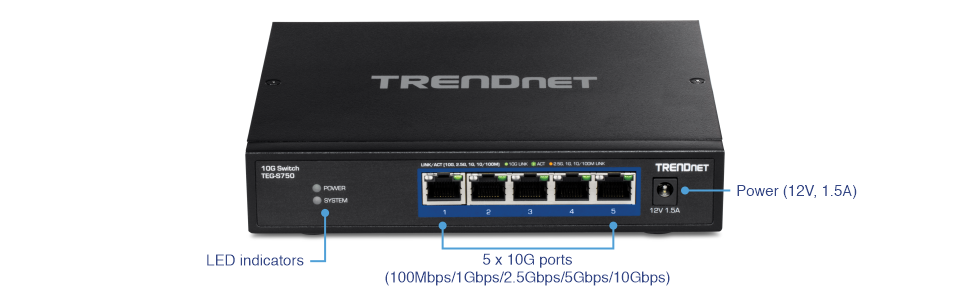

  • LED indicators for real-time status monitoring

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-fast 10G performance across all five ports, ideal for high-data environments like media production or server aggregations.
  • Exceptionally long MTBF of 521,600 hours and a lifetime warranty ensure dependable, low-maintenance operation.
  • TAA compliance and versatile voltage support increase suitability for government and professional installations.

Product Overview

The TRENDnet TEG-S750 is a 5-Port 10G Ethernet switch designed for high-bandwidth, professional environments. With five 10G RJ-45 ports and 10 Gbps data transfer, it's ideal for media editing, heavy file transfers, and enterprise networking. Features include jumbo frame support (12KB), 16K MAC entries, and LED indicators. The switch delivers efficient power usage at 22.75W and is built with a durable metal housing. TAA compliant and backed by a lifetime warranty, it's a reliable solution for demanding networks.

Specifications

Product Overview
Product Type Ethernet Switch
Form Factor Desktop
Model TEG-S750
Enclosure Type Metal Housing
Weight 4.85 lbs.
Power Requirements 100 - 240V AC, 50/60 Hz
Power Supply Type Internal
Maximum Power Consumption 22.75 Watt
MTBF 521600 hours

Physical & Environmental
Width 7 Inch
Depth 5.7 Inch
Height 1.3 Inch
Operating Temperature (Min) 0 °C
Operating Temperature (Max) 40 °C
Storage Temperature -20 to 70 °C
Operating Humidity 10% – 90% RH (non-condensing)
Storage Humidity 5% – 90% RH (non-condensing)

Cloud Management & Licensing
Cloud Management No
Management Type Unmanaged
Licensing Required No

Interfaces
Total Number of Ports 5
Port Type 10GBASE-T (RJ-45)
Port Speed 10/5/2.5/1 Gbps and 100 Mbps (auto-negotiation)
Data Transfer Rate 10 Gbps per port
Switching Capacity 100 Gbps
Forwarding Rate 74.4 Mpps
MAC Address Table Size 16K entries
Jumbo Frame Support Up to 12KB
Packet Buffer Size 2MB
Status LEDs Power, Link/Activity per port

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC
RoHS Compliant Yes

Advanced Security Features
802.1p QoS Support Yes
Broadcast Storm Control Yes
