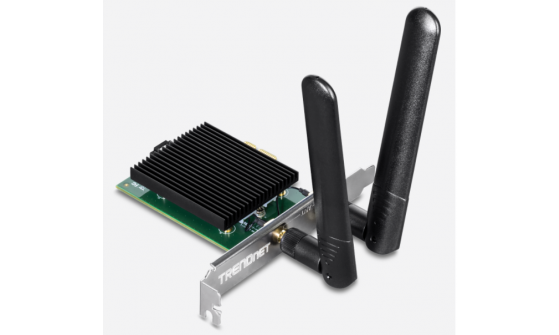

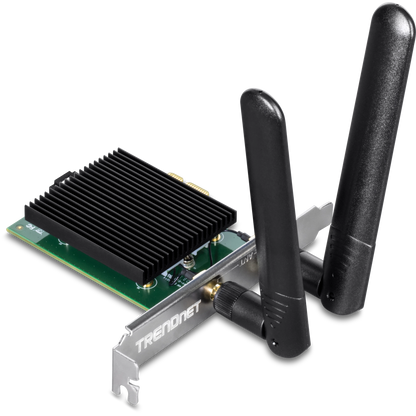

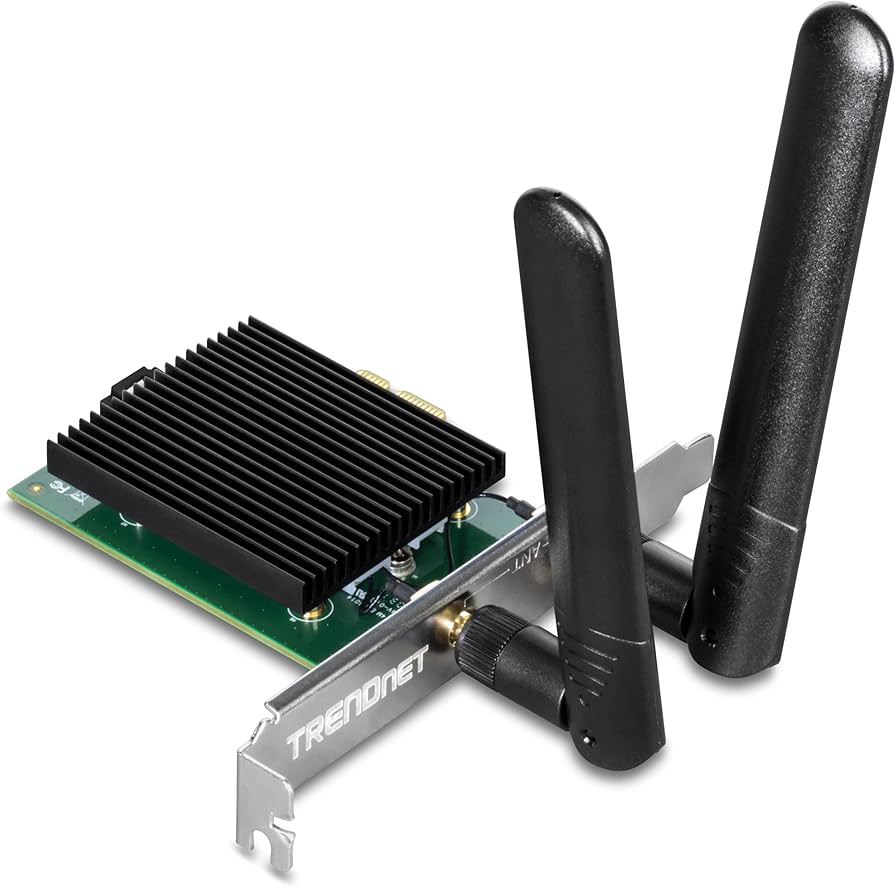

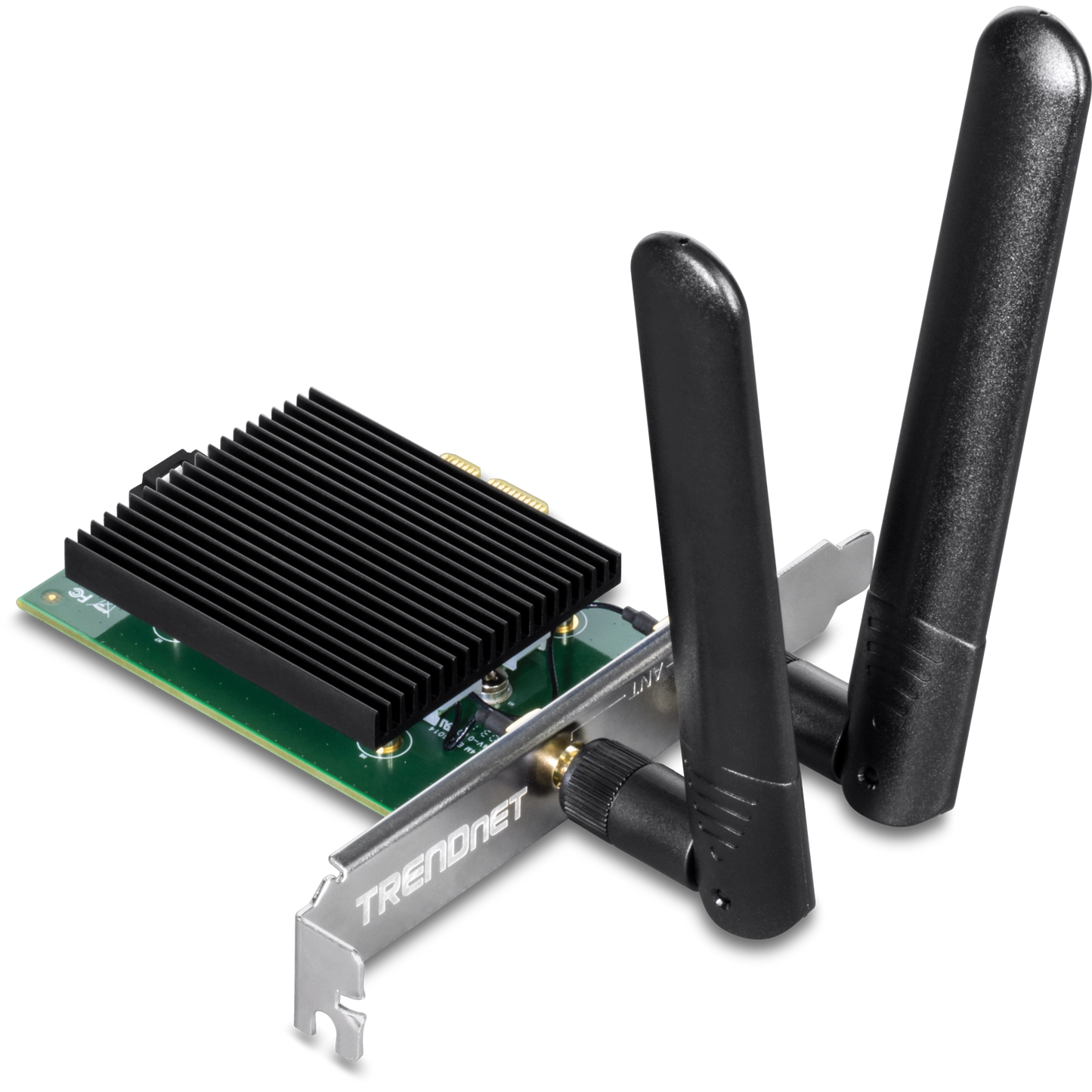

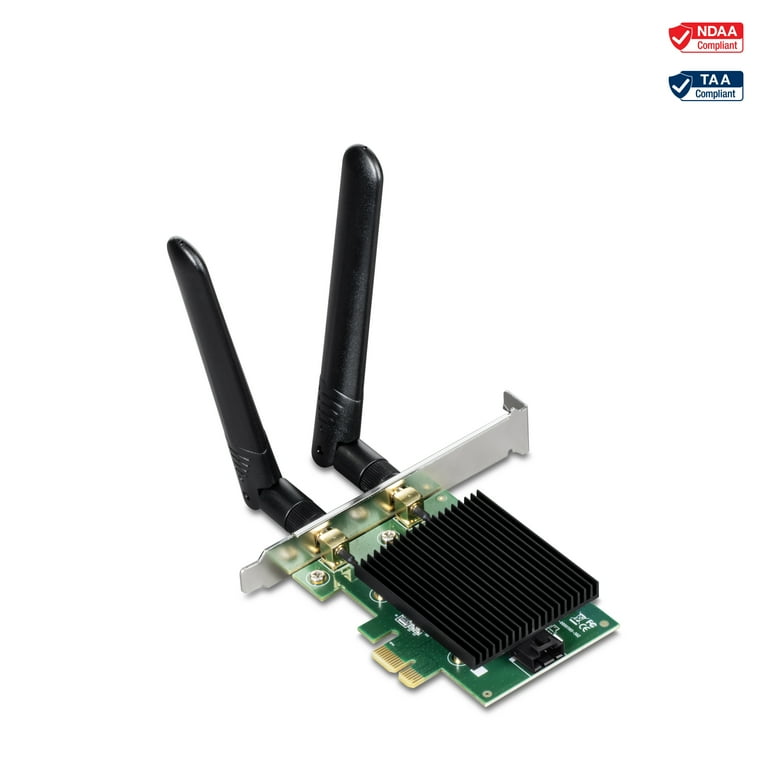

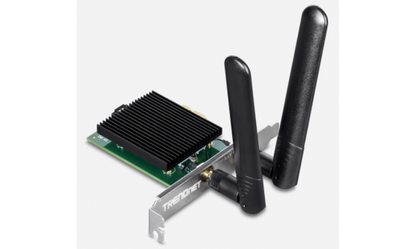

TRENDnet TEW-907ECH AX3000 Wireless Dual Band & Bluetooth 5.2 PCIe Adapter

VENDOR: TRENDNET Mfg Part#: TEW-907ECH UPC#: 710931131093
1 4
Photo is for illustration purposes only. Actual product may be different.
$28.03
$28.03
Sale Sold out
MSRP: $29.99
Shipping calculated at checkout.
  • AX3000 adapter delivering up to 2401Mbps Wi-Fi 6 or 600Mbps Wireless N speeds
  • Dual-band support for 2.4 GHz and 5 GHz networks
  • Bluetooth 5.2 (Class 2) functionality for peripheral connectivity
  • Compatible with PCI Express 2.0 x1 interface
  • TAA compliant and manufactured in Taiwan
  • Supports Windows 10 operating systems

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Empowers desktops with ultra-fast dual-band Wi-Fi 6 and Bluetooth 5.2 using a single PCIe slot
  • Compact form factor and TAA compliance make it suitable for government and professional IT deployments
  • Backed by a 3-year manufacturer warranty, ensuring long-term performance and ROI

Product Overview

AX3000 Wireless Dual Band & Bluetooth 5.2 (Class 2) PCIe Adapter

Specifications

Product Overview
Product Type PCIe Adapter
Form Factor Internal (Add-in card)
Chipset Intel Wi-Fi 6 AX200
Weight 45 g
Power Requirements 3.3V DC via PCIe slot
Compatible Operating Systems Windows 10
Wireless Speed Up to 2402 Mbps (5GHz), 574 Mbps (2.4GHz)
Bluetooth Version Bluetooth 5.2

Wireless Features
Wireless Standard 802.11ax (Wi-Fi 6), 802.11ac, 802.11n, 802.11g, 802.11a, 802.11b
Frequency Band 2.4 GHz / 5 GHz dual band
Antenna Type 2 × Detachable High Gain Antennas
Beamforming Yes
MU-MIMO 2x2 MU-MIMO
Bluetooth Profiles A2DP, PAN, HID, HFP, AVRCP
Modulation Technology 1024-QAM, OFDMA
Security Encryption WEP, WPA/WPA2/WPA3-Personal

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, IC
RoHS Compliant Yes

Advanced Security Features
Wi-Fi Protected Access WPA3, WPA2, WPA
Network Security Protocols AES, TKIP, WEP

Interfaces
Interface Type PCI Express 2.0 x1
Port Type 2 × RP-SMA antenna connectors
Data Rate (Wireless AX) Up to 2402 Mbps
Data Rate (Wireless N) Up to 574 Mbps
Bus Interface PCIe 2.0

Physical & Environmental
Width 3.43 Inch
Depth 2.17 Inch
Height 0.7 Inch
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity Max. 90% (non-condensing)
Storage Humidity Max. 95% (non-condensing)

Cloud Management & Licensing
Management Interface OS-based utility (Windows 10 networking)
Driver Support Driver provided by Windows Update or manufacturer website
