| Product Type | Outdoor Point-to-Point Bridge |
| Model | TEW-940APBO |
| Family | Networking |
| Subcategory | Access Point |
| Wi-Fi Generation | Wi-Fi 6 (802.11ax) |
| Form Factor | Pole or wall mountable |
| Enclosure Type | Outdoor weatherproof housing (IP66 rated) |
| Antenna Type | Built-in directional antenna |
| Antenna Gain | 14 dBi |
| Mounting Options | Pole and wall mounting brackets included |
| Power Requirements | Supports Passive PoE (24VDC, 0.5A) |
| Power Consumption | Max 12W |
| Weight | 880 g |

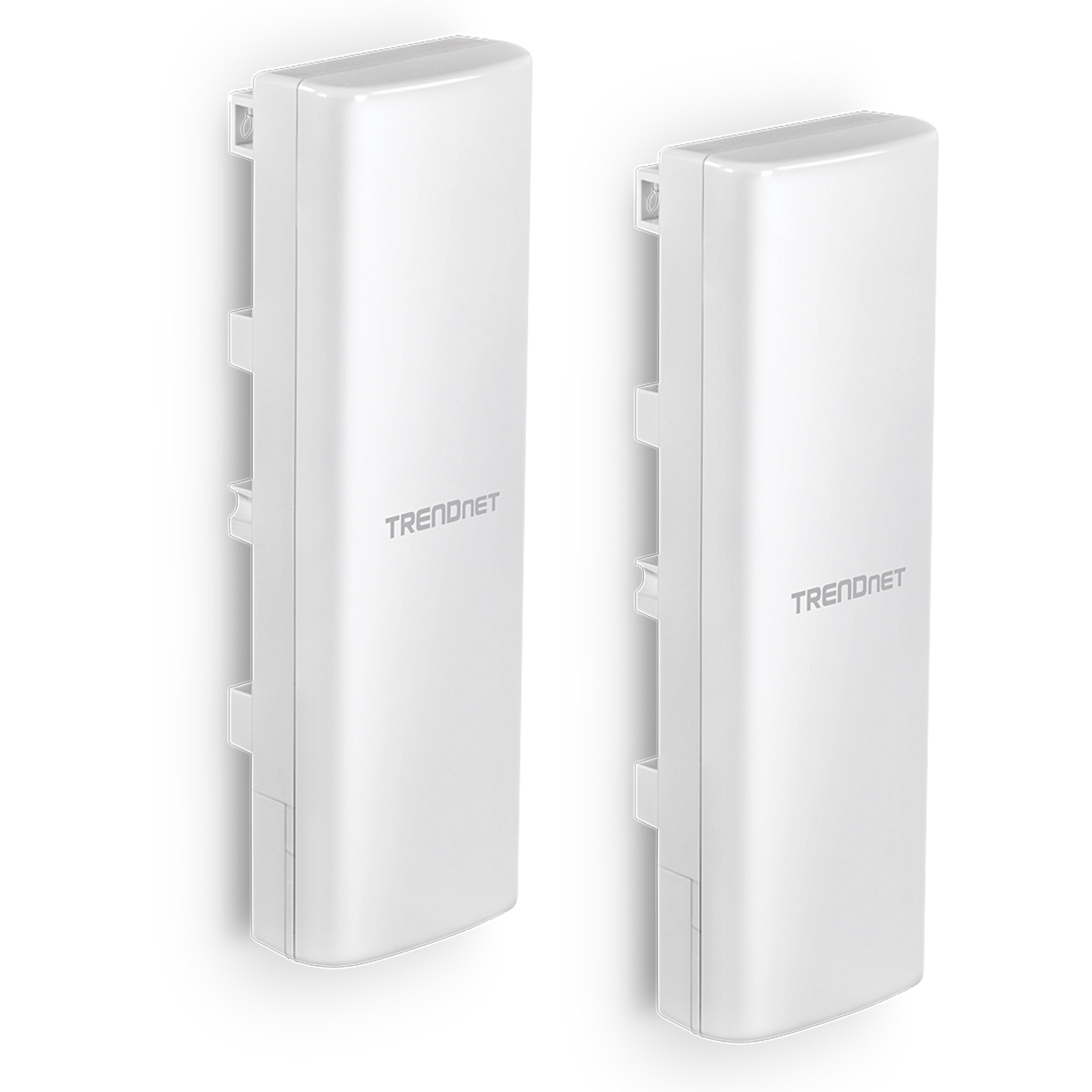

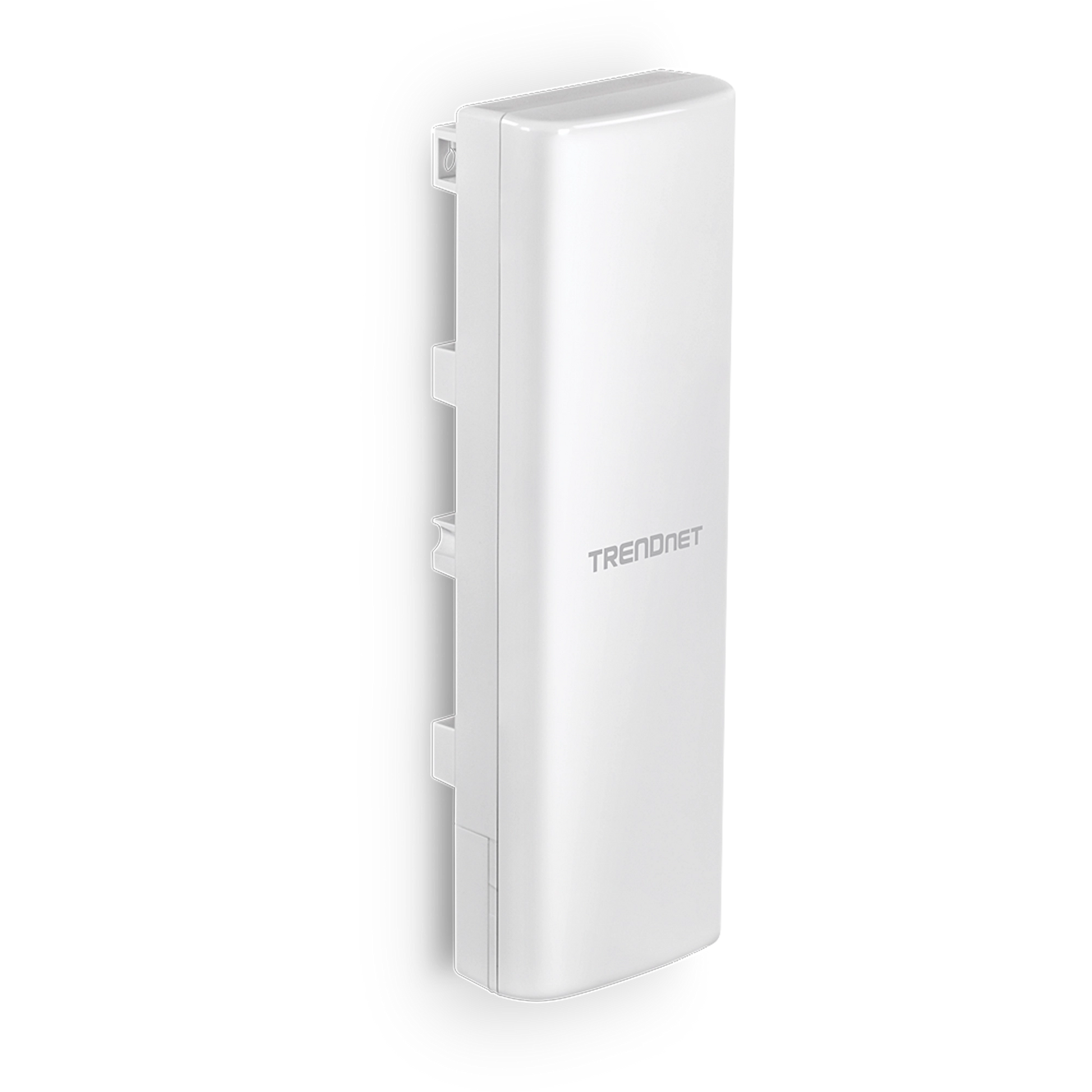

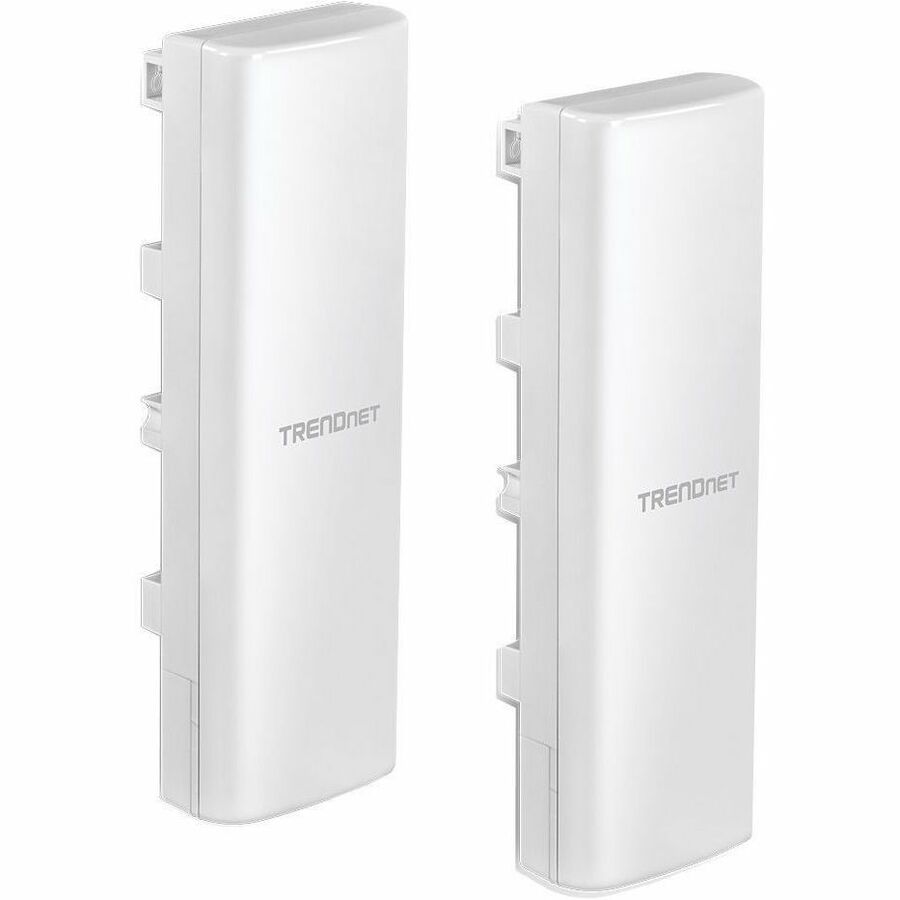

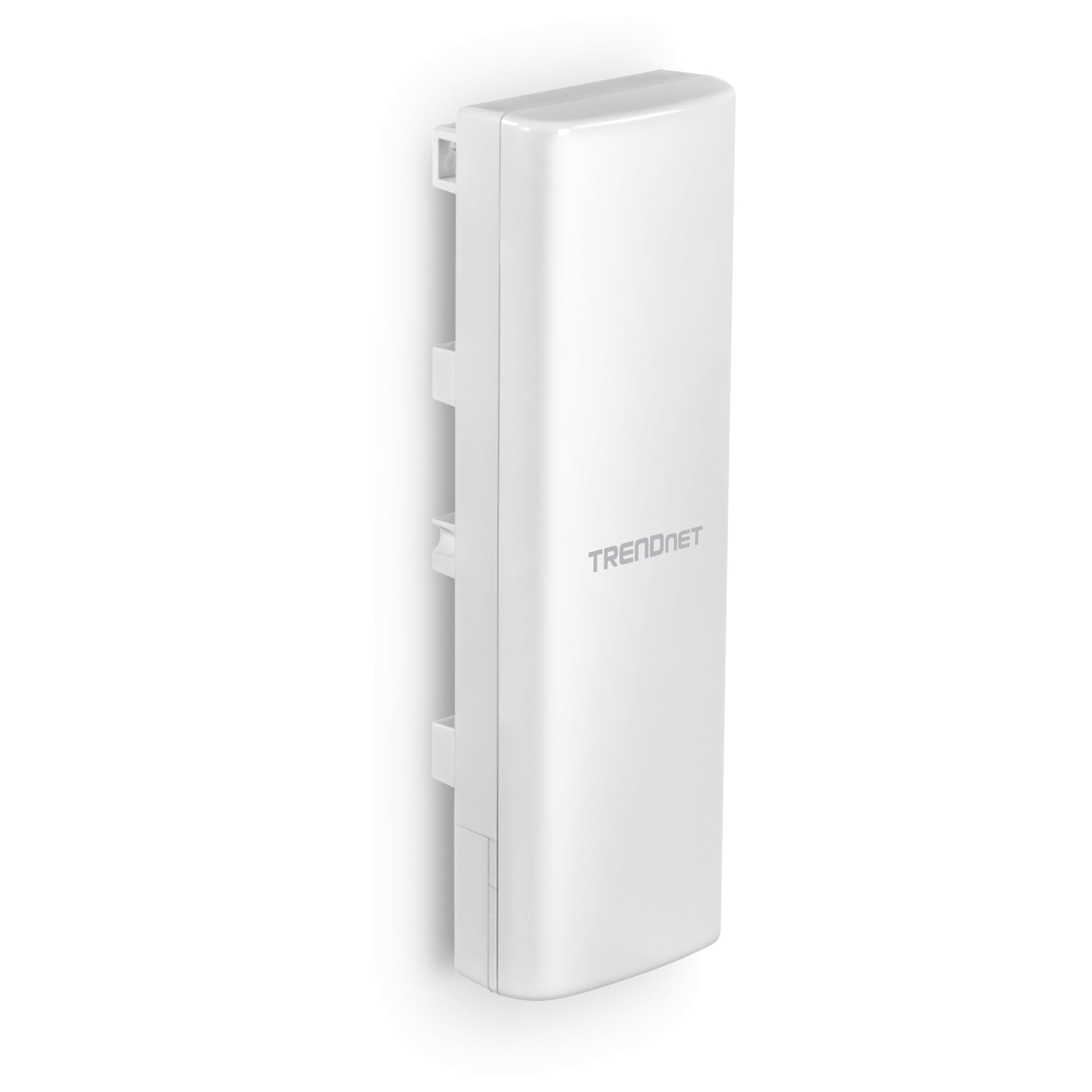

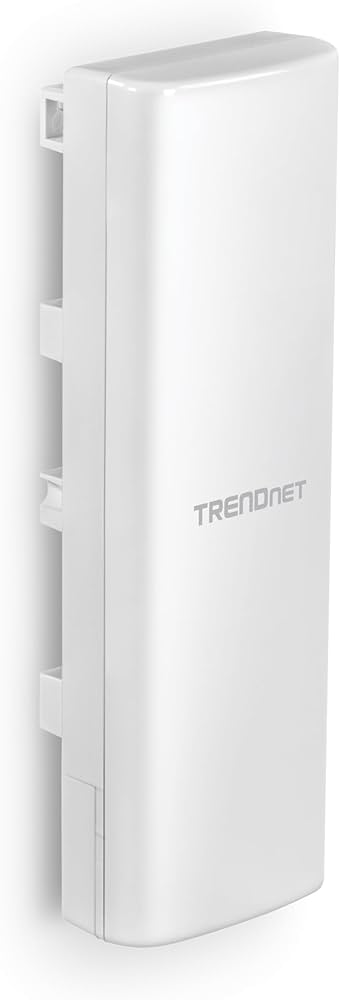

TRENDnet TEW-940APBO 14 dBi WiFi 6 AX1200 Outdoor Point-to-Point Bridge
Photo is for illustration purposes only. Actual product may be different.
Regular price
$213.06
Regular price
Sale price
$213.06
Unit price
per
MSRP: $219.99
Shipping calculated at checkout.
Couldn't load pickup availability
- WiFi 6 AX1200 technology supporting high-speed 5 GHz wireless connections
- 14 dBi directional antenna for long-range outdoor connectivity
- Includes 1 x Gigabit PoE input port and 1 x standard Gigabit Ethernet port
- Supports Access Point, Client Bridge, and Repeater modes for flexibility
- Complies with TAA standards and includes a 3-year service warranty
- Durable outdoor housing with compact 257mm x 50mm x 82mm dimensions
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Offers high-speed 1 Gbps wireless connectivity using WiFi 6 AX1200 and 14 dBi directional antenna, ideal for point-to-point outdoor links
- Features PoE-enabled Gigabit Ethernet input, simplifying installation by eliminating separate power lines
- Versatile operation modes (Access Point, Client Bridge, Repeater) allow seamless integration in various networking environments
Product Overview
14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-PointSpecifications
Product Overview
Wireless Features
| Wi-Fi Frequency | 5 GHz only |
| Wi-Fi Speed | Up to 1200 Mbps combined throughput |
| Wi-Fi Modes | Access Point, Client Bridge, Repeater |
| Wireless Security | WPA3, WPA2-PSK, WPA-PSK |
| Beamforming | Supported |
| MU-MIMO | 2x2 MU-MIMO (5 GHz) |
| Maximum TX Power | 23 dBm |
Compliance & Origin
| Country of Origin (COO) | Taiwan |
| TAA Compliant | Yes |
| Certifications | FCC, IC, CE |
| RoHS Compliant | Yes |
Advanced Security Features
| Wireless Encryption | WPA3, WPA2-PSK, WPA-PSK |
| Access Control | MAC address filtering |
| VLAN Support | Yes (802.1Q VLAN Tagging) |
| Client Isolation | Supported |
| DoS Protection | Yes |
| SSH/HTTPS Access | Supported |
Interfaces
| Ethernet Ports | 2 x 10/100/1000 Mbps RJ-45 ports |
| PoE Input Port | 1 x 10/100/1000 Mbps (Passive PoE input) |
| Standard LAN Port | 1 x 10/100/1000 Mbps |
| Data Transfer Rate | Up to 1200 Mbps |
| Wired Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Wireless Standards | IEEE 802.11a/n/ac/ax (5 GHz only) |
Physical & Environmental
| Width | 257 mm |
| Height | 82 mm |
| Depth | 50 mm |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | Max 90% non-condensing |
| IP Rating | IP66 Weatherproof Housing |
Cloud Management & Licensing
| Management Interface | Web UI and centralized controller |
| Firmware Upgrade Method | Web-based |
| Zero Touch Deployment | No |
| Licensing Requirement | No subscription required |
