TRENDnet TI-G262 26-Port Hardened Industrial Gigabit DIN-Rail Switch

VENDOR: TRENDNET Mfg Part#: TI-G262 UPC#: 710931162738
1 5
Photo is for illustration purposes only. Actual product may be different.
$538.26
$538.26
Sale Sold out
MSRP: $549.99
Shipping calculated at checkout.

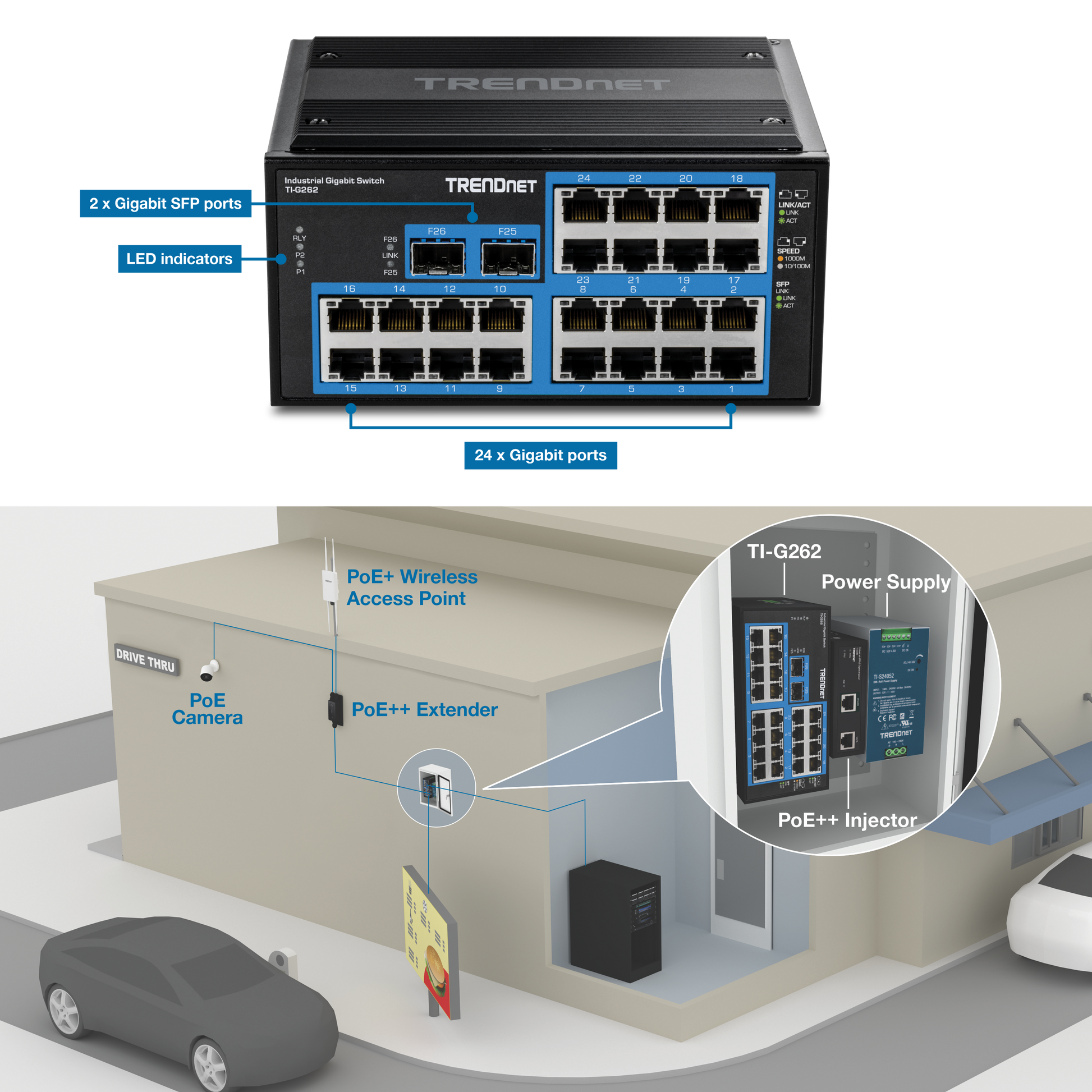

  • 26-port configuration with 24 Gigabit Ethernet ports and 2 Gigabit SFP ports
  • Data transfer rate of 1 Gbps with jumbo frame support up to 9KB
  • Wide operating temperature range from -40°C to 75°C
  • MTBF rated at 520,000 hours for long-term stability and durability
  • 12-56V DC power input with max power consumption of 10.64W
  • DIN-rail and wall-mountable hardened enclosure, TAA compliant with lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Reliable industrial networking with rugged construction and wide temperature tolerance, optimal for harsh environments
  • Flexible deployment with 26 ports including SFP slots for fiber uplinks in extended networks
  • Long-term investment value supported by 520,000-hour MTBF and lifetime warranty

Product Overview

26-Port Hardened Industrial Gigabit DIN-Rail Switch

Specifications

Product Overview
Product Type Industrial Gigabit Ethernet Switch
Model TI-G262
Form Factor DIN-Rail / Wall Mountable
Weight 2.06 lbs.
Power Consumption (Max) 10.64 Watts
Power Supply Type External DC power supply
Voltage Requirements 12 - 56V DC
MTBF 520,000 hours
Network Device Type Switch
Connectivity Technology Wired

Physical & Environmental
Width 163 mm
Depth 120 mm
Height 77 mm
Operating Temperature Range -40°C to 75°C
Storage Temperature Range -40°C to 85°C
Humidity (Operating) 5% – 95% (non-condensing)
Enclosure IP30 rated metal housing
Mounting Options DIN-Rail and Wall Mountable

Cloud Management & Licensing
Management Interface Unmanaged
Cloud Management Support
Licensing Requirement None

Interfaces
Total Ports 26
RJ-45 Ports 24 x 10/100/1000 Mbps
SFP Ports 2 x Gigabit SFP
Port Type Gigabit Ethernet
Data Transfer Rate 1 Gbps per port
Data Link Protocol Gigabit Ethernet
Jumbo Frame Support Up to 9KB
MAC Address Table Size 8K entries
Status Indicators LED per port (Link/Activity)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, EN 55032/35, EN 61000-6-2/4
Safety Standards IEC 62368-1, UL 61010-1
Environmental Compliance RoHS

Advanced Security Features
Firewall
Access Control Lists (ACL)
VLAN Support
DoS Protection
