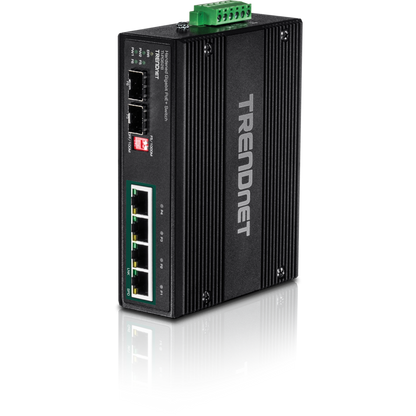

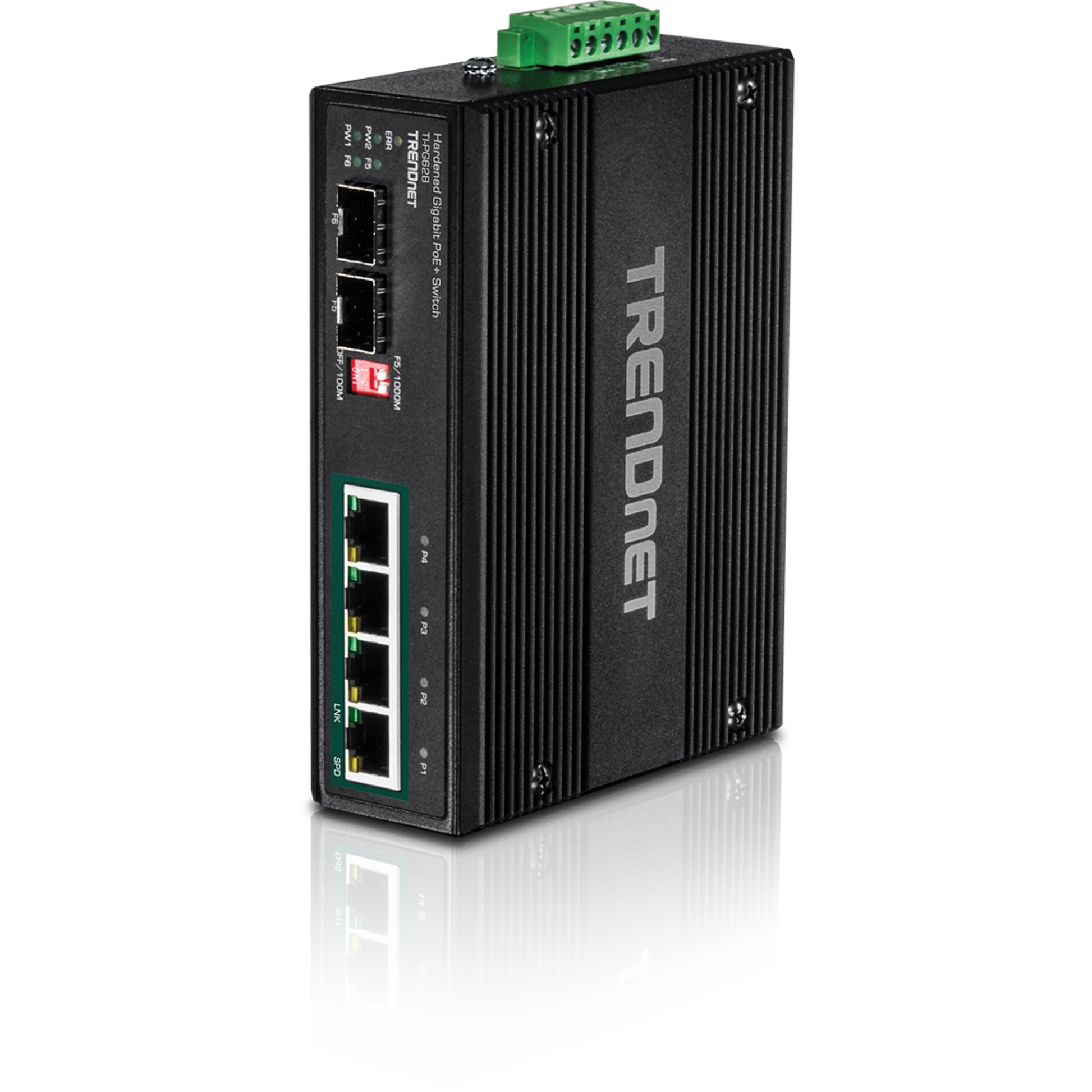

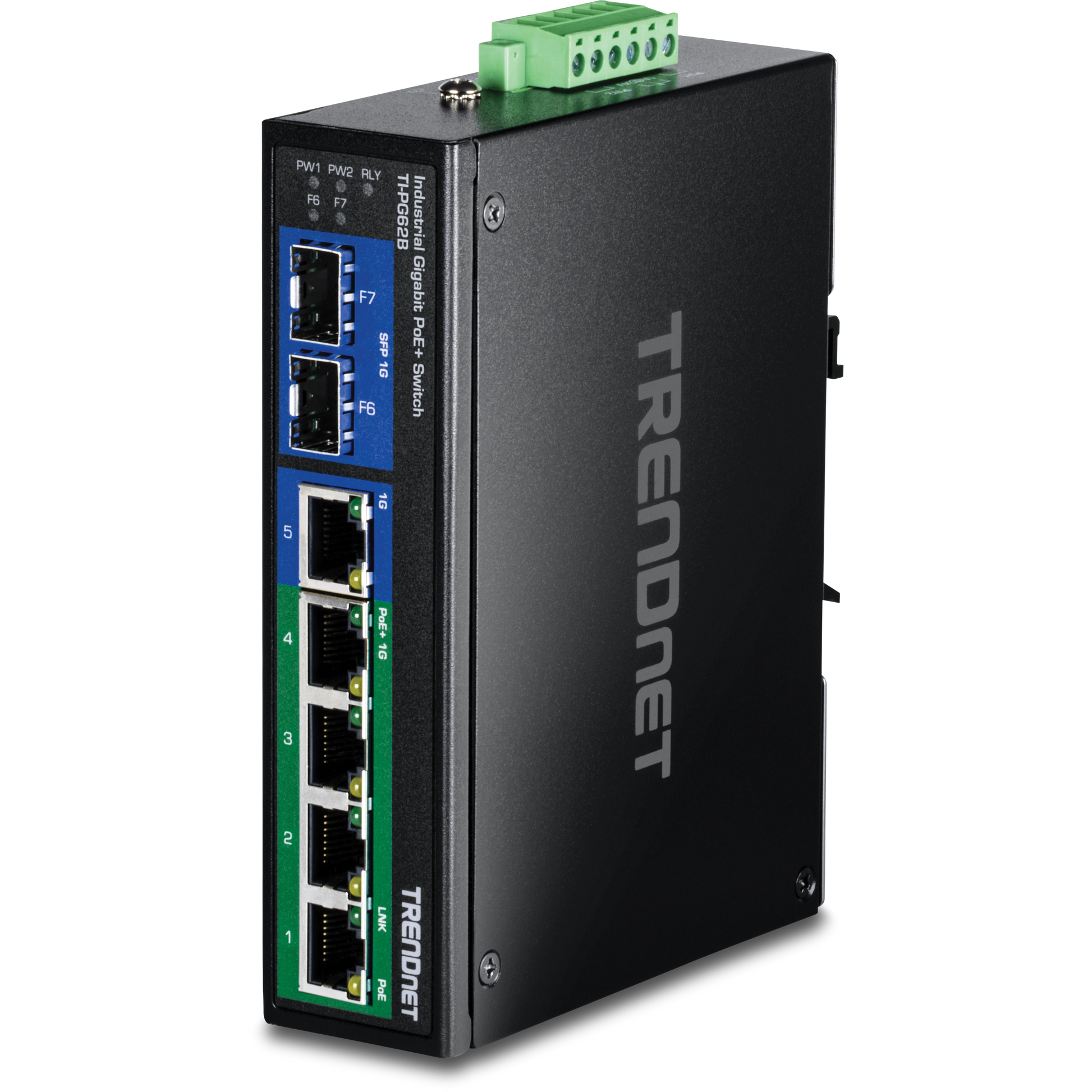

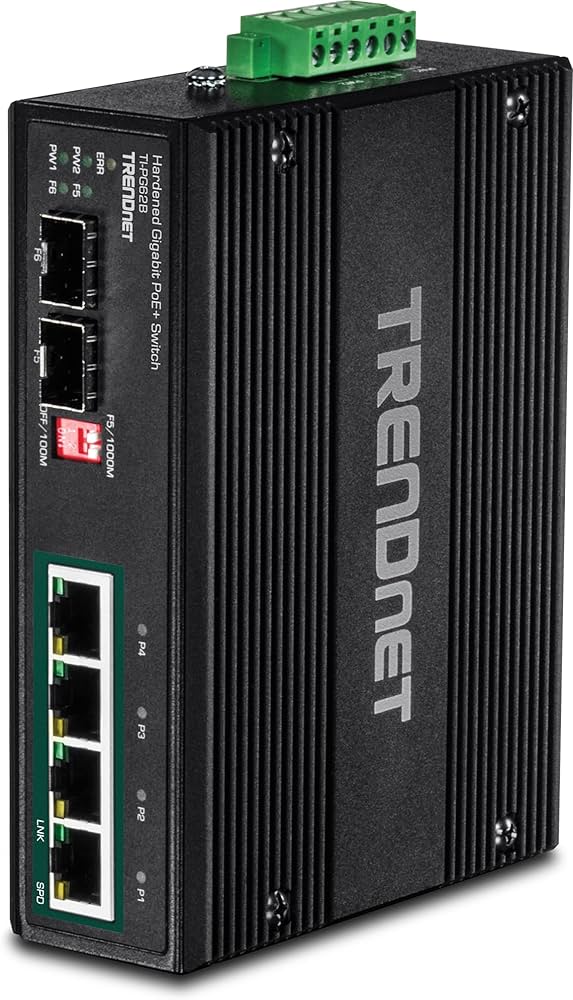

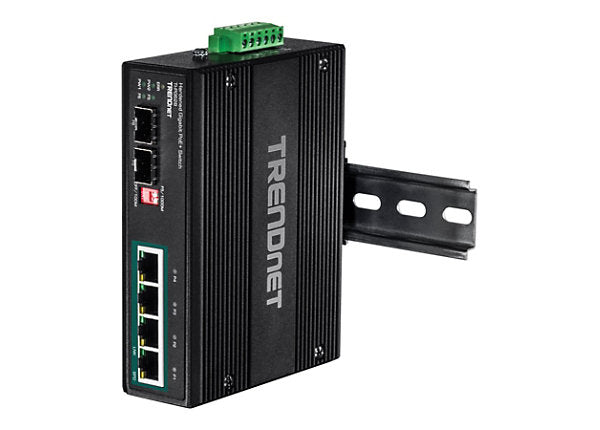

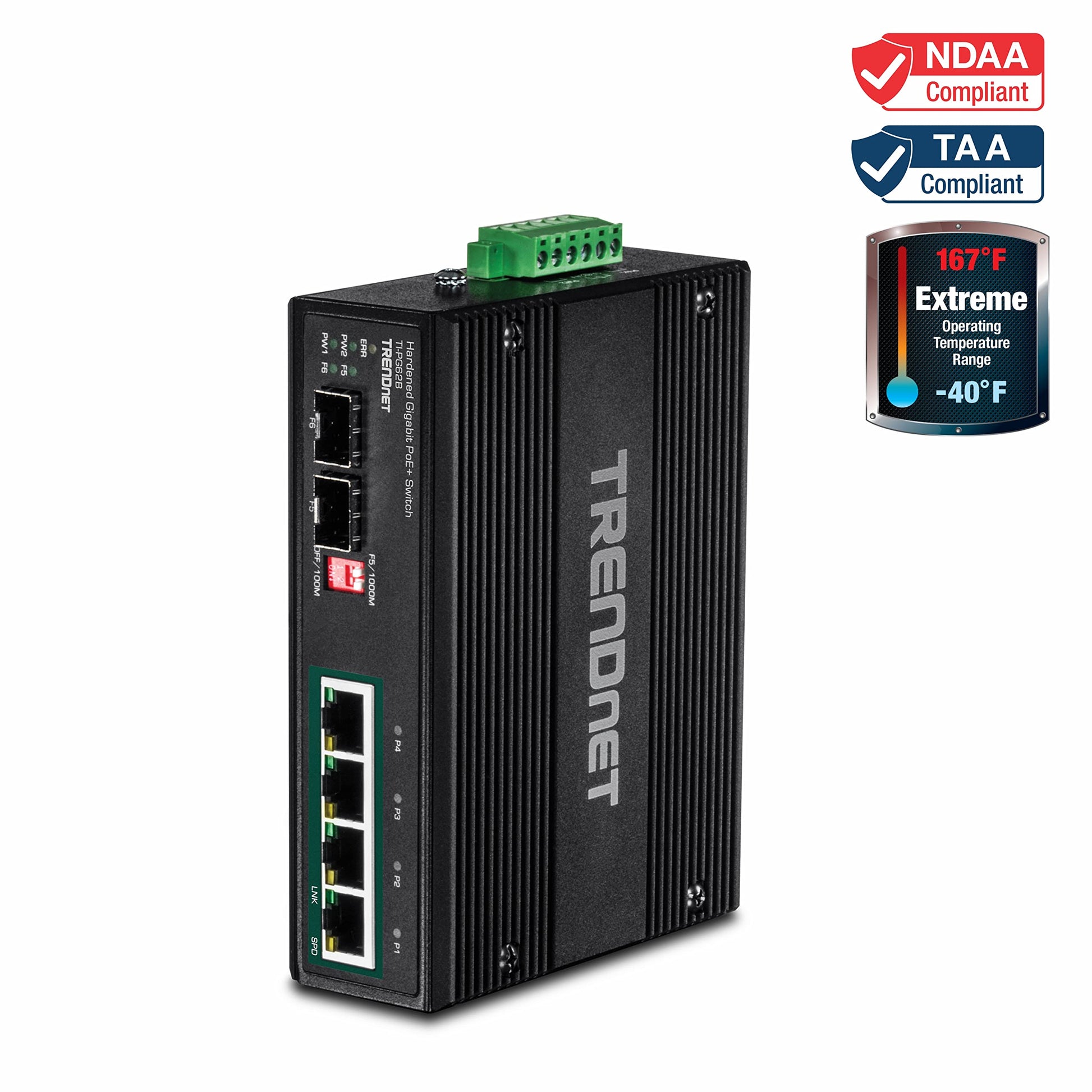

TRENDnet TI-PG62B 6-Port Industrial Gigabit PoE+ Switch with 2 SFP Slots

VENDOR: TRENDNET Mfg Part#: TI-PG62B UPC#: 710931160963
1 5
Photo is for illustration purposes only. Actual product may be different.
$280.34
$280.34
Sale Sold out
MSRP: $289.99
Shipping calculated at checkout.
  • 6-port industrial Gigabit PoE+ switch with 2 SFP uplink slots
  • Boost voltage conversion from 12/24/48VDC to 55VDC for consistent PoE+ output
  • Operates in extreme temperatures from -40°C to 75°C
  • Supports jumbo frames up to 9 KB and data rates up to 2000 Mbps
  • Compact and durable design with MTBF of 510,304 hours
  • TAA-compliant and backed by a limited lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed to withstand harsh industrial environments with wide temperature tolerance and rugged build
  • Delivers flexible PoE+ deployment through voltage boosting from variable DC inputs
  • Long-term value backed by extended MTBF and limited lifetime warranty for enterprise reliability

Product Overview

6-port hardened Industrial Gigabit PoE+ Switch /w 2 SFP (Boost Voltage from 12/24/48/VDC to 55VDC)

Specifications

Product Overview
Product Type Industrial Gigabit PoE+ Switch
Model TI-PG62B
Form Factor DIN-Rail / Wall-Mountable
Power Requirements 12V/24V/48V DC input, boosted to 55VDC for PoE
Maximum Power Consumption 5.76 Watts
Enclosure Type Metal IP30 rated housing
Weight 1.6 lbs.
MTBF 510304 hours

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, IEC 60068-2-27 (Shock), IEC 60068-2-32 (Free Fall), IEC 60068-2-6 (Vibration)
RoHS Compliant Yes

Advanced Security Features
Security Capabilities None – unmanaged switch

Interfaces
Total Ports 6
Gigabit PoE+ Ports 4 × 10/100/1000 Mbps RJ-45
SFP Slots 2 × 100/1000 Mbps SFP
Network Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
PoE Standards IEEE 802.3af, IEEE 802.3at (PoE+)
Maximum PoE Budget 120W
Switching Capacity 12 Gbps
Forwarding Rate 8.93 Mpps
MAC Address Table Size 1,000 entries
Jumbo Frame Support 9 KB
Flow Control IEEE 802.3x

Physical & Environmental
Width 5.6 inches (142 mm)
Height 1.8 inches (46 mm)
Depth 4.1 inches (106 mm)
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 95% (non-condensing)
Mounting Options DIN-Rail, Wall-Mountable
Enclosure Rating IP30 rated metal housing

Cloud Management & Licensing
Management Interface Unmanaged (no cloud or web management)
License Requirement Not applicable – unmanaged switch
Included Management Features None – plug-and-play
