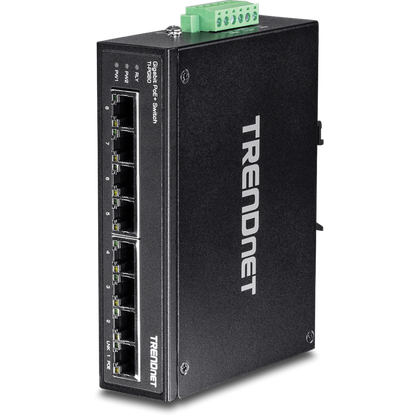

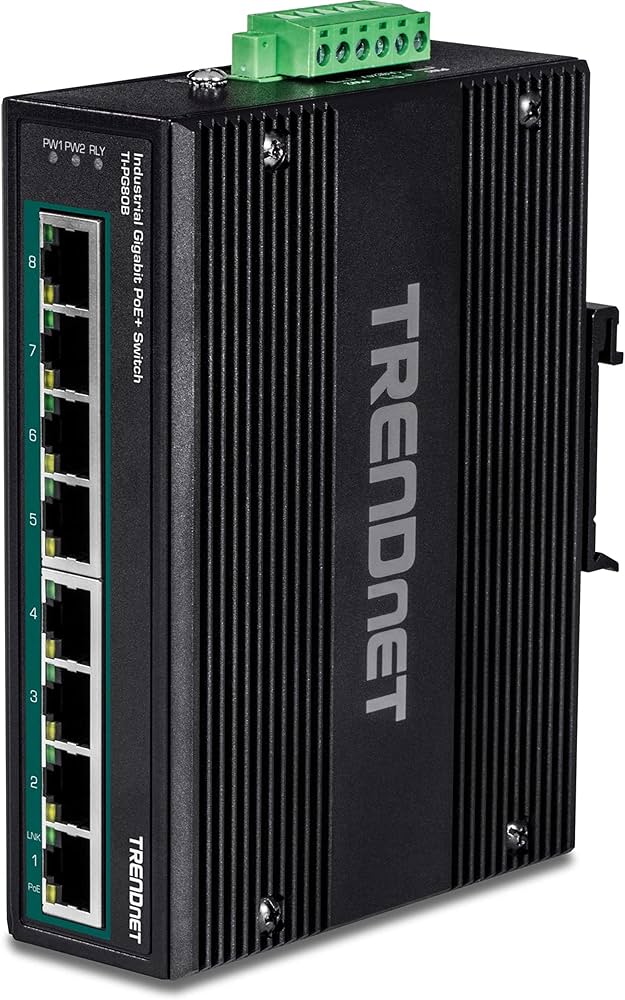

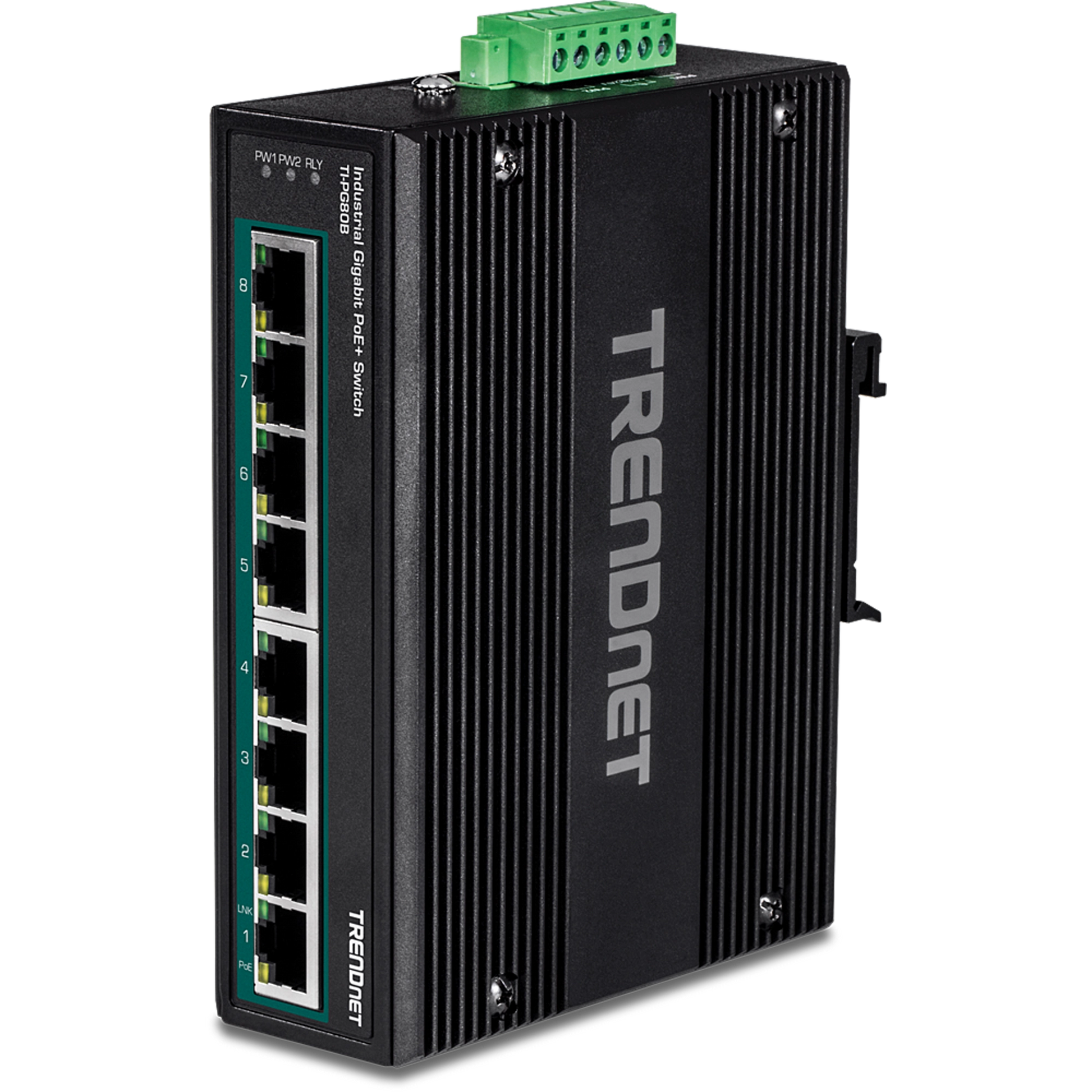

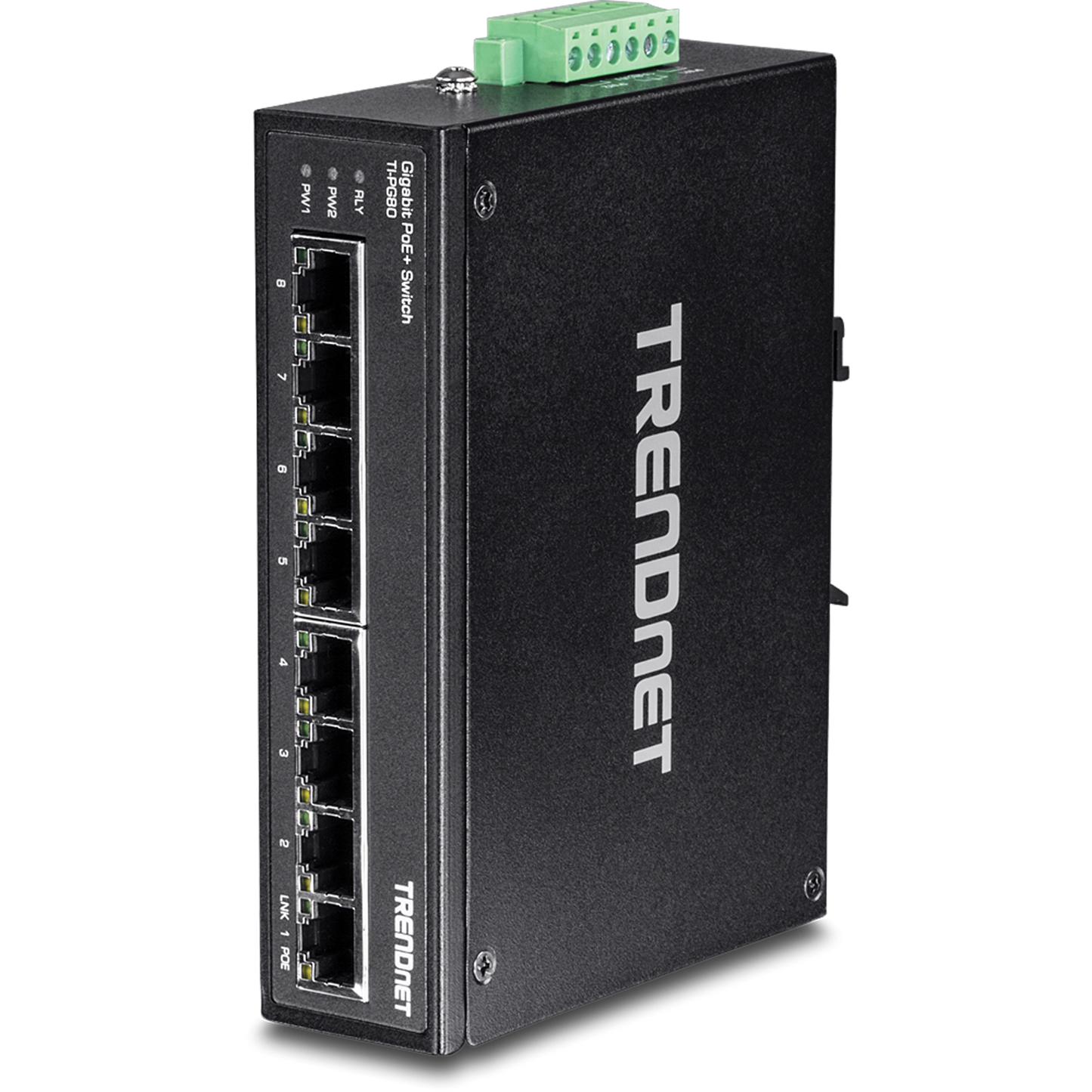

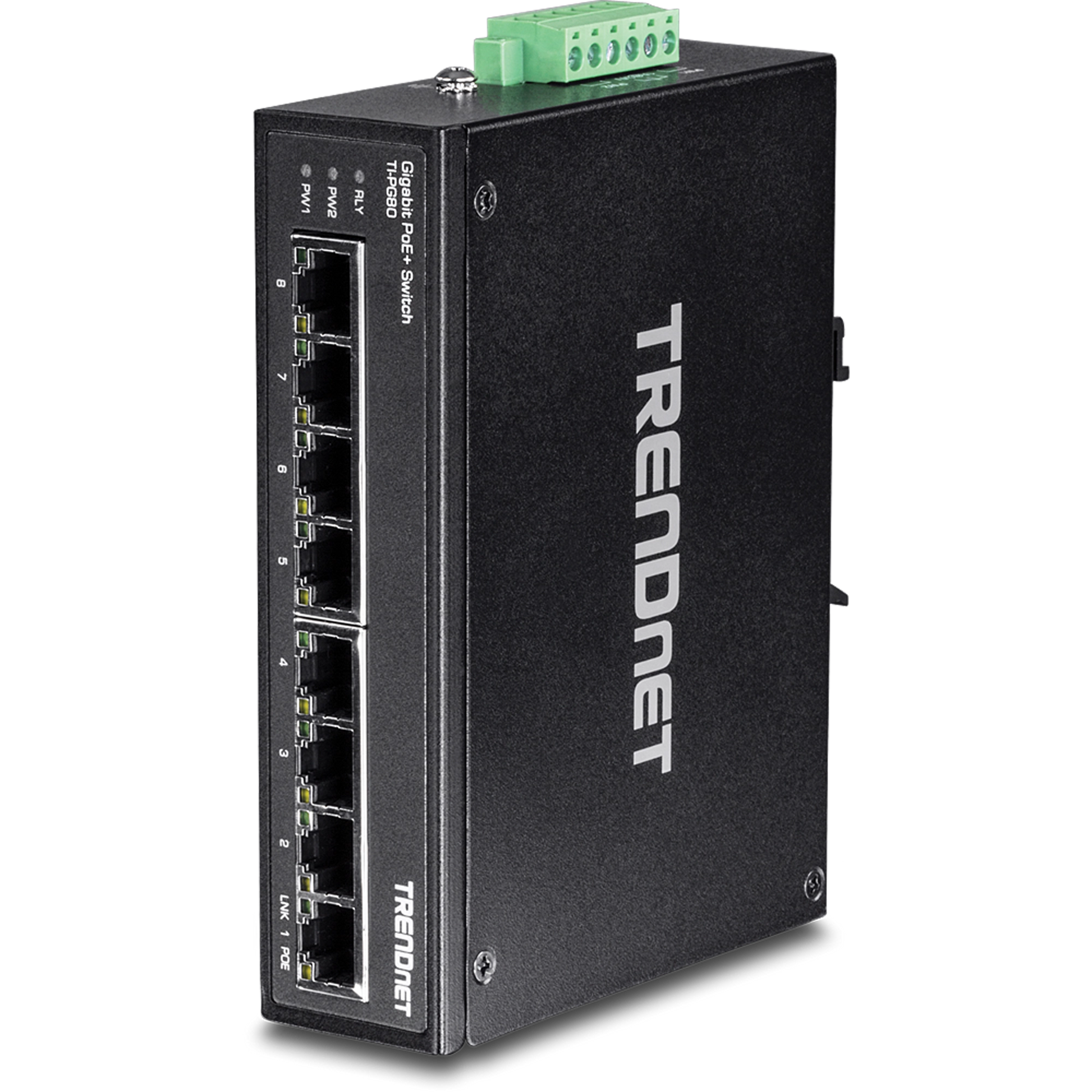

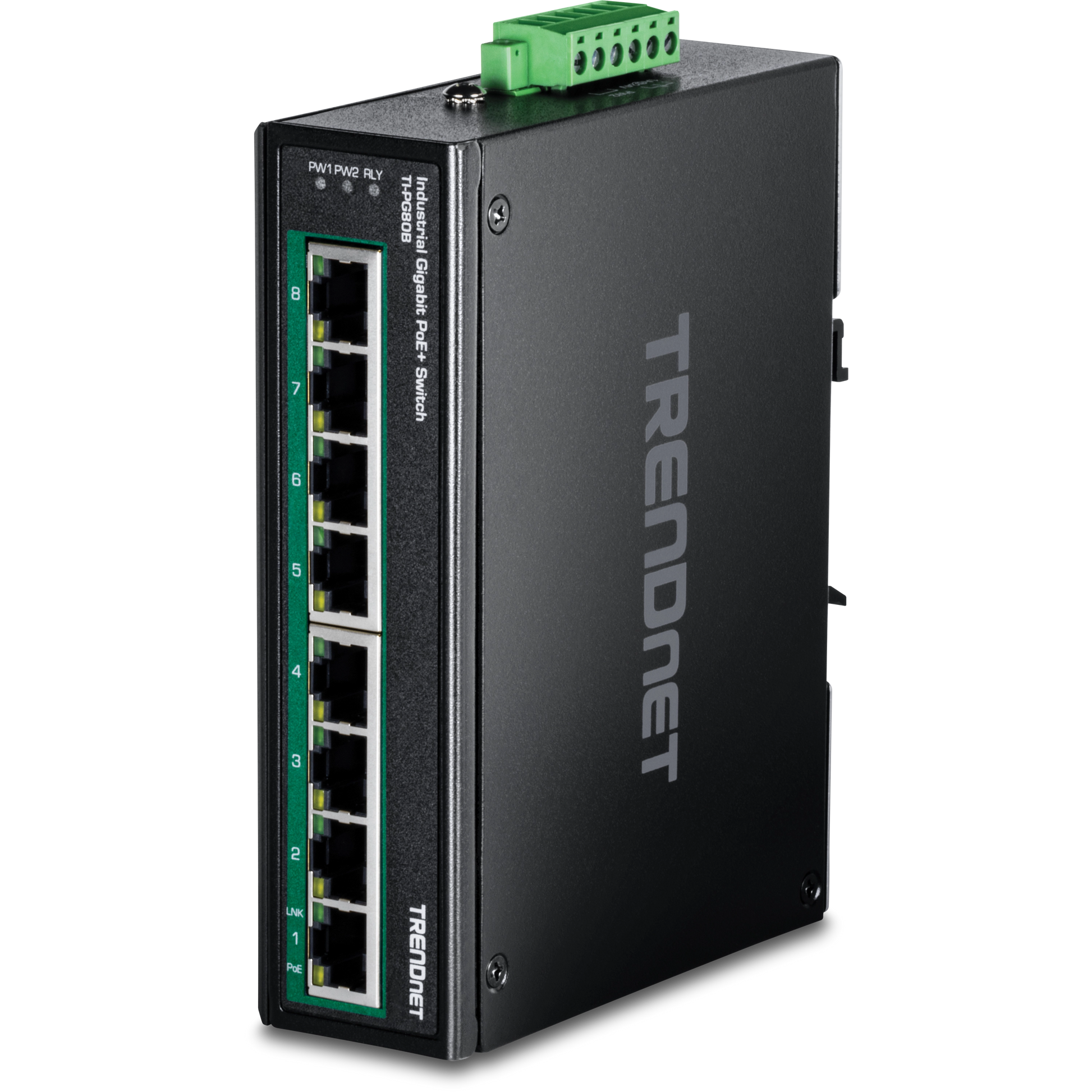

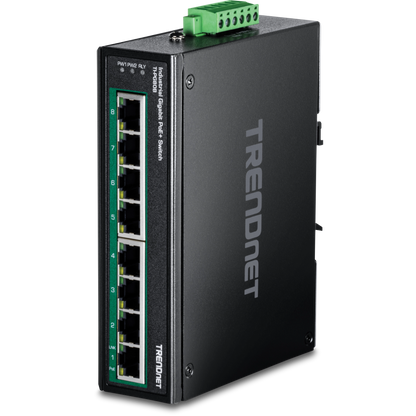

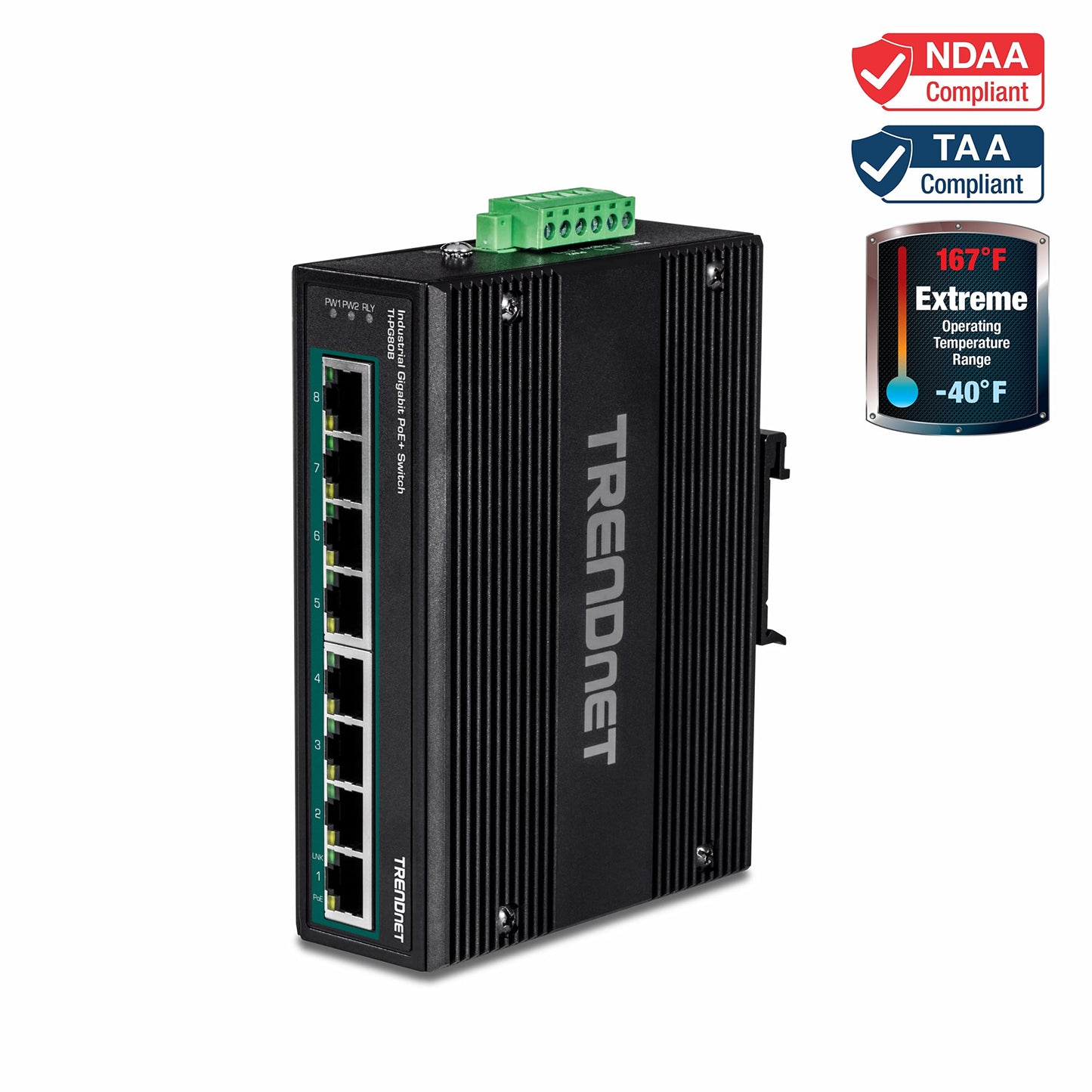

TRENDnet TI-PG80B 8-Port Industrial Gigabit PoE+ DIN-Rail Switch

VENDOR: TRENDNET Mfg Part#: TI-PG80B UPC#: 710931161885
1 5
Photo is for illustration purposes only. Actual product may be different.
$313.99
$313.99
Sale Sold out
MSRP: $319.99
Shipping calculated at checkout.
  • 8 Gigabit Ethernet PoE+ ports with 200W PoE power budget
  • Supports 16Gbps switching capacity and 9KB jumbo frames
  • Operates in extreme temperatures from -40°C to 75°C
  • Compliant with IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards
  • MTBF rated at 529,765 hours with fanless, rugged design
  • Powered via 24–56V DC with LED status indicators for diagnostics

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Industrial-grade reliability with wide temperature tolerance and high MTBF ensure dependable long-term deployment.
  • PoE+ support with a 200W budget makes it ideal for powering multiple high-demand devices in remote locations.
  • DIN-rail mounting, rugged design, and TAA compliance make it suitable for government, manufacturing, or critical infrastructure.

Product Overview

8-Port Industrial Gigabit PoE+ DIN-Rail Switch (24 - 56V)

Specifications

Product Overview
Product Type Industrial Gigabit PoE+ Switch
Model TI-PG80B
Form Factor DIN-Rail Mountable
Weight 1.4 lbs.
Power Requirements 24-56V DC
Max Power Consumption 5.3 Watt
PoE Power Budget 200W
Switching Capacity 16 Gbps
MTBF 529765 hours
Warranty 3-Year Warranty

Physical & Environmental
Width 5.6 inches
Depth 4.1 inches
Height 1.4 inches
Min Operating Temperature -40 °C
Max Operating Temperature 75 °C
Humidity (Operating) 5% to 95% (non-condensing)
Enclosure Type Metal IP30 Rated
Installation Type DIN-Rail or Wall Mount

Cloud Management & Licensing
Centralized Management No (Unmanaged Switch)
Licensing Requirements None
Web Management Interface No

Interfaces
Total Number of Ports 8
Port Type Gigabit Ethernet PoE+
Data Transfer Rate 2 Gbps (Full Duplex)
Network Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
PoE Standard IEEE 802.3at/af
MAC Address Table Size 4,000 entries
Jumbo Frame Support Up to 9 KB
LED Indicators Power, PoE, Link/Activity

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, EN 61000-6-2, EN 61000-6-4, IEC 60068-2-6/27/32
RoHS Compliant Yes

Advanced Security Features
Traffic Control Broadcast Storm Control
Network Isolation Port-based isolation via physical configuration
