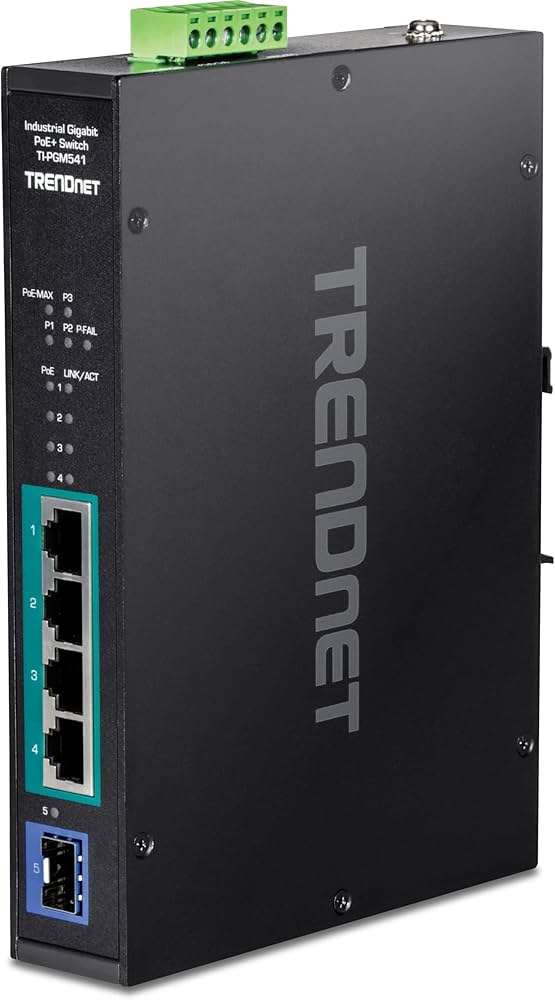

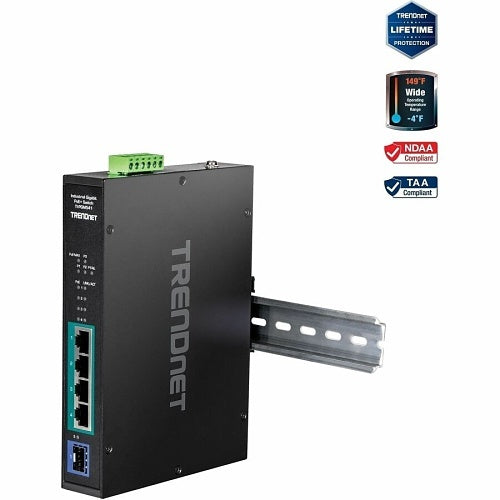

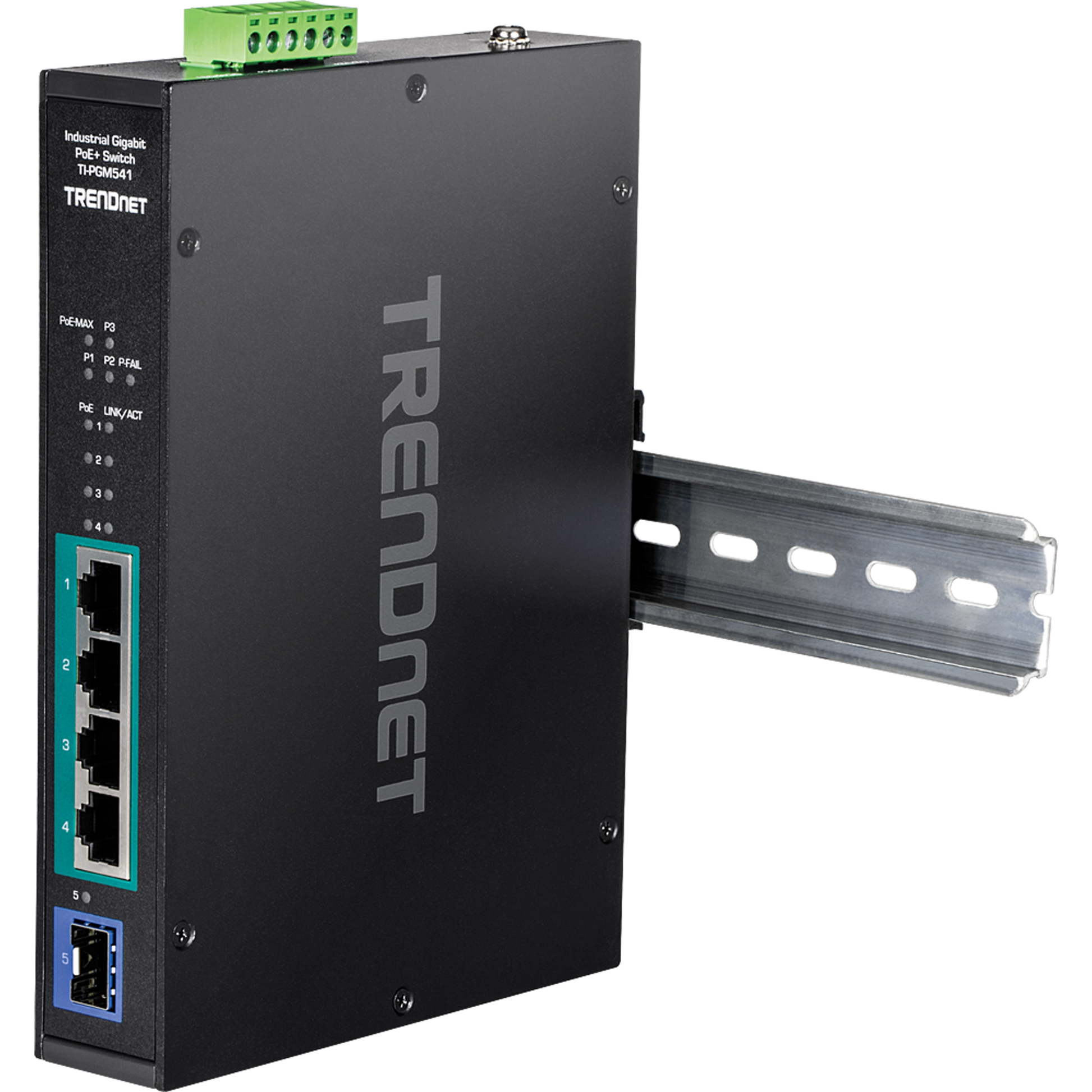

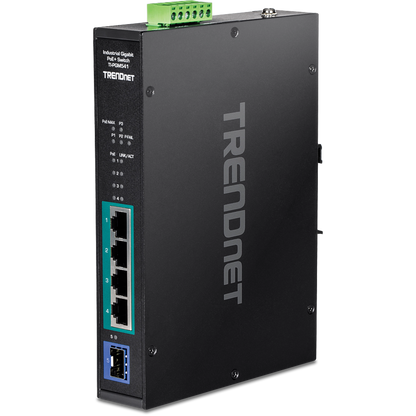

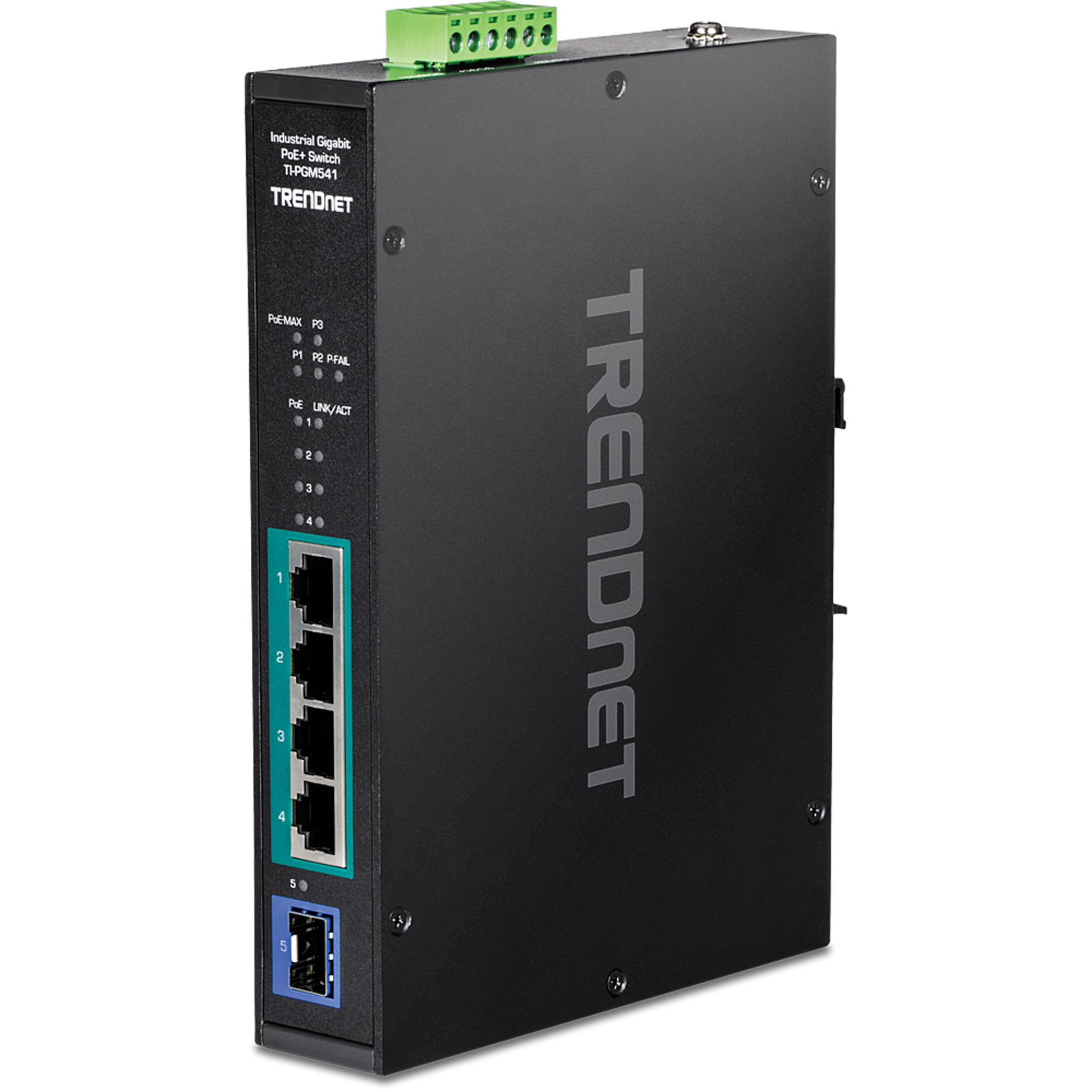

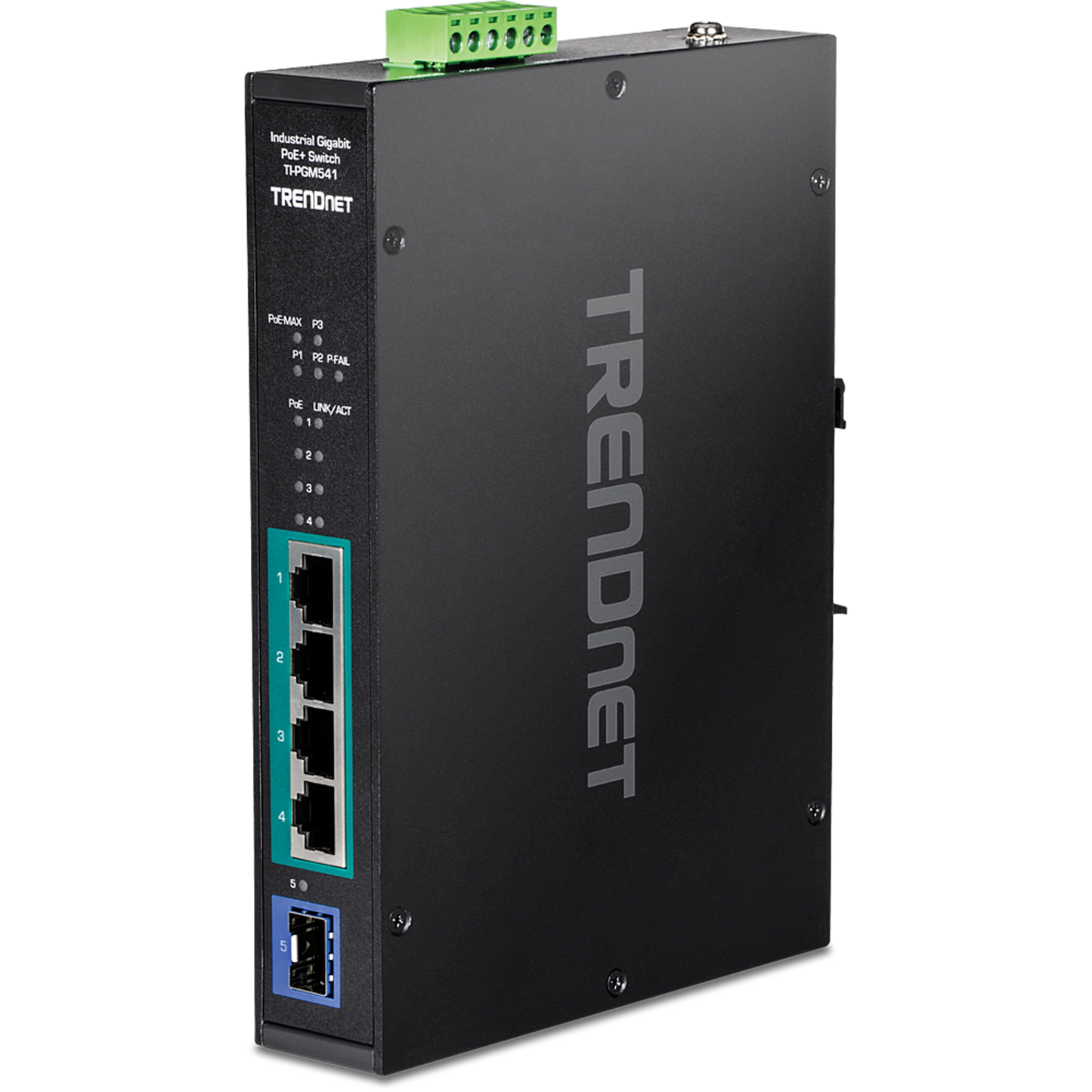

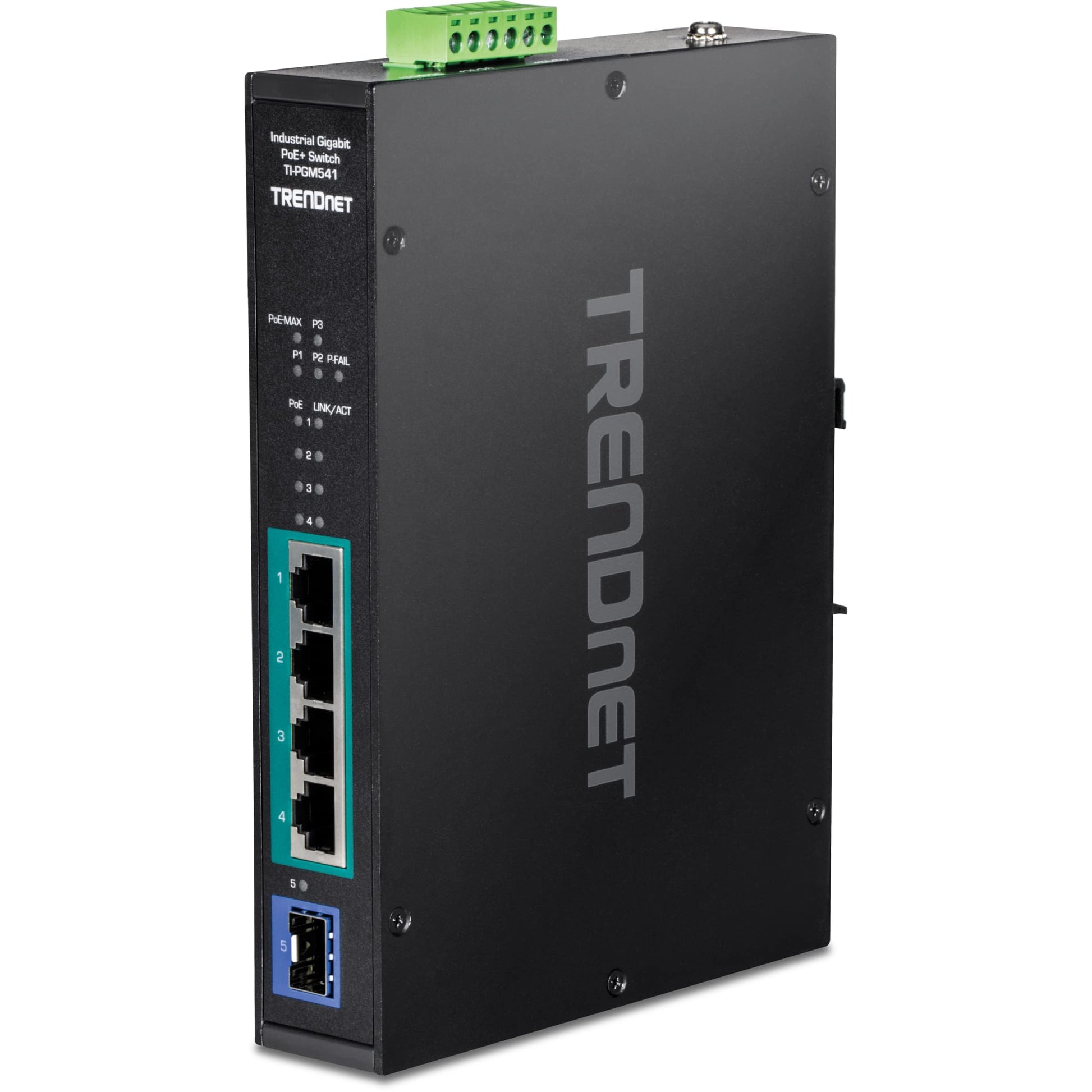

TRENDnet TI-PGM541 5-Port Industrial Gigabit PoE+ DIN-Rail Switch

VENDOR: TRENDNET Mfg Part#: TI-PGM541 UPC#: 710931162196
1 5
Photo is for illustration purposes only. Actual product may be different.
$128.95
$128.95
Sale Sold out
MSRP: $134.99
Shipping calculated at checkout.
  • 5 total ports: 4 Gigabit PoE+ ports and 1 Gigabit SFP uplink
  • Delivers up to 120W PoE+ power across four ports
  • Supports high-speed 10 Gbps data transfer rate
  • Operational temperature range from -4°F to 149°F (-20°C to 65°C)
  • MTBF rated at 1,000,000 hours @ 25°C for extended life
  • Lifetime warranty and TAA compliant, made in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for industrial use with a wide operating temperature and durable DIN-rail form factor
  • Includes PoE+ support with up to 120W power budget across 4 ports for powering IP devices
  • Comes with a lifetime warranty and high MTBF rating, reducing maintenance and replacement costs

Product Overview

5-port Industrial Gigabit PoE+ DIN-Rail Switch -20 65 C (-4 149 F)

Specifications

Product Overview
Product Type Industrial Gigabit PoE+ Switch
Model TI-PGM541
Form Factor DIN-Rail Mountable
Weight 790 g (1.74 lbs)
Power Supply Dual Redundant Power Inputs (48–57V DC)
Power Consumption (Max) 120 Watts
PoE Budget 120 Watts
MTBF 1,000,000 hours at 25°C
Warranty Lifetime Warranty

Physical & Environmental
Dimensions (W x D x H) 180 x 130 x 28 mm (7.1 x 5.1 x 1.1 in.)
Enclosure Type IP30-rated Metal Case
Mounting Option DIN-Rail Mount
Operating Temperature -20°C to 65°C (-4°F to 149°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 95% (non-condensing)
Cooling Passive Cooling (Fanless Design)

Cloud Management & Licensing
Management Interface Unmanaged
Web-Based Management No
Cloud Management No
Licensing Required No

Interfaces
Total Ports 5
PoE+ Ports 4 x Gigabit Ethernet PoE+ Ports (802.3af/at)
SFP Ports 1 x 100/1000Base-FX SFP Slot
Data Transfer Rate 10 Gbps Switching Capacity
Data Link Protocol Gigabit Ethernet
Packet Forwarding Rate 7.44 Mpps (64-byte packet size)
MAC Address Table Size 2K Entries
Jumbo Frame Support Up to 9216 bytes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, EN 61000-6-2, EN 61000-6-4
Safety Standards EN 60950-1
EMI/EMS EN 55032 Class A, EN 55024

Advanced Security Features
DoS Protection No
802.1X Authentication No
Port Security No
Storm Control No
