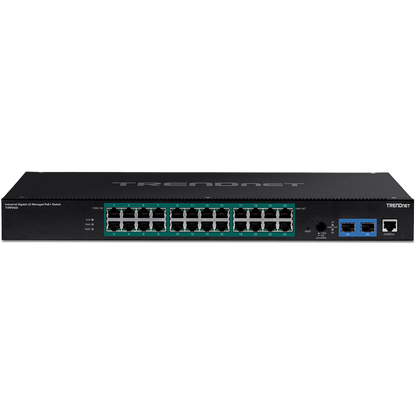

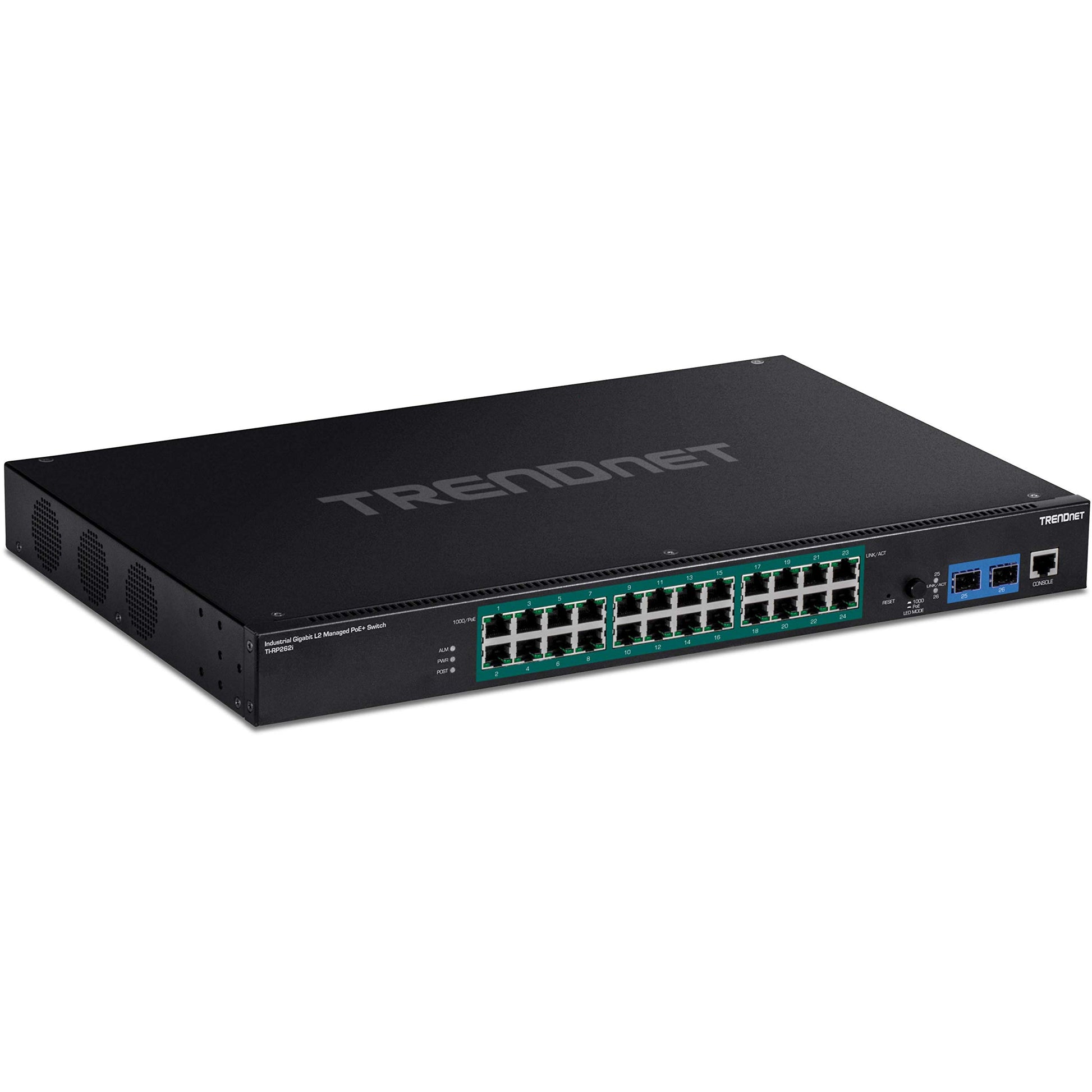

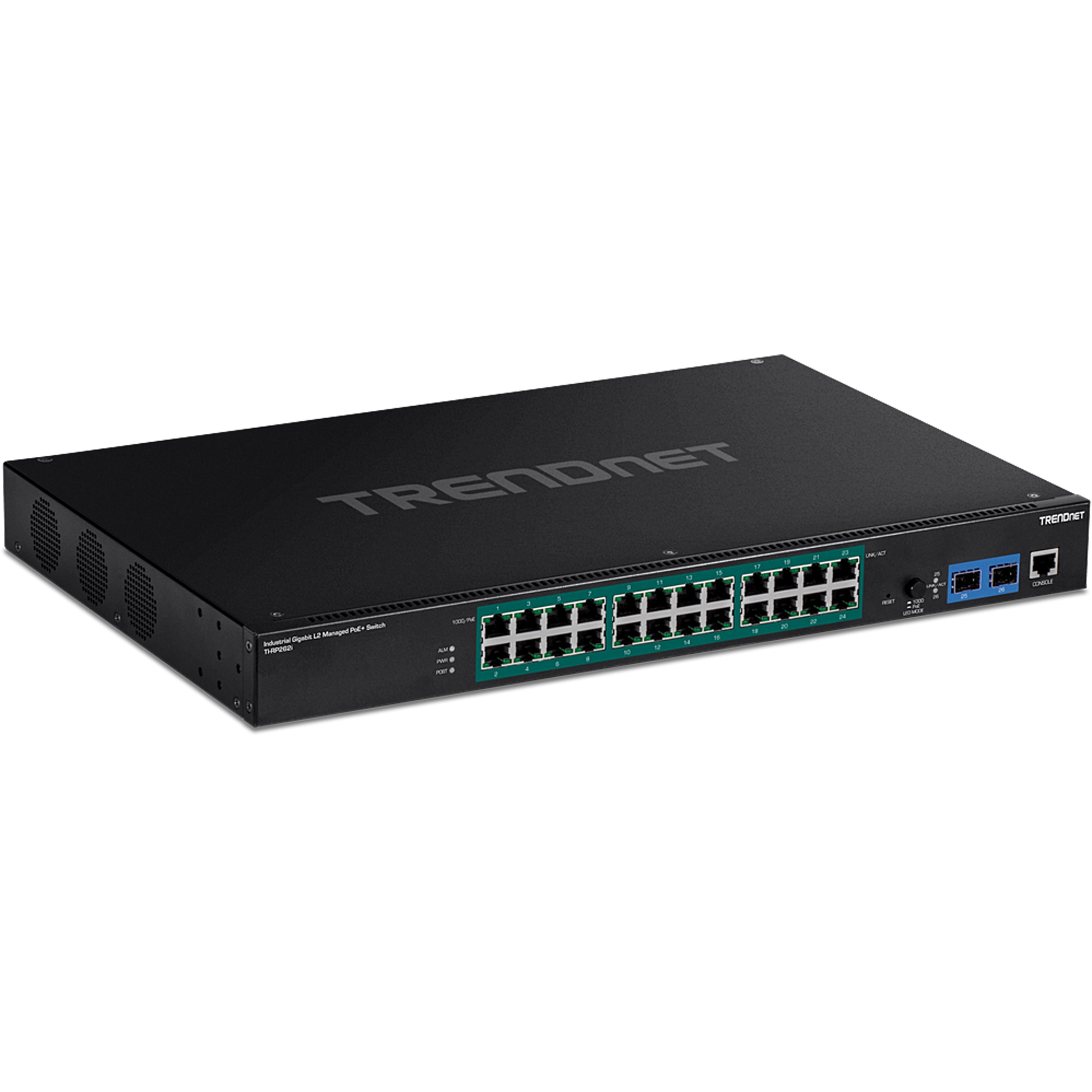

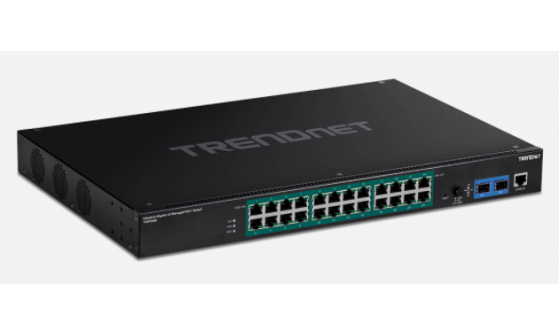

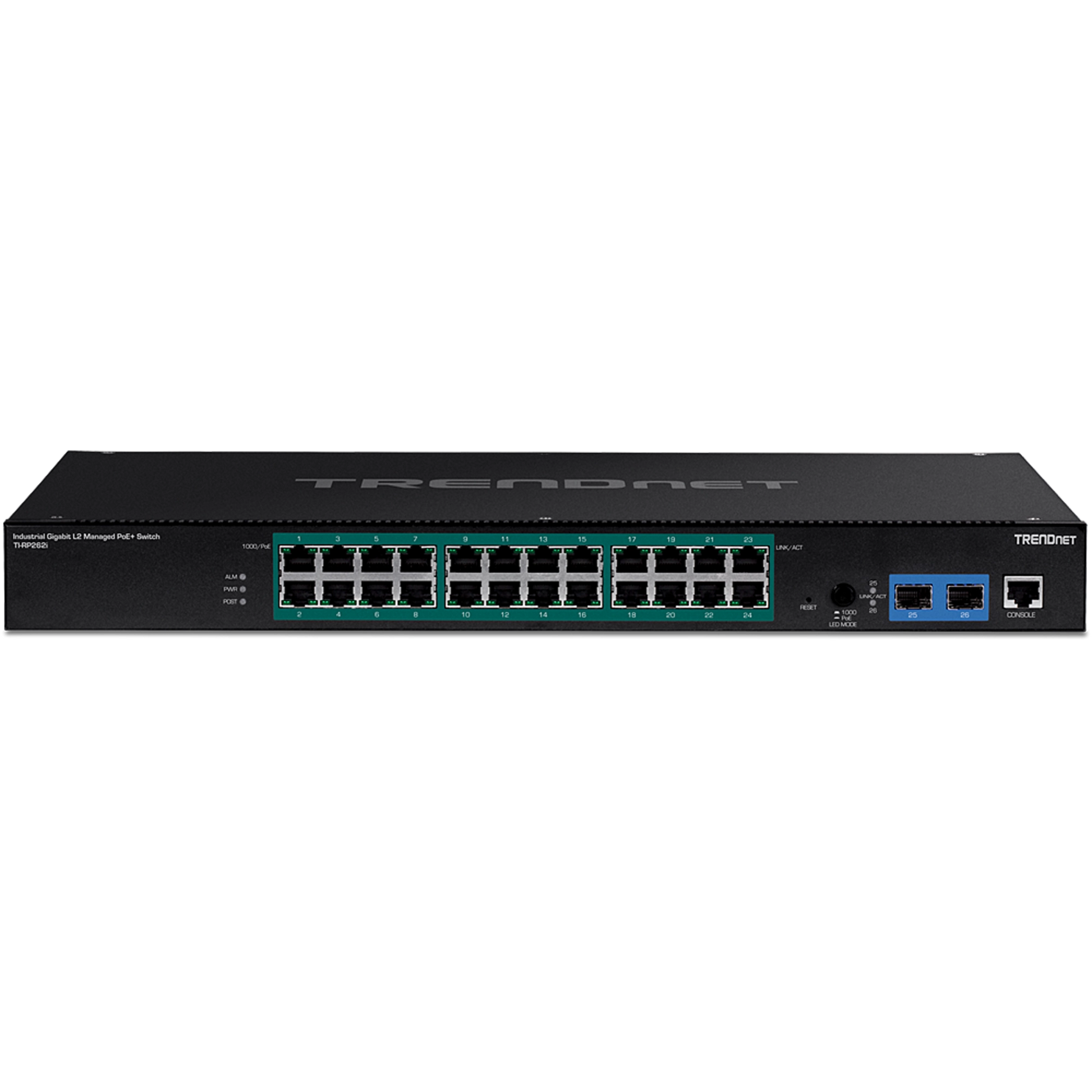

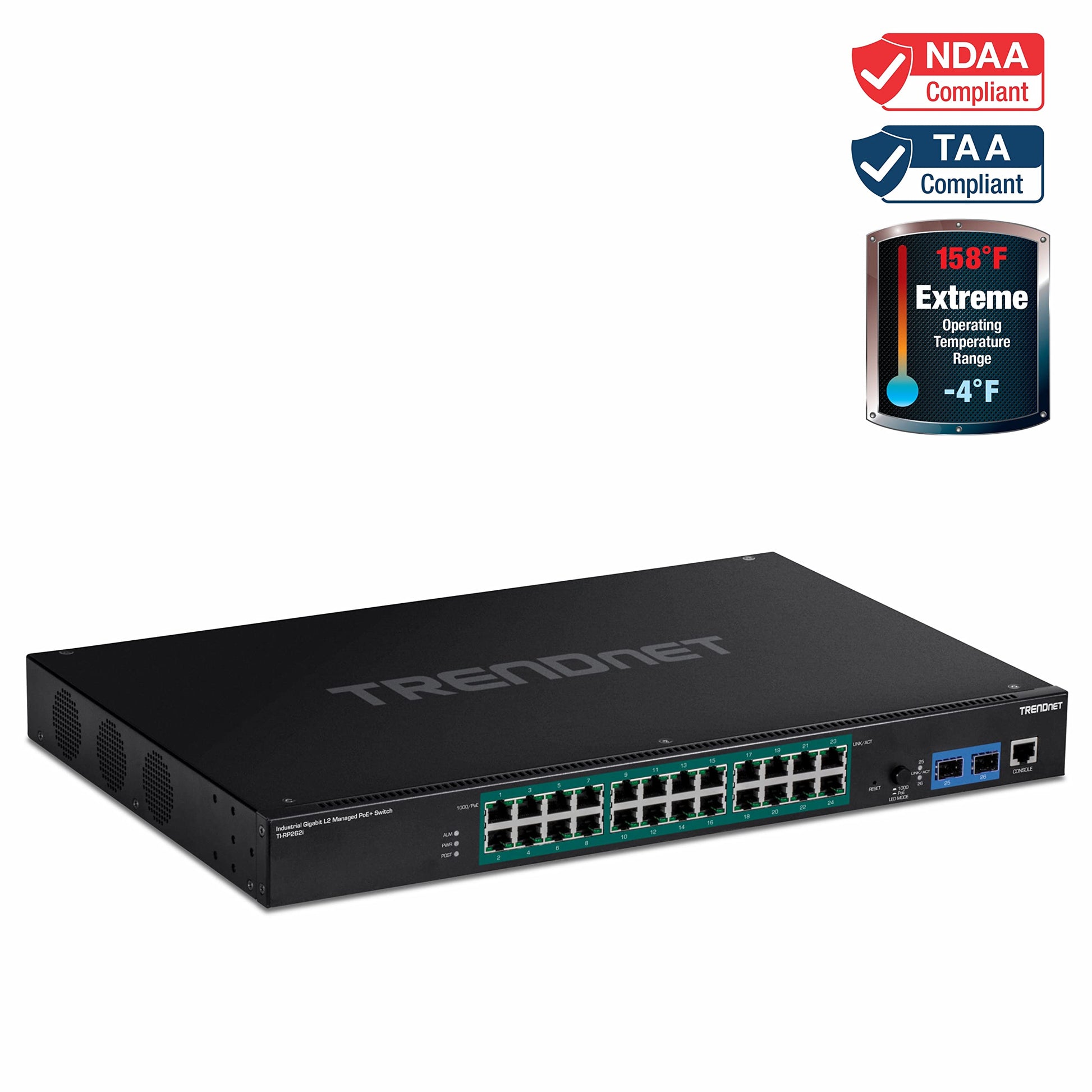

TRENDnet TI-RP262I 26-Port Industrial Gigabit L2 Managed PoE+ Switch

VENDOR: TRENDNET Mfg Part#: TI-RP262I UPC#: 710931161700
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,233.51
$1,233.51
Sale Sold out
MSRP: $1,259.99
Shipping calculated at checkout.
  • - 24 x Gigabit PoE+ ports and 2 x Gigabit SFP slots for flexible networking
  • - 685W PoE+ power budget to support high-power devices
  • - IP30-rated metal housing with -40°C to 70°C extended temperature support
  • - Supports SNMP, SSH, Telnet, and HTTP remote management protocols
  • - Jumbo frame support up to 10KB and 8K MAC address table
  • - Advanced Layer 2 features: LACP, STP/RSTP, VLAN, IGMP Snooping

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for extreme industrial environments with hardened metal chassis and wide operating temperature range.
  • Robust Layer 2 management features including VLAN, STP/RSTP, and IGMP Snooping ensure network efficiency.
  • High PoE+ power capacity (685W) supports numerous high-demand connected devices simultaneously.

Product Overview

26-Port Industrial Gigabit L2 Managed PoE+ Rackmount Switch

Specifications

Product Overview
Product Type Layer 2 Managed PoE+ Switch
Model TI-RP262I
Form Factor 1RU Rackmount
Housing Hardened IP30 rated metal housing
Power Requirements 48 - 57V DC
Power Over Ethernet (PoE) Support Yes
PoE Budget 685W
Max Power Consumption 705W
MTBF 475,352 hours @ 25°C
Weight 7.9 lbs

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, UL
Standards Compliance IEEE 802.1d, 802.1Q, 802.3, 802.3u, 802.3ab, 802.3x, 802.3z, 802.3af, 802.3at, 802.3ad, 802.1w, 802.1p, 802.1x, 802.1s

Advanced Security Features
Access Control 802.1X Port-based Authentication
MAC Filtering Yes
Storm Control Broadcast, Multicast, and Unknown Unicast
DoS Protection Yes

Interfaces
Total Ports 27
PoE+ Ports 24 x Gigabit (10/100/1000 Mbps) PoE+
SFP Ports 2 x Gigabit SFP slots
Console Port 1 x RJ-45
Data Transfer Rate 2000 Mbps (full-duplex)
Data Link Protocol Gigabit Ethernet
MAC Address Table Size 8K entries
Jumbo Frame Support Up to 10KB
Status Indicators LED (per port and system)

Physical & Environmental
Width 17.3 in (440 mm)
Depth 12.3 in (313 mm)
Height 1.7 in (44 mm)
Min Operating Temperature -40°C
Max Operating Temperature 70°C
Humidity Tolerance 10% – 95% non-condensing

Cloud Management & Licensing
Management Interface Web-based GUI, CLI, Telnet, SSH, SNMP v1/2c/3
Remote Management Protocols SNMP, SSH, Telnet, HTTP/HTTPS
VLAN Support 802.1Q Tagged VLANs
QoS Support Yes – IEEE 802.1p CoS, DSCP
IGMP Snooping v1/v2/v3
