TRENDnet TI-SG104 Industrial Gigabit Ethernet Splitter

VENDOR: TRENDNET Mfg Part#: TI-SG104 UPC#: 710931161380
1 5

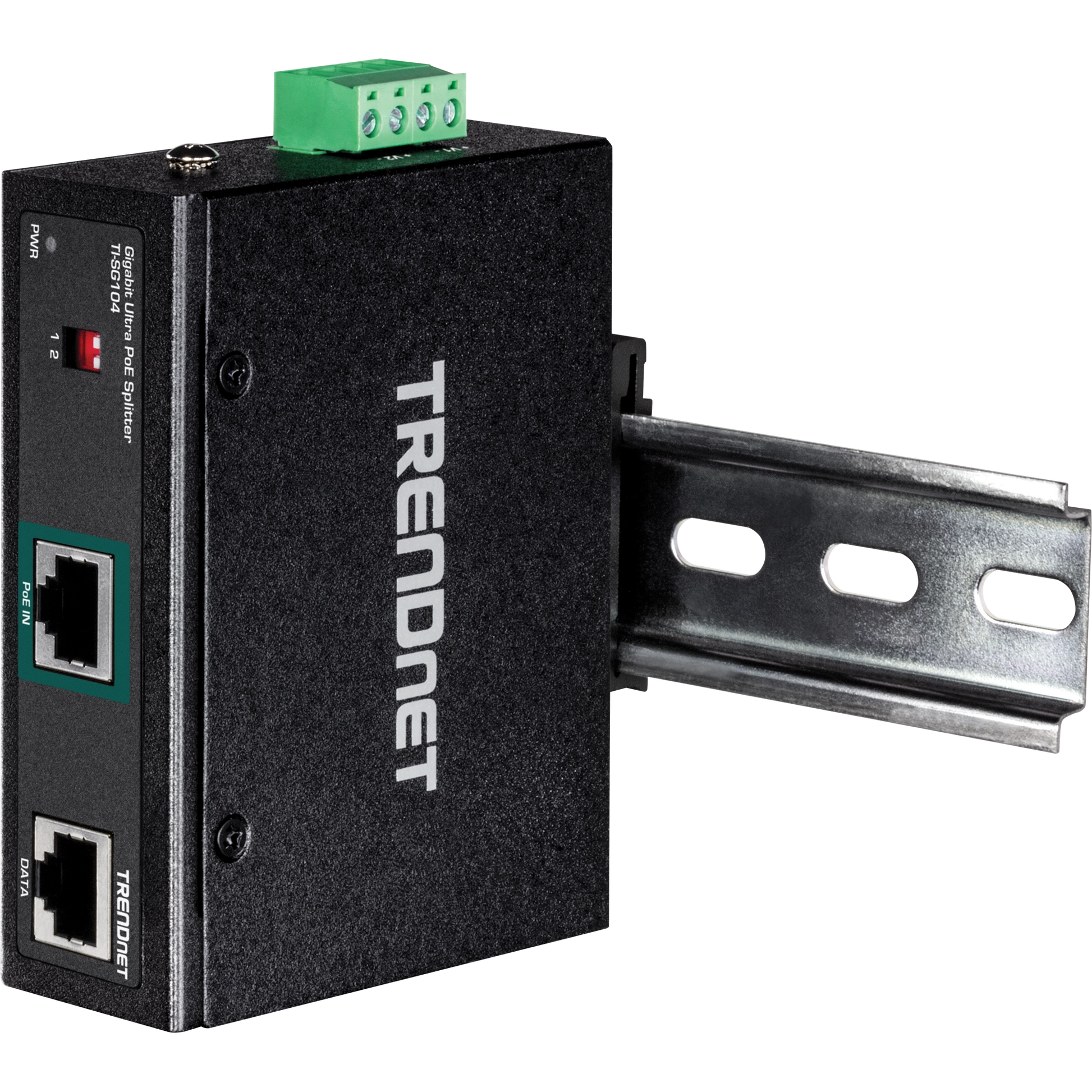

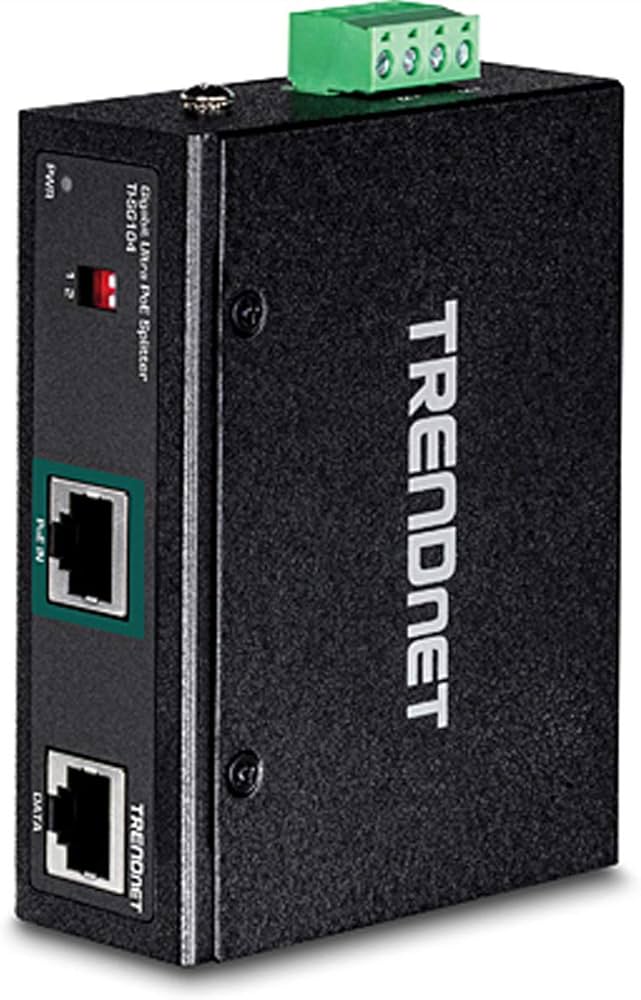

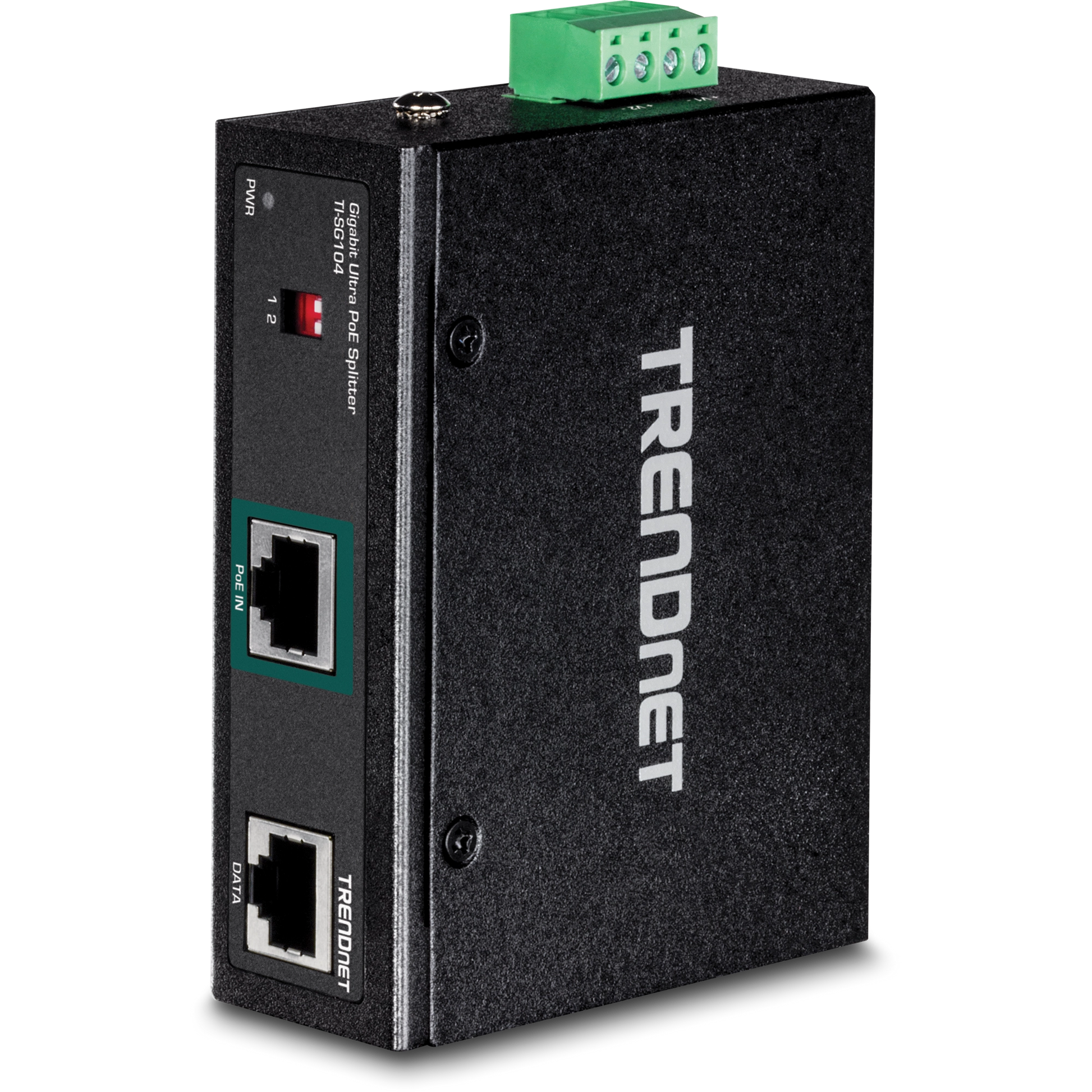

Photo is for illustration purposes only. Actual product may be different.
$78.90
$78.90
Sale Sold out
MSRP: $79.99
Shipping calculated at checkout.
  • Gigabit data transfer rate of 1 Gbps
  • Compatible with IEEE 802.3af/at/bt and Ultra PoE standards
  • Two Ethernet ports: 1 x Gigabit Ultra PoE in, 1 x Gigabit data out
  • Supports connectivity up to 100m (328 ft.) to non-PoE devices
  • Compact dimensions: 4.1" x 3.2" x 1.2"
  • Comes with DIN-rail/wall-mount kit and removable terminal block

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Optimized for industrial use, supporting long-distance PoE delivery up to 328 feet to non-PoE devices
  • Fully compliant with IEEE standards and TAA requirements, making it suitable for government and enterprise deployments
  • Includes mounting hardware and a 3-year warranty, reducing setup time and ensuring long-term performance in rugged environments

Product Overview

The TRENDnet TI-SG104 Industrial Gigabit Splitter delivers 1 Gbps data transfer and supports IEEE 802.3af/at/bt standards for seamless PoE integration with non-PoE devices. It includes 2 Gigabit ports (one PoE input, one data output) and is mountable via included DIN-rail or wall hardware. Manufactured in Taiwan and TAA compliant, it is backed by a 3-year warranty to ensure durability in industrial environments.

Specifications

Product Overview
Type Industrial Gigabit Ethernet Splitter
Model TI-SG104
Form Factor DIN-rail mountable or wall-mountable metal enclosure
Weight 225 g (0.5 lb.)
Power Requirements Receives power from Ultra PoE input port
PoE Output 12V, 1.25A (15W); 19V, 0.95A (18W); 24V, 0.6A (14.4W) selectable
Warranty 3 years
Included Accessories Quick Installation Guide, Removable terminal block, DIN-rail and wall mount kit

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, IEC 60068-2-27 (Shock), IEC 60068-2-32 (Free fall), IEC 60068-2-6 (Vibration)
Safety Standards EN 60950-1, EN 55032 (EMI), EN 55024 (EMS)

Advanced Security Features
Firewall
Intrusion Detection/Prevention
Content Filtering
Malware Protection

Interfaces
Number of Ports 2
Port Types 1 x Gigabit Ultra PoE input port, 1 x Gigabit data output port
Data Transfer Rate 1 Gbps
Ethernet Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Data Link Protocol Gigabit Ethernet
Auto-MDIX Yes
Jumbo Frame Support 9216 bytes

Physical & Environmental
Width 104 mm (4.1 in.)
Depth 82 mm (3.2 in.)
Height 30 mm (1.2 in.)
Enclosure Type IP30 rated metal housing
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 0%–95% (non-condensing)
Mounting Options DIN-rail or wall mountable
Maximum Distance 100 meters (328 ft.) from power sourcing equipment

Cloud Management & Licensing
Cloud Management No
Management Interface Not applicable
Licensing Required No
