TRENDNET TI-XPG102 10-Port EN 50155 M12 Gigabit PoE+ Switch

VENDOR: TRENDNET Mfg Part#: TI-XPG102 UPC#: 710931162783
1 5
Photo is for illustration purposes only. Actual product may be different.
$751.33
$751.33
Sale Sold out
MSRP: $769.99
Shipping calculated at checkout.

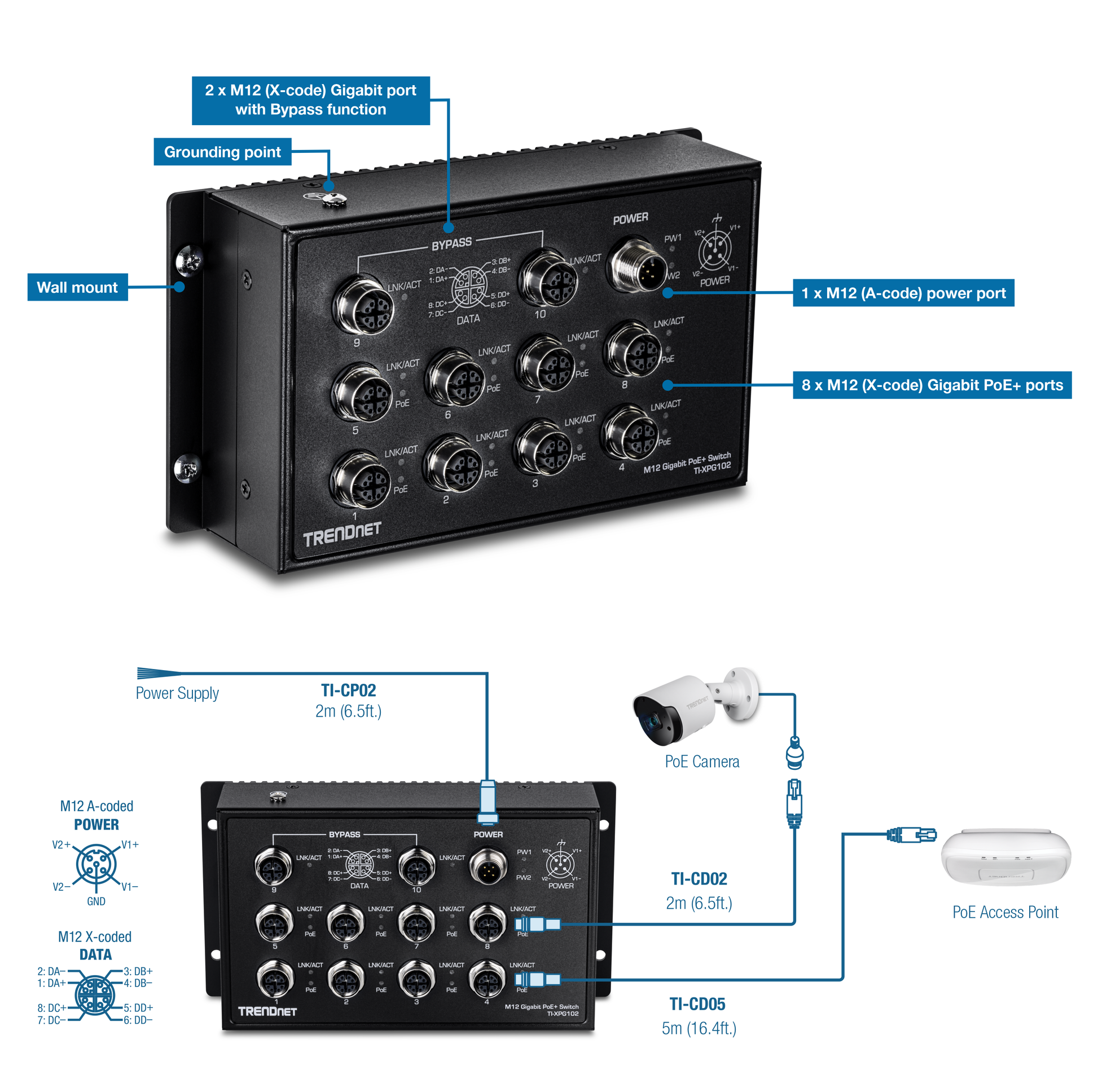

  • 10-port industrial-grade switch with 8 x M12 (X-code) Gigabit PoE+ ports
  • Supports up to 200W PoE power budget for connected devices
  • Redundant 24–56V DC power input with 5.76W max power consumption
  • Hardened IP40-rated metal housing with -40°C to 75°C operating range
  • Supports jumbo frames up to 9KB and has an 8K-entry MAC address table
  • Meets EN 50155 railway standard and includes lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for railway and transit applications with M12 connectors and EN 50155 certification
  • High reliability with >510,000-hour MTBF and redundant power input for reduced downtime
  • TAA compliance and lifetime warranty make it ideal for government and heavy-industry deployments

Product Overview

10-Port Industrial EN 50155 M12 Gigabit PoE+ Railway Switch

Specifications

Product Overview
Product Type Industrial Managed PoE+ Switch
Model TI-XPG102
Form Factor Wall-mount
Weight 31.2 ounce
Power Requirement Redundant Input: 24 - 56V DC
Power Supply Type External
Max Power Consumption 5.76 Watt
PoE Power Budget 200W
MTBF 510,037 hours
Chassis Material IP40 rated metal housing
Warranty Lifetime Warranty

Physical & Environmental
Width 6.3 Inch
Depth 3.8 Inch
Height 2 Inch
Operating Temperature Range -40°C to 75°C
Operating Humidity 5% – 95% (non-condensing)
Storage Temperature -40°C to 85°C
Shock EN 61373 (Railway applications – Rolling stock – Shock and vibration tests)
Vibration IEC 60068-2-6
Ingress Protection Rating IP40

Cloud Management & Licensing
Management Type Web Smart
Management Interfaces Web browser, CLI (via console port), SNMP v1/v2c
VLAN Support Yes - 802.1Q VLAN tagging
QoS Support Yes - 802.1p CoS, DSCP
IGMP Snooping Yes
Link Aggregation Yes - Static LAG

Interfaces
Total Number of Ports 10
PoE+ Ports 8 x M12 (X-code) Gigabit PoE+ ports
Data Link Protocol Gigabit Ethernet
Jumbo Frame Support Up to 9KB
MAC Address Table 8K entries
Switching Capacity 20 Gbps
Forwarding Rate 14.88 Mpps
Network Standards IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Compliance Certifications CE, FCC, EN 50155, EN 50121-4, IEC 61373, IEC 60068-2-1/2/3/6/27/30

Advanced Security Features
Port-based Access Control 802.1X
Access Control Lists (ACL) Yes
Storm Control Yes
DoS Attack Prevention Yes
