| Manufacturer | TRENDnet |
| Model | TL2-F7120 |
| Type | Managed Switch |
| Network Device Type | Switch |
| Form Factor | Rack-Mountable |
| Mounting Type | Standard 19-inch rack |
| Connectivity Technology | Wired |
| Weight | 1.6 Kg |
| Max Power Consumption | 20 Watt |
| Power / Voltage Required | 100 240V AC, 50/60 Hz, 1.5A |
| MTBF | 224641 hours |
| Service & Support Type | Lifetime Warranty |

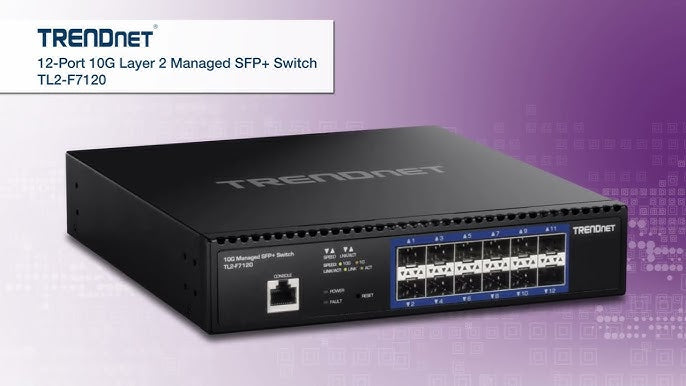

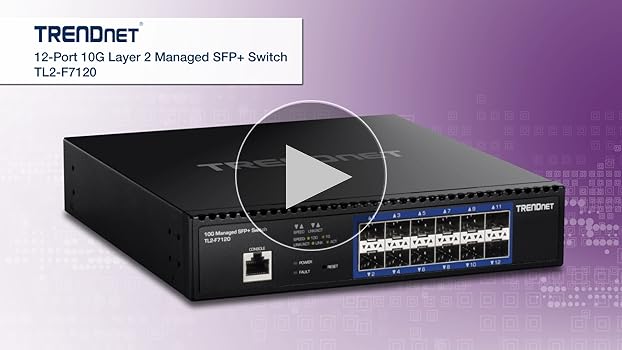

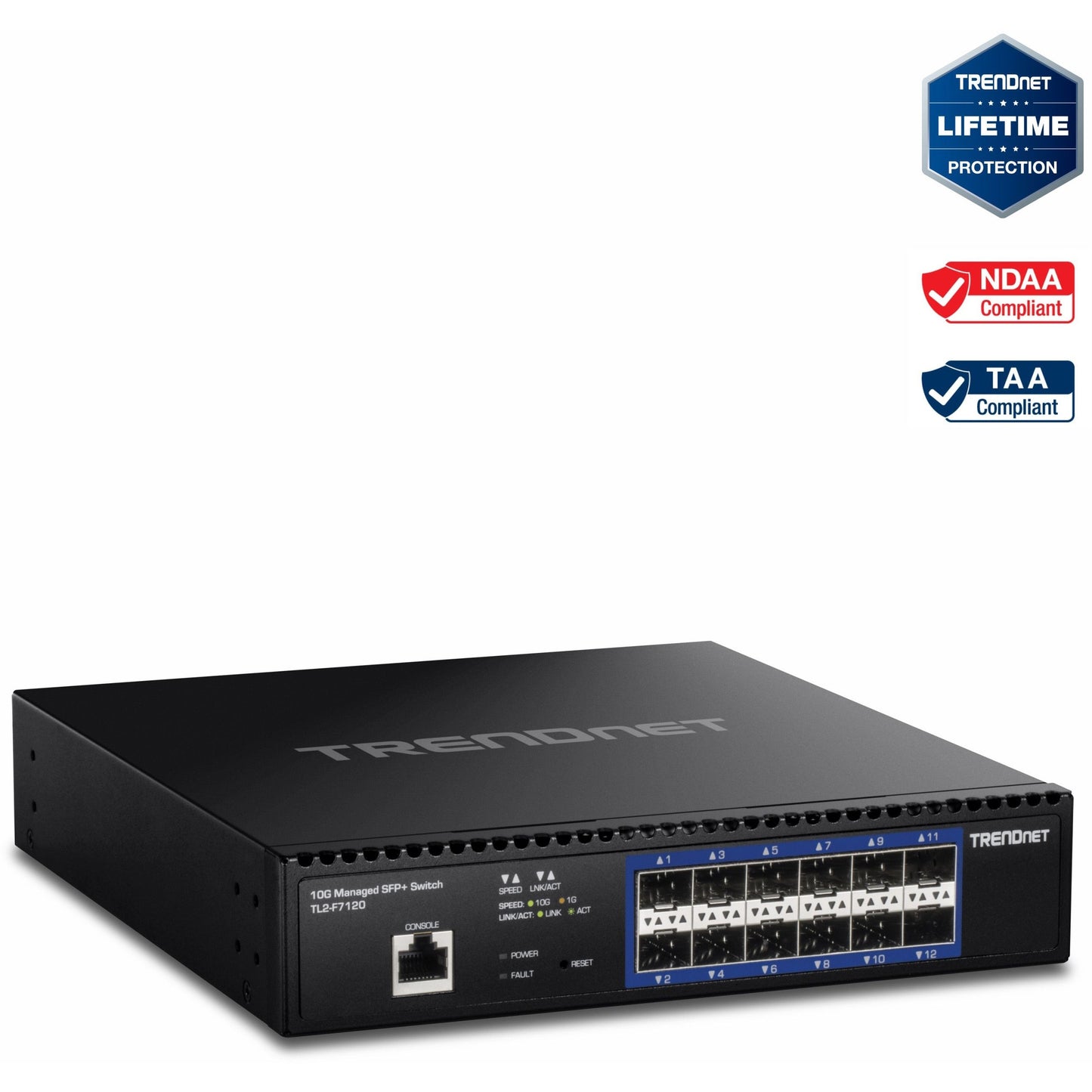

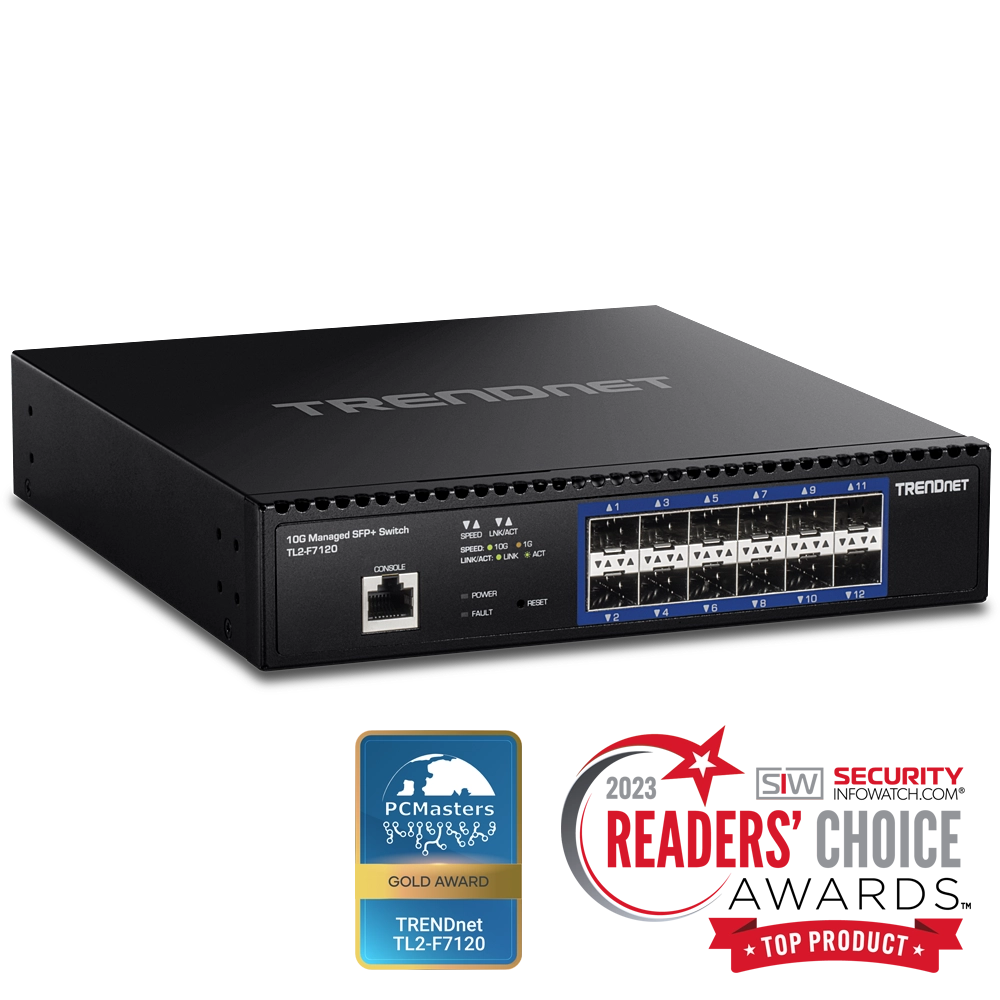

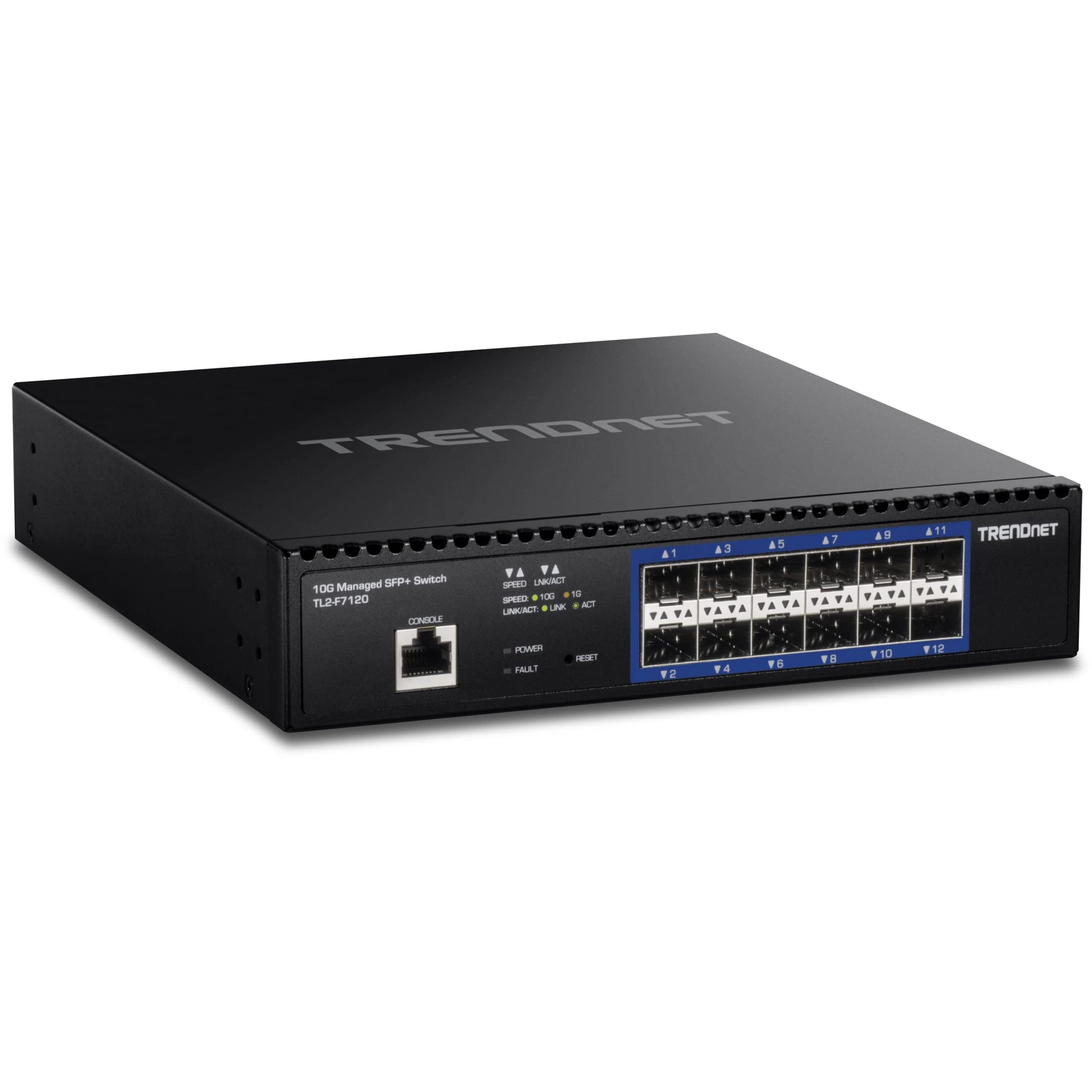

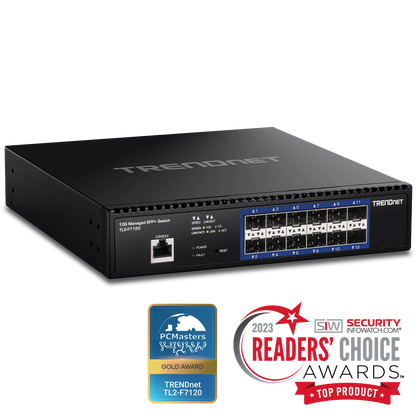

TRENDnet TL2-F7120 12-Port 10G SFP+ Layer 2 Managed Switch
Photo is for illustration purposes only. Actual product may be different.
Regular price
$353.24
Regular price
Sale price
$353.24
Unit price
per
MSRP: $359.99
Shipping calculated at checkout.
Couldn't load pickup availability
- 12 x SFP+ slots support both 1Gbps and 10Gbps fiber connections
- 20 Gbps data transfer rate with full-duplex wired connectivity
- Layer 2 management capabilities within rack-mount form factor
- Low power consumption up to 20 Watts
- MTBF rated at 224,641 hours for high reliability
- TAA compliance for government procurement compatibility
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers cost-effective 10G performance across 12 SFP+ ports for scalable enterprise networks
- High reliability with over 25 years MTBF and backed by a lifetime warranty for long service assurance
- Ideal for government or federally funded installations thanks to full TAA compliance
Product Overview
The TRENDnet TL2-F7120 is a Layer 2 managed switch equipped with twelve high-performance SFP+ ports, supporting both 1Gbps and 10Gbps connectivity. Designed for environments demanding reliable performance, it delivers a 20 Gbps data transfer rate and supports comprehensive Layer 2 functions in a rack-mountable form factor.
With low power consumption (20W max), a wide operating temperature range, and an MTBF of over 224,000 hours, the TL2-F7120 is built for continuous operation. TAA compliance and a lifetime warranty further enhance its appeal for enterprise and government applications.
Specifications
Product Overview
Wireless Features
| Wi-Fi Support |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliance | Yes |
| Certifications | CE, FCC |
| RoHS Compliant | Yes |
Advanced Security Features
| Access Control | MAC-based ACL, IP-based filtering |
| Port Security | Static and dynamic MAC address limitation |
| Storm Control | Broadcast, multicast, and unknown unicast |
| Loop Protection | Spanning Tree Protocol (STP, RSTP, MSTP) |
| DoS Prevention | Yes |
| Storm Control | Yes |
Interfaces
| Port Count | 12 |
| Interface Type | SFP+ |
| Supported Speed per Port | 1 Gbps / 10 Gbps |
| Total Switching Capacity | 240 Gbps |
| Forwarding Rate | 178.56 Mpps |
| Status Indicators | Port Link/Activity, Power |
| Switching Layer | Layer 2 |
| MAC Address Table Size | 32,000 entries |
| Jumbo Frame Support | Up to 12 KB |
Physical & Environmental
| Width | 1.73 Inch (44 mm) |
| Depth | 8.26 Inch (210 mm) |
| Height | 9.06 Inch (230 mm) |
| Min Operating Temperature | 0°C |
| Max Operating Temperature | 50°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Temperature | -40°C to 70°C |
| Cooling Type | Fanless |
Cloud Management & Licensing
| Management Interface | Web (HTTP/HTTPS), CLI, SNMP |
| Supported Protocols | SNMP v1/v2c/v3, RMON, LLDP, DHCP, NTP |
| VLAN Support | 802.1Q Tagged VLAN, up to 256 VLAN groups |
| QoS Support | 802.1p CoS/DSCP, 8 priority queues |
| Licensing Requirement | None (includes full feature set) |
