TRENDnet TPE-3524SF 52-Port Gigabit PoE+ Switch with 10G SFP+ Slots

VENDOR: TRENDNET Mfg Part#: TPE-3524SF UPC#: 710931162523
1 5
Photo is for illustration purposes only. Actual product may be different.
$930.75
$930.75
Sale Sold out
MSRP: $949.99
Shipping calculated at checkout.
  • 48 x Gigabit PoE+ ports for a combined 740W power budget
  • 4 x 10G SFP+ uplink slots for high-speed backbone connectivity
  • Supports 802.1Q VLAN tagging and IPv4/IPv6 static routing
  • Jumbo frame support up to 9KB and 32K MAC address table
  • LED status indicators and web smart interface for easy management
  • Operating temperature range between 0°C and 50°C

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides high PoE power capacity (740W) to support many IP devices without added infrastructure
  • Future-proofs networks with 10G SFP+ uplinks, enabling fast backbone deployment
  • Backed by a lifetime warranty and TAA compliance, making it ideal for secure or government projects

Product Overview

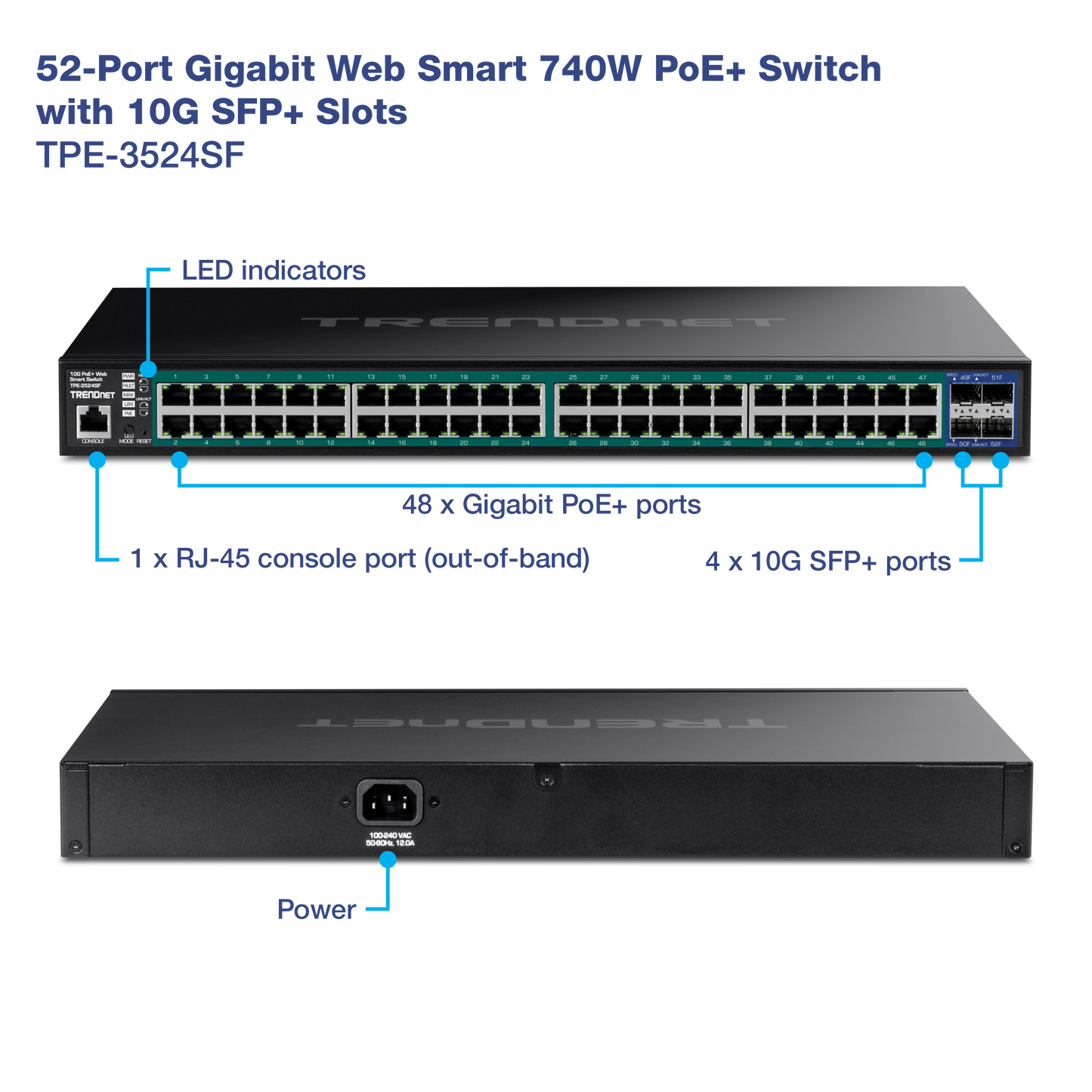

52-port Gigabit Web Smart 740W PoE+ Switch with 10G SFP+ Slots

Specifications

Product Overview
Type Web Smart Gigabit PoE+ Switch
Model TPE-3524SF
Form Factor 1U Rackmount
Weight 10.4 lbs.
Maximum Power Consumption 52 Watt
Power Requirements 100 – 240V AC, 50/60 Hz
MTBF 37300 hours

Physical & Environmental
Width 17.32 in
Depth 12.2 in
Height 1.73 in
Operating Temperature (Min) 0 °C
Operating Temperature (Max) 50 °C
Operating Humidity Max 90% (non-condensing)

Cloud Management & Licensing
Management Interface Web-based Smart Management
Management Protocols HTTP, SNMP v1/v2c, RMON, SNTP
Switch Management Layer 2 web smart features
VLAN Support 802.1Q Tagged VLANs
Static Routing Capability IPv4/IPv6 static routing
QoS Support IEEE 802.1p Class of Service (CoS)
IGMP Snooping v1/v2/v3
Loop Detection Yes

What's Included
Package Contents TPE-3524SF Switch, Power Cord, Rack Mount Kit, Quick Installation Guide

Interfaces
Total Ports 52
Gigabit Ethernet PoE+ Ports 48
SFP+ Slots (10G) 4
Port Speed 10/100/1000 Mbps (Gigabit)
Data Transfer Rate 10 Gbps (uplink via SFP+)
Jumbo Frame Support 9KB
MAC Address Table Size 32K entries
Status Indicators LED indicators for Port Status and Power

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, RoHS

Advanced Security Features
Access Control 802.1X, port security, ACL
Storm Control Broadcast and Multicast
Port Trunking Static LAG, IEEE 802.3ad Dynamic LACP
DoS Protection Yes
Management Access Control HTTPS, RADIUS, TACACS+

Warranty
Service & Support Type Lifetime Warranty
