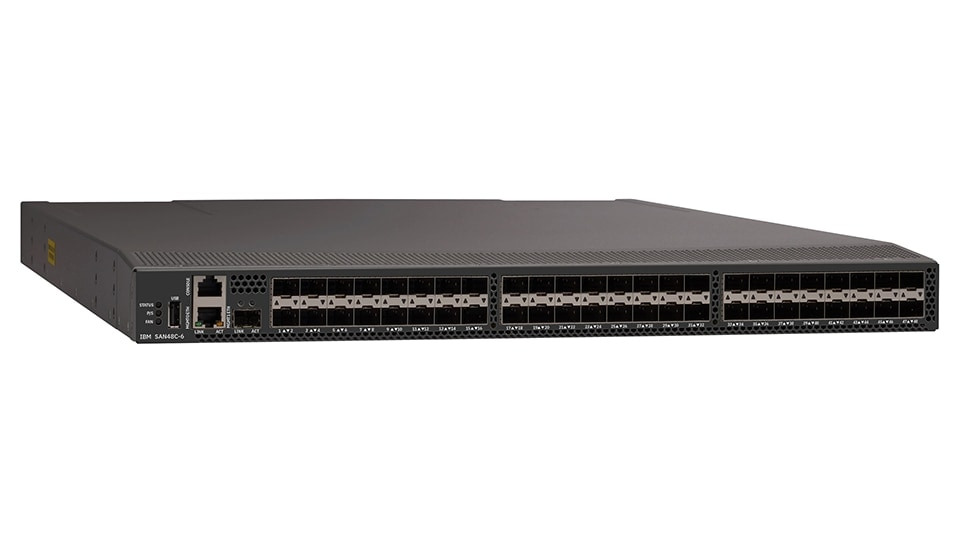

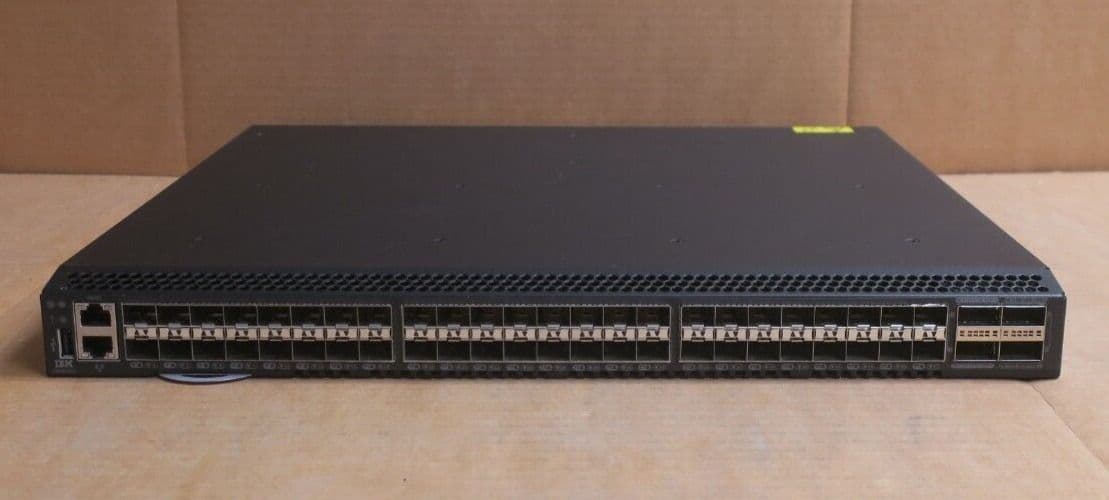

IBM SAN48C-6 32G 48-Port FC Fabric Switch with 48 Optics

VENDOR: CISCO Mfg Part#: 02JD729
  • The IBM SAN48C-6 is a compact 32G Fibre Channel switch offering 48 ports and integrated optics for high-performance SAN environments. Designed in a 1RU form factor, it supports powerful enterprise storage needs with features aimed at reducing total cost of ownership. Ideal for data centers requiring reliable, scalable connectivity.
1 1
Photo is for illustration purposes only. Actual product may be different.
$74,253.67
$74,253.67
Sale Sold out
Shipping calculated at checkout.
  • 48-port 32G Fibre Channel switch with 52 total ports
  • Up to 32 Gbps data transfer rate for high-speed networking
  • Compact 1RU rack-mount design for space-efficient deployment
  • Interfaces include Fibre Channel, RJ-45, RS-232, and USB
  • SNMP support for remote management and monitoring
  • TAA compliant and operates between 0°C and 40°C
View full details

Key Benefits

Eye-Insights
  • Includes 48 32G optics for out-of-the-box fibre channel deployment.
  • Ideal for space-critical server rooms with its compact 1RU design.
  • Reduces total cost of ownership through SAN consolidation features.

Product Overview

The IBM SAN48C-6 is a high-performance 32G Fibre Channel switch built for enterprise SAN environments. With 48 active ports and included optics, it provides high-speed data transfers up to 32 Gbps in a compact 1RU form factor. Its versatile interfaces include Fibre Channel, RJ-45, RS-232, and USB, and its SNMP support enables remote management. Powered by a 650W PSU and operating within a wide temperature range, it's TAA compliant and suited for critical infrastructure deployments.

Specifications

Primary Information
Network Device Type Switch
Model SAN48C-6
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 32 Gbps
Data Link Protocol Gigabit Ethernet
Status Indicators LED Indicators
Power / Device Type Power Supply
Features Lowers TCO with SAN consolidation; Leverages IBM Storage Networking c-type family components; Provides enterprise-class availability; Transforms businesses with enterprise cloud deployment; Simplifies IT management; Supports robust security; Offers advanced diagnostics and troubleshooting tools
Power / Voltage Required 100 to 240 VAC
Networking / Ports Qty 52
Power / Provided (W) 650 Watt

Interfaces / Ports
Interfaces Fibre Channel, RJ-45, RS-232, USB

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
COO MEXICO
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support NONE
PoE Power Consumption NONE
Remote Management Protocol SNMP
Interfaces Fibre Channel, RJ-45, RS-232, USB

Dimensions&Miscellaneous
Width 17.3 Inch
Depth 22.3 Inch
Height 1.72 Inch

UNSPSC Code
UNSPSC Code 43222612
