Cisco Catalyst 9300X 12-Port 25/10G SFP+ Managed Switch, K12

VENDOR: CISCO Mfg Part#: C9300X-12Y-EDU
  • Cisco’s Catalyst 9300X 12-port switch delivers enterprise-grade Layer 3 performance with 1/10/25G SFP+ ports in a rack-mountable 1U form factor, specifically authorized for K-12 deployments. Designed for scalability and high throughput, it features Cisco StackWise-1T and StackPower technology, MACsec encryption, and full Layer 3 routing protocol support. Ideal for high-demand network cores or campus aggregation layers.
1 1

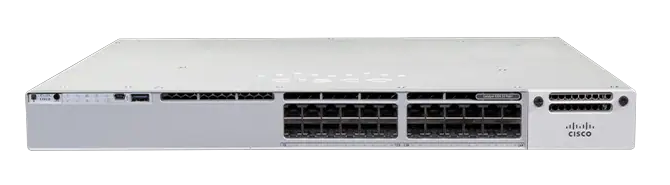

Photo is for illustration purposes only. Actual product may be different.
$14,295.02
$14,295.02
Sale Sold out
MSRP: $20,792.76
Shipping calculated at checkout.
  • 12 x 1/10/25 Gigabit SFP28 ports with 9198-byte jumbo frame support
  • Switching capacity of 1000 Gbps (2000 Gbps with stacking); forwarding rate up to 1488 Mpps
  • Supports 39,000 IPv4 and 19,500 IPv6 routing entries, plus 64,000 NetFlow entries
  • Advanced L3 protocol support including OSPF, IS-IS, RIPng, and PIM-SM/SSM
  • Security features including MACsec encryption, 802.1x, SGACL, and private VLANs
  • Cisco StackWise-1T, StackPower, and management via SNMP, NETCONF, and RESTCONF
View full details

Key Benefits

Eye-Insights
  • Delivers exceptional stacking and throughput performance with up to 2000 Gbps and 1488 Mpps for scalable high-density environments
  • Fully managed Layer 3 feature set including advanced routing and monitoring protocols maximizes network control and flexibility
  • Compliant with TAA and supported by a lifetime limited warranty with next business day replacement, ideal for educational and regulated sectors

Product Overview

The Cisco Catalyst 9300X 12-Port 25/10G SFP+ Managed Switch (C9300X-12Y-EDU) is purpose-built for high-performance Layer 3 switching in K-12 and enterprise-grade networks. With 12 SFP28 ports supporting 1/10/25GbE, and a switching capacity of up to 2000 Gbps with stacking, it enables high-throughput, low-latency data transport. The switch includes StackWise-1T and Stackwise-480 technology for resilient, scalable deployments, while comprehensive routing and Layer 2/3 protocol support address complex network topologies. Security and policy controls include MACsec encryption, QoS, ACL scalability, and integrated support for advanced monitoring such as Wireshark and Flexible NetFlow. With a compact 1U rack-mountable design, 16 GB RAM, 64K NetFlow capacities, and full TAA compliance, it is a strong asset in any secure, growth-ready networking environment.

Specifications

Primary Information
Network Device Type Switch
Form Factor 1RU
Data Transfer Rate 25 Gbps
Data Link Protocol Gigabit Ethernet
Power / Voltage Required 100 to 240 VAC
Networking / Ports Qty Not Included

Interfaces / Ports
Interfaces 1G/10G/25G SFP28

Special Feature
COO CHINA / MEXICO / UNITED STATES / CHINA / MEXICO / UNITED STATES
TAA compliance Yes

Network
Interfaces 1G/10G/25G SFP28

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 16.1 Inch
Height 1.73 Inch

UNSPSC Code
UNSPSC Code 43222612
