Lenovo ThinkCentre M90q Gen 5 Desktop, i9-14900, 16GB, 512GB SSD

VENDOR: LENOVO Mfg Part#: 12TH000QUS
  • The Lenovo ThinkCentre M90q Gen 5 is a powerful compact desktop engineered for enterprise productivity and security. Powered by a 14th Gen Intel Core i9-14900 processor with 24 cores and vPro Enterprise, it delivers high-speed performance and scalable management. With 16GB DDR5 RAM, 512GB PCIe Gen4 SSD, and Intel UHD Graphics 770, it's ideal for data-heavy tasks in tight workspaces, all housed in a sleek tiny form factor.
  • The Lenovo ThinkCentre M90q Gen 5 is a powerful compact desktop engineered for enterprise productivity and security. Powered by a 14th Gen Intel Core i9-14900 processor with 24 cores and vPro Enterprise, it delivers high-speed performance and scalable management. With 16GB DDR5 RAM, 512GB PCIe Gen4 SSD, and Intel UHD Graphics 770, it's ideal for data-heavy tasks in tight workspaces, all housed in a sleek tiny form factor.
  • The Lenovo ThinkCentre M90q Gen 5 is a powerful compact desktop engineered for enterprise productivity and security. Powered by a 14th Gen Intel Core i9-14900 processor with 24 cores and vPro Enterprise, it delivers high-speed performance and scalable management. With 16GB DDR5 RAM, 512GB PCIe Gen4 SSD, and Intel UHD Graphics 770, it's ideal for data-heavy tasks in tight workspaces, all housed in a sleek tiny form factor.
  • The Lenovo ThinkCentre M90q Gen 5 is a powerful compact desktop engineered for enterprise productivity and security. Powered by a 14th Gen Intel Core i9-14900 processor with 24 cores and vPro Enterprise, it delivers high-speed performance and scalable management. With 16GB DDR5 RAM, 512GB PCIe Gen4 SSD, and Intel UHD Graphics 770, it's ideal for data-heavy tasks in tight workspaces, all housed in a sleek tiny form factor.
1 4
Photo is for illustration purposes only. Actual product may be different.
$1,809.00
$1,809.00
Sale Sold out
Shipping calculated at checkout.
  • Intel Core i9-14900 processor with 24 cores and up to 5.8GHz turbo frequency
  • 16GB DDR5 RAM at 5200 MHz (upgradeable to 64GB)
  • PCIe 4.0x4 NVMe 512GB SSD for high-speed storage access
  • Intel UHD Graphics 770 and Intel Q670 chipset
  • Wi-Fi 6E, Bluetooth 5.3, and Ethernet connectivity
  • Includes USB-C 20Gbps, DisplayPort, HDMI, and TPM 2.0 security features
View full details

Key Benefits

Eye-Insights
  • High-performance 14th Gen Intel Core i9 processor makes it ideal for intensive business workloads and multitasking.
  • Compact tiny form factor saves workspace and fits into versatile deployment scenarios without compromising performance.
  • Comprehensive enterprise-grade security (TPM 2.0, FIPS 140-2) and 3-year on-site warranty ensure reliable, long-term investment.

Product Overview

ThinkCentre M90q Gen 5, Intel Core i9-14900 vPro (E-cores up to 4.30GHz, 36MB), W11P64 ENG, 16.0GB, 1x512GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770,BT 5.1 or above,IntelAX211vPro, 230W, 3 Year On-site, USB, Traditional, Black-English (US), USB Calliope Mouse (Black)

Specifications

General
Processor Intel, Core i9, 14900, Base 2GHz, Smart Cache 36MB, MaxTurbo 5.8GHz
RAM DDR5 SODIMM, Total Installed 16GB, 5200MHz, Max Supported 64GB

Memory
Cache Memory Type Smart Cache
RAM / Installed Qty 1
RAM / Total Slots Qty 2
RAM / Technology DDR5
RAM / Total Installed Size 16 GB
RAM / Memory Speed 5200 MHz
RAM Form Factor SODIMM
RAM / Max Supported Size 64 GB

Storage
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Spindle Speed None RPM
SSD Capacity 512 GB
SSD / Installed Qty 1
Optical Storage Type None
Storage Controller Type PCIe 4.0x4 NVMe
Hard Drive / Capacity (2nd) None GB

I/O
Input Device Support Type Keyboard, Mouse
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Keyboard Language English

Power
Power / Device Type Power Supply
Power / Provided (W) 230 Watt
Efficiency 89%

Video
Graphics Controller Intel UHD Graphics 770
Video Memory / Installed Size None GB
Video Output Interface Display Port, HDMI

UNSPSC Code
UNSPSC Code 43211508

Primary Information
System Type Personal Computer
Model ThinkCentre M90q Gen 5
Cabinet Form Factor Tiny
Processor / Generation Intel 14th Generation
Processor / Type Core i9
Processor / Manufacturer Intel
Multi-Core Technology 24-Core
Processor / Clock Speed 2 GHz
Cache Memory Installed Size 36 MB
Max Turbo Frequency 5.8 GHz
Processor / Number 14900
Processor / Installed Qty 1
Processor / Max Supported Qty 1
Cache Memory Installed Size 36 MB
RAM / Installed Qty 1
Mainboard / Chipset Type Intel Q670
RAM / Technology DDR5
RAM / Total Slots Qty 2
RAM / Total Installed Size 16 GB
RAM / Memory Speed 5200 MHz
RAM Form Factor SODIMM
RAM / Max Supported Size 64 GB
Storage Controller Type PCIe 4.0x4 NVMe
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Spindle Speed None RPM
SSD Capacity 512 GB
SSD / Installed Qty 1
Optical Storage Type None
Audio Output High Definition (HD) Audio, Realtek ALC233 codec
Storage Controller Type PCIe 4.0x4 NVMe
Memory Card Reader No card reader
Hard Drive / Capacity (2nd) None GB
Data Link Protocol Ethernet; Wi-Fi, Bluetooth 5.3
Network Controller Intel Wi-Fi 6E AX211
Platform Technology Intel vPro Enterprise
Graphics Controller Intel UHD Graphics 770
Video Memory / Installed Size None GB
Video Output Interface Display Port, HDMI
Speakers 1 x 2W
Input Device Support Type Keyboard, Mouse
Keyboard Language English
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Operating System Microsoft Windows 11 Pro
Power / Device Type Power Supply
Power / Provided (W) 230 Watt
Efficiency 89%

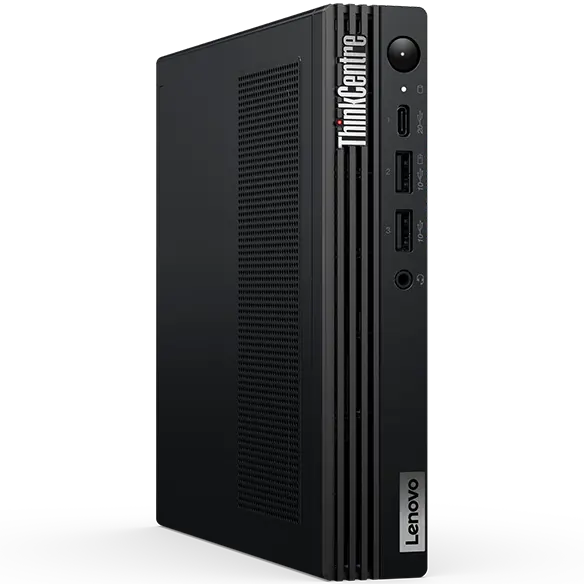

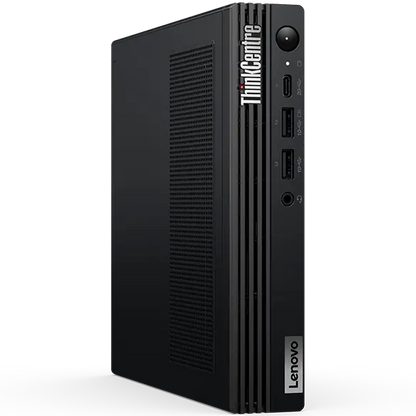

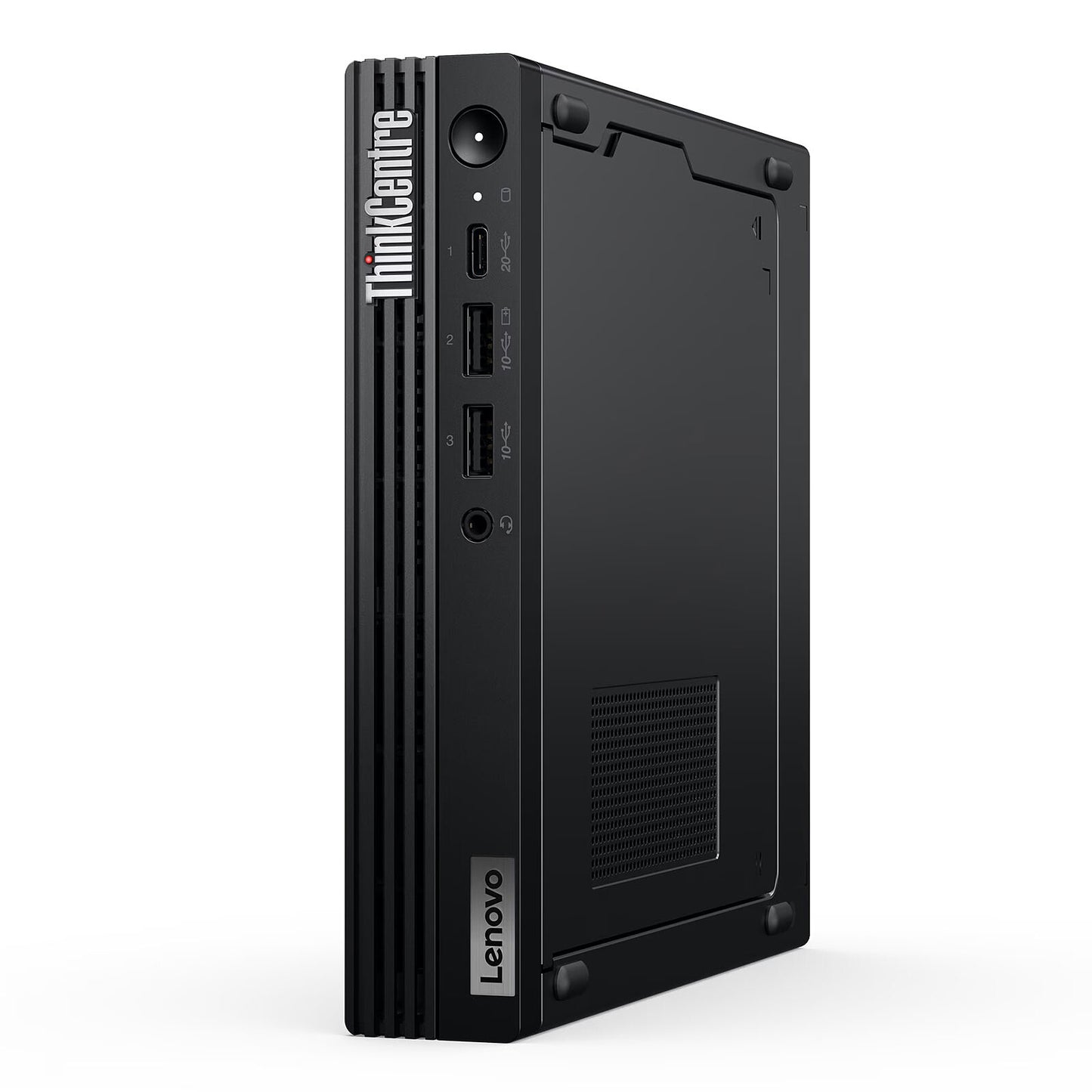

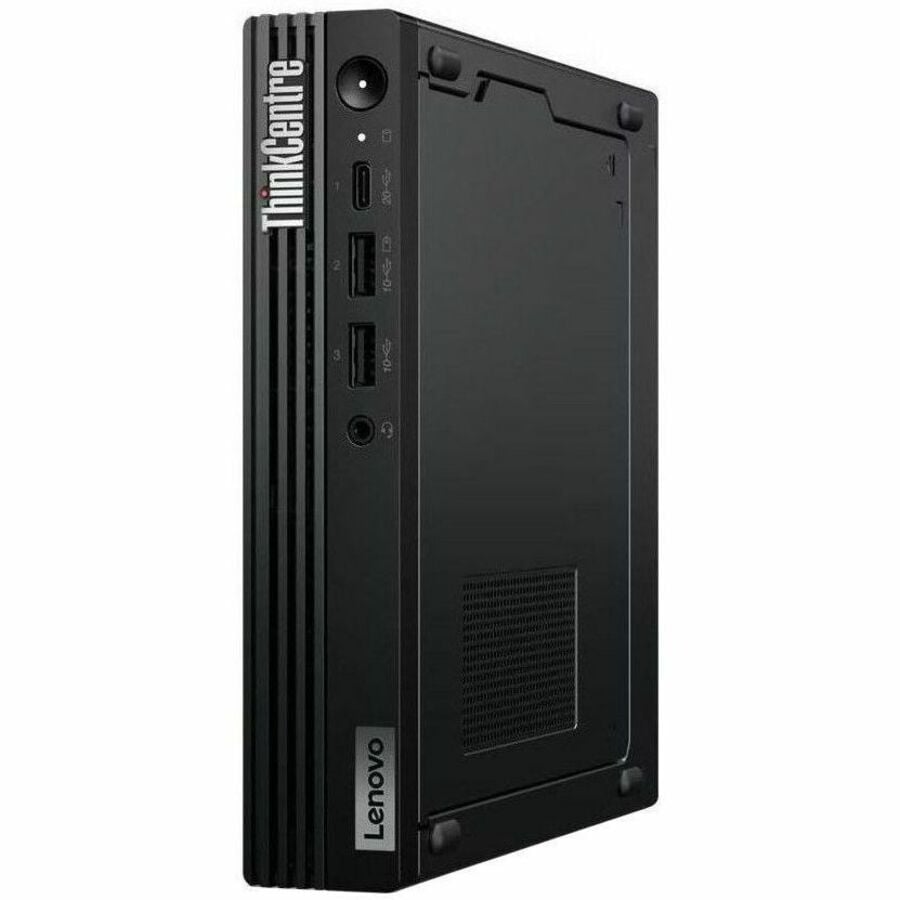

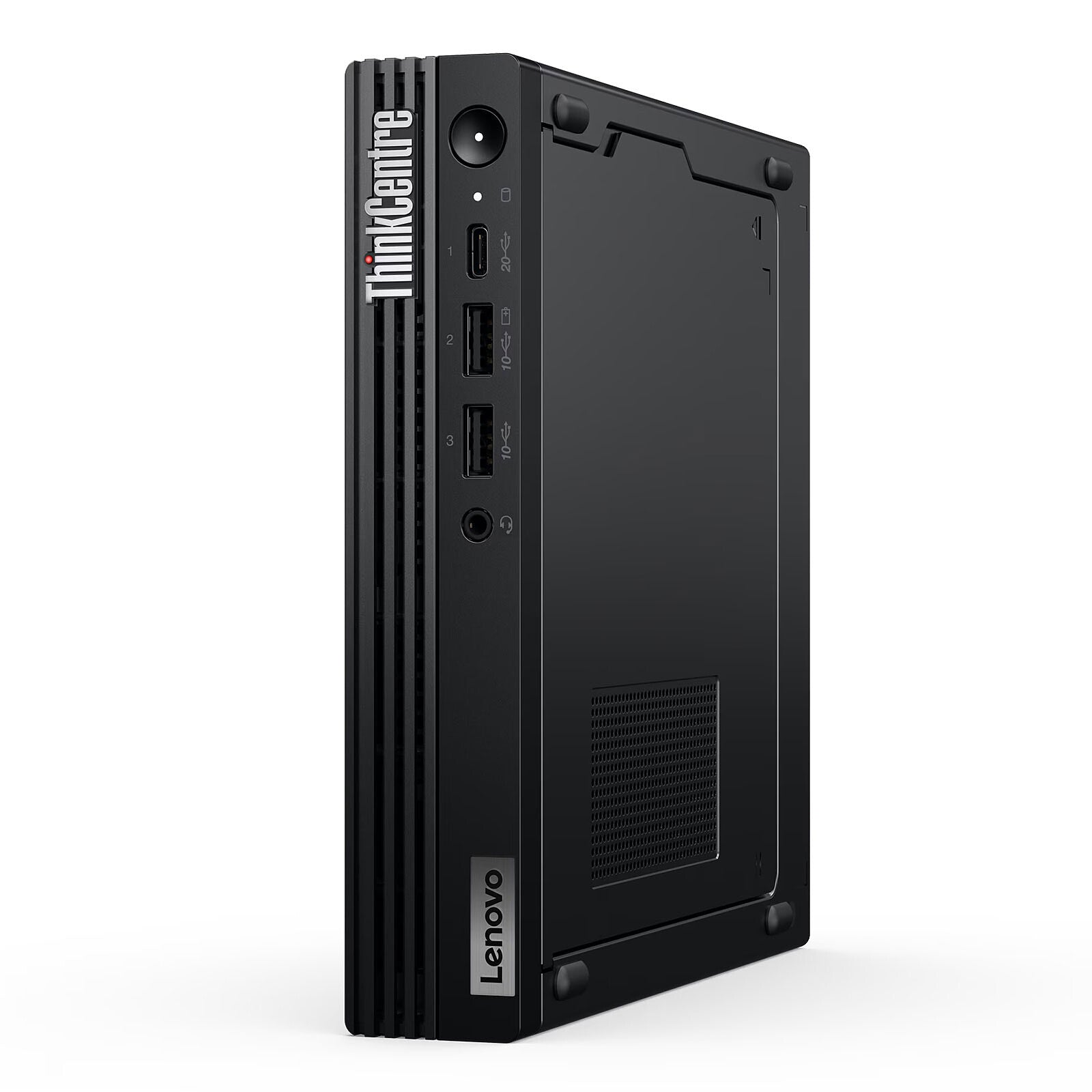

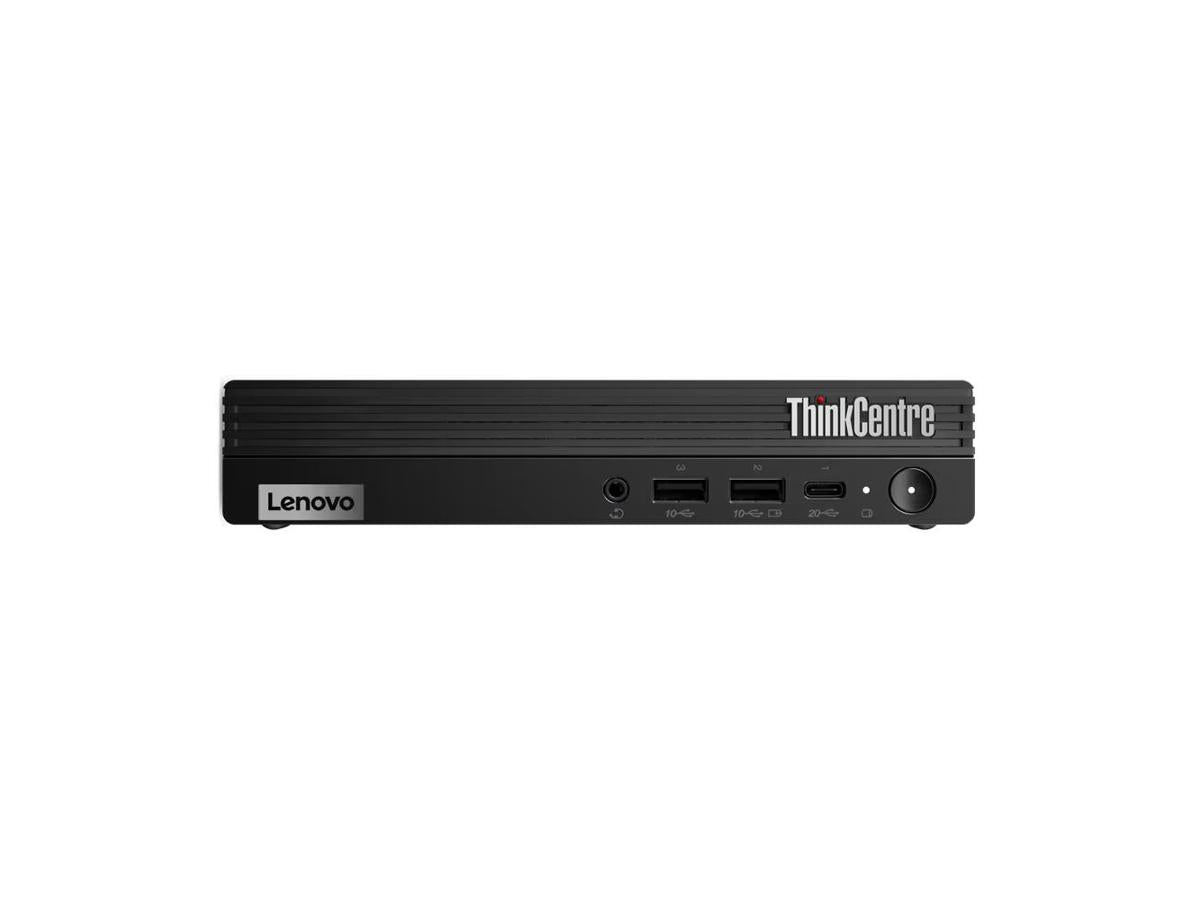

Front I/O Ports 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm)

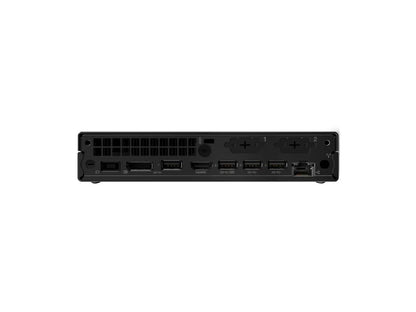

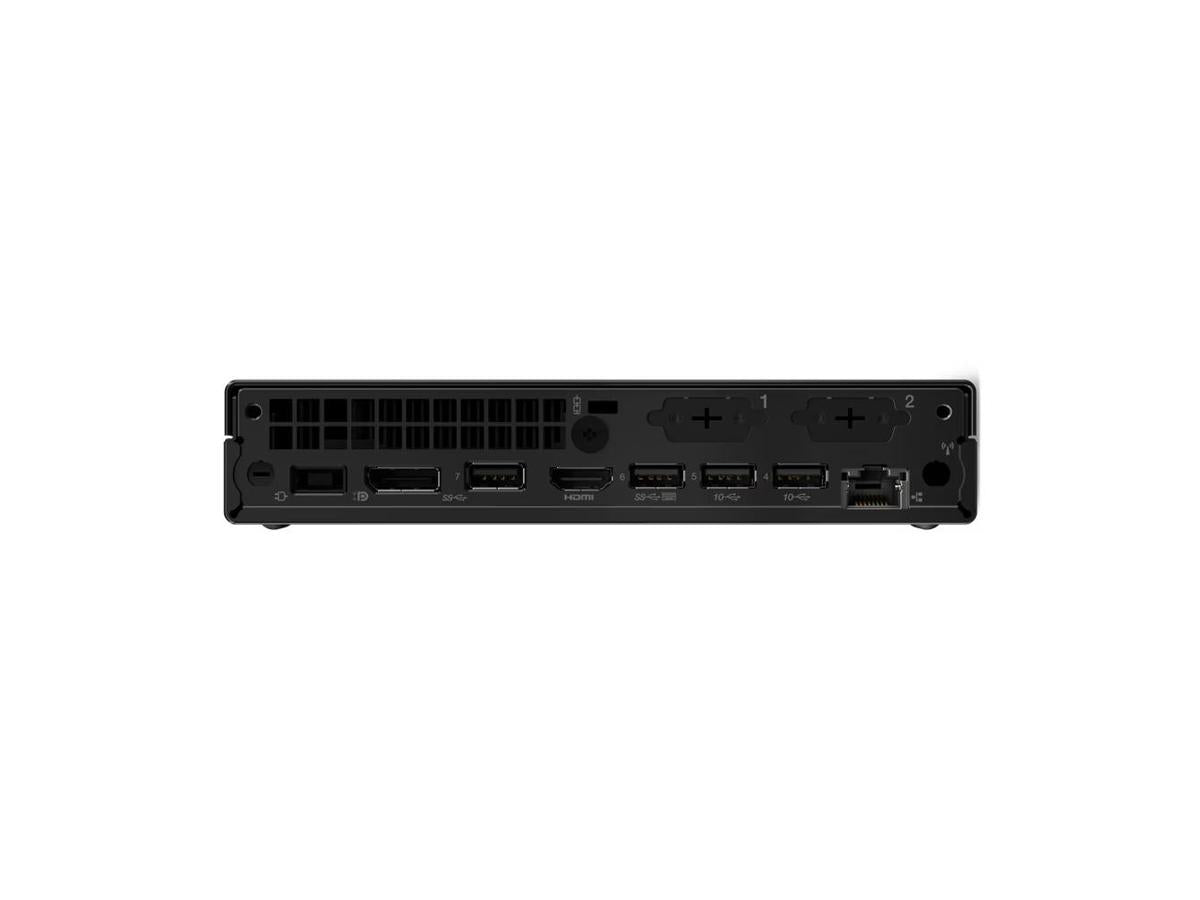

Rear I/O Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45)
Expansion Slots Total (Free) One PCIe 4.0 x8, low-profile; Two M.2 PCIe Gen 4x4 slots (for SSD); One M.2 slot (for WLAN)
Width 7.05 Inch
Depth 7.2 Inch
Height 1.44 Inch
Weight 2.76 lbs.
Enclosure Color Black
Service & Support Type 3-year Warranty
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified; Kensington Security Slot, 3 x 7 mm
Stand Yes

Processor
Processor / Generation Intel 14th Generation
Processor / Type Core i9
Processor / Manufacturer Intel
Multi-Core Technology 24-Core
Processor / Clock Speed 2 GHz
Max Turbo Frequency 5.8 GHz
Processor / Number 14900
Processor / Installed Qty 1
Processor / Max Supported Qty 1
Cache Memory Type Smart Cache
Cache Memory Installed Size 36 MB

Expansion
Expansion Slots Total (Free) One PCIe 4.0 x8, low-profile; Two M.2 PCIe Gen 4x4 slots (for SSD); One M.2 slot (for WLAN)
Front I/O Ports 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm)
Rear I/O Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45)

Networking
Data Link Protocol Ethernet; Wi-Fi, Bluetooth 5.3
Network Controller Intel Wi-Fi 6E AX211

Special Feature
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified; Kensington Security Slot, 3 x 7 mm
COO MEXICO
TAA compliance Yes

Dimensions&Miscellaneous
Enclosure Color Black
Width 7.05 Inch
Depth 7.2 Inch
Height 1.44 Inch
Weight 2.76 lbs.
