| Processor | Intel, Core i5, 14500, Base 2.6GHz, Smart Cache 24MB, MaxTurbo 5GHz |
| RAM | DDR5 UDIMM, Total Installed 32GB, 4400MHz, Max Supported 128GB |

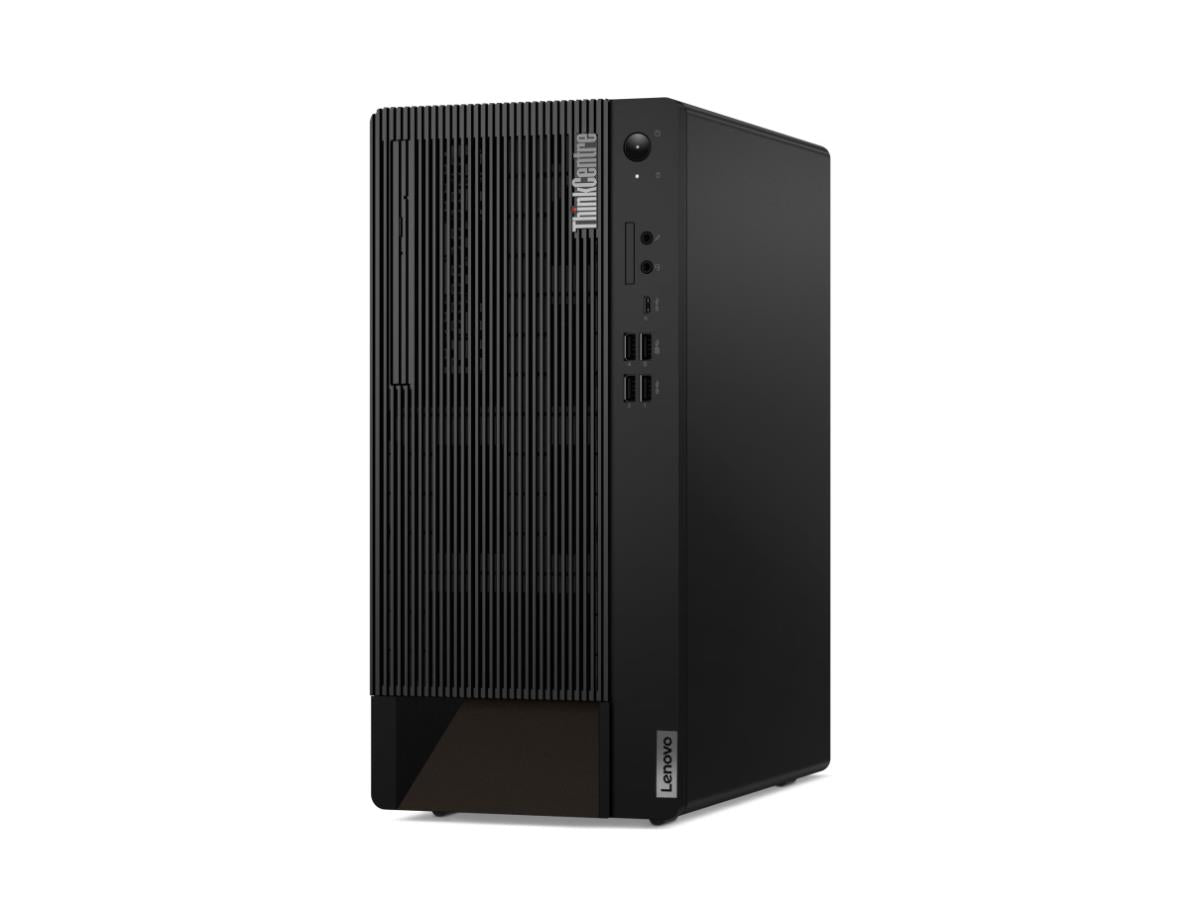

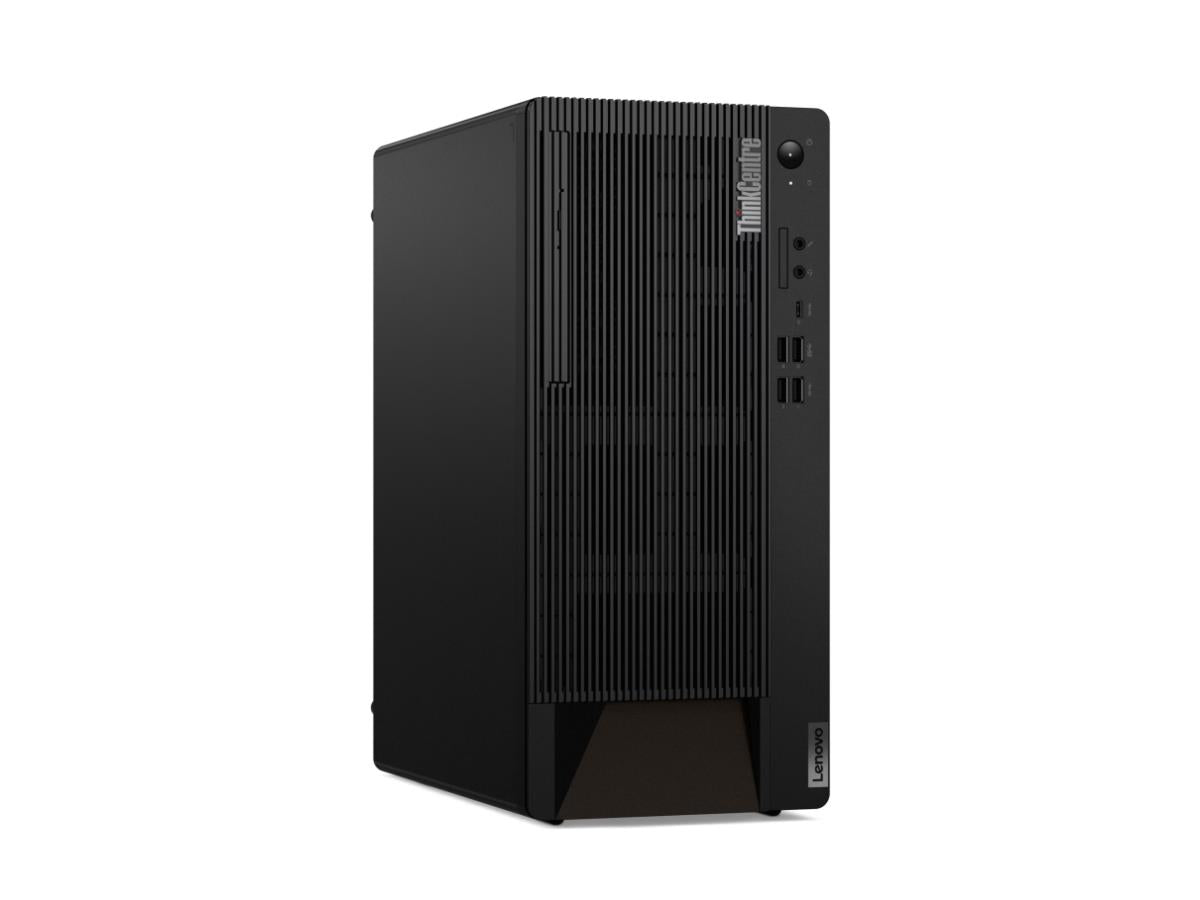

Lenovo ThinkCentre M90t Gen 5 Core i5-14500/32GB/512GB/W11P Desktop
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,369.00
Regular price
Sale price
$1,369.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- 14-core Intel Core i5-14500 processor with up to 5.0 GHz turbo frequency
- 32GB DDR5 memory at 4400 MHz, expandable to 128GB
- 512GB PCIe Gen4 NVMe SSD for high-speed storage
- Integrated Intel UHD Graphics 770 with HDMI and DisplayPort outputs
- Wi-Fi 6 (Intel AX211vPro), Bluetooth 5.3, and Gigabit Ethernet
- Energy-efficient 300W power supply with 90% efficiency and eco certifications
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers strong multitasking and processing power with the 14-core Intel Core i5-14500 CPU
- Offers exceptional memory and storage capabilities with 32GB DDR5 RAM and a 512GB PCIe Gen4 SSD
- Enterprise-ready features including Wi-Fi 6, TPM 2.0, and 3-year onsite support ensure reliability and security
Product Overview
ThinkCentre M90t Gen 5, Intel Core i5-14500 vPro (E-cores up to 3.70GHz, 24MB), W11P64 ENG, 32.0GB, 1x512GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, Slim DVD RAMBO,BT 5.1 or above,IntelAX211vPro, 300W, 3 Year On-site, USB, Traditional, Black-English (US), USB Calliope Mouse (Black)Specifications
General
Memory
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 2 |
| RAM / Total Slots Qty | 4 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 4400 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 128 GB |
Green Product Information
| TCO Certified | TCO Certified 9.0 |
| EPEAT Level | Gold |
| Energy Star Compliant | Yes |
Storage
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+/-RW |
| Storage Controller Type | PCIe 4.0x4 NVMe |
| Hard Drive / Capacity (2nd) | None GB |
I/O
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | English |
Power
| Power / Device Type | Power Supply |
| Power / Provided (W) | 300 Watt |
| Power / Voltage Required | 100-240V, 50-60Hz |
| Efficiency | 90% |
Dimensions&Miscellaneous
| Enclosure Color | Black |
| Width | 6.7 Inch |
| Depth | 11.7 Inch |
| Height | 14.8 Inch |
| Weight | 6.5 Kg |
Primary Information
| System Type | Personal Computer |
| Model | ThinkCentre M90t Gen 5 |
| Cabinet Form Factor | Tower |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 14-Core |
| Processor / Clock Speed | 2.6 GHz |
| Cache Memory Installed Size | 24 MB |
| Max Turbo Frequency | 5 GHz |
| Processor / Number | 14500 |
| Processor / Installed Qty | 1 |
| Cache Memory Installed Size | 24 MB |
| RAM / Installed Qty | 2 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Slots Qty | 4 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 4400 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 128 GB |
| Storage Controller Type | PCIe 4.0x4 NVMe |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+/-RW |
| Audio Output | High Definition (HD) Audio, Realtek ALC897Q-CG codec |
| Storage Controller Type | PCIe 4.0x4 NVMe |
| Memory Card Reader | None |
| Hard Drive / Capacity (2nd) | None GB |
| Data Link Protocol | Gigabit Ethernet, IEEE 802.11 ax, Bluetooth 5.3 |
| Video Output Type | HDMI, Display Port |
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port, HDMI |
| Speakers | 1 x 2W |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard Language | English |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Pro |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 300 Watt |
| Power / Voltage Required | 100-240V, 50-60Hz |
| Efficiency | 90% |
| Interfaces & Connections | 1x DP 1.2 (Flex IO) |

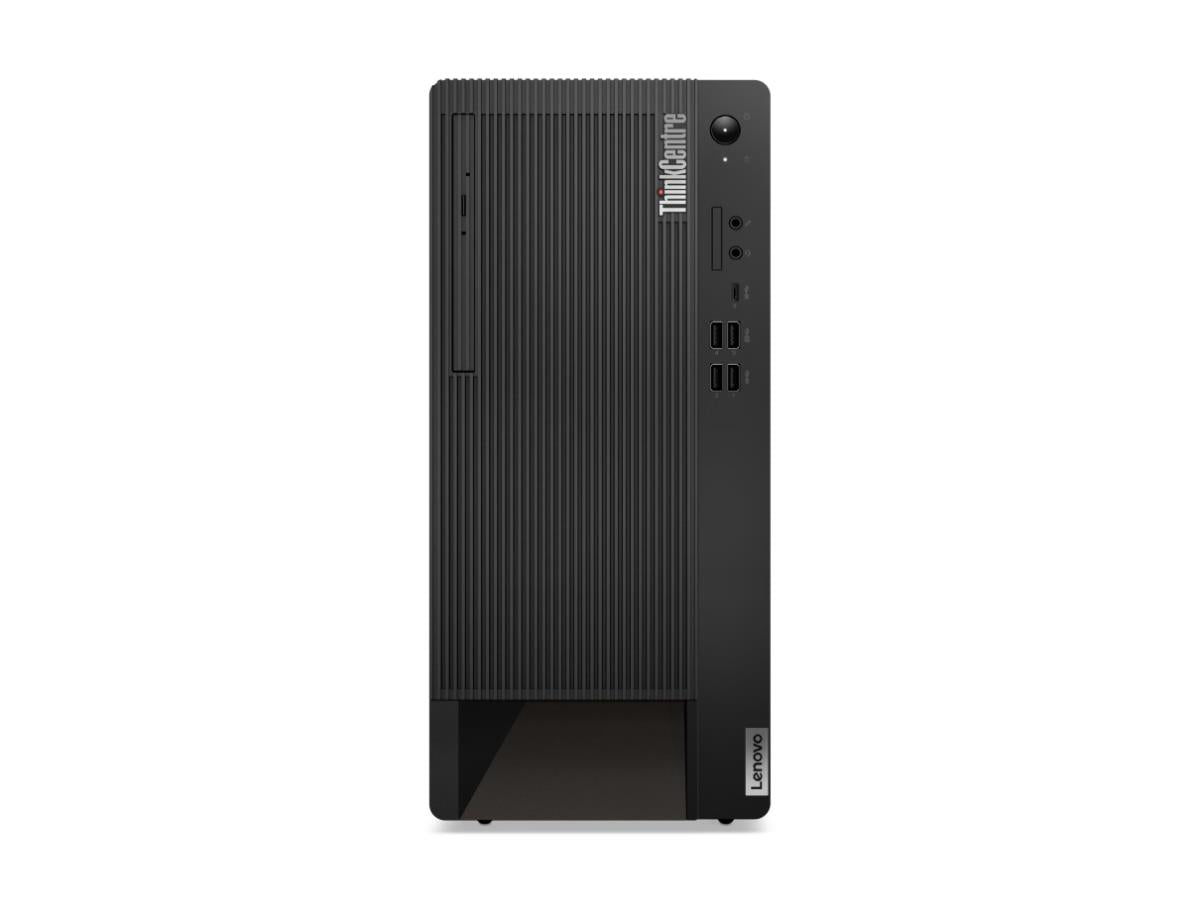

| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) |

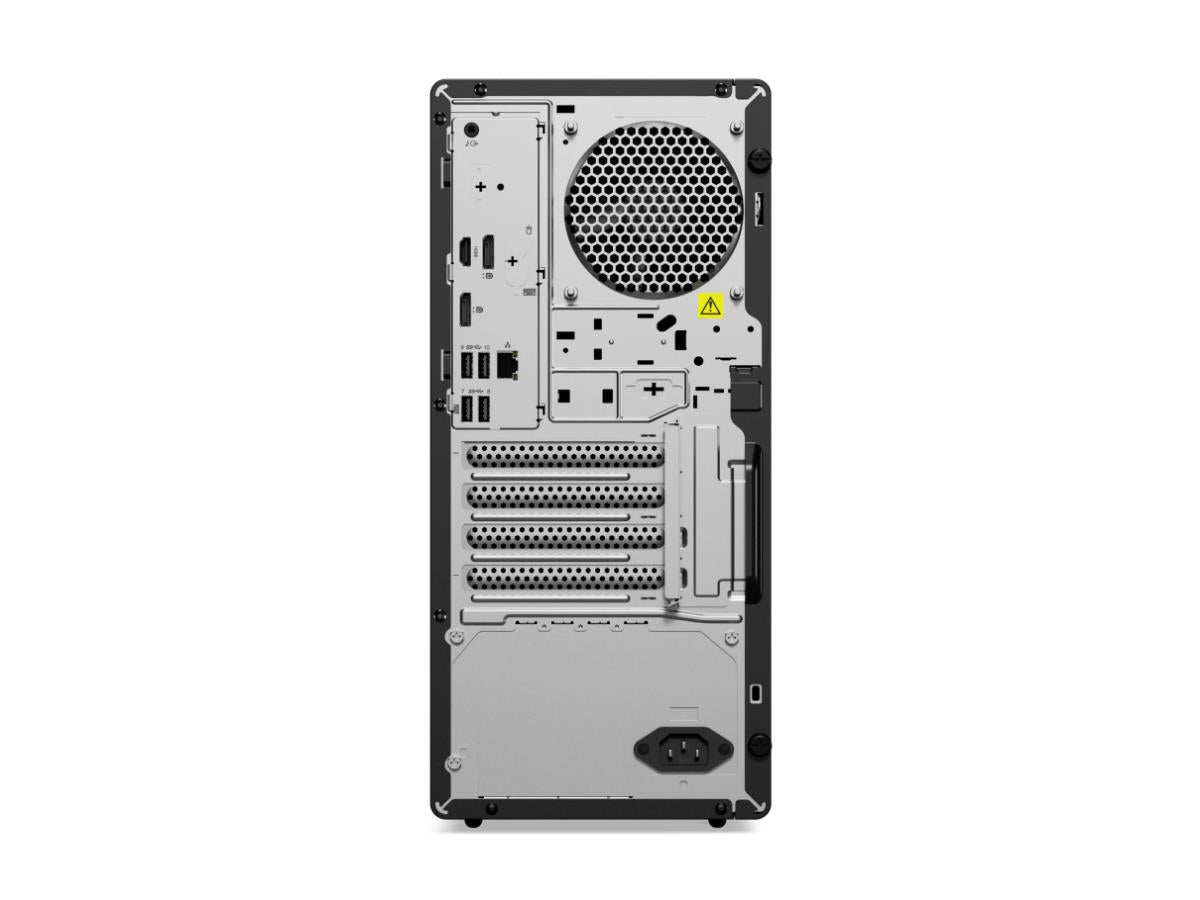

| Rear I/O Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm) |
| Expansion Slots Total (Free) | One PCIe 4.0 x16 (x4 signal), full-height, length 205mm, height 114.55mm One PCIe 4.0 x16, full-height, length 268.5mm, height 114.55mm One PCIe 3.0 x1, full-height, length 205mm, height 114.55mm Three M.2 slots (one for WLAN, two for SSD) |
| Width | 6.7 Inch |
| Depth | 11.7 Inch |
| Height | 14.8 Inch |
| Weight | 6.5 Kg |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified;Physical Locks |
| Features | Environmental Sustainability |
| Stand | None |
Special Feature
| RoHS | Y |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified;Physical Locks |
| COO | MEXICO |
| TAA compliance | Yes |
Processor
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 14-Core |
| Processor / Clock Speed | 2.6 GHz |
| Max Turbo Frequency | 5 GHz |
| Processor / Number | 14500 |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 24 MB |
Expansion
| Interfaces & Connections | 1x DP 1.2 (Flex IO) |
| Expansion Slots Total (Free) | One PCIe 4.0 x16 (x4 signal), full-height, length 205mm, height 114.55mm One PCIe 4.0 x16, full-height, length 268.5mm, height 114.55mm One PCIe 3.0 x1, full-height, length 205mm, height 114.55mm Three M.2 slots (one for WLAN, two for SSD) |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) |
| Rear I/O Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm) |
Networking
| Data Link Protocol | Gigabit Ethernet, IEEE 802.11 ax, Bluetooth 5.3 |
Video
| Video Output Type | HDMI, Display Port |
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port, HDMI |
UNSPSC Code
| UNSPSC Code | 43211508 |
