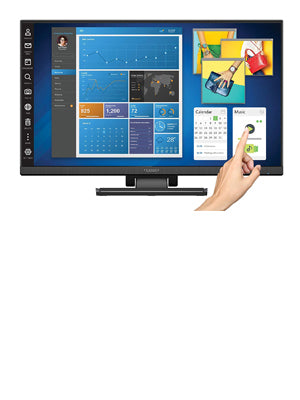

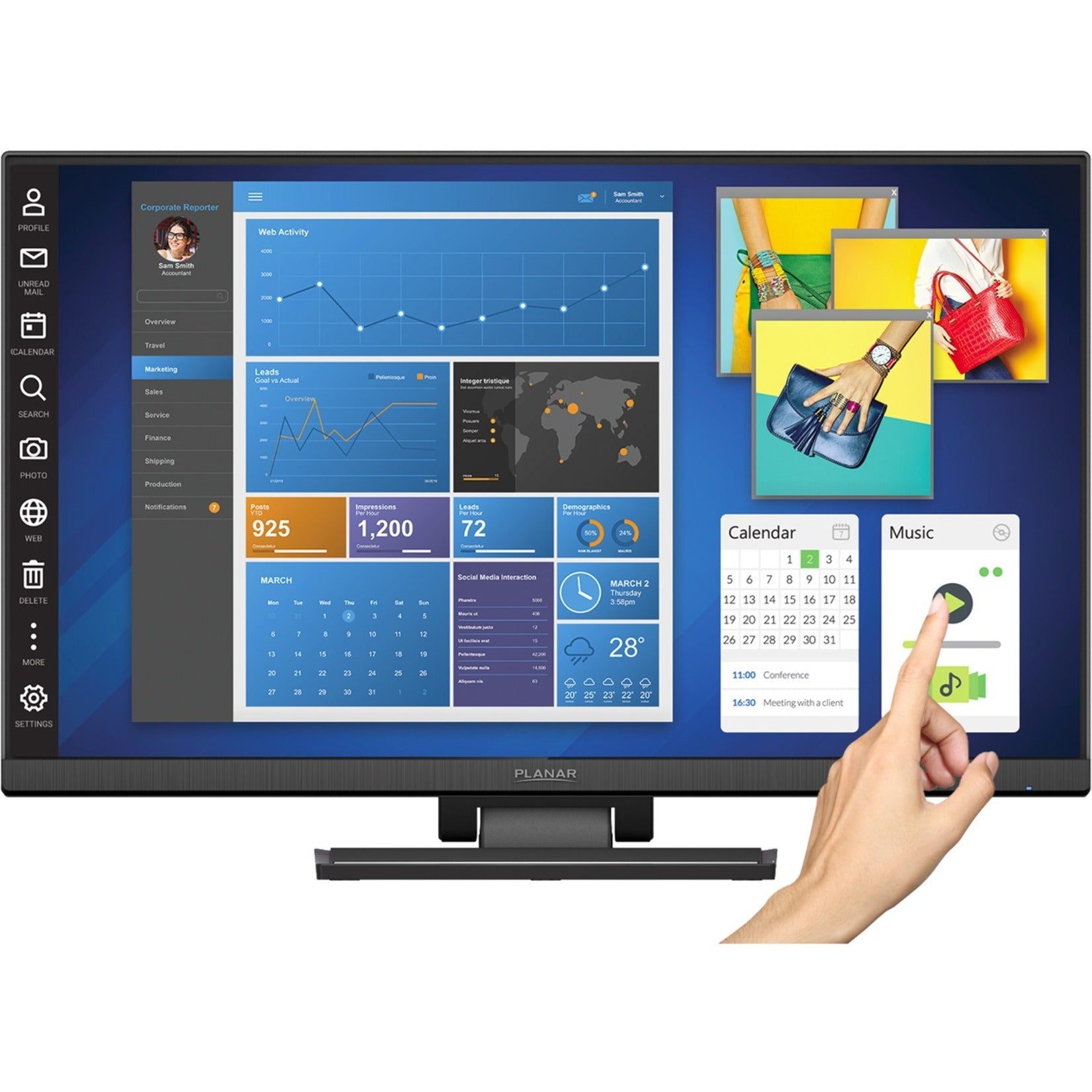

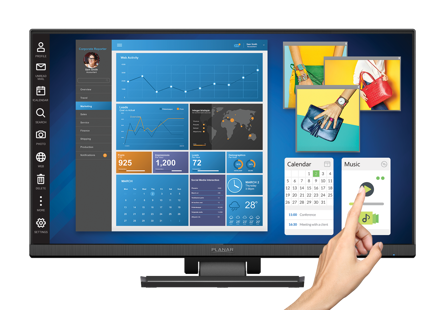

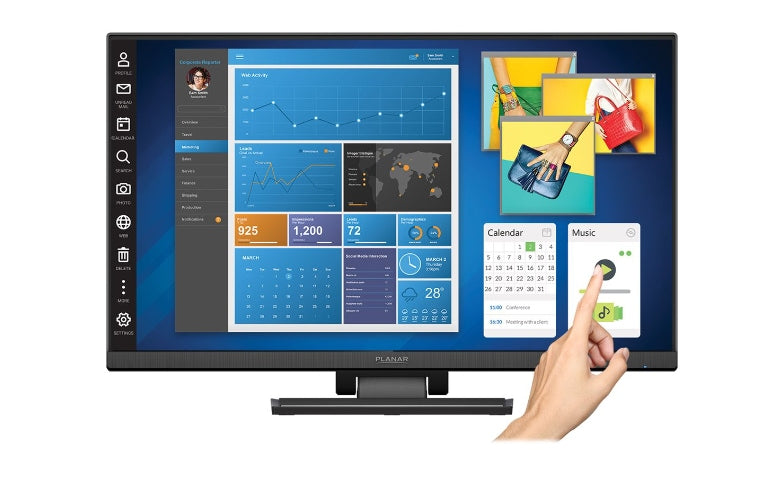

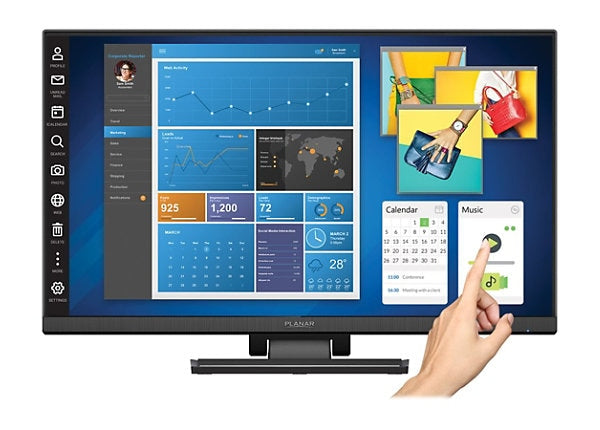

Moniteur tactile LCD LED FHD PLANAR PCT2435 Helium 24 pouces

VENDOR: PLANAR Mfg Part#: 997-9363-00 UPC#: 810689004981
  • PLANAR PCT2435 Helium 24in touchscreen monitor, black, HID cmpl, PCAP multi-touch FHD IPS, LED LCD, USB controller, VGA HDMI USB 3.0 Hub, speakers
  • PLANAR PCT2435 Helium 24in touchscreen monitor, black, HID cmpl, PCAP multi-touch FHD IPS, LED LCD, USB controller, VGA HDMI USB 3.0 Hub, speakers
1 2
La photo est uniquement à des fins d'illustration. Le produit réel peut être différent.
$501.00
$501.00
Promotion Épuisé
MSRP: $502.00
Frais d'expédition calculés à l'étape de paiement.
  • 23.8-inch Full HD (1920 x 1080) LED LCD screen with IPS technology
  • 10-point projected capacitive (PCAP) multi-touch with HID compliance
  • Wide 178° horizontal/vertical viewing angles for optimal visibility
  • Ergonomic stand with -5 to +90 degree tilt for multiple usage positions
  • Integrated 2x 2W speakers, VGA, HDMI, and USB 3.0 hub (1 up, 2 down)
  • VESA mount compatibility and energy-efficient 28W operation
Afficher tous les détails

Principaux avantages

Eye-Insights
  • Enhances interactive workflows with accurate 10-point PCAP multi-touch support and tilt adjustment from -5° to +90°
  • Delivers high-quality visuals and consistent color reproduction thanks to Full HD resolution and IPS panel
  • Ensures versatile connectivity with HDMI, VGA, USB 3.0 hub, and integrated audio, all in a sleek, professional design

Présentation du produit

PCT2435 - Écran LCD - 23,8 pouces - 1920 x 1080 - 250 cd/m² - 1000:1 - 14 Ms - 0,2475 mm - VGA D-Sub 15 broches, HDMI 19 broches, USB (type A vers B), entrée audio 3,5 mm, entrée secteur, hub USB 3.0 (1 vers le haut, 2 vers le bas)

Caractéristiques

Special Feature
COO CHINA
TAA compliance No
RoHS Y
Adjustable Display Tilt -5 to +90 degree

Primary Information
Model PCT2435
Display Type LCD Display
Display Format FHD
Display Technology IPS
Flat / Curved Flat
Max Resolution 1920 x 1080
Display Diagonal Size 23.8 Inch
Display / Color Support 16.7 Million Colors
Display / Response Time 14 Ms
Display / Refresh Rate 75 Hz
Dot Pitch / Pixel Pitch 0.2745 Mm
Image Contrast Ratio 1000:1
Brightness 212 nits
Viewing Angle 178/178
Image Aspect Ratio 16:9
HDR Capable None
Picture Enhancements None
Network Connectivity None
Speakers 2 x 2W
Interfaces VGA D-Sub 15-pin, HDMI 19-pin, USB - Type A to B, 3.5 mm audio in, AC Power In, USB 3.0 Hub (1 up, 2 down)
Video Interfaces VGA; HDMI
HDMI Ports Qty 1
VGA Qty 1
Power Consumption Operational 28 Watt
Power Consumption (Off Mode) <0.5 W
Power / Voltage Required 100-240 VAC, 50/60 Hz
Power Consumption Standby <1 W
Color Black
Adjustable Display Tilt -5 to +90 degree
Stand Yes
VESA Mount Compatible 100 mm
Width 21.3 Inch
Depth 1.9 Inch
Height 14.0 Inch
Weight 6.7 lbs.
Service & Support Type 3-Year Customer First Warranty featuring FREE Advance Replacement
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Humidity Range Operating 10 - 85% RH (non-condensing)

Power
Power / Voltage Required 100-240 VAC, 50/60 Hz
Power Consumption Operational 28 Watt
Power Consumption (Off Mode) <0.5 W

UNSPSC Code
UNSPSC Code 43211902

Display
Brightness 212 nits
Display / Color Support 16.7 Million Colors
Display Diagonal Size 23.8 Inch
Display Type LCD Display
Dot Pitch / Pixel Pitch 0.2745 Mm
Flat / Curved Flat
HDR Capable None
Image Aspect Ratio 16:9
Picture Enhancements None
