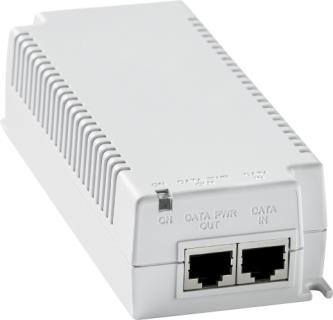

Bosch NPD-6001C-BT 60W IEEE 802.3BT PoE Injector, TAA Compliant

VENDOR: BOSCH Mfg Part#: NPD-6001C-BT UPC#: 800549625067
1 2
Photo is for illustration purposes only. Actual product may be different.
$235.00
$235.00
Sale Sold out
Shipping calculated at checkout.
  • Delivers 60W output power via IEEE 802.3bt Type 3 PoE support
  • Wide input voltage range: 100–240 VAC ±10%, 50–60 Hz
  • Provides DC 55V output through shielded RJ-45 interface
  • Compact, indoor-rated design with wall and surface mounting options
  • TAA compliant and meets multiple safety and EMC regulatory standards
  • MTBF of 240,000 hours ensures long-term operational reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides 60W high-power output supporting advanced PoE devices such as PTZ cameras and access points
  • TAA compliant and certified to a wide range of safety and performance standards for government and enterprise use
  • MTBF of 240,000 hours delivers outstanding reliability in mission-critical environments

Product Overview

60W IEEE 802.3BT SINGLE PORT 100-240 VAC INPUT INDOOR TAA COMPLIANT

Specifications

Product Overview
Product Name Bosch NPD-6001C-BT PoE Injector
Manufacturer Bosch
Manufacturer Part Number NPD-6001C-BT
UPC 800549625067
Type PoE Injector
Form Factor External
Power Capacity 60 Watt
Power Over Ethernet (PoE) IEEE 802.3bt Type 3, IEEE 802.3af
Input Voltage AC 100-240 V
Input Voltage Margin ± 10%
Output Voltage DC 55 V
Max Electric Current 1.5 A
Frequency Required 50 - 60 Hz
MTBF 240,000 hours
Included Accessories AC power cable

Physical & Environmental
Width 2.4 in
Depth 5.9 in
Height 1.5 in
Dimensions (WxDxH) 2.4 in x 5.9 in x 1.5 in
Weight 11.99 oz
Color White
Mounting Options Wall mountable, surface mount
Usage Environment Indoor
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Operating Humidity Up to 95%

Cloud Management & Licensing
Plug and Play Yes

Interfaces
LAN Ports 2 x RJ-45 (1 x Gigabit LAN PoE, 1 x Gigabit LAN)
Input Connectors RJ-45
Output Connectors 1 x RJ-45 - 55 V
Data Transfer Rate 1 Gbps

Compliance & Origin
TAA Compliant Yes
Country of Origin Israel
Certifications IEC/UL/CSA/EN 60950-1 Second Edition
Compliance Standards IEEE 802.3bt Type 3, Plug and Play, VCCI, EN55024, RoHS, WEEE, EN 55032 Class B, FCC-15 (Class B)

Advanced Security Features
Shielded RJ-45 Ports Yes
LED Indicator Yes
