Brother PT-E560BT Industrial Labeling Tool, USB-C/Bluetooth, Auto Cutter

VENDOR: BROTHER Mfg Part#: PTE560BTVP UPC#: 012502674146
1 3
Photo is for illustration purposes only. Actual product may be different.
$238.93
$238.93
Sale Sold out
MSRP: $350.00
Shipping calculated at checkout.
  • Thermal transfer printing with up to 180 dpi resolution
  • Automatic multi-label strip half-cutter for efficient output
  • USB-C 3.0/2.0 and Bluetooth 5.0 connectivity
  • Supports HGe, TZe, HSe, and STe label types from 3.5mm to 24mm
  • 14 built-in fonts and ESC/P, Raster, P-touch Template compatibility
  • Rechargeable lithium-ion battery with AC adapter and carrying case included

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for industrial use, the PT-E560BT withstands harsh environments with its rugged build and wide operating temperature/humidity range.
  • The device’s wireless and wired interfaces (USB-C and Bluetooth 5.0) offer flexible printing from multiple platforms including Windows, macOS, and Android.
  • Boosts productivity through fast print speeds, multi-label half cutter, and onboard keyboard—ideal for field technicians needing rapid label deployment.

Product Overview

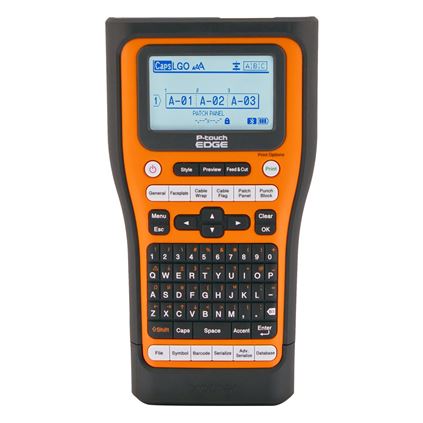

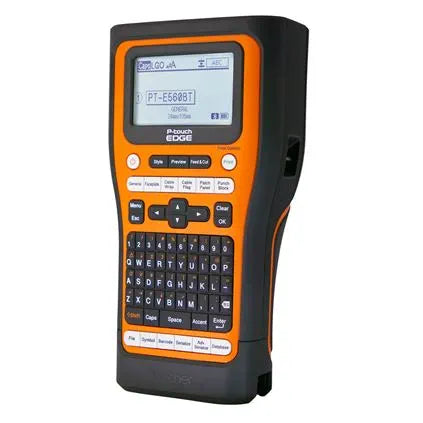

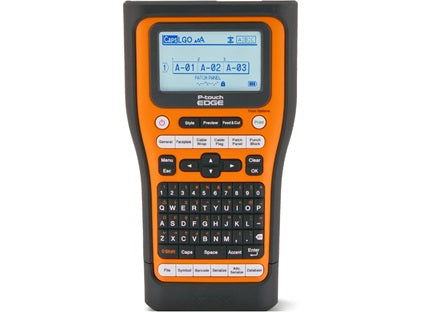

The Brother PT-E560BT is a professional-grade handheld label printer built for industrial environments. It features USB-C and Bluetooth 5.0 connectivity for compatibility with Windows, macOS, and Android devices. Using thermal transfer print technology, it delivers 180 dpi resolution at speeds up to 1.2ips. Media support includes HGe, TZe, HSe, and STe tapes in widths from 3.5mm to 24mm. An automatic multi-label strip half-cutter boosts productivity, while 14 built-in fonts and multiple language simulations (ESC/P, Raster, P-touch Template) provide flexible formatting. The onboard keyboard and rechargeable lithium-ion battery make it a perfect field tool. Housed in a rugged design with hand strap and case, the PT-E560BT operates in 10°C – 35°C and up to 80% humidity, built for durability. Covered by a 2-year limited exchange warranty, this printer ensures a balance of performance and reliability for demanding label applications.

Specifications

Product Overview
Manufacturer Brother
Model P-TOUCH EDGE 560BTVP
Product Type Industrial Label Printer
Form Factor Handheld
Printing Technology Thermal Transfer
Print Speed Up to 1.2ips (30mm/sec)
Maximum Print Resolution 180 dpi
Supported Media Types HGe, TZe, HSe, STe tapes
Supported Media Widths 3.5mm to 24mm
Cutter Type Automatic Multi-Label Strip Half-Cutter
Keyboard Input Integrated QWERTY Keyboard
Font Styles Included 14 built-in fonts
Battery Type Rechargeable Lithium-Ion
Battery Quantity 1
Power Supply AC Adapter, Lithium-Ion Battery
Power Requirements 5VDC, 3A / 9VDC, 3A / 12VDC, 2.5A / 15VDC, 2A / 20VDC, 1.5A
Weight 2.43 lbs.

Wireless Features
Bluetooth Version Bluetooth 5.0
Mobile OS Compatibility Android 10 or later
Wireless Protocols Supported Bluetooth SPP / MFi (iAP)

Compliance & Origin
Country of Origin China
Certifications FCC, CE (inferred from typical regulatory approvals for this class)
Warranty 2-Year Limited Exchange Warranty

Advanced Security Features
Data Interface Security SPP and MFi protocol security for Bluetooth connections

Interfaces
USB Interface USB-C 3.0 (Windows), USB 2.0 (macOS)
Wireless Interface Bluetooth 5.0 (SPP), MFi (iAP)
Connectivity Technology Wired and Wireless

Physical & Environmental
Width 132 mm
Depth 244 mm
Height 80 mm
Operating Temperature Range 10°C to 35°C
Operating Humidity Range 20% to 80% non-condensing

Cloud Management & Licensing
Compatible Software P-touch Editor, Brother iPrint&Label (Mobile)
Supported OS Windows 11/10 (32/64-bit), macOS, Android 10 or later
Cloud Printing/Labeling Support Via mobile app and software integration
