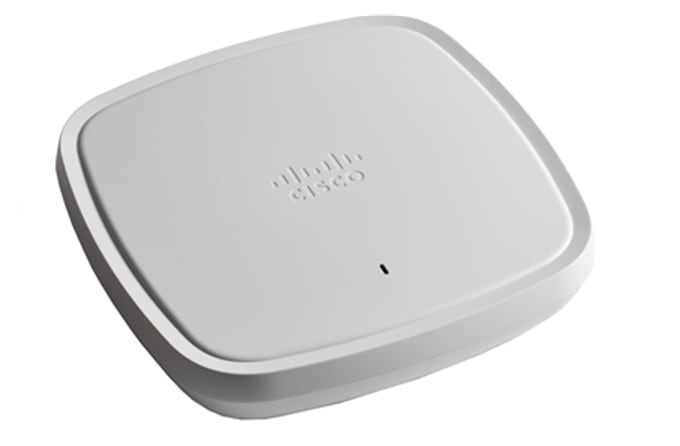

Cisco Catalyst 9130AXE Access Point, Wi-Fi 6, External Antennas

VENDOR: CISCO Mfg Part#: C9130AXE-B UPC#: 889728246088
  • CISCO CATALYST 9130AX SERIES
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,903.36
$1,903.36
Sale Sold out
MSRP: $2,791.61
Shipping calculated at checkout.
  • Wi-Fi 6 (802.11ax) with BSS coloring and OFDMA support
  • Dual-band frequency operation at 2.4 GHz and 5 GHz
  • 8x8 and 4x4 MU-MIMO radio architecture
  • 2048 MB DRAM and 1024 MB flash storage
  • Supports Wi-Fi, Bluetooth 5.0, and Gigabit Ethernet
  • Three networking ports with Ethernet transport protocol

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Future-proof investment with support for 802.11ax and legacy Wi-Fi standards
  • High-efficiency wireless performance using MU-MIMO and OFDMA technologies
  • Reliable deployment flexibility with external antennas and TAA compliance

Product Overview

The Cisco Catalyst 9130AXE Access Point is designed for high-density, high-performance wireless deployments in demanding indoor environments. Leveraging Wi-Fi 6 (802.11ax), it supports advanced features such as 8x8 and 4x4 MU-MIMO, BSS coloring, and uplink/downlink OFDMA, enhancing user capacity and network efficiency. Dual-frequency operation across 2.4 GHz and 5 GHz bands ensures flexible deployment and improved range.

Built with enterprise-grade reliability, the 9130AXE includes 2048 MB DRAM and 1024 MB flash, with three Gigabit Ethernet ports. The external antenna configuration allows for deployment customization, while Bluetooth 5.0 offers IoT and asset tracking support. Certified for TAA compliance and backed by a limited lifetime warranty, it is a scalable and sustainable solution for evolving network needs.

Specifications

Product Overview
Product Type Access Point
Model C9130AXE
Form Factor Ceiling mountable or wall mountable
Weight 2.40 lbs (1.1 kg)
Environment Indoor
Power Options 802.3at PoE+, Cisco Universal PoE (UPOE)
RAM 2048 MB
Flash Memory 1024 MB
Warranty Limited lifetime warranty

Wireless Features
Wi-Fi Standard Wi-Fi 6 (802.11ax)
Wireless Radio Count Dual
Supported Protocols 802.11a/b/g/n/ac/ax
Frequency Bands 2.4 GHz and 5 GHz
MIMO 8x8 MU-MIMO (5 GHz), 4x4 MU-MIMO (2.4 GHz)
Max Data Rate (5 GHz) 4.8 Gbps
Max Data Rate (2.4 GHz) 1.15 Gbps
OFDMA Support Uplink and Downlink OFDMA
BSS Coloring Supported
Antenna Configuration External antennas (dual-band, sold separately)
Bluetooth Bluetooth 5.0 Low Energy (BLE)

Compliance & Origin
Country of Origin China / Mexico
TAA Compliant Yes
Certifications UL 60950-1, FCC Part 15.247, RoHS compliant

Advanced Security Features
Encryption Support WPA3, WPA2, AES
Rogue Access Point Detection Yes
Wireless Intrusion Prevention System (wIPS) Supported
Secure Boot Yes
MAC Address Filtering Supported
Client Isolation Yes

Interfaces
Ethernet Ports 3 x 10/100/1000 Mbps Ethernet (RJ-45)
Uplink Interface 1 x Multigigabit (2.5G) Ethernet port
Console Port 1 x RJ45 console port
USB Interface 1 x USB 2.0 Type A
Data Transfer Rate 5 Gbps
Data Link Protocols Gigabit Ethernet, Wi-Fi, Bluetooth 5.0
Transport Protocol Gigabit Ethernet

Physical & Environmental
Width 9.17 in (233 mm)
Depth 9.17 in (233 mm)
Height 1.58 in (40.1 mm)
Operating Temperature 32°F to 122°F (0°C to 50°C)
Storage Temperature -22°F to 158°F (-30°C to 70°C)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 10% to 90% (non-condensing)

Cloud Management & Licensing
Management Options Cisco DNA Center, Cisco Embedded Wireless Controller (EWC), CLI, Web UI
Licensing Model Cisco DNA Licensing (Essential, Advantage, Premier)
Software Features Cisco CleanAir Pro, Intelligent Capture, Flexible Radio Assignment, Application Visibility and Control (AVC)
