Cisco Catalyst 9200CX 8-Port 1G PoE+ Switch, 240W, Network Advantage

VENDOR: CISCO Mfg Part#: C9200CX-8P-2X2G-A UPC#: 889728447157
  • Catalyst 9000 Compact Switch 8 port PoE+, 240W, Adv
1 1

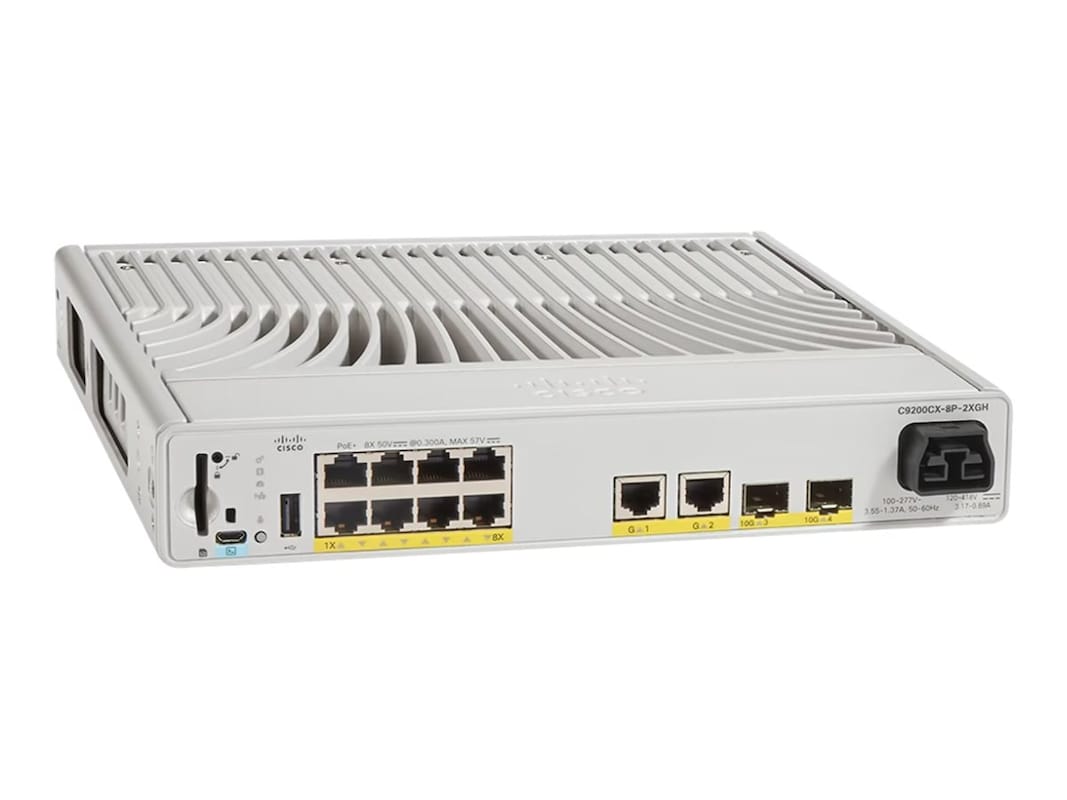

Photo is for illustration purposes only. Actual product may be different.
$1,618.51
$1,618.51
Sale Sold out
MSRP: $2,373.81
Shipping calculated at checkout.
  • 8x 1G PoE+ ports with 240W total PoE power delivery
  • 2x 10G SFP+ and 2x 1G copper fixed uplink ports for high-speed backbone connectivity
  • Layer 2 & Layer 3 support with routing protocols: IPv4, IPv6, RIPv1/v2, OSPFv3
  • Robust remote management via SNMP, Syslog, and DHCP
  • 4 GB RAM and 8 GB flash memory for smooth and scalable operations
  • IEEE 802.1x, 802.3bt, and AES encryption for secure network access

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for high-performance enterprise networking with 10Gbps data rate and 240W PoE+ support
  • Robust manageability with SNMP, Syslog, DHCP, and Cisco IOS XE ensures secure and flexible deployment
  • Backed by Cisco’s limited lifetime warranty and high MTBF of 736,000 hours, reducing long-term support costs

Product Overview

The Cisco Catalyst 9200CX C9200CX-8P-2X2G-A is a compact yet powerful Layer 2 and Layer 3 managed switch purpose-built for enterprise edge deployments requiring high throughput, advanced security, and flexible networking. Designed to support PoE+ devices, it comes equipped with 8-port 1G PoE+ interfaces and a total PoE power budget of 240W, serving IP phones, cameras, and wireless access points efficiently. Enhanced with 2x10G SFP+ and 2x1G copper fixed uplinks, it ensures fast and scalable backbone connectivity suitable for evolving business demands.

This 1U wired switch features robust enterprise-grade capabilities including support for IPv4/IPv6, RIPv1/v2, and OSPFv3 routing protocols, offering advanced network segmentation and resilience. With a MAC address table supporting 32,000 entries and jumbo frame support up to 9198 bytes, the 9200CX provides traffic optimization and effective packet forwarding. The device also integrates remote management protocols like SNMP, Syslog, and DHCP, backed by advanced security mechanisms with AES encryption and compliance with IEEE standards.

Built to endure, it boasts a Mean Time Between Failures (MTBF) of 736,000 hours and functions within an operating range of -5°C to 45°C. Plug-and-play enabled with Cisco IOS XE and Smart Licensing, the 9200CX switch streamlines deployment and operations. With 4 GB RAM and 8 GB flash memory, alongside a limited lifetime warranty, it’s a solid investment for secure and high-availability networking infrastructures.

Specifications

Product Overview
Product Type Managed Switch
Model C9200CX-8P-2X2G-A
Series Catalyst 9200CX
Form Factor 1U
Connectivity Technology Wired
Media Layer Supported Layer 2 and Layer 3
Routing Protocols Supported IPv4, IPv6, RIPv1, RIPv2, OSPFv3
RAM 4 GB
Flash Memory 8 GB
MTBF 736,000 hours
Power Supply Type Internal
Input Voltage 100 to 240 VAC
Input Frequency 50 to 60 Hz
Power Consumption (Max) 315W
PoE Power Budget 240W
Weight 6.6 lbs.

Cloud Management & Licensing
Network Operating System Cisco IOS XE
Management Protocols SNMP, Syslog, DHCP
Plug and Play (PnP) Enabled
Licensing Smart Licensing
Software License Network Advantage

Physical & Environmental
Width 10.6 in
Depth 9.6 in
Height 1.73 in
Min Operating Temperature -5°C
Max Operating Temperature 45°C (up to 1500m altitude)
Min Storage Temperature -40°C
Max Storage Temperature 70°C

Interfaces
Total Number of Ports 12
10/100/1000 PoE+ Ports 8
1G Copper Uplink Ports 2
10G SFP+ Uplink Ports 2
SFP+ Ports 2
Data Transfer Rate 10 Gbps
Data Link Protocol Gigabit Ethernet
Jumbo Frame Support 9198 bytes
MAC Address Table Size 32,000 entries
Status Indicators LED indicators

Advanced Security Features
Encryption Algorithms AES
IEEE Security Standards 802.1x

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Compliance Standards IEEE 802.1s, 802.1w, 802.1x, 802.3bt
Warranty Limited Lifetime Warranty
