| Product Type | Dual Band Patch Antenna |
| Form Factor | Panel Mount |
| Application | Indoor/Outdoor |
| Frequency Bands Supported | 2.4 GHz and 5 GHz |
| Antenna Gain (2.4 GHz) | 7.8 dBi |
| Antenna Gain (5 GHz) | 10.0 dBi |
| Polarization | Linear, Vertical |
| Mounting Type | Wall or Pole Mount |
| Purpose | Directional Coverage Enhancement |
| Power Handling Capability | 2W max |

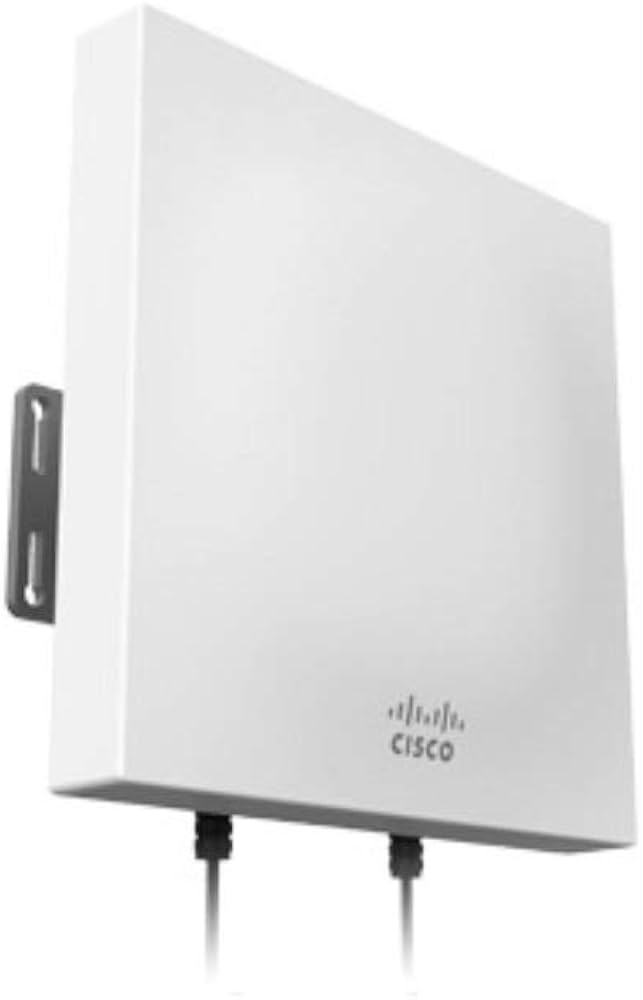

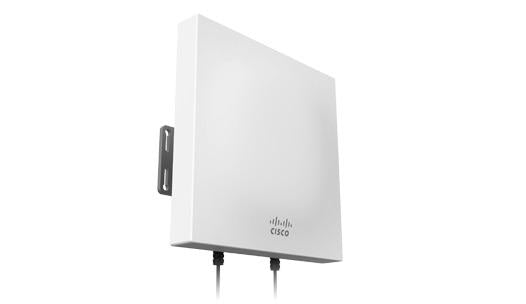

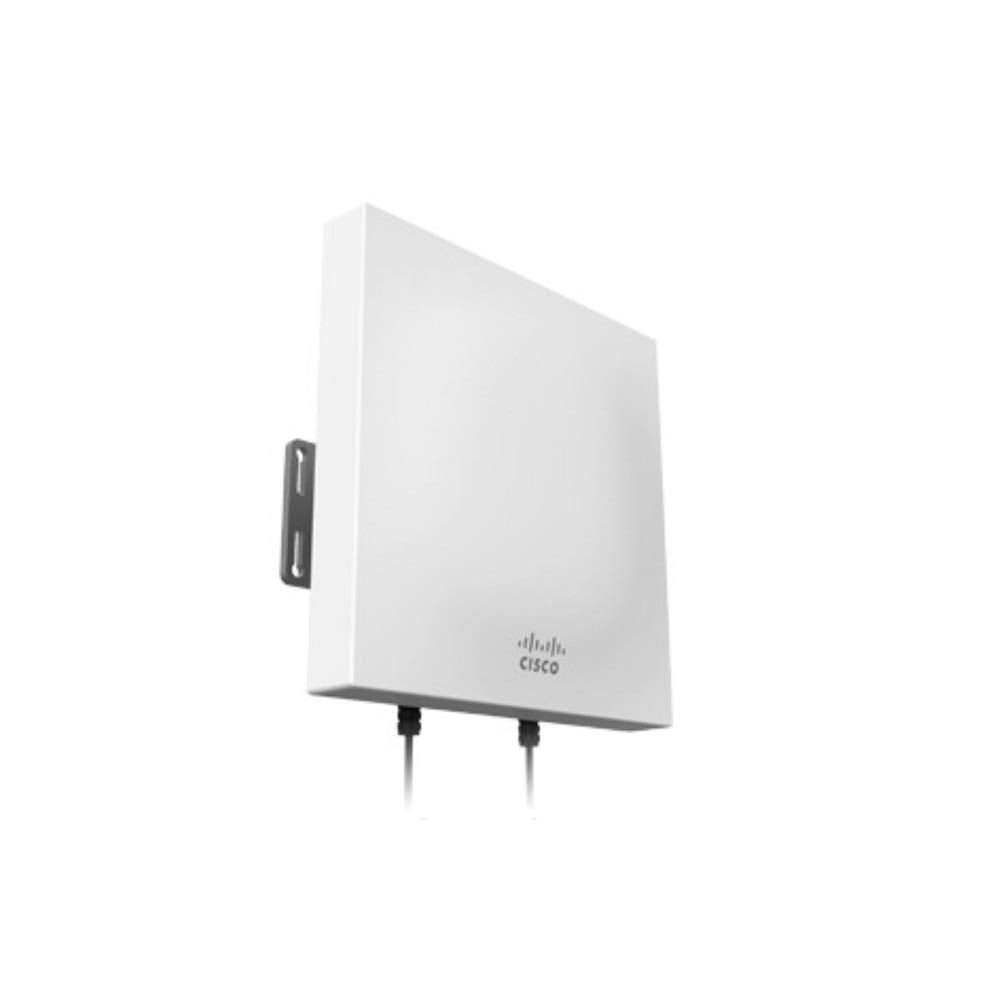

CISCO Meraki Dual Band Patch Antenna MA-ANT-25
Photo is for illustration purposes only. Actual product may be different.
Regular price
$281.48
Regular price
Sale price
$281.48
Unit price
per
MSRP: $412.82
Shipping calculated at checkout.
Couldn't load pickup availability
- Dual-band directional patch antenna supporting Meraki access points
- Manufactured in Taiwan for sourcing transparency
- Complies with Trade Agreements Act (TAA) standards
- Designed to focus wireless coverage for improved directionality
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Ideal for regulated or TAA-compliant networking environments requiring trusted sourcing
- Enhanced directionality improves signal efficiency in targeted coverage applications
- Designed by CISCO for seamless integration with Meraki wireless infrastructure
Product Overview
The CISCO Meraki Dual Band Patch Antenna (MA-ANT-25) is designed to provide focused wireless coverage in targeted environments. Made in Taiwan and TAA compliant, it meets essential criteria for use in federally regulated sectors. This dual-band antenna enhances the signal range and directionality of compatible Meraki access points, offering optimized performance where omnidirectional antennas may fall short. With its application in enterprise and government infrastructure, users benefit from compliance and strategic network performance enhancements, although specific technical performance metrics are not provided.
Specifications
Product Overview
Wireless Features
| Supported Frequency Range (2.4 GHz) | 2400 MHz – 2500 MHz |
| Supported Frequency Range (5 GHz) | 5150 MHz – 5850 MHz |
| Horizontal Beamwidth (2.4 GHz) | 66° |
| Vertical Beamwidth (2.4 GHz) | 35° |
| Horizontal Beamwidth (5 GHz) | 60° |
| Vertical Beamwidth (5 GHz) | 30° |
| MIMO Support | 2x2 MIMO |
| VSWR | < 2:1 across operating range |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Regulatory Approvals | FCC Part 15 compliant |
| RoHS Compliance | Yes |
| REACH Compliance | Yes |
Interfaces
| Connector Type | RP-TNC Plug (Male) |
| Connector Quantity | 2 |
| Interface Compatibility | Compatible with Meraki MR Series Access Points with RP-TNC Connectors |
| Antenna Type | Directional Patch Antenna |
Physical & Environmental
| Dimensions | 205 mm x 180 mm x 45 mm (8.1 in x 7.1 in x 1.8 in) |
| Weight | 0.8 kg (1.8 lbs) |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Enclosure Rating | IP67 |
| Wind Survivability | 165 mph (265 km/h) |
| Mounting Accessories Included | Wall & Pole Mount Kit |
