Cisco Meraki MR56 Wi-Fi 6 Indoor Access Point

VENDOR: CISCO Mfg Part#: MR56-HW UPC#: 810979017028
  • Meraki MR56 Wi-Fi 6 Indoor AP
1 1

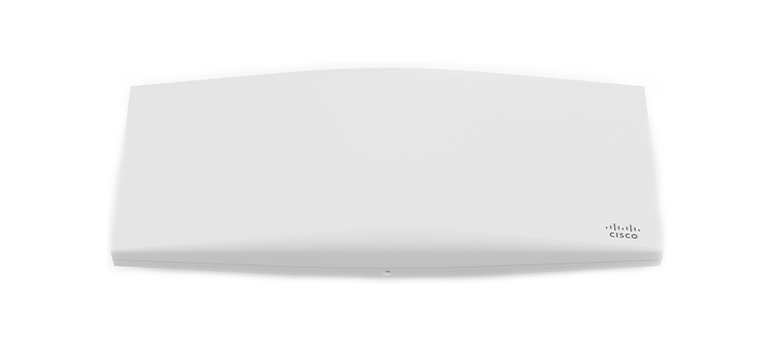

Photo is for illustration purposes only. Actual product may be different.
$1,609.00
$1,609.00
Sale Sold out
MSRP: $2,359.86
Shipping calculated at checkout.
  • Supports 802.11a/b/g/n/ac/ax Wi-Fi standards for broad device compatibility
  • Dual-radio operation with 2.4GHz and 5GHz frequency bands
  • 4x4 MIMO on 2.4GHz and 8x8 MIMO on 5GHz for high throughput and efficient spectrum usage
  • Data transfer rate up to 5 Gbps with Gigabit Ethernet connectivity
  • Centralized VLAN management support for streamlined configuration
  • Lifetime hardware warranty and TAA compliance for enhanced deployment assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-performance Wi-Fi 6 capabilities with advanced MU-MIMO deliver exceptional speed and efficiency in high-density indoor networks
  • Robust feature set including dual-radio support and VLAN management ensures flexible, scalable deployments for enterprise environments
  • Backed by a lifetime hardware warranty and TAA compliance, offering strong ROI and government-sector readiness

Product Overview

The Cisco Meraki MR56 Wireless Access Point is a premium dual-band Wi-Fi 6 (802.11ax) device purpose-built for demanding indoor environments. Equipped with powerful 4x4:4 MIMO on 2.4GHz and 8x8:8 MU-MIMO on 5GHz, the MR56 offers exceptional throughput and efficiency. Supporting 5 Gbps data transfer rates and centralized VLAN management, it integrates smoothly into enterprise-grade networking. With a Gigabit Ethernet port, 30W max power draw, and a compact form, it is ideal for high-performance deployments. RoHS and TAA compliance along with a lifetime hardware warranty make it a secure, long-term investment.

Specifications

Product Overview
Product Type Access Point
Model MR56
Form Factor Wall or ceiling mountable
Environment Indoor
Weight 1.47 kg (3.26 lbs)
Power Requirements 802.3at PoE+ or 802.3bt PoE power
Max Power Consumption 30 Watt
Service & Support Type Lifetime hardware warranty

Wireless Features
Wi-Fi Standard 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Frequency Band 2.4 GHz; 5 GHz
MIMO Configuration (2.4GHz) 4x4:4 MU-MIMO
MIMO Configuration (5GHz) 8x8:8 MU-MIMO
Maximum Data Rate 5.9 Gbps aggregate
Antenna Type Integrated omnidirectional
Modulation OFDMA and 1024-QAM
Spatial Streams 12 total
Band Steering Supported
Beamforming Supported
Wireless Security WPA3, WPA2-Enterprise, WPA2-PSK

Compliance & Origin
Country of Origin TAIWAN
RoHS Compliance Yes
TAA Compliance Yes
Certifications FCC, IC, CE, UL2043, EN 60601-1-2

Advanced Security Features
Intrusion Detection System (IDS) Air Marshal (spectrum analysis)
Firewall Capabilities Layer 3 - 7 application firewall
Traffic Shaping Supported
Content Filtering Supported via cloud policies
Rogue AP Detection Supported

Interfaces
Interface Type Gigabit Ethernet
Port Count 1
Data Transfer Rate 5 Gbps
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Ethernet Port Type 1 x 2.5G Ethernet (RJ-45)
Management Interface Web-based Meraki Dashboard

Physical & Environmental
Width 12.83 Inch
Depth 5.54 Inch
Height 1.76 Inch
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 5% - 95% (non-condensing)

Cloud Management & Licensing
Management Interface Cisco Meraki Cloud Dashboard
Included License Sold separately (Enterprise or Advanced)
Zero-Touch Deployment Supported
Firmware Updates Automatic via cloud
