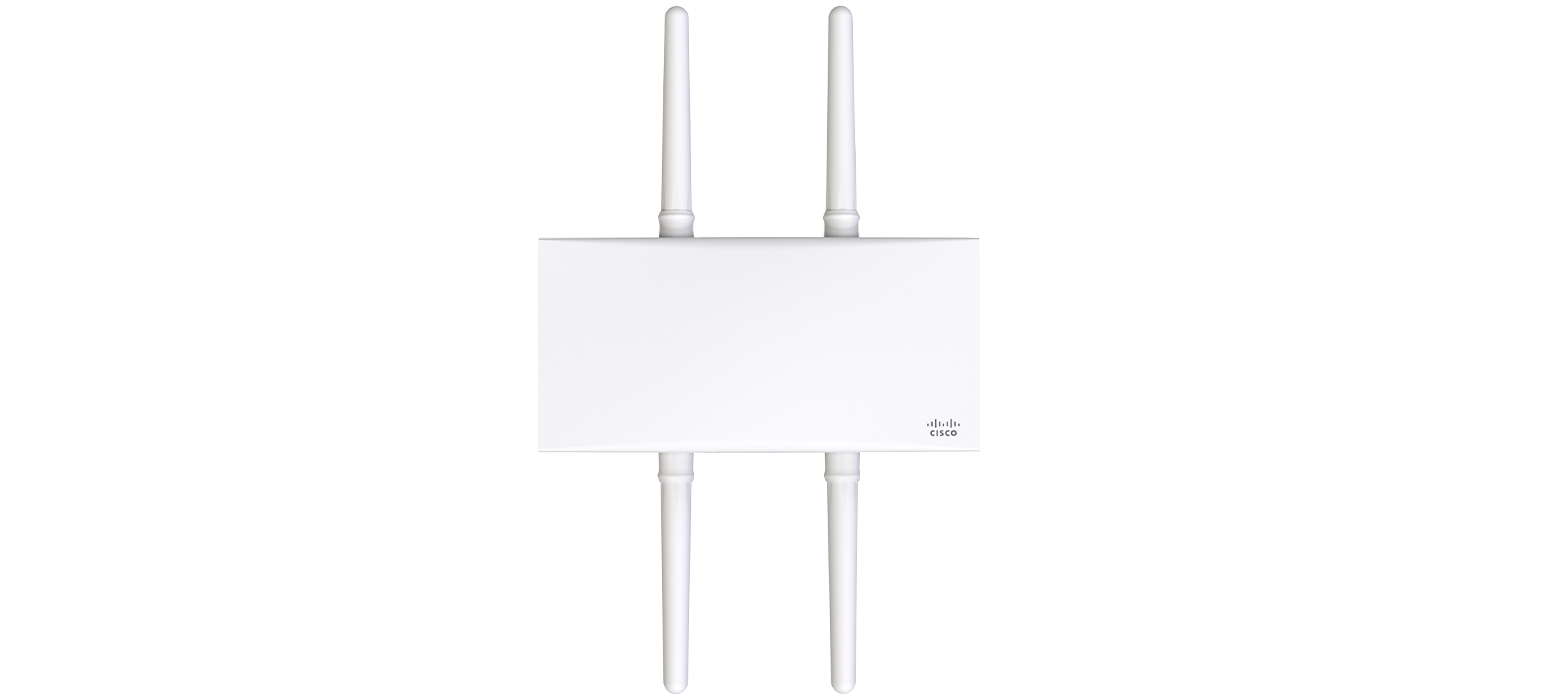

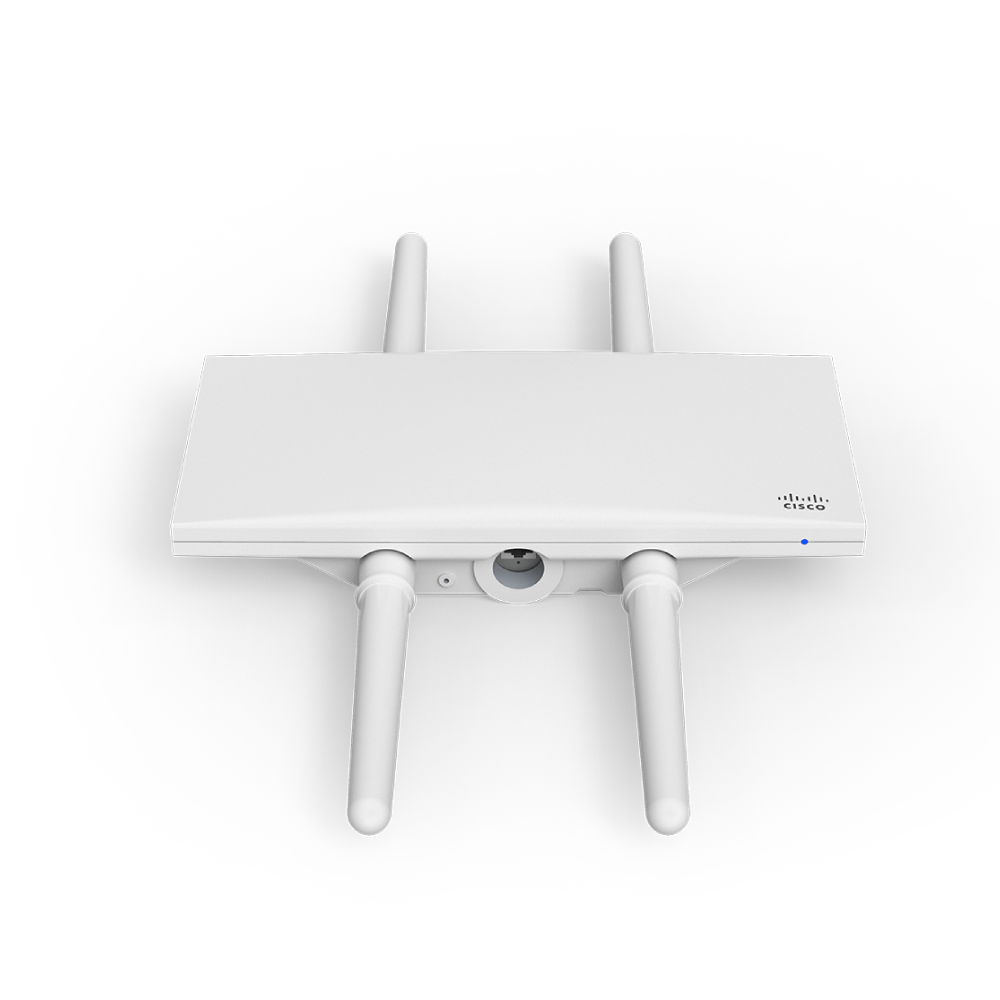

Cisco Meraki MR76 Wi-Fi 6 Outdoor Access Point

VENDOR: CISCO Mfg Part#: MR76-HW UPC#: 810979017349
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,092.04
$1,092.04
Sale Sold out
MSRP: $2,081.88
Shipping calculated at checkout.
  • 802.11a/b/g/n/ac/ax wireless support for broad compatibility
  • 2x2:2 MU-MIMO for efficient client communication
  • Gigabit Ethernet (RJ45) uplink port for fast wired connection
  • TAA compliant for use in government and regulated sectors
  • Manufactured in Taiwan for regional sourcing compliance
  • Includes 1-year hardware warranty with advanced replacement

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for outdoor enterprise, campus, or industrial deployments needing weather-resistant Wi-Fi 6 coverage
  • TAA-compliant designation makes it suitable for government and public sector projects
  • Cloud-managed Meraki architecture enhances security, scalability, and ease of remote administration

Product Overview

The Cisco Meraki MR76 is a high-performance Wi‑Fi 6 outdoor access point supporting 802.11a/b/g/n/ac/ax standards and 2x2:2 MU-MIMO capabilities. It features a 10/100/1000BASE-T Ethernet port for uplink and is TAA-compliant with origin in Taiwan. Designed for rugged environments, it brings cloud-managed enterprise connectivity to a wide range of outdoor use cases with a 1-year advanced replacement warranty.

Specifications

Product Overview
Product Type Outdoor Wi-Fi 6 Cloud-Managed Access Point
Model MR76
Form Factor Wall or pole mount (outdoor-rated)
Wi‑Fi Standards 802.11a/b/g/n/ac/ax
MIMO Configuration 2x2:2 MU-MIMO
Maximum Data Rate 1.7 Gbps aggregate
Power Requirements 802.3af Power over Ethernet (PoE)
Power Consumption Up to 11.5W
Mounting Options Wall, ceiling, or pole mount (mounting kit included)
Included Warranty 1-year advanced replacement

Wireless Features
2.4 GHz Radio 2x2:2 MU-MIMO, 400 Mbps maximum PHY rate
5 GHz Radio 2x2:2 MU-MIMO, 1.2 Gbps maximum PHY rate
Number of Radios 2 concurrent radios (dual-band)
Antenna Type Four external omnidirectional antennas (RP-TNC connectors)
Antenna Gain 5 dBi (2.4 GHz), 7 dBi (5 GHz)
Maximum Clients Supported Approximately 100+ clients per radio
Channel Bonding 20/40 MHz on 2.4 GHz, 20/40/80 MHz on 5 GHz
Beamforming Supported (802.11ac/ax)
Wi-Fi Security Standards WPA3, WPA2-Enterprise with 802.1X, WPA2-PSK

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, IC, CE, RoHS, UL 60950-1, EN 55032 Class B

Advanced Security Features
Wireless Intrusion Detection WIDS/WIPS supported
Firewall Per SSID Layer 3/7 firewall rules
Content Filtering Application and URL category-based
Rogue AP Detection Supported
Traffic Shaping Per-application bandwidth control

Interfaces
Ethernet Ports 1 x 10/100/1000BASE-T (RJ-45), PoE-enabled
Management Port 1 x MR cable gland connector for Ethernet
Power Input Interface 802.3af (PoE) via Ethernet port
Data Transfer Rate 1 Gbps per Ethernet port

Physical & Environmental
Dimensions (W x D x H) 8.66 x 6.69 x 1.34 inches (220 x 170 x 34 mm)
Weight 1.76 lbs (0.8 kg)
Enclosure Rating IP67 (dust and waterproof)
Operating Temperature Range -40°C to 65°C (-40°F to 149°F)
Operating Humidity 5% to 95% non-condensing
Storage Temperature -40°C to 70°C (-40°F to 158°F)

Cloud Management & Licensing
Cloud Management Platform Cisco Meraki Dashboard
License Requirement Cisco Meraki Enterprise License (sold separately)
Zero-Touch Provisioning Supported via Meraki Dashboard
Included Cloud Features Monitoring, remote troubleshooting, RF optimization, real-time alerts
