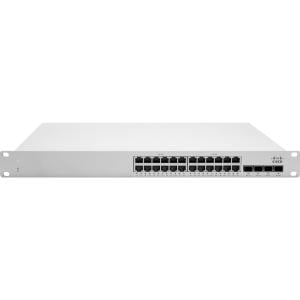

Cisco Meraki MS225-24P 24-Port Gigabit PoE+ Cloud-Managed Switch

VENDOR: CISCO Mfg Part#: MS225-24P-HW UPC#: 810979012825
  • MERAKI MS225-24P L2 STCK CLD-MNGD 24X GI
1 1
Photo is for illustration purposes only. Actual product may be different.
$3,165.06
$3,165.06
Sale Sold out
MSRP: $5,608.65
Shipping calculated at checkout.
  • 24x Gigabit Ethernet ports with 370W PoE+ power budget
  • 4x SFP+ uplinks for high-speed connectivity
  • Cloud management via Cisco Meraki Dashboard
  • RADIUS authentication and IEEE 802.1x compliance
  • Supports SNMP, Syslog, and DHCP management protocols
  • Lifetime hardware warranty with TAA compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Cloud-based management simplifies network configuration and reduces administrative overhead.
  • Supports high-density PoE deployments with 370W budget for devices like IP phones and APs.
  • Rugged and reliable with lifetime warranty and extended operating temperature range (-5°C to 50°C).

Product Overview

The Cisco Meraki MS225-24P is a high-performance Layer 2 switch engineered for dependable enterprise-class networking. Designed in a compact 1U form factor, it offers 24 Gigabit Ethernet ports and an additional 4 SFP+ uplinks, supporting a data transfer rate of up to 10 Gbps. The switch delivers 370W of PoE power, accommodating a wide range of connected devices such as IP cameras, phones, and wireless access points, making it ideal for dynamic business environments.

This fully cloud-managed model supports remote configuration and monitoring through the intuitive Cisco Meraki Dashboard. Network administration is streamlined with features including SNMP, Syslog, and DHCP support, along with robust RADIUS authentication. Compliant with industry standards like IEEE 802.1x and equipped with activity indicators for real-time diagnostics, the MS225-24P ensures both performance and security.

Built for reliability and longevity, the switch operates in environments ranging from -5 to 50 degrees Celsius and includes a lifetime hardware warranty. Additional benefits such as TAA compliance and a compact footprint enhance its appeal for government and enterprise buyers. The Cisco Meraki MS225-24P is a powerful foundation for scalable, secure, and centrally managed IT networks.

Specifications

Product Overview
Product Type Cloud-Managed Layer 2 Switch
Model MS225-24P-HW
Form Factor 1U
Weight 3.71 Kg
Power Requirements Internal Power Supply
Max Power Consumption 448 Watt
PoE Power Budget 370W
Mounting Type Rack-mountable
Media Layer Supported Layer 2
Product Family Meraki MS225

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin TAIWAN
TAA Compliant Yes
Regulatory Standards IEEE 802.1x
Certifications FCC, IC, CE, UL, RoHS

Advanced Security Features
Authentication Methods RADIUS, IEEE 802.1x
Network Access Control Port-based 802.1x
Security Monitoring Activity Indicators, Syslog
MAC Whitelisting Yes
DHCP Snooping Yes
Loop Detection Yes
Storm Control Yes

Interfaces
Total Ethernet Ports 24
SFP+ Uplink Ports 4
Interface Types RJ45; SFP+; Dedicated Management Port
Port Speeds 1 Gbps Ethernet; 10 Gbps SFP+
PoE Support 802.3af/at PoE+
PoE Capable Ports 24
Data Transfer Rate 10 Gbps
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps

Physical & Environmental
Width 19 Inch
Depth 9.05 Inch
Height 1.72 Inch
Operating Temperature Range -5 to 50 °C
Humidity Tolerance 5% to 95% (non-condensing)
Cooling Fanless
Acoustic Noise

Cloud Management & Licensing
Management Platform Cisco Meraki Dashboard
Management Protocols SNMP, Syslog, DHCP
Cloud Licensing Requirement Separate license required
Included Cloud Features Remote monitoring, alerts, configuration, real-time diagnostics
Software Updates Automatic via cloud
Firmware Upgrade Method Cloud Push
