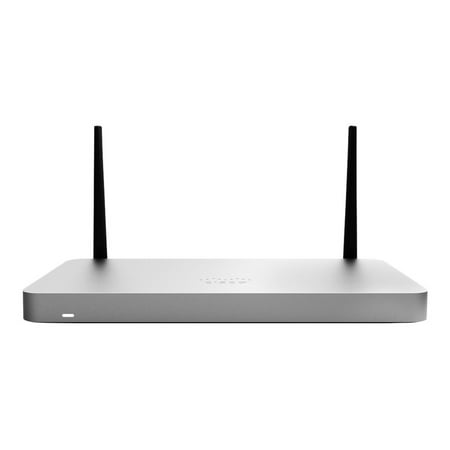

Cisco Meraki MX68CW Security Appliance with LTE & 802.11ac

VENDOR: CISCO Mfg Part#: MX68CW-HW-NA UPC#: 810979015567
  • Meraki MX68CW LTE & 802.11ac Router/Sec
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,399.31
$1,399.31
Sale Sold out
MSRP: $2,294.80
Shipping calculated at checkout.
  • Cloud-managed desktop security appliance with built-in LTE modem and SIM slot
  • Dual-radio 802.11ac Wave 2 wireless supporting 2.4 GHz and 5 GHz bands
  • 10 ports including 2 WAN, 8 LAN, and 2 PoE+ for flexible deployment
  • Firewall throughput up to 450 Mbps and VPN throughput up to 200 Mbps
  • Supports up to 50 users and 4 SSIDs; includes IDS/IPS, VLAN, traffic shaping, and load balancing
  • External detachable antennas, mounting hardware, and SIM card ejector included

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Combines firewall, VPN, wireless routing, and LTE backup in a single integrated solution
  • Cloud-managed for simplified remote operations and reduced on-site IT dependency
  • Backed by a limited lifetime warranty with next-day hardware replacement for peace of mind

Product Overview

The Cisco Meraki MX68CW is a cloud-managed security appliance offering robust enterprise-grade networking with LTE failover and 802.11ac Wave 2 Wi-Fi. It supports up to 50 users with throughput of up to 450 Mbps firewall and 200 Mbps VPN, combining wired and wireless technologies via multiple Gigabit Ethernet ports including PoE+ support. With advanced features such as IDS/IPS, VLAN, and application-aware traffic shaping, the MX68CW is tailor-made for small to mid-sized branch deployments. Cloud-managed functionality allows for seamless remote administration, while a lifetime warranty and hardware replacement assure long-term reliability and reduced operational cost.

Specifications

Product Overview
Product Type Security appliance
Form Factor Desktop
Built-in Devices Modem
Weight 2.6 lbs
Power Consumption (Operational) 89 Watt
Power Provided 100 Watt
Power Device External power adapter
Included Accessories Mounting kit, SIM card ejector
Cables Included 2 x network cable
Installed Qty 1
Max Supported Qty 1

Wireless Features
Wi-Fi Standard 802.11ac Wave 2 (Wi-Fi 5)
Frequency Bands 2.4 GHz, 5 GHz
Antenna Configuration 2 external detachable antennas
Wireless Modes Access point, client
Max Configured SSIDs 4
Cellular Protocol LTE

Compliance & Origin
Country of Origin TAIWAN
TAA Compliant Yes
Compliance Standards IEEE 802.11a/b/g/n/ac Wave 2, IEEE 802.1x, IEEE 802.3at

Advanced Security Features
Firewall Throughput 450 Mbps
VPN Throughput 200 Mbps
Advanced Security Throughput 300 Mbps
Security Features Firewall protection, content filtering, IDS, IPS, 802.1x authentication
VPN Support IPSec VPN, VPN client, MPLS VPN
Threat Management Layer 7 application visibility and control, traffic shaping, malware protection

Interfaces
Total Ports 10
WAN Ports 2 x 1000Base-T - RJ-45
LAN Ports 8 x 1000Base-T - RJ-45
PoE+ Ports 2 x 1000Base-T - RJ-45 (PoE+)
USB Ports 1 x USB 2.0 - Type A
Expansion Slots 1 SIM card
PoE Support PoE+
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b/g/a/n/ac Wave 2
Data Transfer Rate 1.3 Gbps
Network / Transport Protocols L2TP, IPSec, PPPoE, DHCP
Routing Protocols Static IP routing, MPLS

Physical & Environmental
Dimensions (W x D x H) 11.2 in x 7 in x 1.1 in
Minimum Operating Temperature 32 °F
Maximum Operating Temperature 104 °F
Operating Humidity Range 5 - 95% (non-condensing)

Cloud Management & Licensing
Cloud-Managed Yes
Remote Management Protocol HTTP
Management Interface Meraki Dashboard (cloud-based)
License Requirement Separate subscription license required for cloud management
Included Cloud Features Zero-touch provisioning, automatic firmware updates, remote monitoring and management
