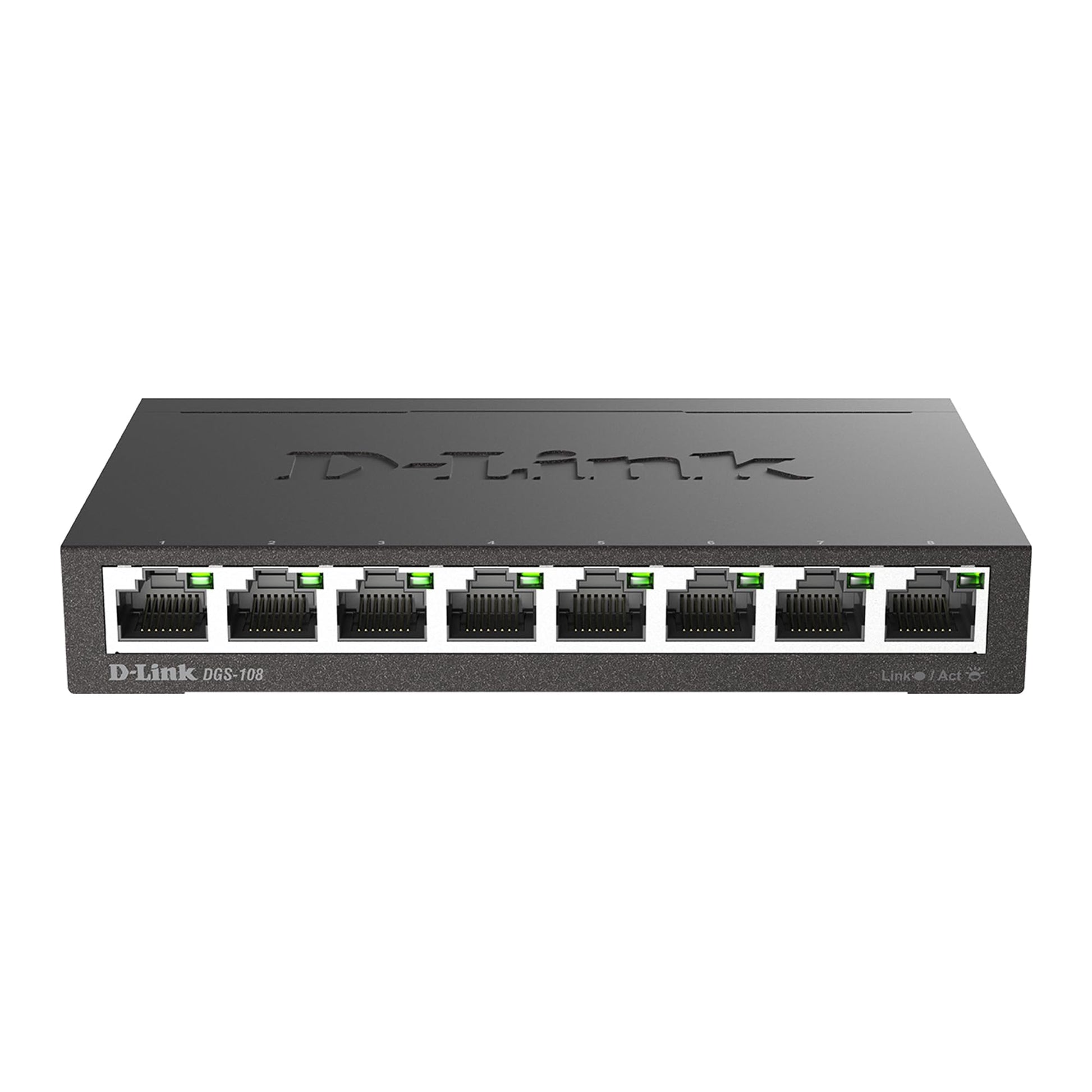

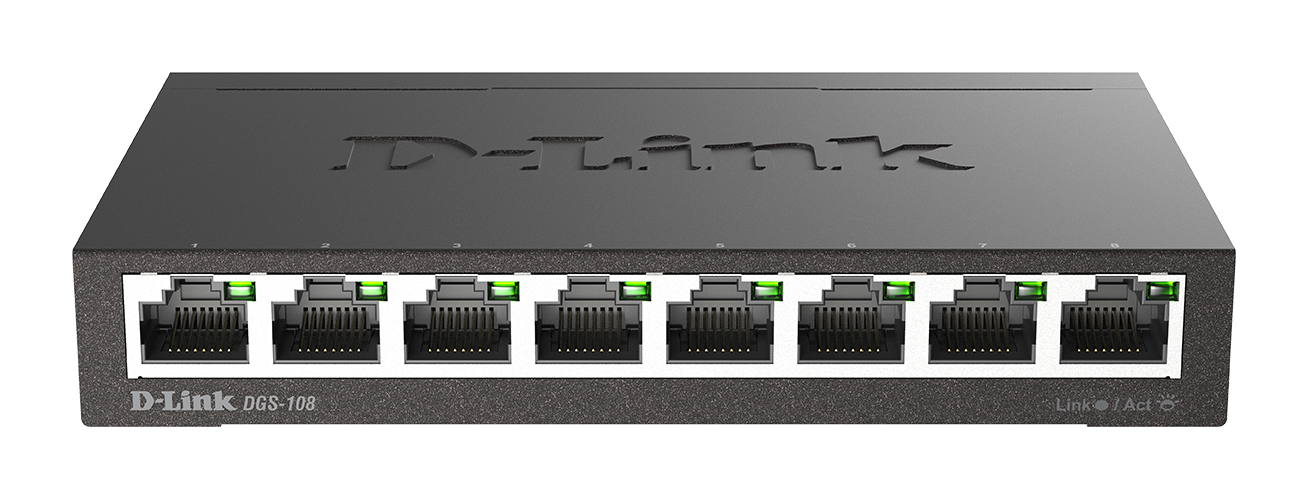

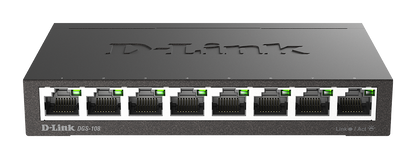

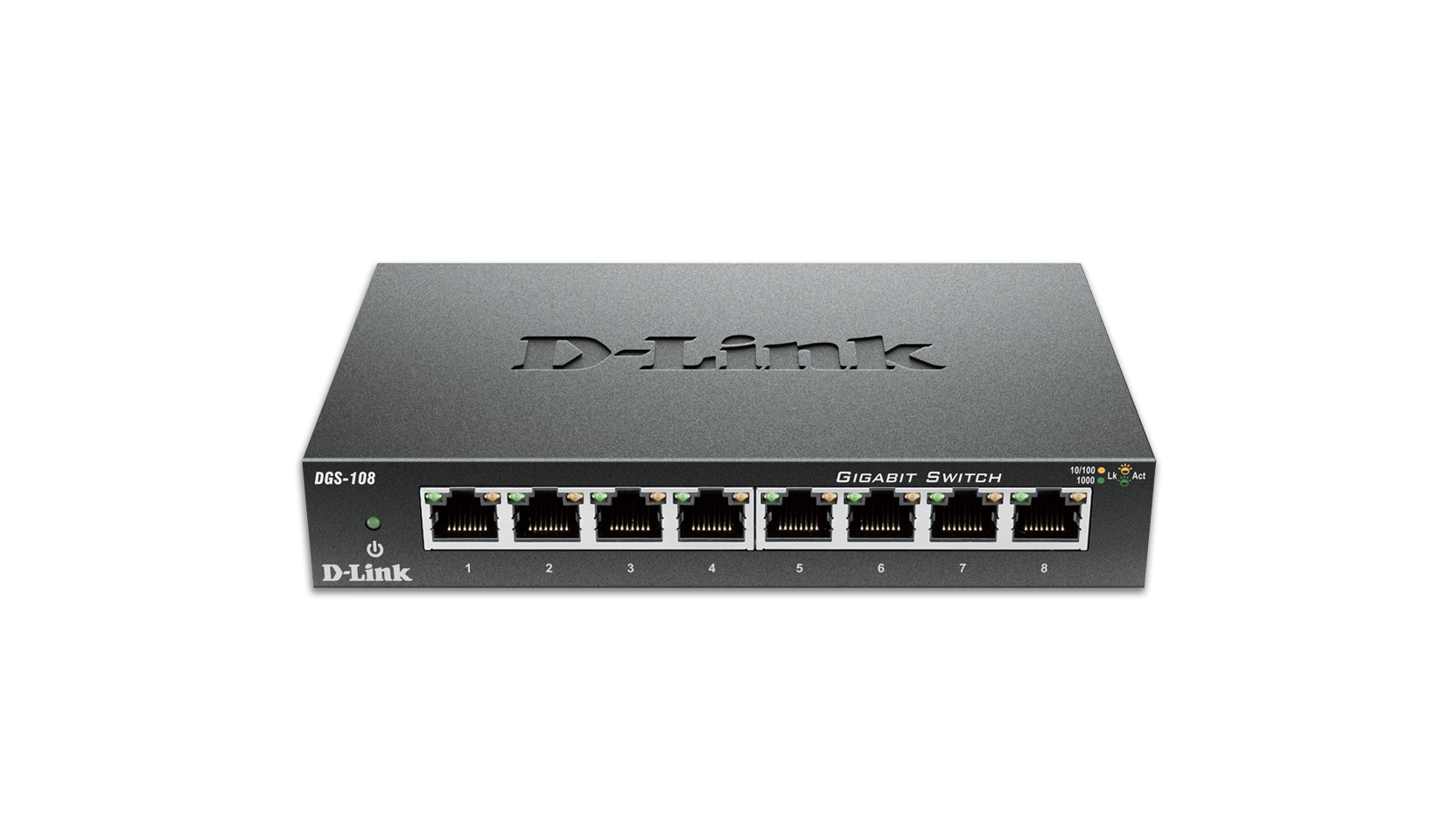

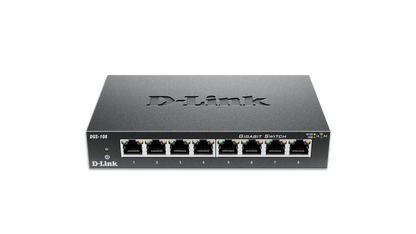

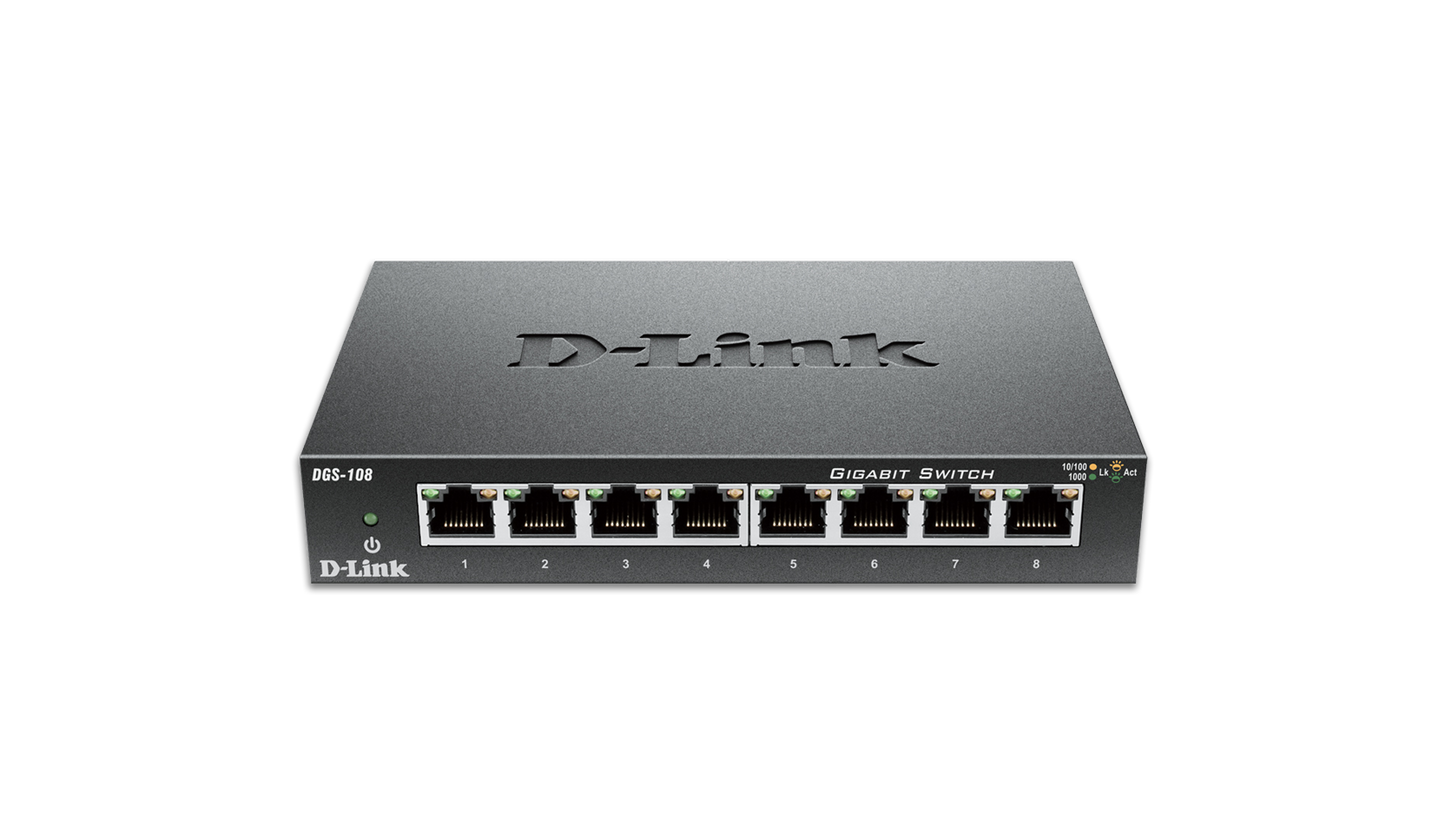

D-Link DGS-108 8-Port Unmanaged Gigabit Desktop Switch

VENDOR: D-LINK Mfg Part#: DGS-108 UPC#: 790069285998
1 3
Photo is for illustration purposes only. Actual product may be different.
$23.65
$23.65
Sale Sold out
MSRP: $39.99
Shipping calculated at checkout.
  • 8 Gigabit Ethernet ports with 10/100/1000 Mbps auto-negotiation
  • Supports IEEE 802.3, 802.3u, 802.3ab, 802.1p, and 802.3x standards
  • QoS with 802.1p and 4 priority queues for traffic optimization
  • Compact metal chassis with external form factor
  • Supports Jumbo Frames up to 9.6KB and IGMP Snooping
  • Includes 5-year warranty and is TAA compliant for government use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed 1 Gbps performance across 8 unused RJ-45 ports for efficient wired networking.
  • Supports advanced features like IEEE standard QoS and IGMP Snooping for improved media and multicast handling.
  • Built to last with durable metal housing, long warranty, and TAA compliance—ideal for demanding office environments.

Product Overview

The D-Link DGS-108 is a robust and user-friendly 8-port unmanaged Gigabit switch, ideal for users seeking a reliable networking solution without the complexities of advanced management. Built with a compact metal chassis, this switch supports data transfer rates up to 1 Gbps per port, promoting seamless bandwidth for high-speed networks. Its external form factor makes it easy to install in tight workspaces, and with auto-sensing ports, setup is effortless—simply plug and play.

Compatible with IEEE 802.3, 802.3u, 802.3ab, 802.1p, and 802.3x standards, the switch ensures interoperability across a broad range of network devices. Integrated Quality of Service (QoS) based on 802.1p with four queues allows prioritization of critical traffic. Additional features include jumbo frame support (9.6KB), IGMP Snooping for multicast optimization, and flow control for maintaining smooth performance.

Manufactured in Taiwan and TAA-compliant, the DGS-108 is suited for both commercial and government deployments and includes a 5-year warranty. It offers a practical and durable solution for expanding any wired network.

Specifications

Product Overview
Product Type Unmanaged Gigabit Switch
Form Factor Desktop (External)
Housing Material Metal
Mounting Options Desktop
Power Supply External power adapter
Power Consumption (Max) 3.9 Watts
Weight 0.48 kg (1.06 lbs)
Warranty 5 years

Wireless Features

Compliance & Origin
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
Certifications CE, FCC Class B, VCCI, cUL, BSMI
TAA Compliant Yes
RoHS Compliant Yes
Country of Origin Taiwan

Advanced Security Features
Quality of Service (QoS) IEEE 802.1p with 4 priority queues
IGMP Snooping Yes
Loop Detection Yes

Interfaces
Total Ethernet Ports 8
Port Type 10/100/1000BASE-T RJ-45
Auto MDI/MDI-X Yes
Data Transfer Rate Per Port 1 Gbps
Switching Capacity 16 Gbps
MAC Address Table Size 4,000 entries
Packet Buffer Memory 128 KB
Forwarding Modes Store-and-forward
Jumbo Frame Support 9.6 KB
Flow Control IEEE 802.3x Full-Duplex, Backpressure for Half-Duplex
Status Indicators Power, Link/Activity per port

Physical & Environmental
Width 197 mm (7.75 in)
Depth 114 mm (4.48 in)
Height 30.5 mm (1.2 in)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 90% (non-condensing)
Noise Level Fanless (0 dBA)
Cooling Type Passive

Cloud Management & Licensing
Management Interface Unmanaged (Plug and Play)
