Eaton Tripp Lite Series 1.9kW Single-Phase Local Metered Automatic Transfer Switch PDU, 2 120V L5-20P / 5-20P Inputs, 16 5-15/20R Outputs, 1U, TAA

VENDOR: EATON Mfg Part#: PDUMH20AT UPC#: 037332126665
1 3

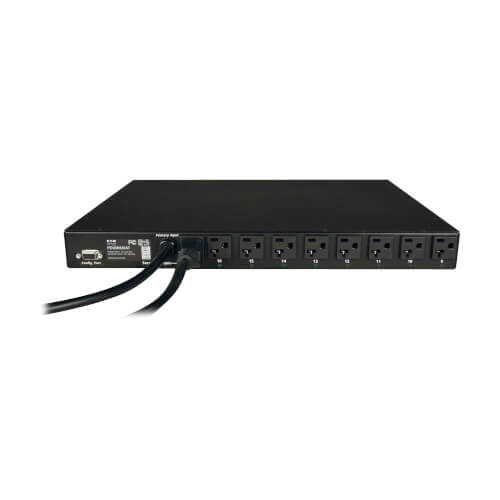

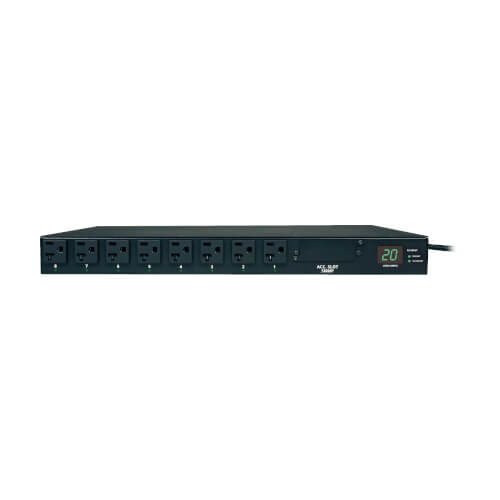

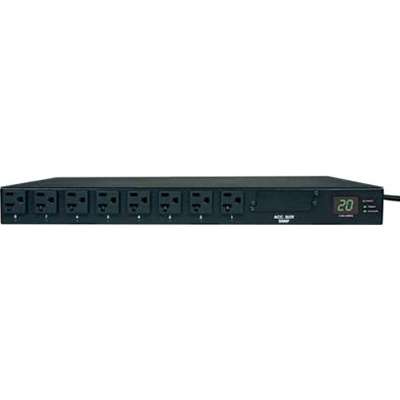

Photo is for illustration purposes only. Actual product may be different.
$536.54
$536.54
Sale Sold out
MSRP: $867.00
Shipping calculated at checkout.

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights

Product Overview

Eaton Tripp Lite Series 1.9kW Single-Phase Local Metered Automatic Transfer Switch PDU, 2 120V L5-20P / 5-20P Inputs, 16 5-15/20R Outputs, 1U, TAA - 120V 20A Automatic Transfer Switch (ATS) / Local Metered rack PDU (rPDU) (Agency de-rated to 16A continuous)

Specifications

Eaton Tripp Lite Series 1.9kW Single-Phase Local Metered Automatic Transfer Switch PDU, 2 120V L5-20P / 5-20P Inputs, 16 5-15/20R Outputs, 1U, TAA
Power / Device Type Power Distribution Unit
Power Device / Form Factor Rack-Mountable
Power Device / Form Factor 1U
Voltage Output 120V
Power / Voltage Required 120V
Power / Provided (W) 1.9 KW
Interfaces & Connections (2) NEMA 5-20P; (2) NEMA L5-20P;(16) 5-15/20R
Input Connector(s) (2) NEMA 5-20P; (2) NEMA L5-20P
Output Connector(s) (16) 5-15/20R
Model PDUMH20AT
Width 17.5 Inch
Depth 14.5 Inch
Height 1.75 Inch
Service & Support Type 2-year limited warranty
Features 120V 20A Automatic Transfer Switch (ATS) / Local Metered rack PDU (rPDU) (Agency de-rated to 16A continuous)
COO TAIWAN
TAA compliance Yes
