| Product Type | Access point |
| Model | AP5050D-WW |
| Form Factor | 2RU |
| Rack Height | 2U |
| Environment | Outdoor |
| Power Requirements | 802.3bt PoE++ (Class 6), or external power injector (sold separately) |
| Max Power Consumption | 34.0 Watts |
| Weight | 3.3 kg (7.3 lbs) |

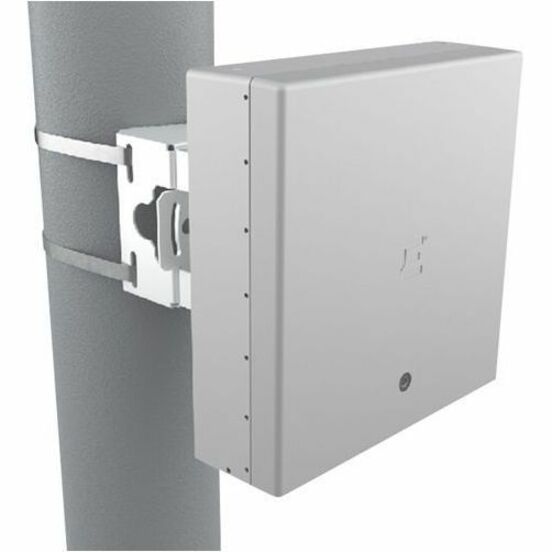

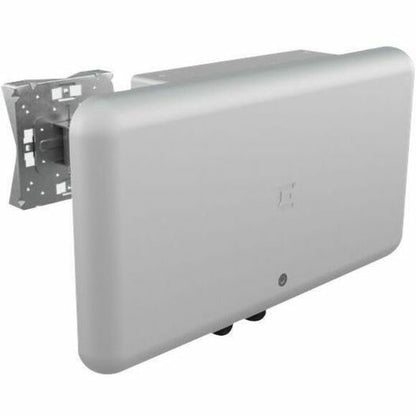

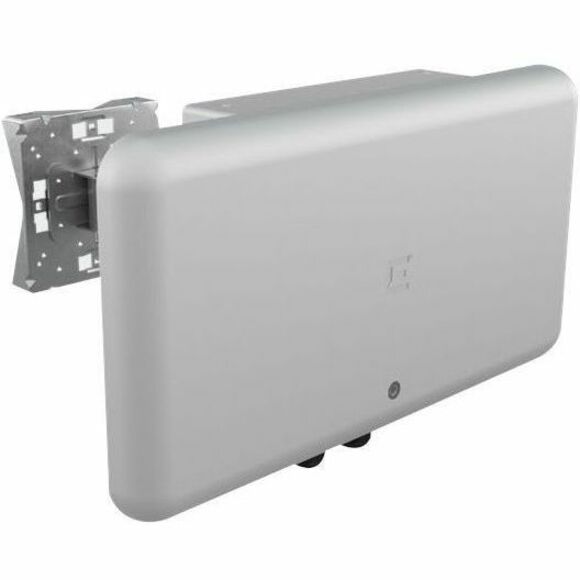

Extreme Networks AP5050D-WW Tri-Radio Outdoor WiFi 6E Access Point
Photo is for illustration purposes only. Actual product may be different.
Regular price
$3,473.40 USD
Regular price
Sale price
$3,473.40 USD
Unit price
per
MSRP: $4,999.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Tri-radio design supporting 2.4 GHz, 5 GHz, and 6 GHz bands
- 4x4:4 MIMO for high-performance wireless throughput
- Software-selectable 30° or 70° directional antennas
- Dual multirate Ethernet ports with support for Gigabit Ethernet
- Compliant with 802.11a/b/g/n/ac/ax and PoE++ standards (802.3at, 802.3bt)
- TAA-compliant construction for government-grade deployments
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers extended coverage and reduced interference in dense outdoor environments using directional, software-configurable antennas
- Ideal for future-proof network deployments with WiFi 6E support and tri-radio configuration
- Complies with TAA standards, making it suitable for federal and regulated industry projects
Product Overview
Outdoor Internal Directional Antenna Tri Radio WiFi 6E AP (4x44) 2.4 GHz 5GHz 6GHz Multirate Port Directional Antennas software selectable 30 degrees or 70 degrees. Mounting sold separately. Domain World SkuSpecifications
Product Overview
Wireless Features
| Wi-Fi Standards | Wi-Fi 6E (802.11ax); backwards compatible with 802.11a/b/g/n/ac |
| Radio Count | Tri-Radio |
| MIMO Type | 4x4:4 MU-MIMO per radio |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Spatial Streams | 4 per band |
| Antenna Type | Integrated internal directional antenna |
| Antenna Beamwidth | Software-selectable: 30° or 70° |
| Target Wake Time (TWT) | Supported |
| OFDMA | Supported for uplink/downlink |
| Band Steering | Yes |
| Client Load Balancing | Yes |
Compliance & Origin
| Country of Origin | TAIWAN |
| TAA Compliance | Yes |
| Certifications | UL, cUL, CB, FCC, CE, IC, ANATEL, TELEC, NOM |
| RoHS Compliance | Yes |
Advanced Security Features
| WPA Support | WPA3, WPA2-Enterprise, WPA2-Personal |
| Authentication | 802.1x, RADIUS, Captive Portal |
| Wireless Intrusion Detection System (WIDS) | Yes |
| Wireless Intrusion Prevention System (WIPS) | Yes |
| Content Filtering | Yes (via external management platform) |
| Rogue AP Detection | Yes |
| MAC Filtering | Yes |
| Network Access Control (NAC) | Supported via ExtremeControl |
Interfaces
| Networking Type | Ethernet |
| Data Transfer Rate | 5 Gbps |
| Data Link Protocols | 802.11a/b/g/n/ac/ax, Bluetooth, Gigabit Ethernet |
| Transport Protocol | Gigabit Ethernet |
| Port Count | 2 |
| Ethernet Ports | 1x 100/1000/2500/5000 Ethernet (Eth0); 1x 100/1000/2500 Ethernet (Eth1) |
| Power over Ethernet (PoE) | 802.3bt and 802.3at compliant |
| Console Port | 1x USB-C management port |
Physical & Environmental
| Width | 11.3 Inch |
| Depth | 19.1 Inch |
| Height | 3.4 Inch |
| Operating Temperature | -40°C to +65°C (-40°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Humidity | 10% to 95% (non-condensing) |
| IP Rating | IP67 |
| Enclosure Material | UV stabilized plastic |
Cloud Management & Licensing
| Management Platform | ExtremeCloud IQ & on-premises management (XIQ-SE) |
| Licensing Requirements | Cloud or on-prem licenses required |
| Included Cloud Features | Basic device onboarding and monitoring with ExtremeCloud IQ Connect |
