| Type | Layer 2/3 Ethernet Switch |
| Model | Extreme Networks VSP 7400-32C-AC-F |
| Form Factor | 1U Rack-mountable |
| CPU | 8-core processor |
| Installed RAM | 16 GB |
| Storage Capacity | 128 GB SSD |
| Power Supply | Single 750W AC PSU |
| Cooling | Six hot-swappable fans |
| Airflow Direction | Front to Back |
| Weight | 8.2 kg |
| Rack Mounting Kit | Included - 4-post |

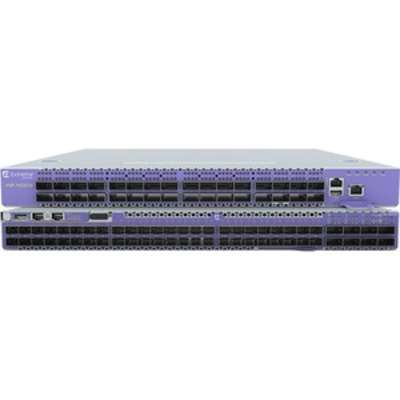

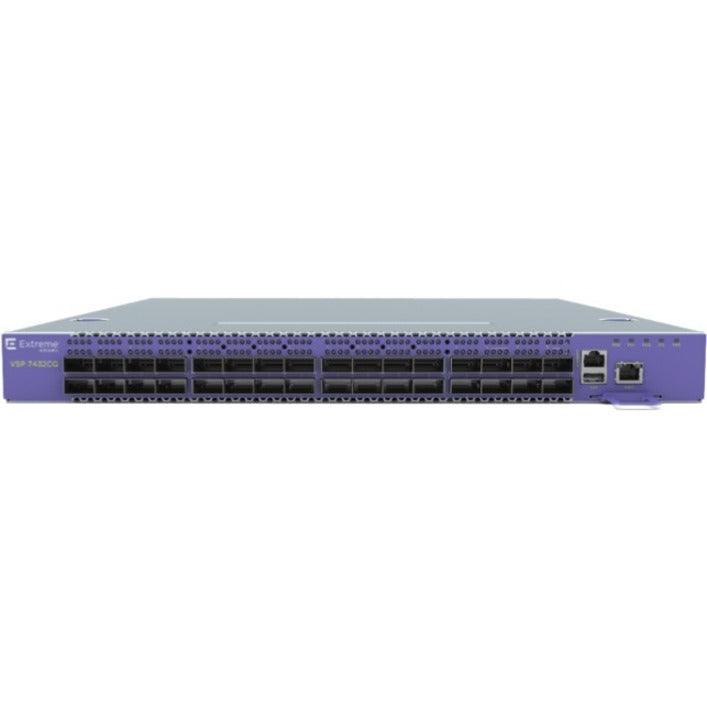

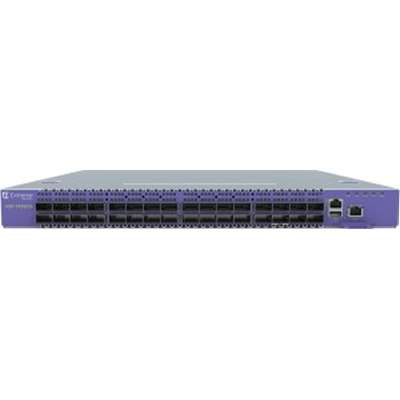

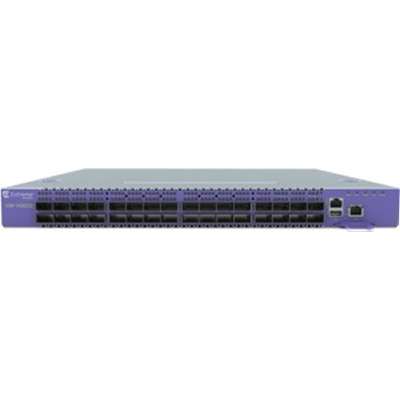

Extreme Networks VSP 7400 32C 100Gbps QSFP28 Switch
Photo is for illustration purposes only. Actual product may be different.
Regular price
$26,748.42
Regular price
Sale price
$26,748.42
Unit price
per
MSRP: $38,497.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 32 x 100Gbps QSFP28 ports for high-speed data connectivity
- Supports Layer 2 and Layer 3 routing protocols including IPv4 and IPv6
- Equipped with 8-core CPU, 16GB RAM, and 128GB SSD for optimized switching
- Remote management via SNMP and DHCP protocols
- Front-to-back airflow with six fans for efficient cooling
- 1U rack-mountable form factor with single 750W AC power supply
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- High port density and 100Gbps QSFP28 support enable scalable and future-proof data center networking.
- Advanced hardware with 8-core CPU, 16GB RAM, and onboard SSD ensures fast and efficient network operations.
- Thermal-efficient front-to-back airflow and robust build allow reliable performance in enterprise environments.
Product Overview
VSP 7400 32 x 100Gbps QSFP28 ports 8-core CPU 16GB RAM 128GB SSD Single 750W AC PSU six fans 4-post rack mount kit Front to Back Airflow - Wide range of port speeds for a range of connectivity options, from 1Gb to 100GbSpecifications
Product Overview
Wireless Features
| Wi-Fi Support |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | UL, cUL, CE, FCC Class A, ICES-003 |
| Compliant Standards | IEEE 802.1D, 802.1p, 802.1t, 802.1w |
Advanced Security Features
| Authentication Methods | RADIUS, PPP EAP TLS, PPP Extensible |
| Access Control | Port-based and MAC-based |
| Storm Control | Supported |
| ACL Support | Yes |
| Routing Protocols | OSPF, BGP4, RIP, PIM-SM, PIM-SSM, IPv4/IPv6 Static Routing |
Interfaces
| Total Ports | 34 |
| QSFP28 Ports | 32 x 100GbE QSFP28 |
| Management Ports | 1 x RJ-45 console port |
| Data Transfer Rate | Up to 100 Gbps per port |
| 10/100/1000BASE-T Ports | 1 |
| Media Layers Supported | Layer 2 and Layer 3 |
| PoE Support | No |
Physical & Environmental
| Width | 17.3 in (43.94 cm) |
| Depth | 22.4 in (56.9 cm) |
| Height | 1.7 in (4.32 cm) |
| Min Operating Temperature | 0°C |
| Max Operating Temperature | 45°C |
| Min Storage Temperature | -40°C |
| Max Storage Temperature | 70°C |
| Relative Humidity (Operating) | 10% to 95% non-condensing |
| MTBF | 778,316 hours |
Cloud Management & Licensing
| Management Interfaces | SNMP, DHCP, CLI, Web UI |
| Software Defined Networking (SDN) | Supported with Extreme Fabric Connect |
| Cloud Management | Optional via ExtremeCloud |
| License Model | Perpetual hardware license with optional add-ons |
