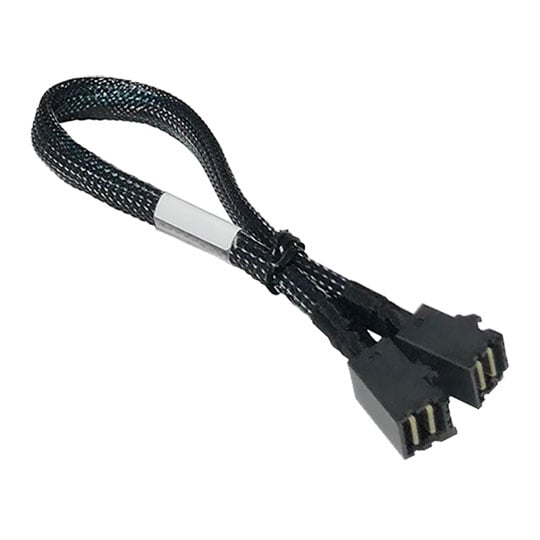

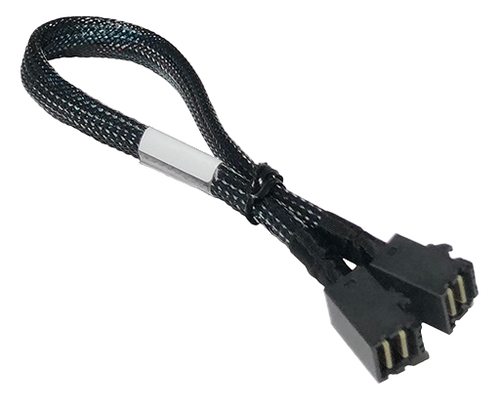

HighPoint 8643-8643-060 0.6M SFF-8643 to SFF-8643 NVMe HD-Mini SAS Cable

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: 8643-8643-060 UPC#: 643653864348
1 5
Photo is for illustration purposes only. Actual product may be different.
$29.00 USD
$29.00 USD
Sale Sold out
Shipping calculated at checkout.
  • 0.6-meter length for short-distance internal connections
  • SFF-8643 to SFF-8643 HD-Mini SAS configuration
  • Compatible with high-performance NVMe and SAS storage devices
  • SlimSAS (SFF-8654) and SFF-8643 connector types indicated
  • Manufactured in China
  • Not TAA-compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Purpose-built for high-speed storage systems using NVMe or SAS interfaces
  • Compact 0.6M length ideal for dense server environments with limited cabling space
  • Reliable construction from HighPoint Technologies ensures consistent signal integrity

Product Overview

The HighPoint 8643-8643-060 is a 0.6-meter HD-Mini SAS cable with dual SFF-8643 connectors, tailored for high-performance NVMe and SAS environments. Designed for internal system use, it ensures consistent high-speed and low-latency data transfers in space-constrained servers or workstations. Its interference-resistant design supports robust signal integrity, ideal for enterprise storage arrays. Although not TAA-compliant, it offers reliable construction and solid value for commercial applications.

Specifications

Product Overview
Product Type Internal HD-Mini SAS Cable
Cable Length 0.6 meters
Form Factor Internal
Weight
Power Requirements Passive cable, no external power required

Physical & Environmental
Cable Jacket Material PVC
Color Black
Connector Material Nickel-plated copper
Operating Temperature 0°C to 60°C
Storage Temperature -20°C to 85°C
Humidity Range (Operating) 10% to 85% non-condensing
RoHS Compliant Yes
Bend Radius 35 mm minimum

Cloud Management & Licensing
Cloud Management Support
Licensing Requirements
Included Cloud Features

Advanced Security Features
Built-in Encryption
Firewall Support
Malware Protection
IDS/IPS

Interfaces
Connector Type (End 1) SFF-8643 (Mini-SAS HD)
Connector Type (End 2) SFF-8643 (Mini-SAS HD)
Supported Interface NVMe / SAS
Data Transfer Rate Up to 12 Gbps per lane
Number of Lanes 4
Cable Type HD Mini-SAS Internal Cable
Connector Style Straight to Straight
Shielding Yes, foil and braid shielding
Signal Integrity Designed for high signal integrity and low crosstalk
Termination Type SFF-8643 to SFF-8643

Compliance & Origin
Country of Origin China
TAA Compliant No
Certifications RoHS
REACH Compliant Yes
UL Listed No

Wireless Features
Wi-Fi Supported
